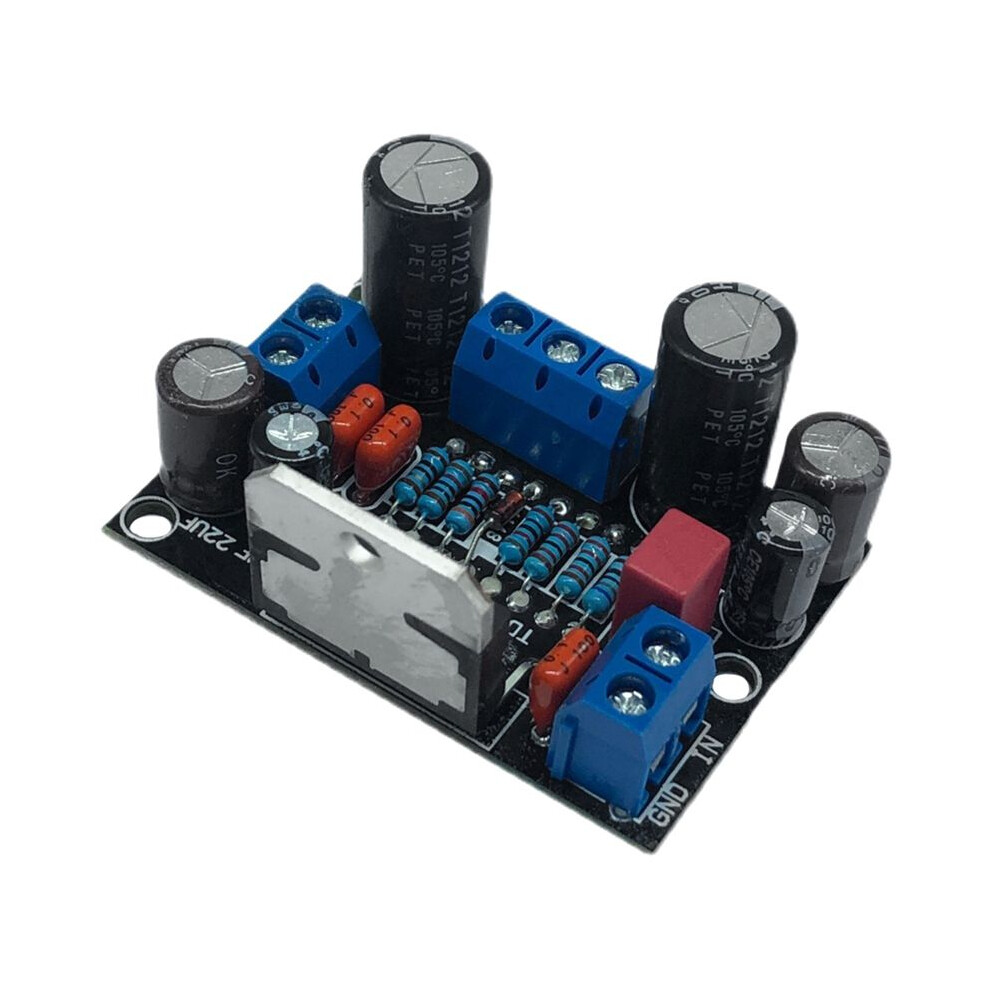

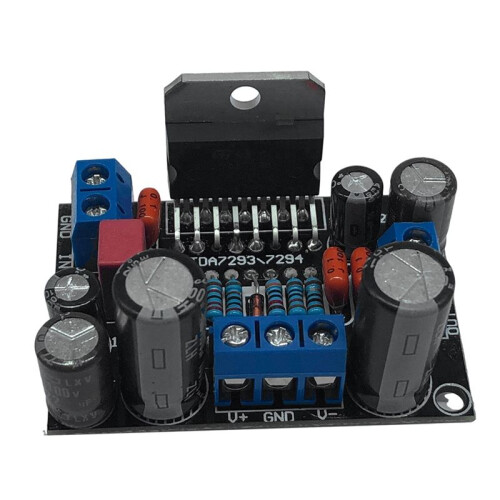

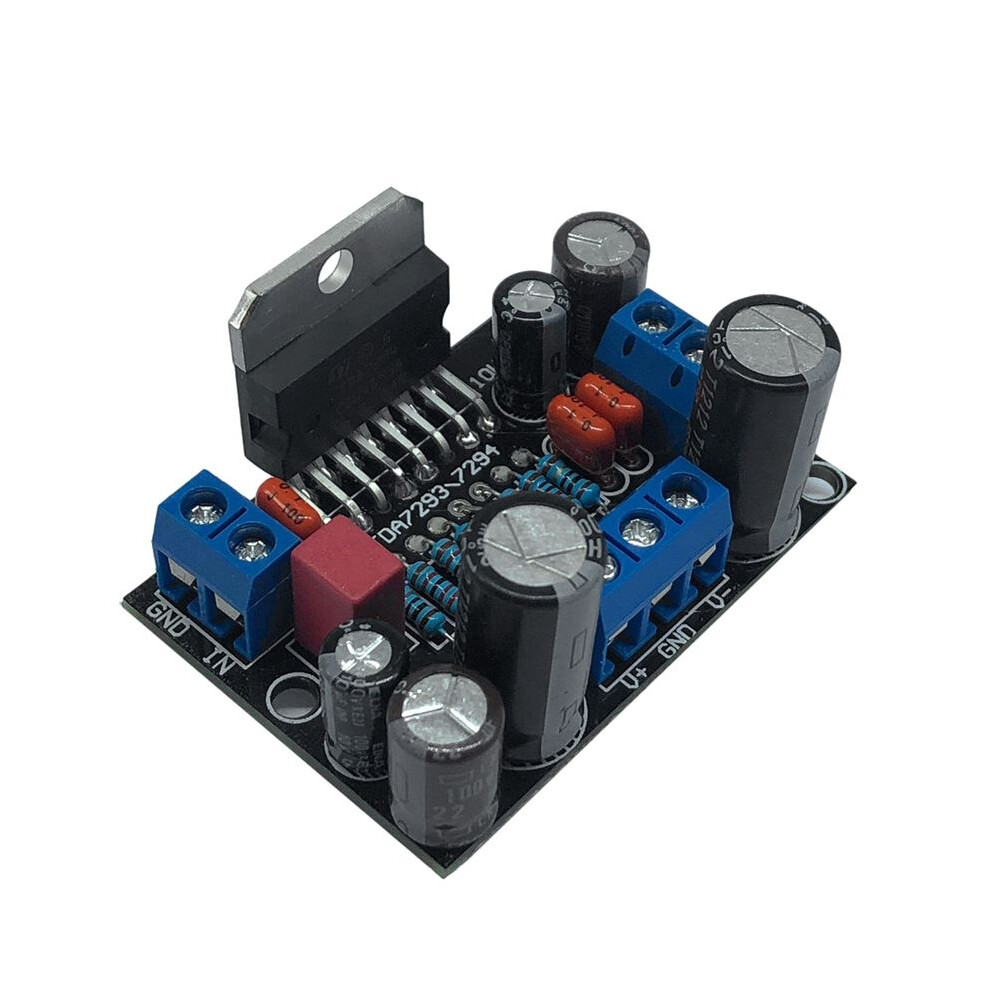

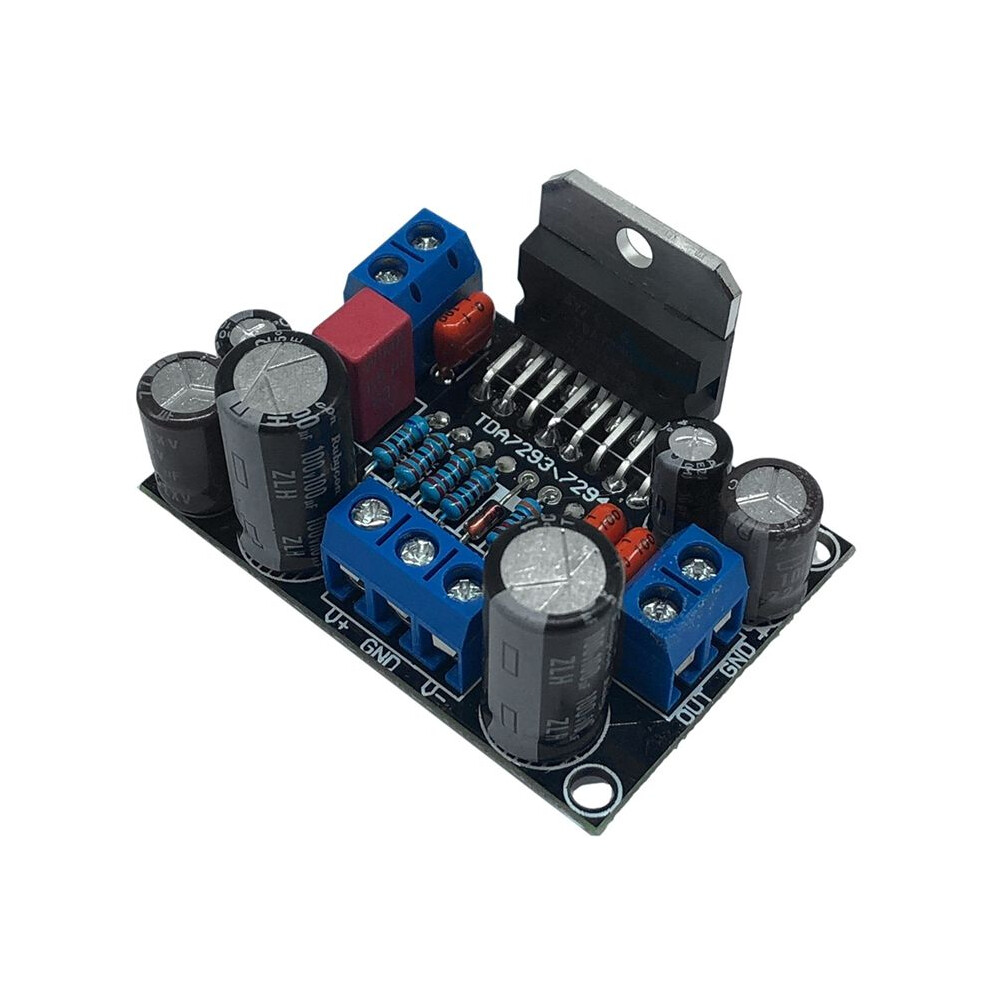

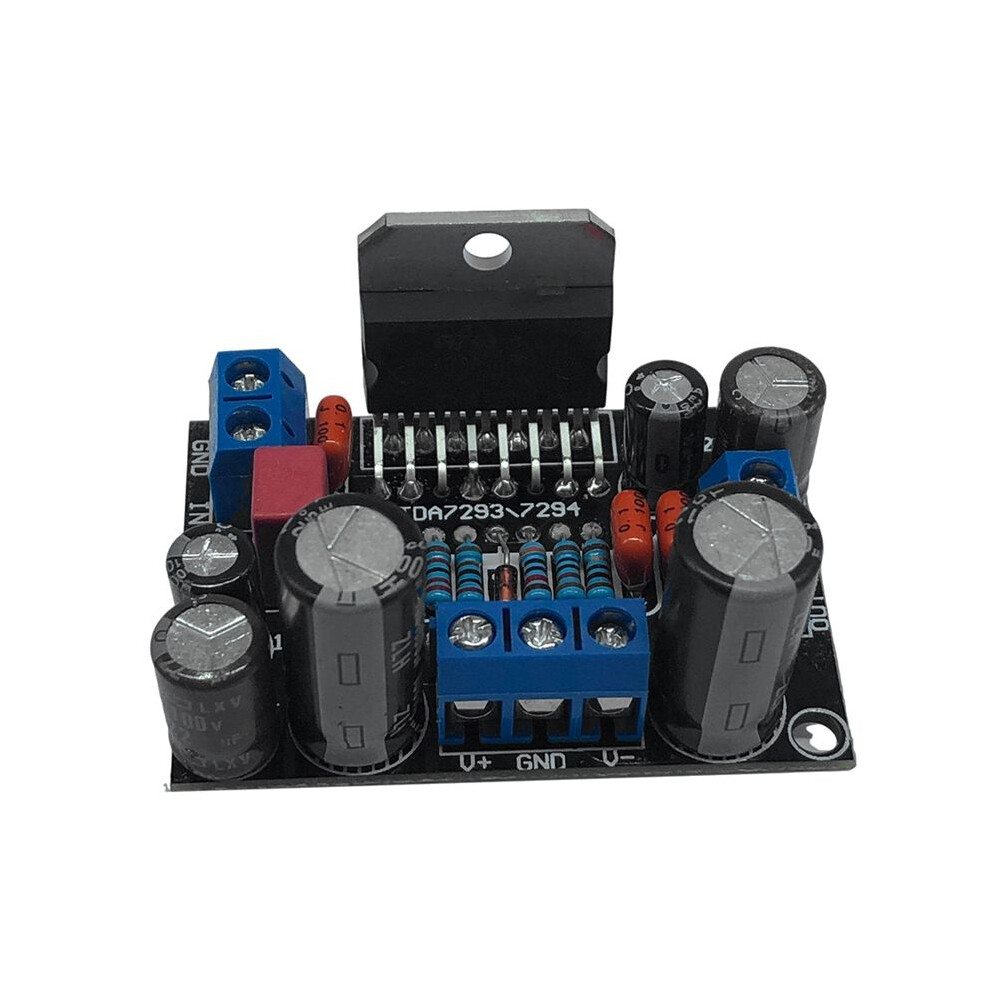

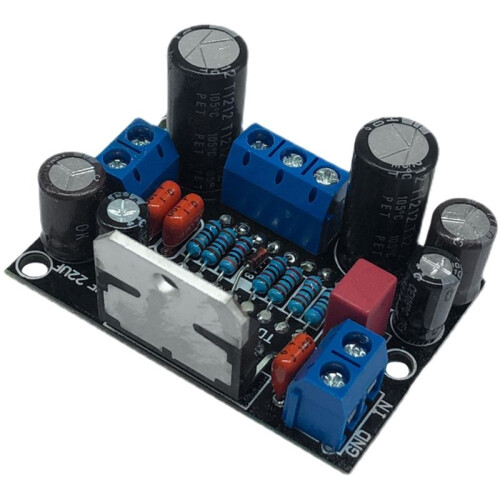

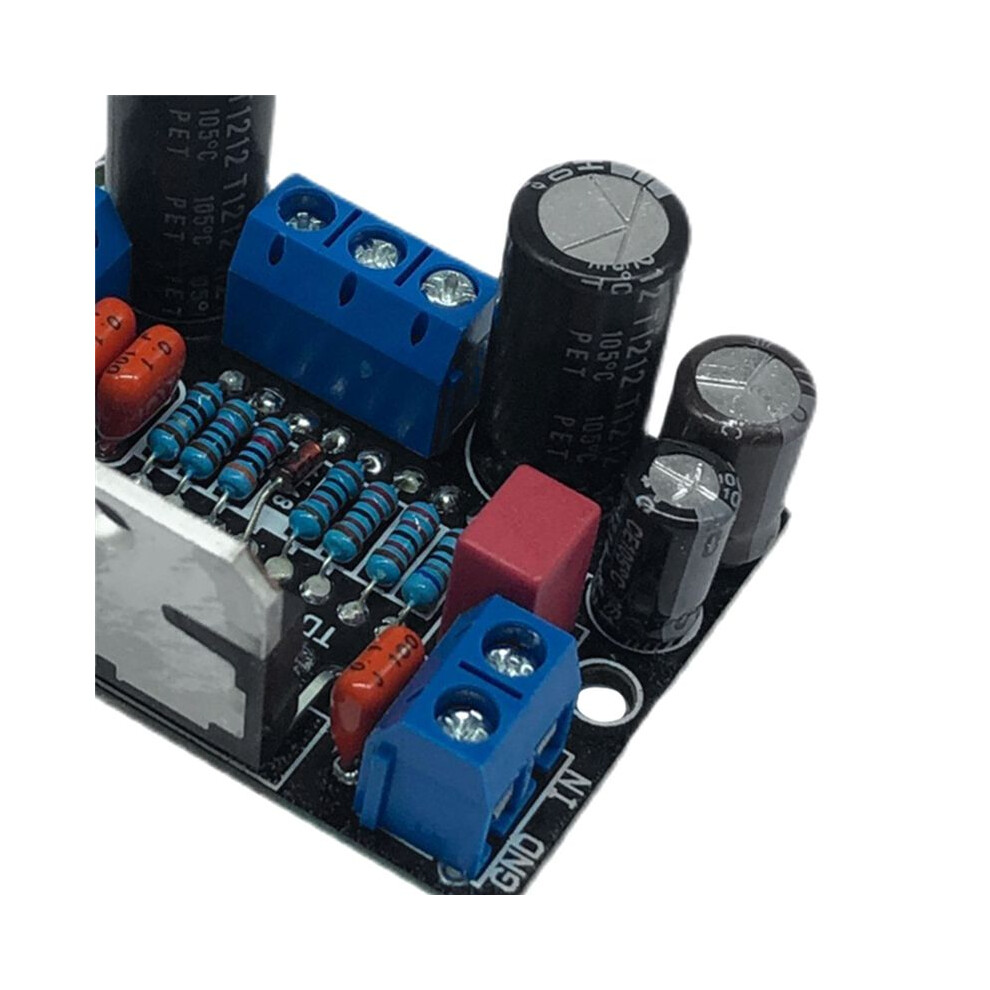

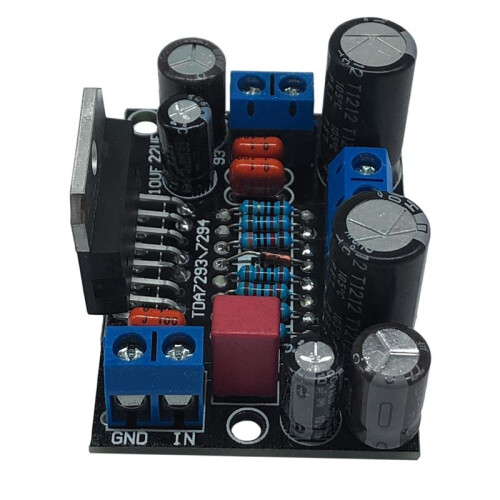

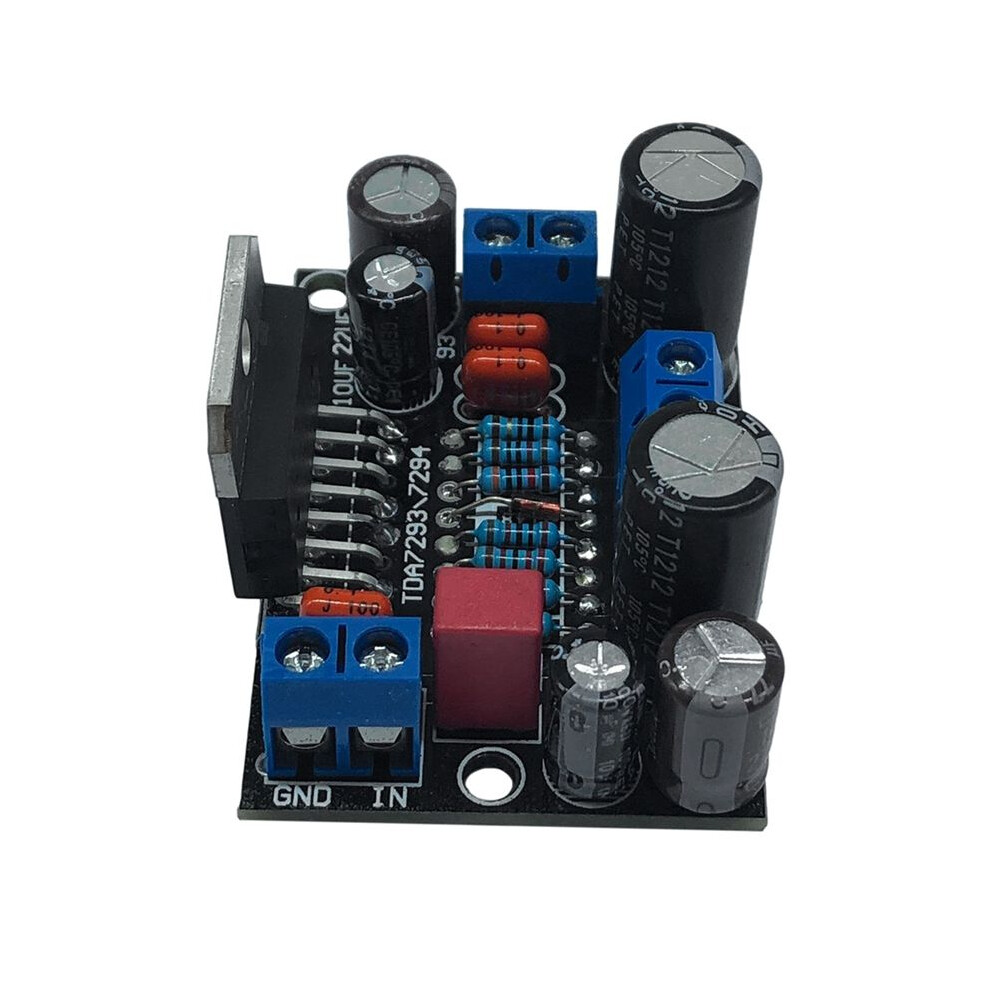

TDA7294 Mono 100W Power Amplifier Board Finished Board
Merke Tlily
Ny
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 127,000 anmeldelser med vurderingen “Utmerket”
134,76 kr
196,02 kr
31 % rabatt!
GRATIS levering
1%
Tjen 1,35 kr med én gang
Les mer
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | lør 27. - tir 30. jun
Solgt av: CNNOTEPAD
Returer: 30 dager
180 dagers betalingsbeskyttelse
Beskrivelse og detaljer
Sammendrag
- 1. The noise of the switch is small and will not have too much impact on the speaker. It is recommended to add a horn protection circuit. The horn protection circuit can not only eliminate the impact noise of the power amplifier switch machine, but also avoid the output DC burning the horn when the power amplifier is damaged.
- 2. The bottom noise is small. Zero floating small, do not need to do any debugging after installation, the output zero drift voltage will generally not exceed 50mv, and is relatively stable.
- 3. Free debugging. As long as the connection is correct, no one is wrong, basically it is a success, no need to do any debugging, beginners also have a very high success rate.
- TDA7294 Finished board
- Amplifier board
TDA7294 Mono 100W Power Amplifier Board Finished Board Beskrivelse
1. The noise of the is small and will not have too much impact the speaker. It is recommended to add a horn protection circuit. The horn protection circuit can not only eliminate the impact noise of the power amplifier machine, but also avoid the output burning the horn when the power amplifier is damaged.
2. The bottom noise is small. Zero floating small, do not need to do any debugging after installation, the output zero drift voltage will generally not exceed 50mv, and is relatively stable.
3. Free debugging. As long as the connection is correct, no one is wrong, basically it is a success, no need to do any debugging, beginners also have a very high success rate.
Note:
1.2SC5200 + ZSA1943 are disassemble parts,but in good condition.
2.The PCB board has change to black, but the function is same.
Operating voltage: Dual 10 - 45V recommended Dual 35V
Rated output power: 100W(4 Ohm 35V)
Maximum output power: 150W (4 Ohm 45V) enormous heat, is not recommended
PCB size: 30 x 50 x 35mm
Pitch: 5.08mm
Hole distance between two power tube: 47mm
color:As shown
Material:PCB
Package Contents:
1 x Amplifier board
Detaljer
| OPC | PTPSHQV |
|---|---|
| Merke | Tlily |
| Koder | 4714120388677 (EAN) |
Produktdata
| Height | 2cm |
|---|---|
| Width | 8cm |
| Length | 10cm |
| Weight | 0.0285kg |
| Colour | As shown |
| Material | PCB |
