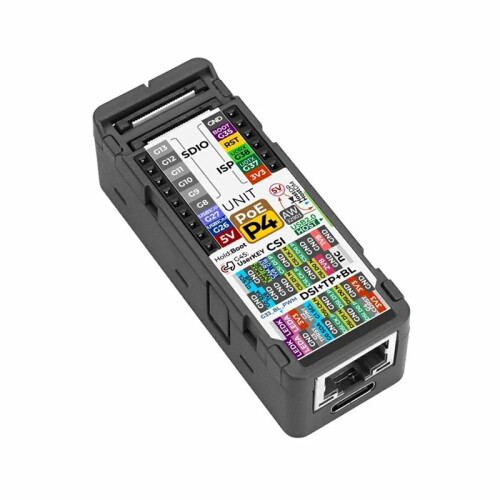

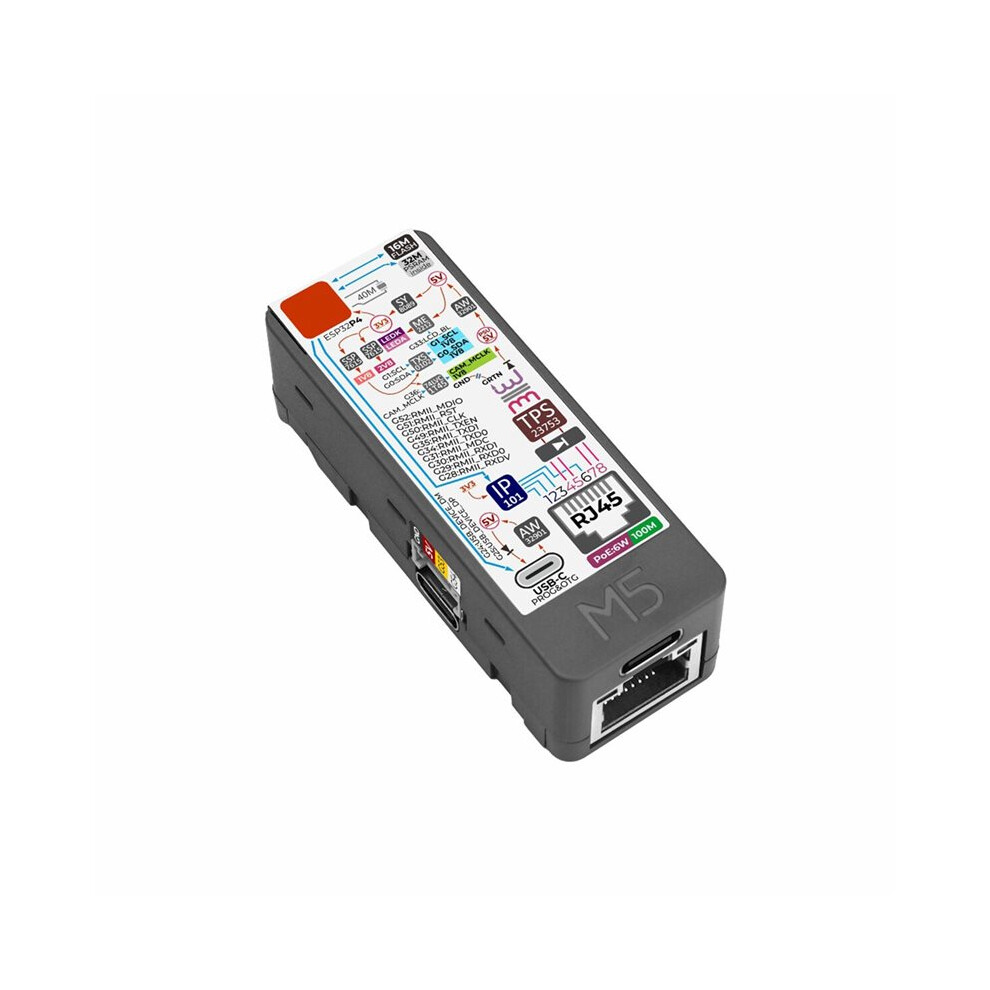

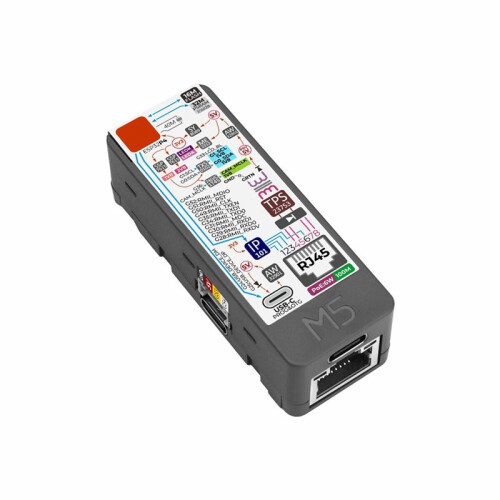

Unit PoE-P4 with ESP32-P4 PoE Ethernet Embedded Controller IP101GRI Ethernet PHY Support 10/100 Mbps Communication

Unit PoE-P4 with ESP32-P4 PoE Ethernet Embedded Controller IP101GRI Ethernet PHY Support 10/100 Mbps Communication Beskrivelse

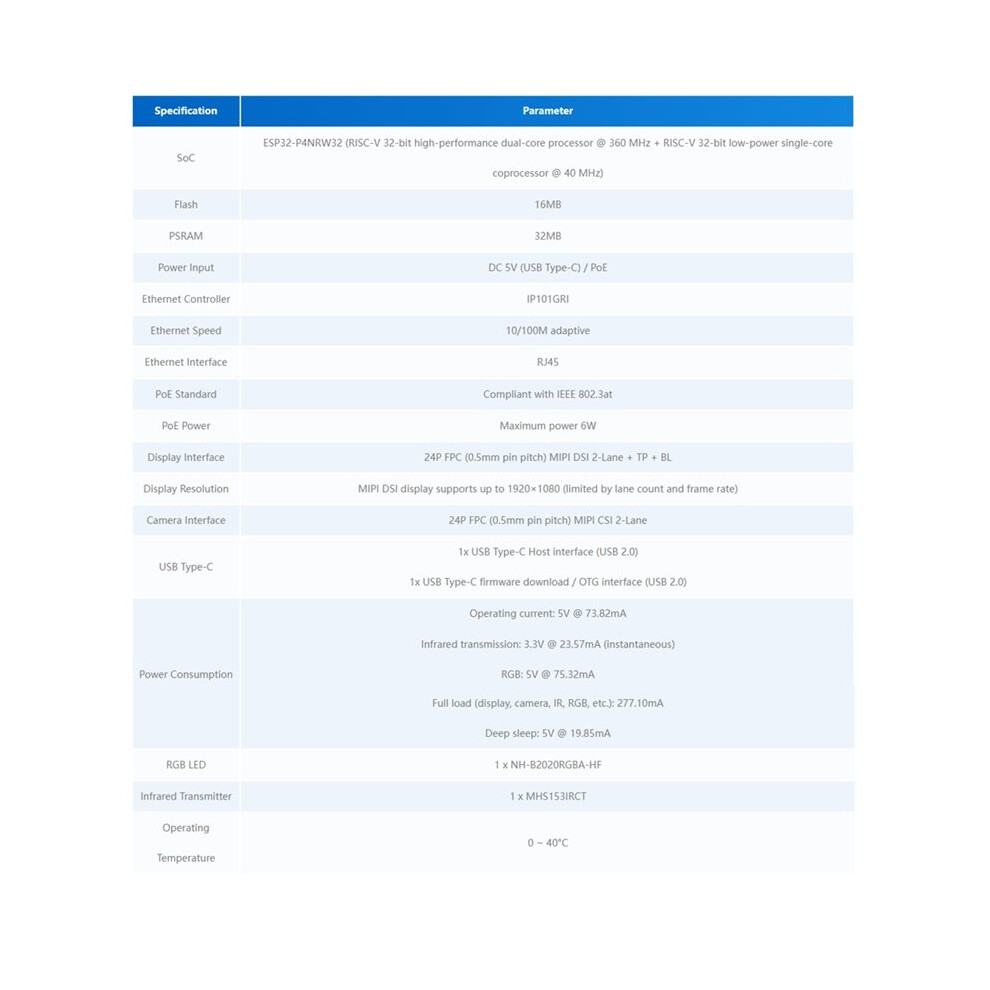

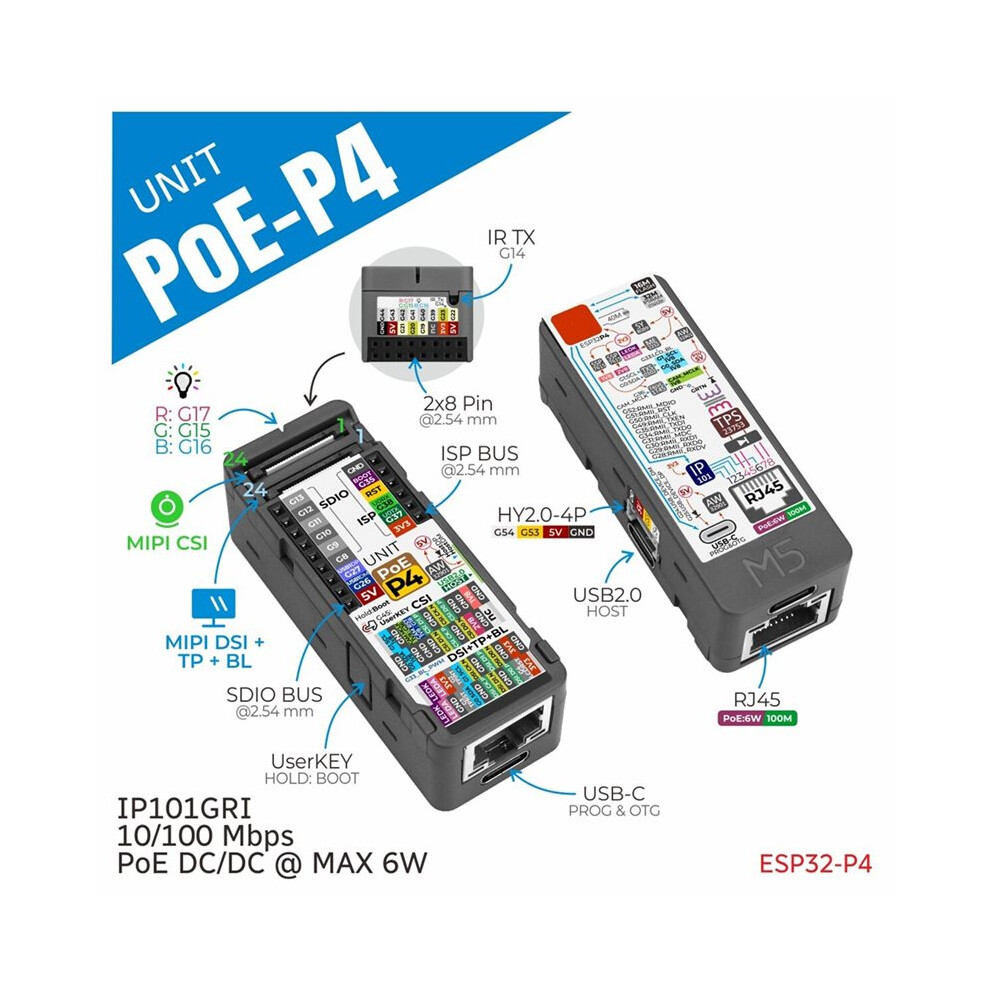

Unit PoE‑P4 is a high‑performance PoE Ethernet embedded controller powered by the ESP32‑P4 SoC (RISC‑V 32‑bit dual‑core @ 360MHz + LP single‑core @ 40MHz). It integrates 16MB Flash and 32MB PSRAM, and features the built‑in IP101GRI Ethernet PHY supporting 10/100 Mbps communication.
The device also supports PoE power delivery with a maximum output of 6W, and includes an onboard DC‑DC converter to supply system power, greatly simplifying power wiring in practical applications.

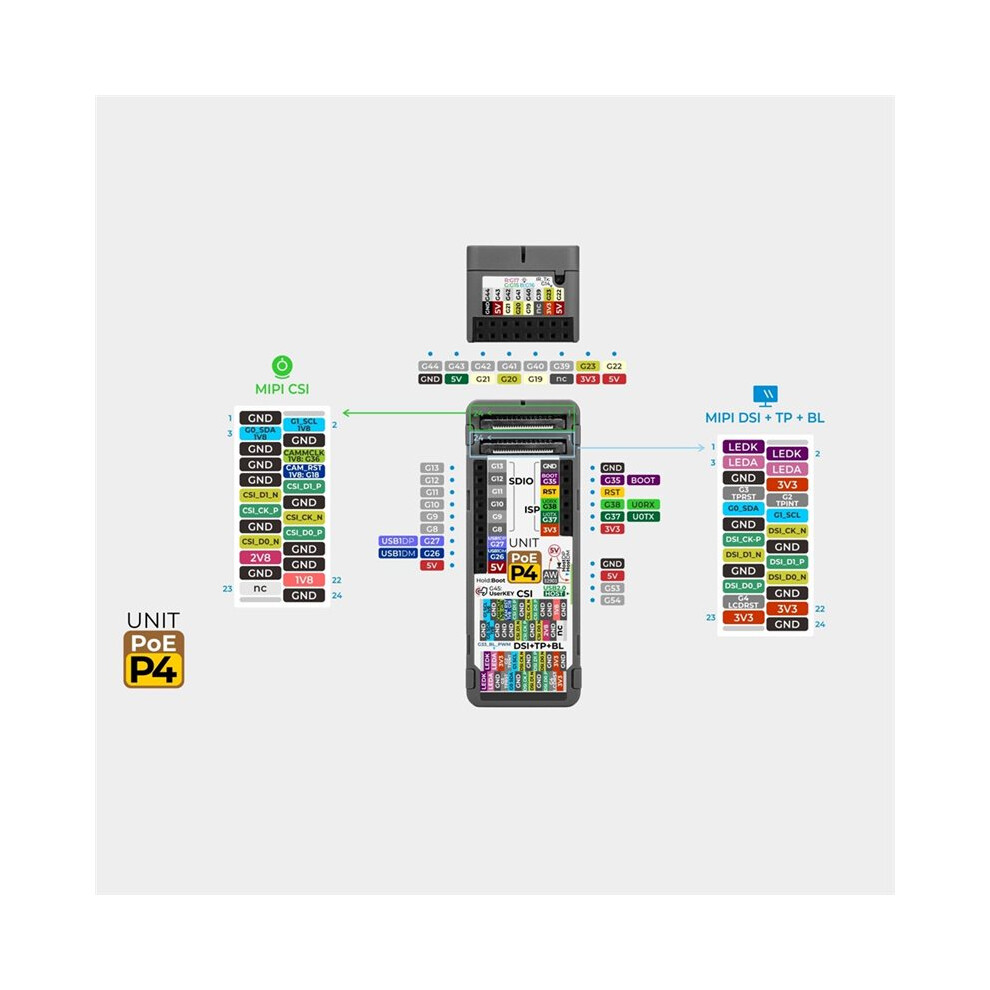

It is equipped with a 24P FPC display expansion interface (MIPI + TP + BL) and a 24P FPC camera interface (MIPI CSI), supporting high‑resolution display output and image capture.

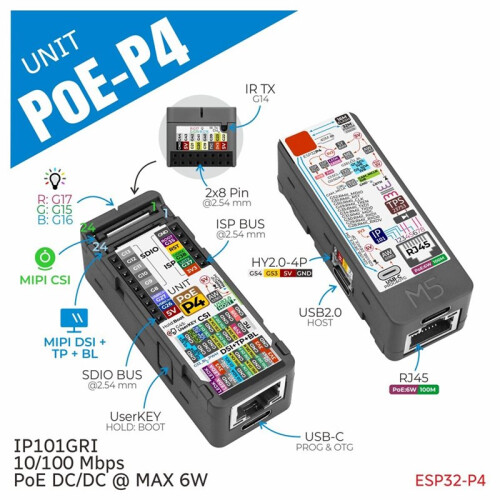

It has a USB Type‑C Host (USB 2.0) port for connecting U disks, HID devices, and other peripherals; one USB Type‑C (USB 2.0) port supporting OTG and firmware download for debugging. It has a Hat expansion interface, SDIO & ISP IO expansion interfaces, and a Grove interface, enabling flexible connection to a wide range of sensors and peripherals.
The device also integrates an RGB indicator LED, an infrared transmitter circuit, and a user button to support status indication, local interaction, and infrared signal transmission. It is ideal for applications such as industrial HMI, PoE terminals, vision acquisition nodes, home controllers, and computing devices.

ESP32-P4 main controller:
16MB Flash + 32MB PSRAM
Peripheral interfaces:
1x 24P FPC camera interface: MIPI CSI 2‑Lane
1x 24P FPC display expansion interface: MIPI 2‑Lane + TP + BL

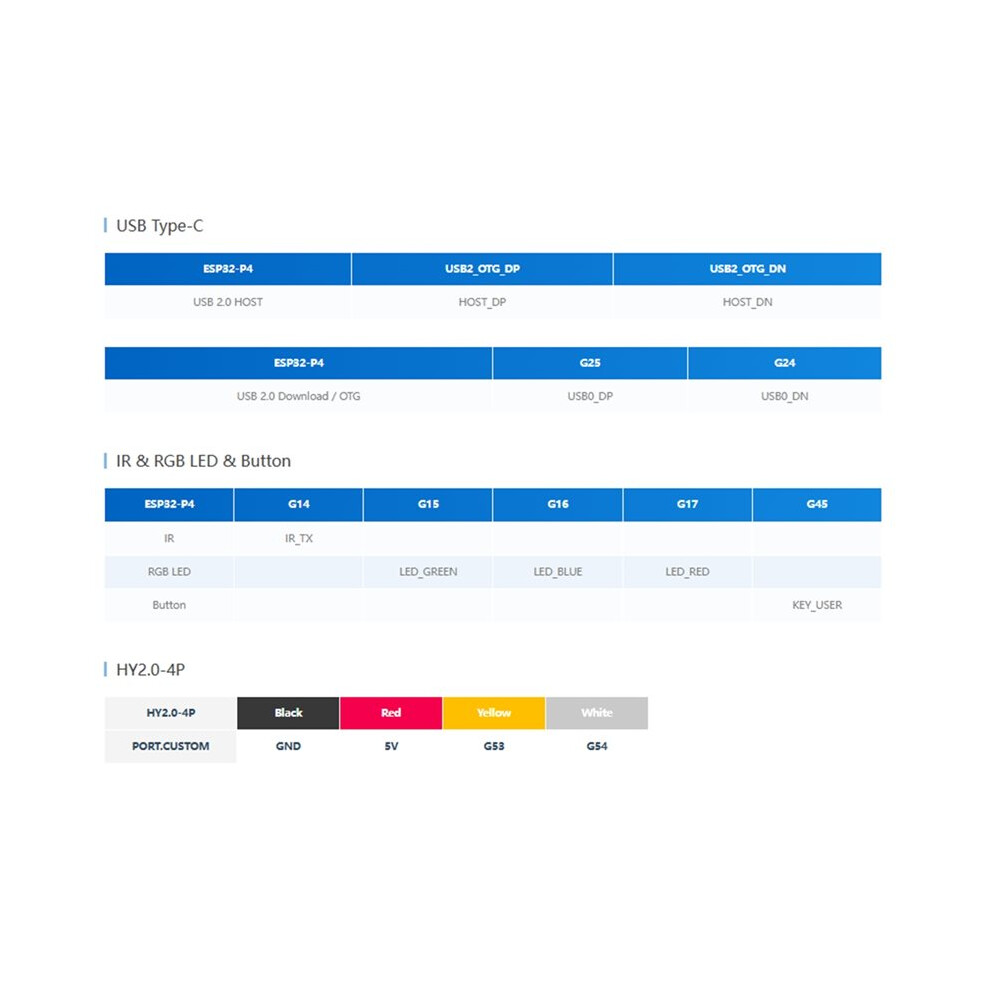

1x USB Type‑C Host interface (USB 2.0)
1x USB Type‑C firmware download / OTG interface (USB 2.0)
Ethernet:
Integrated IP101 10/100M Ethernet PHY chip
Supports PoE (active Ethernet) power supply, enabling data transmission and power delivery over a single Ethernet cable
Human‑machine
