USB Camera Module 2MP Dual OS02G10, 62mm Baseline, Synchronized Frame Output, UVC Plug & for Robot/3D Vision

USB Camera Module 2MP Dual OS02G10, 62mm Baseline, Synchronized Frame Output, UVC Plug & for Robot/3D Vision Beskrivelse

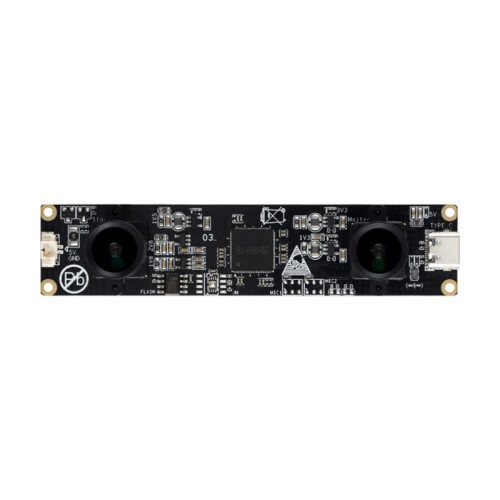

Unlock the world of 3D vision with this professional stereo camera module. It integrates two OS02G10 sensors fixed at a precise 62mm baseline, enabling them to capture perfectly synchronized image frames simultaneously.
This is essential for depth calculation, 3D reconstruction, and robot navigation. With UVC compliance, it works instantly upon plugging into any USB host.
Precise Stereo Vision Foundation: The fixed 62mm baseline provides the optimal foundation for accurate depth perception and distance measurement algorithms.
Perfectly Synchronized Output: Both cameras capture and output images in perfect sync within the same frame, eliminating timing discrepancies that cripple stereo vision accuracy.
Ultra-Low Distortion Optics: Features a high-quality lens with <0.4% distortion each camera, ensuring that the captured images truly the scene for reliable and accurate 3D processing.

UVC Plug & Simplicity: No complex drivers needed. It's compatible with for Windows, Linux, Android, and for Raspberry Pi out-of-the-box, allowing you to focus development.
Compact & Integrated Design: All components are integrated into a single, rigid module, ensuring the alignment between the two cameras remains stable and precise over .

Technical Specifications:
Sensors: Dual OS02G10 (1/2.9-inch each)
Resolution: 2 Megapixels per sensor
Combined Output Resolution: 3840x1080 (Dual 1920x1080 side-by-side)
Interface: USB 2.0 Type-C
Frame Rate: to 30 FPS (in MJPG format)
Field of View: 92(D) / 84(H) / 54(V)
Length: 2.88mm
Baseline: 62mm
Distortion: < 0.4%
Operating Voltage: 5V 5%

Recommended Applications:
Robotics Navigation and Obstacle Avoidance
AI 3D Depth Sensing and Mapping
Stereoscopic Vision and Distance Measurement
SLA
