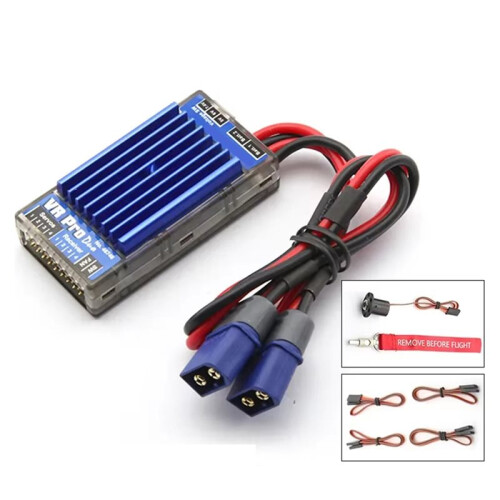

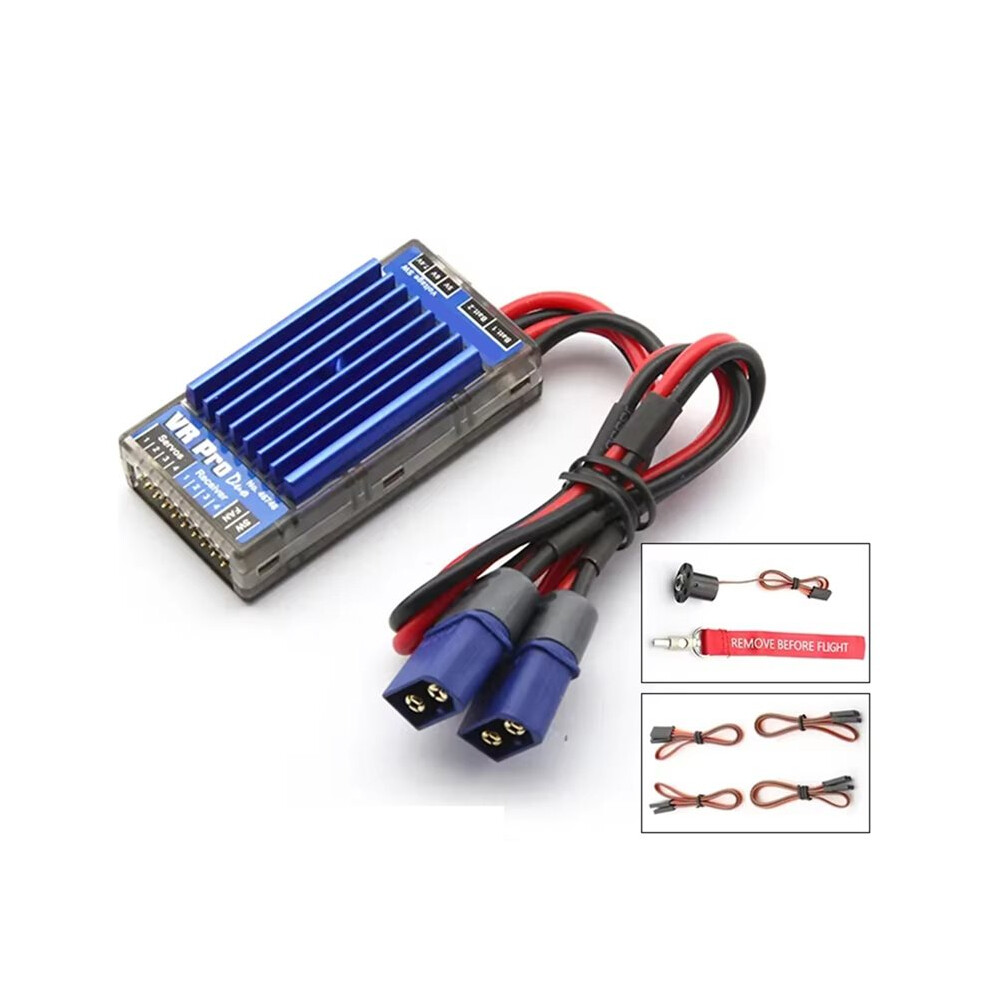

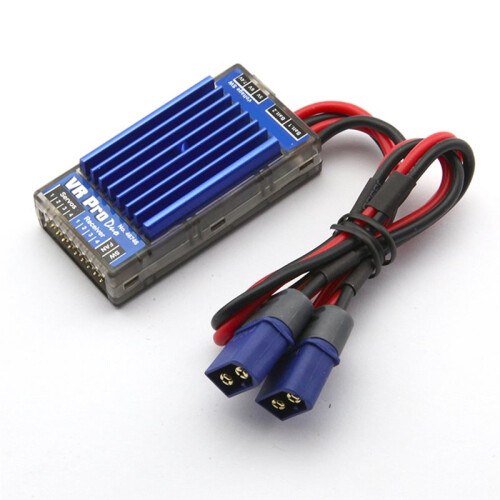

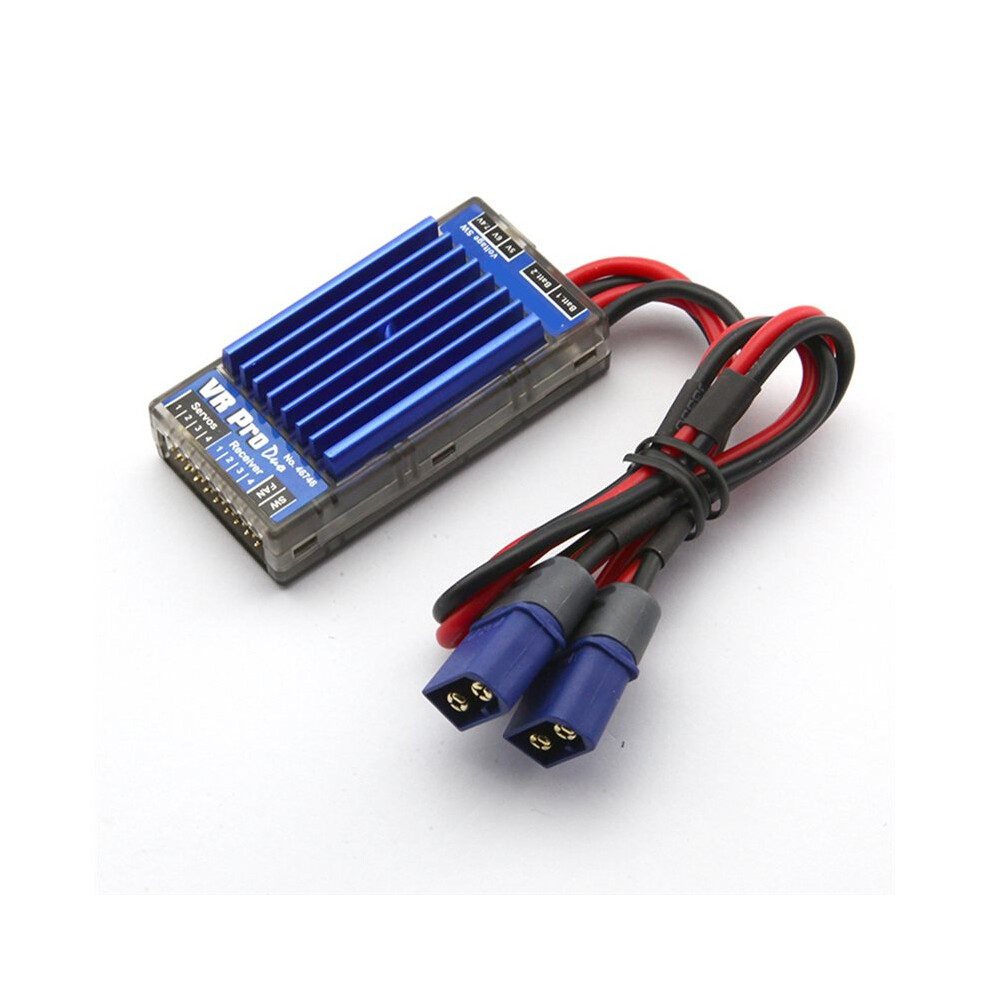

VR Pro DUO High Current Linear Regulators High Current Output for 100CC Engine FPV RC Airplane Model

VR Pro DUO High Current Linear Regulators High Current Output for 100CC Engine FPV RC Airplane Model Beskrivelse

Miniaturization design, input & output port using horizontal row
Dual battery input design, automatic switching and balancing between batteries
4 current outputs, support 4 channel servos direct connection
Plug and . No need to weld the connectors
Internal dual input voltage monitor for low voltage with memory function

Support HV servos (7.4V), output voltage is switchable

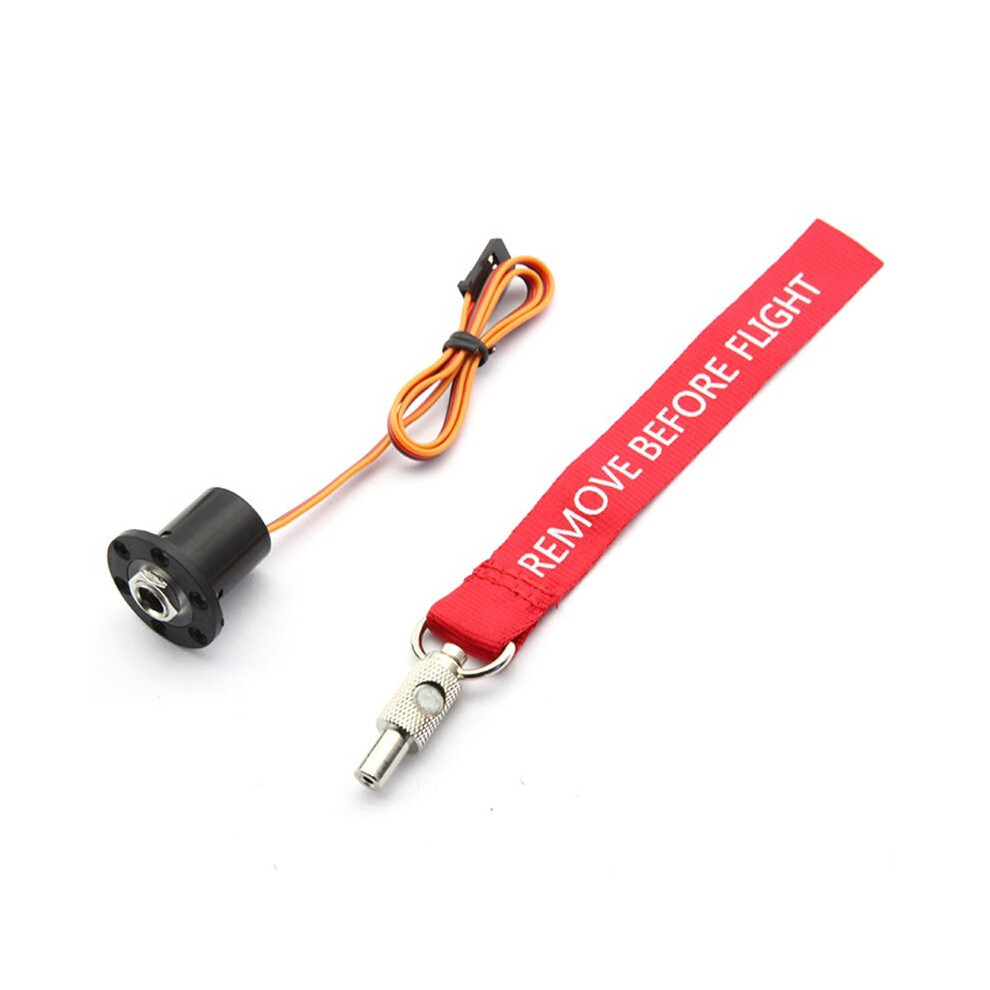

Includes FSS-3, the failure safety with status indicator (#46813), VR Pro Duo also supports FSS-4 (#46814); Equipped with heat sink and external cooling fan (#46816)
Support to 10pcs of 30kg digital servo
Can be used the largest 13KG model aircraft, eg.120CC Gasoline Powered Aircraft.
Electrical Features:
Linear regulator, no interference, low ripple;
The input power uses simulated diode dual redundancy power supply;
Double MosFET output, independent linear control IC, high output current capability;
Low dropout design makes fully use of the cell's capacity, especially HV mode;
Large heat sink, good heat dissipation and high overload capacity;
Built-in MCU precisely controls FSS-3 and internal voltage;
Fail safe design, ensuring Non-stop work;
SMT process, ensureing the quality;
Input & output port all use high quality tantalum capacitors.
Color:As Shown
Material:Plastic+Metal

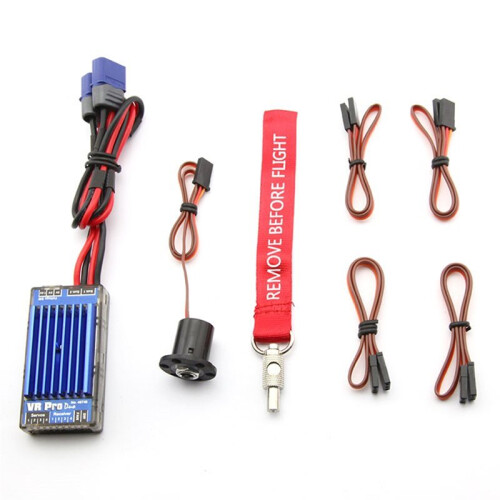

Package Contents:
1 * VR Pro DUO Linear Regulator set
