Sammendrag
- RP2350A microcontroller chip designed with for Raspberry Pi.
- Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core,Hazard3 RlSC-V core processor, clock running frequency up to 150MHz,Built-in 520KB SRAM and 16MB on-chip Flash.

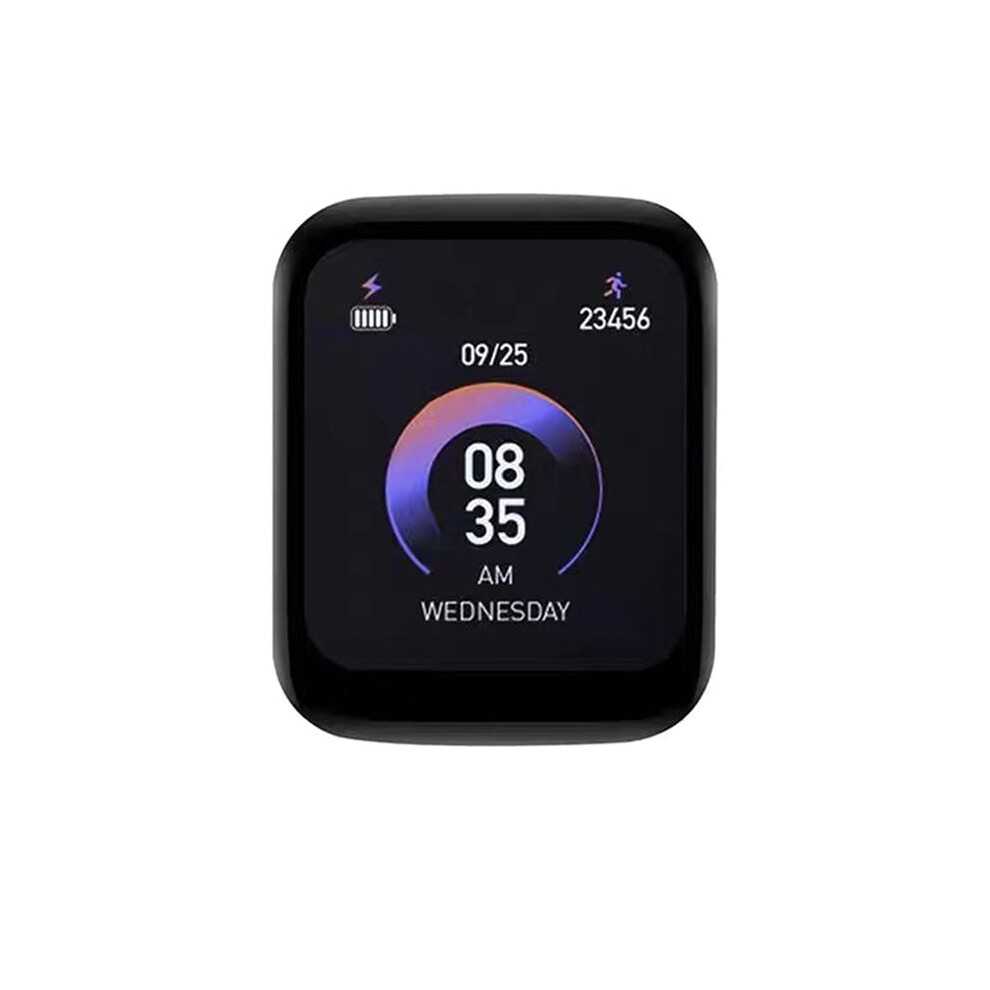

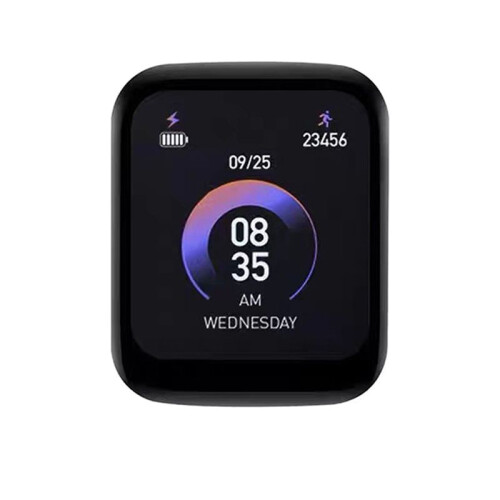

- Using Type-C interface, keeping up with the trend of the times, no need to worry about whether to insert it forward or backward Onboard 1.69-inch capacitive touch LCD screen, 240x280 resolution, 262K color.
- Onboard lithium battery charging and discharging interface, which is conducive to use in mobile scenarios,Onboard RTC clock chip, RTC battery interface, convenient timing function.
- Onboard buzzer can be used as an auditory peripheral,USB1.1 host and device support,Support low-power sleep and hibernation mode.
Waveshare for Raspberry Pi RP2350 1.69In IPS Touchscreen DevelopmentBoard ARM SPI LCD Display Module for ESP-IDF/for IDE Beskrivelse
RP2350A microcontroller chip designed with for Raspberry Pi.
Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core,Hazard3 RlSC-V core processor, clock running frequency to 150MHz,Built-in 520KB and 16MB -chip Flash.
Using Type-C interface, keeping with the trend of the times, no need to worry about whether to insert it forward or backward Onboard 1.69-inch capacitive touch LCD screen, 240x280 resolution, 262K color.
Onboard lithium battery charging and discharging interface, which is conducive to use in mobile scenarios,Onboard RTC clock chip, RTC battery interface, convenient timing function.
Onboard buzzer can be used as an auditory peripheral,USB1.1 host and device support,Support low-power sleep and hibernation mode.
RP2350-Touch-LCD-1.69 is a low-cost, high-performance microcontroller development board with a rounded shape and compact size. The board is equipped with a 1.69-inch capacitive touch LCD screen, lithium battery charging chip, six-axis sensor (three-axis accelerometer and three-axis gyroscope), RTC, buzzer and other peripherals, which are convenient for development and embedding into products.
RP2350:Dual-core, dual-architecture processor, to 150MHz operating frequency
W25Q128JVSIQ:16MB NOR-Flash
PCF85063:RTC clock chip
QMI8658:Six-axis Inertial Measurement Unit (IMU), including a 3-axis gyroscope and a 3-axis accelerometer
ETA6098:High efficiency lithium battery charging chip
MX1.25 lithium battery interface:MX1.25 2P connector, can be used to connect 3.7V lithium battery, supports charging and discharging
Type-C interface:Can be used to download programs and supports USB1.1 host and slave devices
Buzzer:auditory peripherals
RTC battery interface:Connect a rechargeable RTC battery (only supports rechargeable RTC ba
Detaljer
| OPC | PVJN2NB |
|---|---|
| Merke | Torribaly |
| Koder | 4713099769326 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 1cm |
|---|---|
| Width | 10cm |
| Length | 12cm |
| Weight | 0.13kg |
| Colour | As Shown |
| Material | ABS+LCD |
