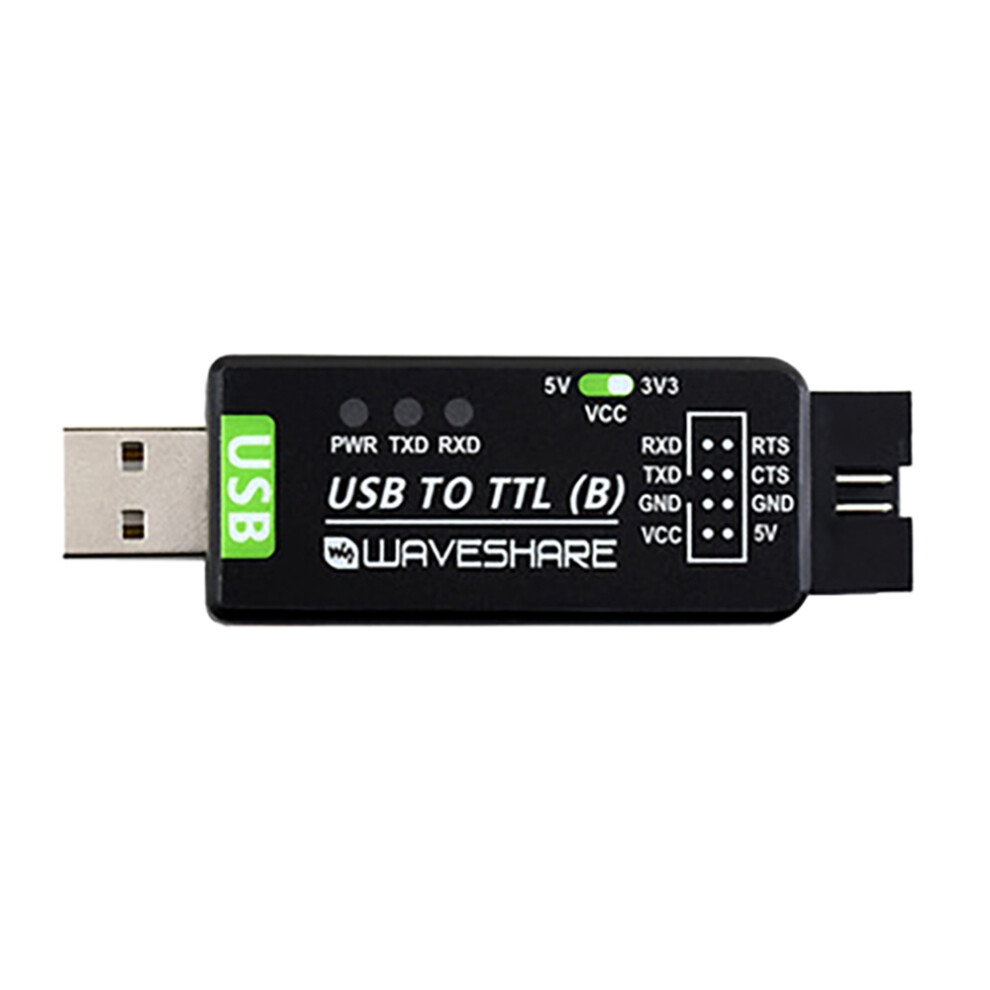

Waveshare Industrial Grade USB to TTL Converter CH343G Serial Port Conversion Module Support 5V/3.3V Level Conversion Circuit
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 132,000 anmeldelser med vurderingen “Utmerket”
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (1,50 kr) | tir 25. - tor 27. aug
Solgt av: YPDblue
Returer: 30 dager
180 dagers betalingsbeskyttelse
Du vil kanskje også like
Sammendrag
- 1. On-board resettable fuse and transient suppression diode, anti-overcurrent and overvoltage, anti-backflow, anti-static, improve shock resistance, stable and safe communication
- 2. On-board IO protection circuit, anti-surge, stable and safe communication
- 3. The onboard TTL serial port 3.3V and 5V level conversion circuit can switch the TTL communication level
- 4. There are 3 LED indicators on the board, which is convenient to check the status of power supply and signal sending and receiving
- 5. DC simple bull socket interface, smooth plug and unplug, sturdy and reliable, prevent reverse connection
Waveshare Industrial Grade USB to TTL Converter CH343G Serial Port Conversion Module Support 5V/3.3V Level Conversion Circuit Beskrivelse
1. -board resettable fuse and transient suppression diode, anti-overcurrent and overvoltage, anti-backflow, anti-static, improve shock resistance, stable and safe communication
2. -board IO protection circuit, anti-surge, stable and safe communication
3. The onboard TTL serial port 3.3V and 5V level conversion circuit can the TTL communication level
4. There are 3 LED indicators the board, which is convenient to check the status of power supply and signal sending and receiving
5. simple bull socket interface, smooth plug and unplug, sturdy and reliable, prevent reverse connection
Specification:
Product name: USB to TTL conversion module
Product Type: Industrial Grade USB to TTL Converter
Host interface: USB
Communication rate: 50bps~6Mbps
Device interface: UART
USB interface: interface form: USB-A type interface; interface protection: self-recovery fuse, ESD electrostatic protection
UART interface: interface form: terminal; interface form: 8PIN foolproof interface; interface protection: IO protection diode circuit
Indicator light:
PWR: Power indicator, connected to USB, and lights when voltage is detected
TXD: Send indicator, light when data is sent from the USB port
RXD: Receive indicator, light when data is sent back from the device interface
Compatible system: Support Win7/8/8.1/10/11, , Linux, Android and other systems
Product size: 53 x 23.5 x 14.6mm
Colour: black
Material: plastic
Package Contents:
1 x USB to TTL conversion module
1 x 8pin DuPont cable
Detaljer
| OPC | PTBFXMF |
|---|---|
| Koder | 4712945060853 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 3cm |
|---|---|
| Width | 7cm |
| Length | 8cm |
| Weight | 0.0335kg |
| Colour | black |
| Material | plastic |
