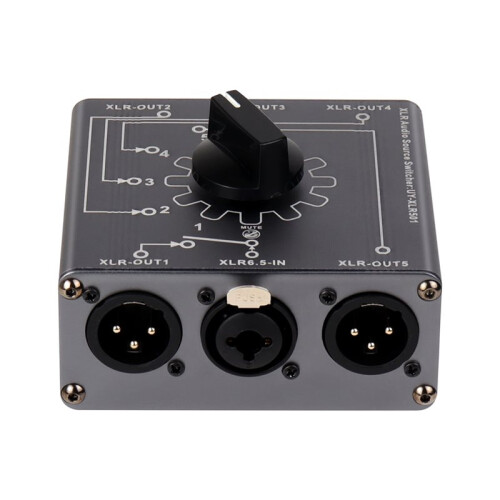

XLR Audio Switcher Splitter Bi-Direction 1 Input 5 Output 5 Input 1 Output Audio Signal Splitter Box Audio Distribution

XLR Audio Switcher Splitter Bi-Direction 1 Input 5 Output 5 Input 1 Output Audio Signal Splitter Box Audio Distribution Beskrivelse

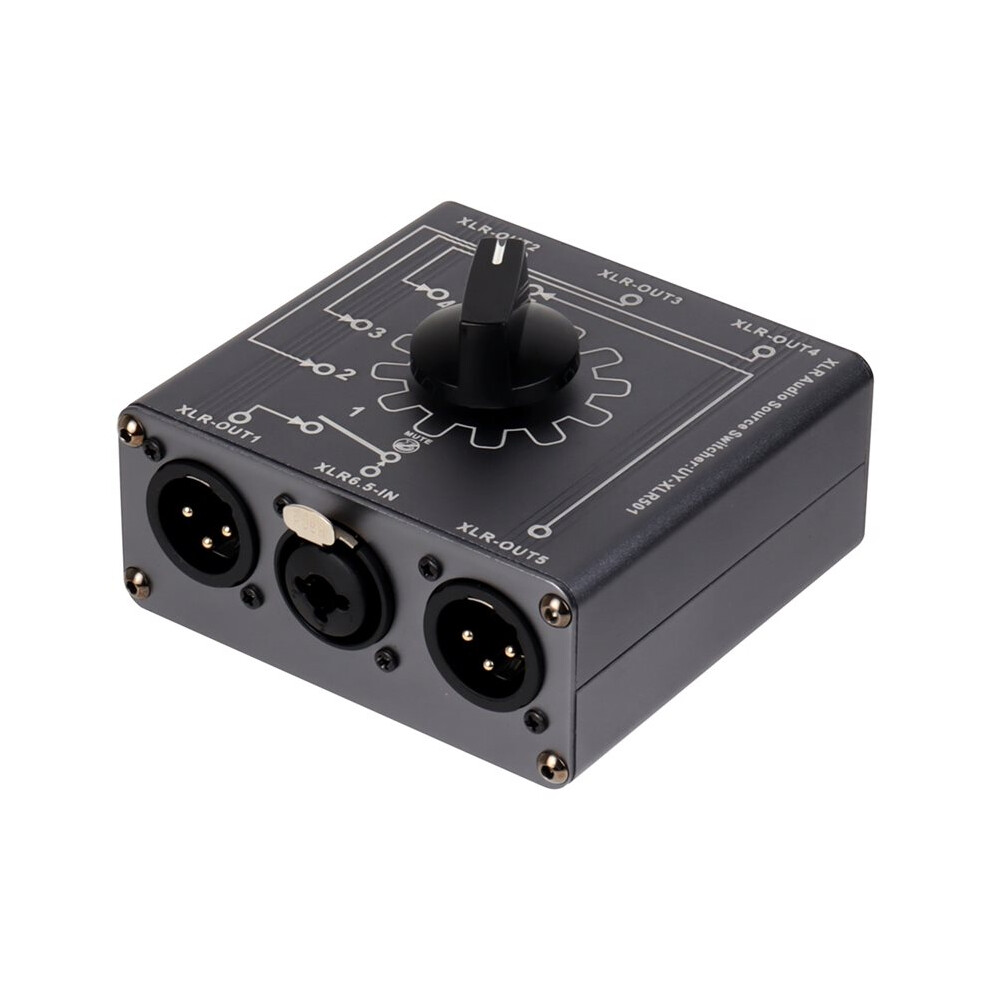

This is an XLR audio source selector, primarily used for manually switching audio input/output channels during live performances, recordings, or live streaming.
It is a completely passive, power-free manual switcher, requiring no batteries or external power supply. Plug and , it offers high stability and is suitable for scenarios requiring simple and reliable audio routing.
Supports bidirectional use: 5 inputs + 1 output, 1 input + 5 outputs.

Functions:

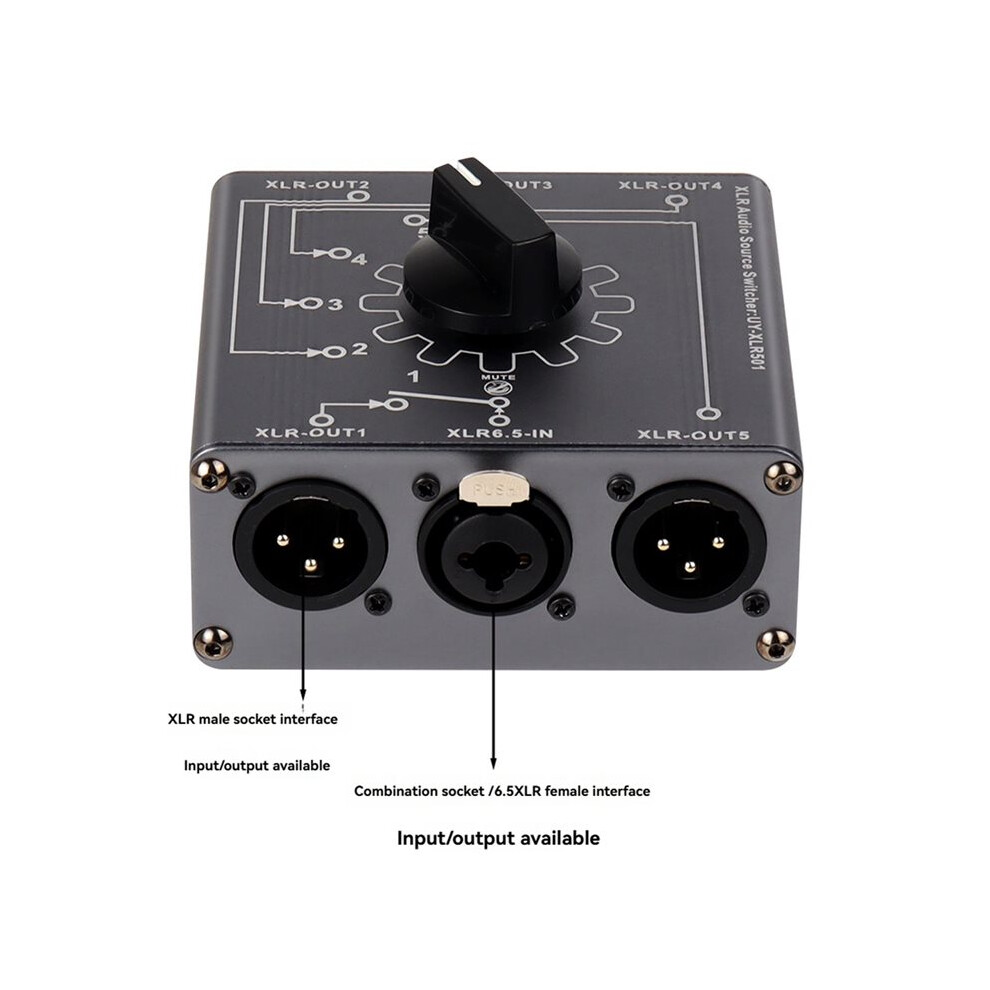

Input Interface: `XLR 6.5-IN` (Supports XLR or 6.35mm audio input)
Output Interface: 5 XLR outputs, labeled `XLR-OUT1` to `XLR-OUT5`

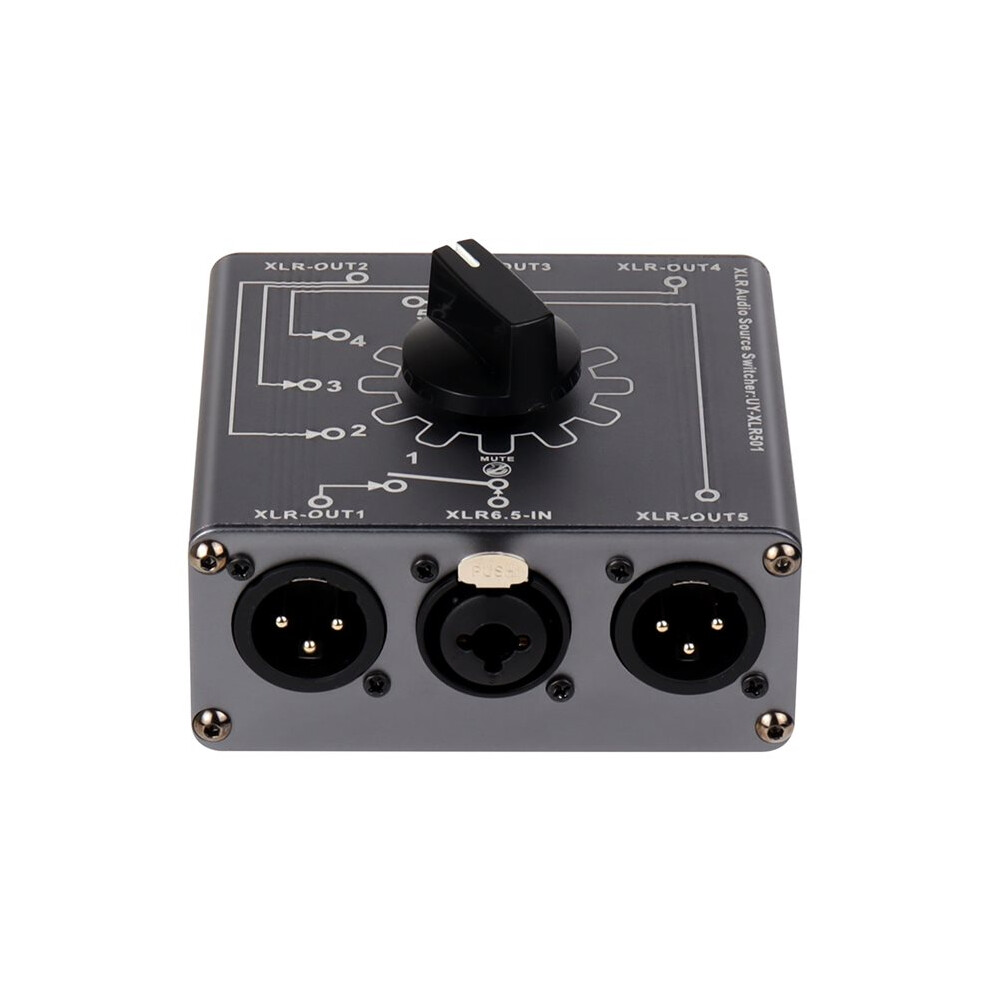

Channel Selection Knob: Central gear-shaped knob, selectable from 1 to 5, corresponding to switching the input signal to different output channels.
Mute Function: When the knob is in the `MUTE` position, all outputs are muted, cutting off the audio signal.

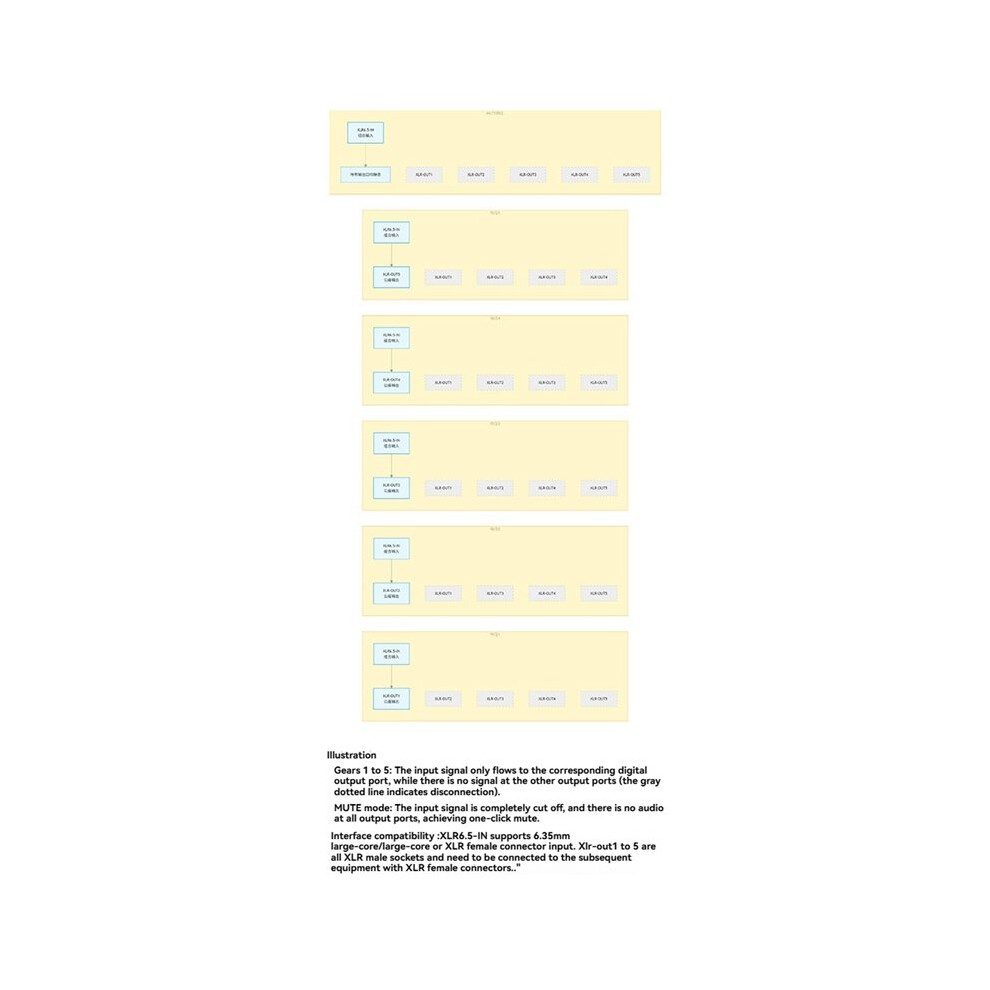

Signal Flow: The circuit diagram the panel clearly shows the path of the input signal after selection by the knob, distributed to the corresponding output channel.
Use Cases:
Live Sound Reinforcement: Quickly between different microphones or instruments to the main output.
Recording Studio: Select different audio sources for multi-track recording.
Live Streaming/Podcasting: Flexible switching of microphone, background music, and other signals to different output devices.
Color: As Shown
Material: Aluminum Alloy

Package Contents:
1 * XLR Audio Switcher
