20mTof Infrared Detection Distance Laser Ranging Module with Infrared Centimeter Precision Industrial LiDAR Module

Opis produktu: 20mTof Infrared Detection Distance Laser Ranging Module with Infrared Centimeter Precision Industrial LiDAR Module

High integration dToF ranging small module solution
Integrated histogram statistical algorithm, dual target detection
related single photon counting (TCSPC) algorithm, equipped with 12m@100KLux ability to resist environmental light
The TDC window can be configured to adapt to different application scenarios and has reflectivity correction function
[email protected] ~6m; 1% @ {>} 6m accuracy; Maximum range 20m

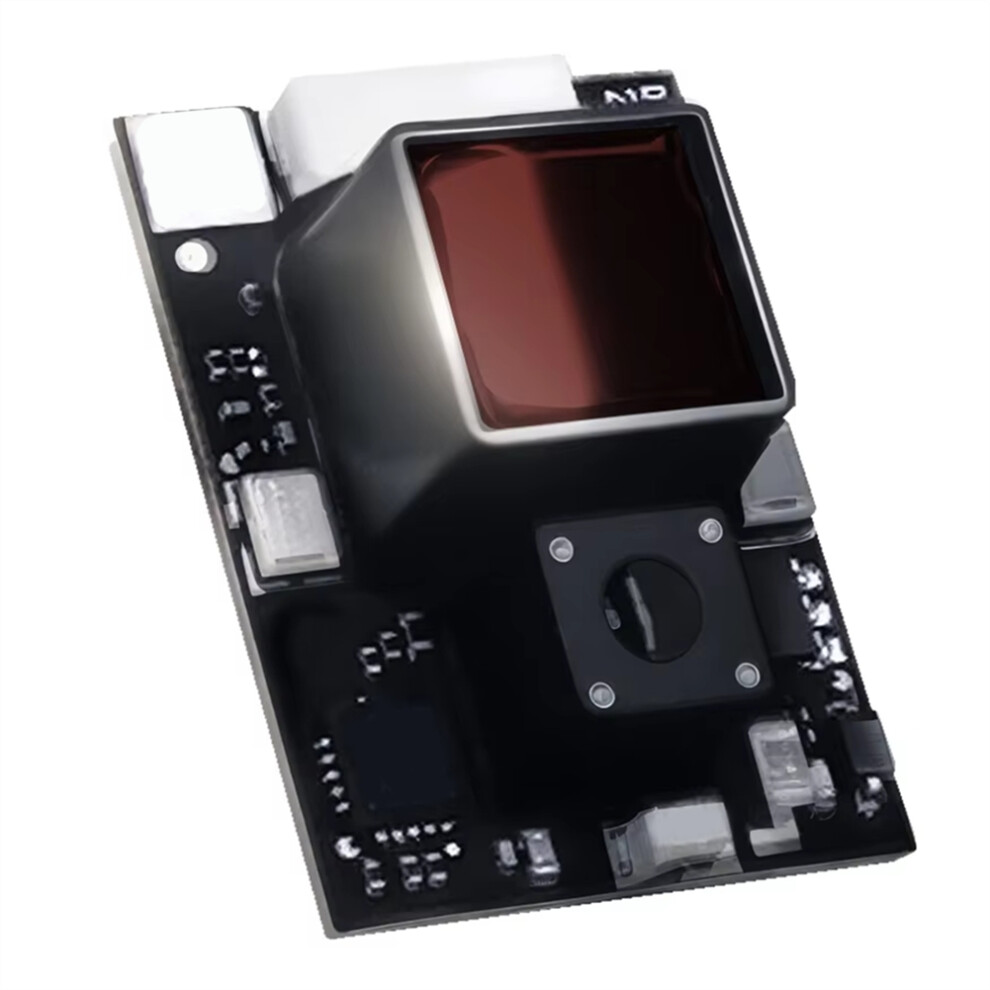

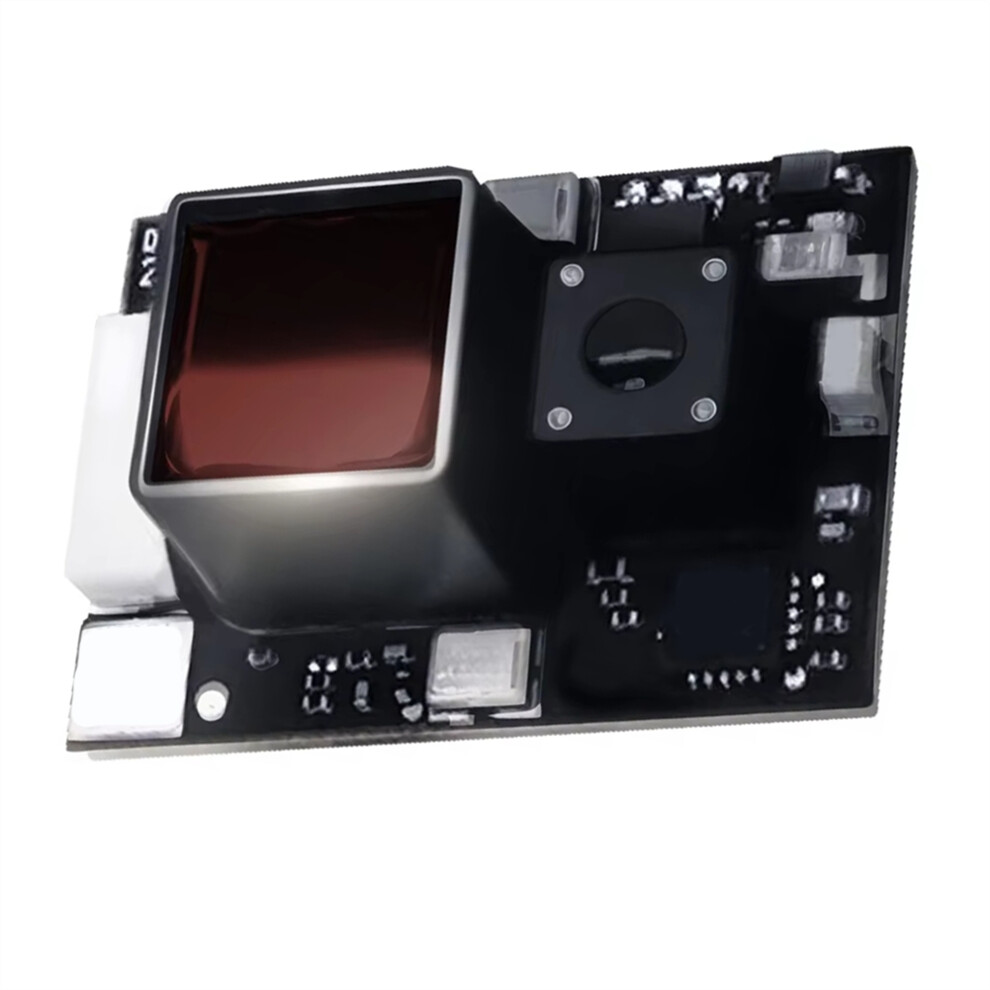

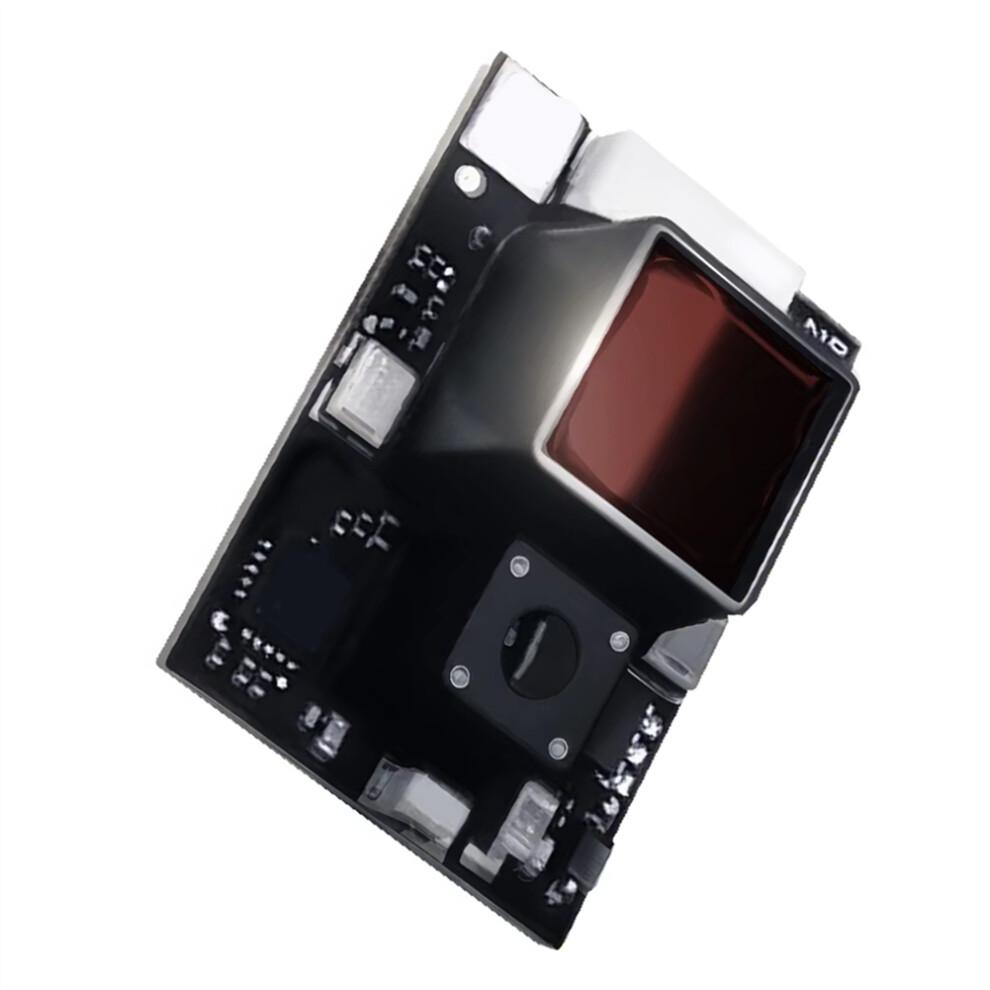

PLS-SP20 is a fully integrated single channel dToF ranging small module that integrates a self-developed high-sensitivity infrared enhanced SPAD sensor with a range of to 20m. Adopting fully integrated solutions, histogram statistical algorithms, and fast TDC architecture to achieve high-precision ranging while also achieving 12m@100KLux. It has the ability to resist sunlight and has reflectivity correction function. PLS-SP20 integrated power module, powered by 3.3V power supply, with built-in temperature compensation function. Supporting PC and UART interfaces, easy to integrate and use, and adopting a compact and reliable optical package, with small size and light weight, it is an excellent choice for micro sized dToF applications.
Color: Black
Material: PCB

Package Contents:
1* 20mTof Infrared detection Module
