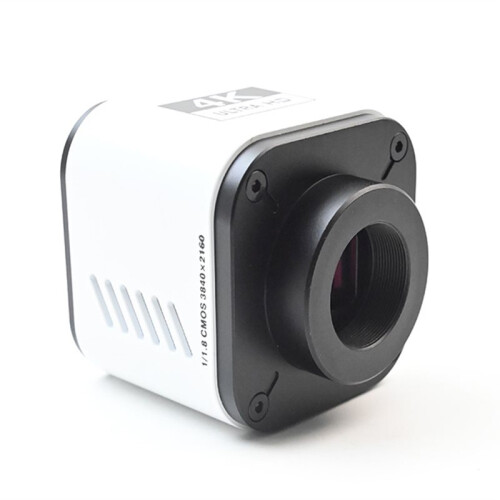

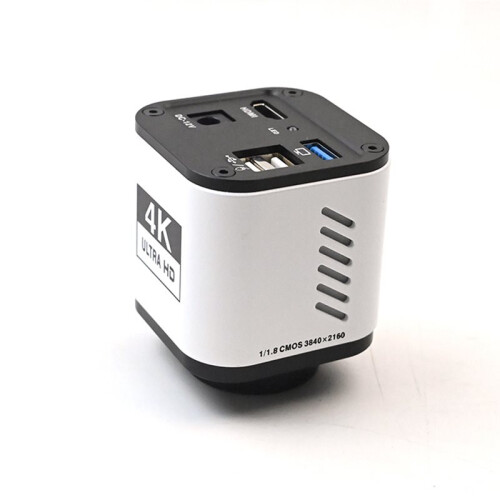

4K Industrial Microscope Camera 1080P 30FPS HD Pixel -Compatible/Type-C Transmission 4K Video Output EU PLUG

Opis produktu: 4K Industrial Microscope Camera 1080P 30FPS HD Pixel -Compatible/Type-C Transmission 4K Video Output EU PLUG

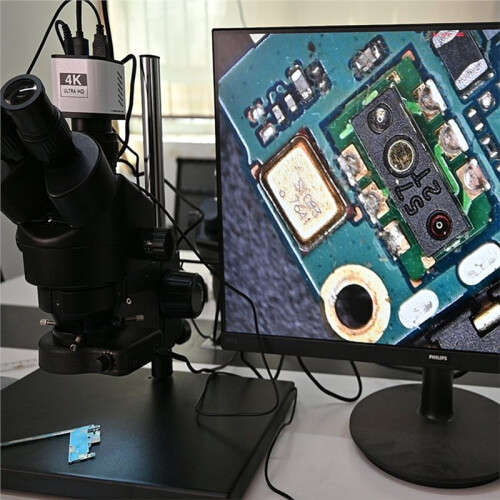

It is a multifunctional and multi interface camera that supports the functions of conventional interface cameras, as well as 4K USB camera functions (such as mouse operation for taking photos, recording videos, measuring, etc.), which can meet different needs in various fields.
Chip structure ARM dual core architecture
Optical size 1/1.8 inch
Operating System LINUX
Pixel size 2.0um x 2.0um

Core architecture dual core ARM Cortex-A7
Resolution 3840 x2160
Main frequency speed 1.5GHz
Frame rate 30fps
Working temperature 0-70 degrees
Video output , UVC
Lens interface C interface
Voltage input 12V
Remove the dust cover and protective film under the camera, and screw them into the corresponding interface
2.1.2 Insert the USB 2.0 interface into the mouse. If multiple USB devices need to be inserted, the USB device can be inserted into the USB interface, and then the mouse and other storage devices can be inserted into the splitter
2.1.3 Connect the camera's interface and monitor with an cable
2.1.4 Insert the -12V power socket into the power cord. After connecting the -12V power supply, the product automatically turns , and the LED lights red and then . The camera runs and waits for the display screen to show the image
2.1.5 USB 3.0 interface is a UVC interface (when connected to a computer with a USB cable, the USB 2.0 interface is invalid in this state)
Main Interface:After the screen is displayed, the user directly moves the mouse to the left side of the screen to the main interface
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so .
Voltage: AC220V
Color: As Shown
Material: Metal

Package Contents:
1 x 4K Industrial Microscope Camera
1 x Power Adapter
