For BAFANG BESST Programming Speed Limit Release Wheel Diameter Setting M600 M510 CAN Protocol Programming Cable

Opis produktu: For BAFANG BESST Programming Speed Limit Release Wheel Diameter Setting M600 M510 CAN Protocol Programming Cable

Some display screens are special.When the programming button is pressed, it is necessary to re-enter the instrument setting before the setting can be successful.
This programming is only suitable for bafang-CAN protocol motors after 2020, and motors produced before 2019 cannot be used.

Operation introduction:1.First, the motor is connected and powered
2.the motor is connected to the main of the instrument

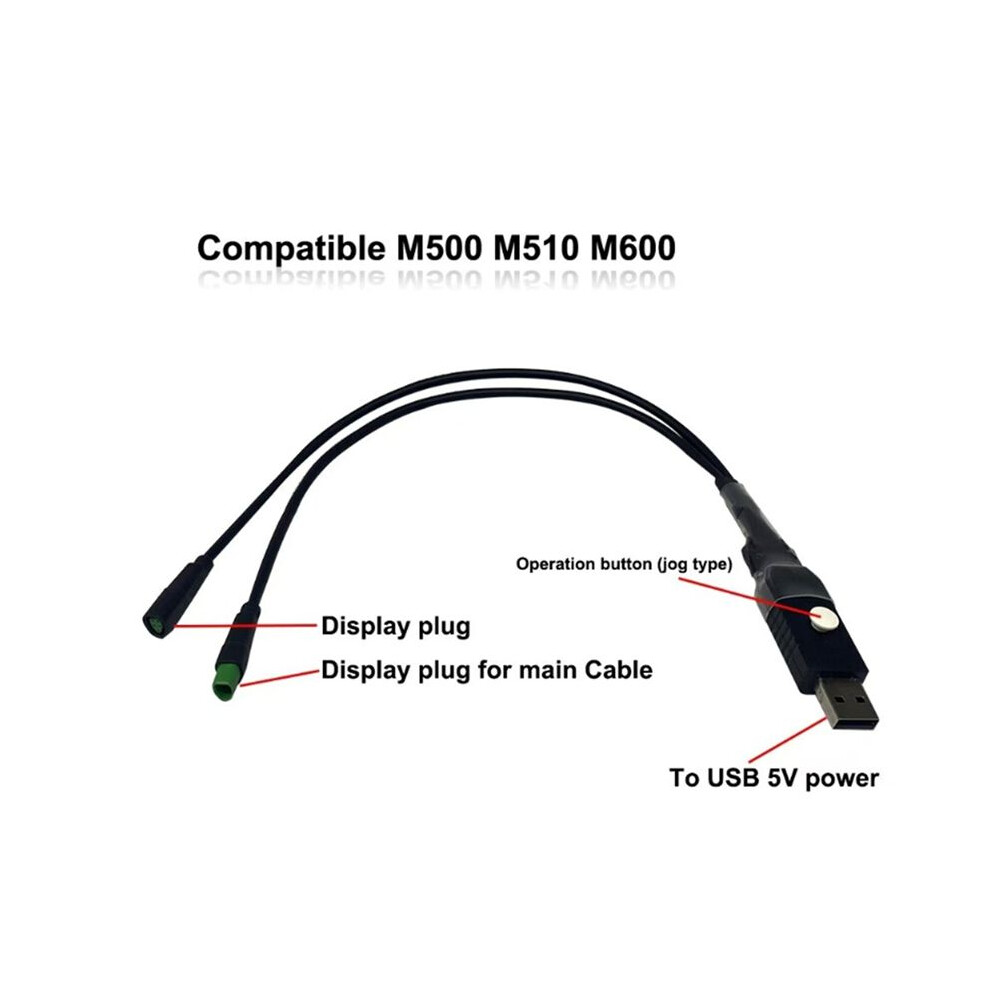

3.the interfaces at both ends of the programming cable are connected to the motor and the display screen respectively

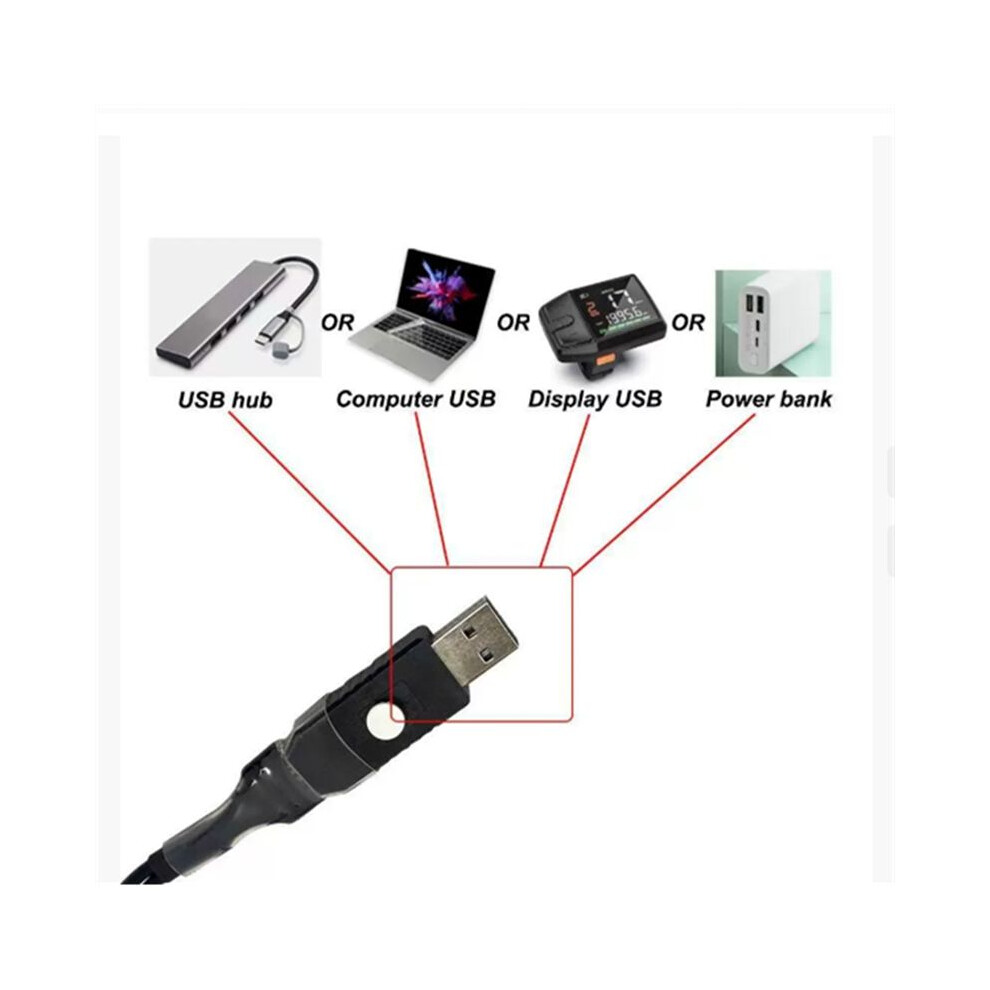

4.the USB plug of the programming cable is connected to the USB interface of the computer or display screen
5.The programming indicator lights to indicate that the connection is successful.

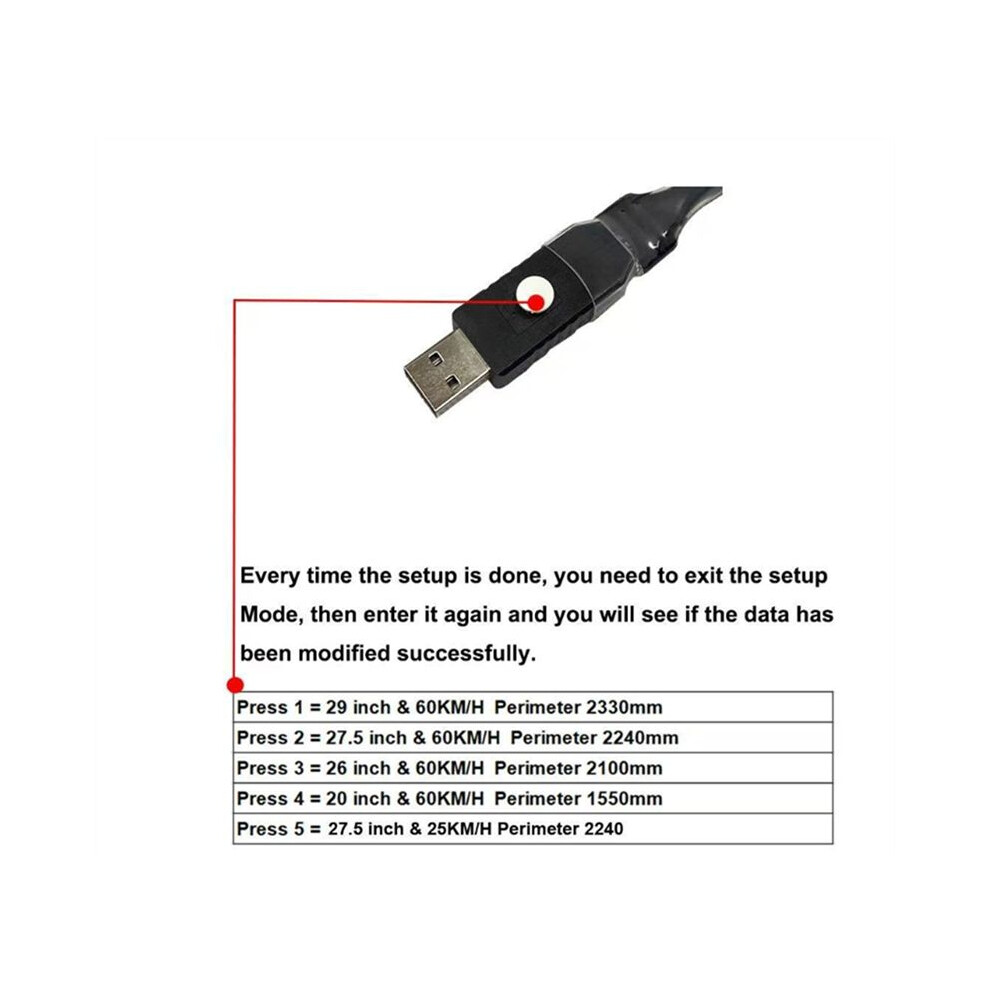

6.If there is a 25 fault code after connecting, just press the module button to return to normal. For some models, when the wheel diameter setting is switched, the wheel diameter size of the display screen does not change. At this , you need to exit the setting and return to the main page of the display screen to re-enter the setting. Then you can see the wheel diameter you set.
Color: As Shown
Material: plastic

Package Contents:
1 x Programming
