Moduł FM350-DW5931e 5G M.2 dla 7440 5531 9330

Opis produktu: Moduł FM350-DW5931e 5G M.2 dla 7440 5531 9330

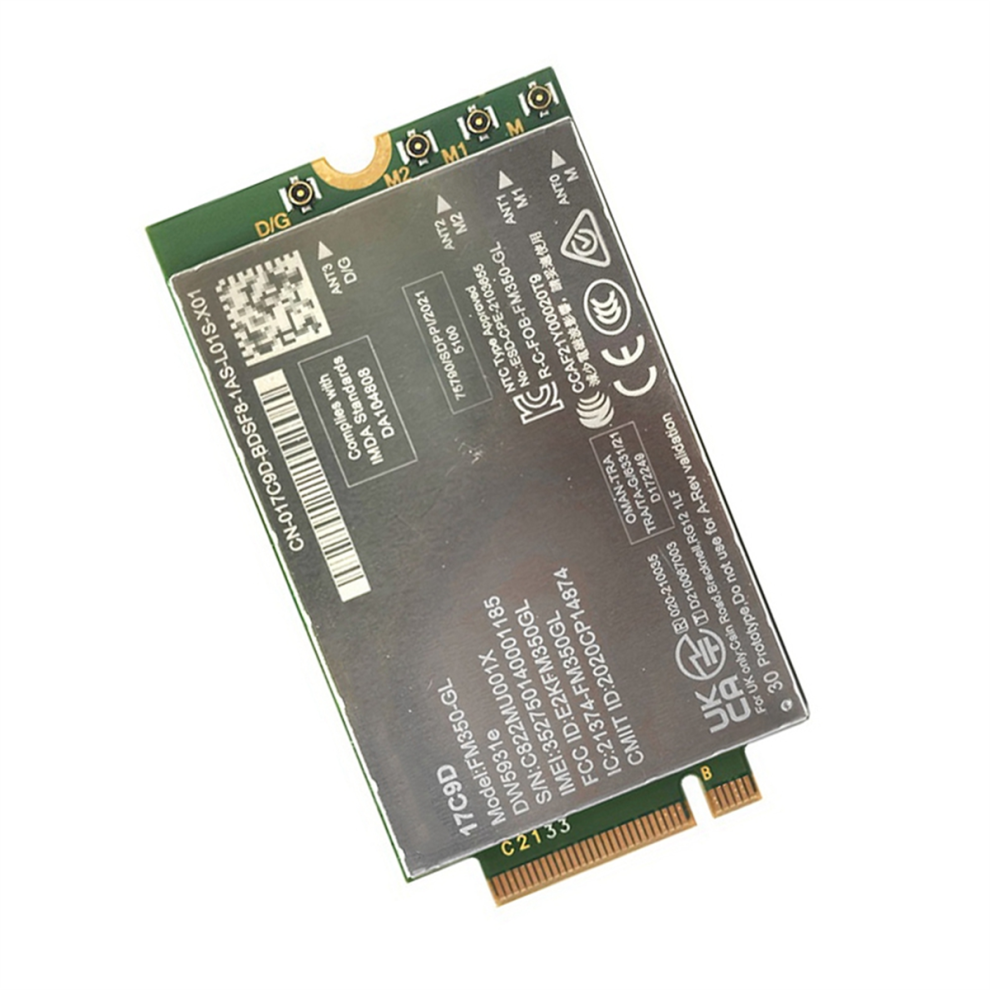

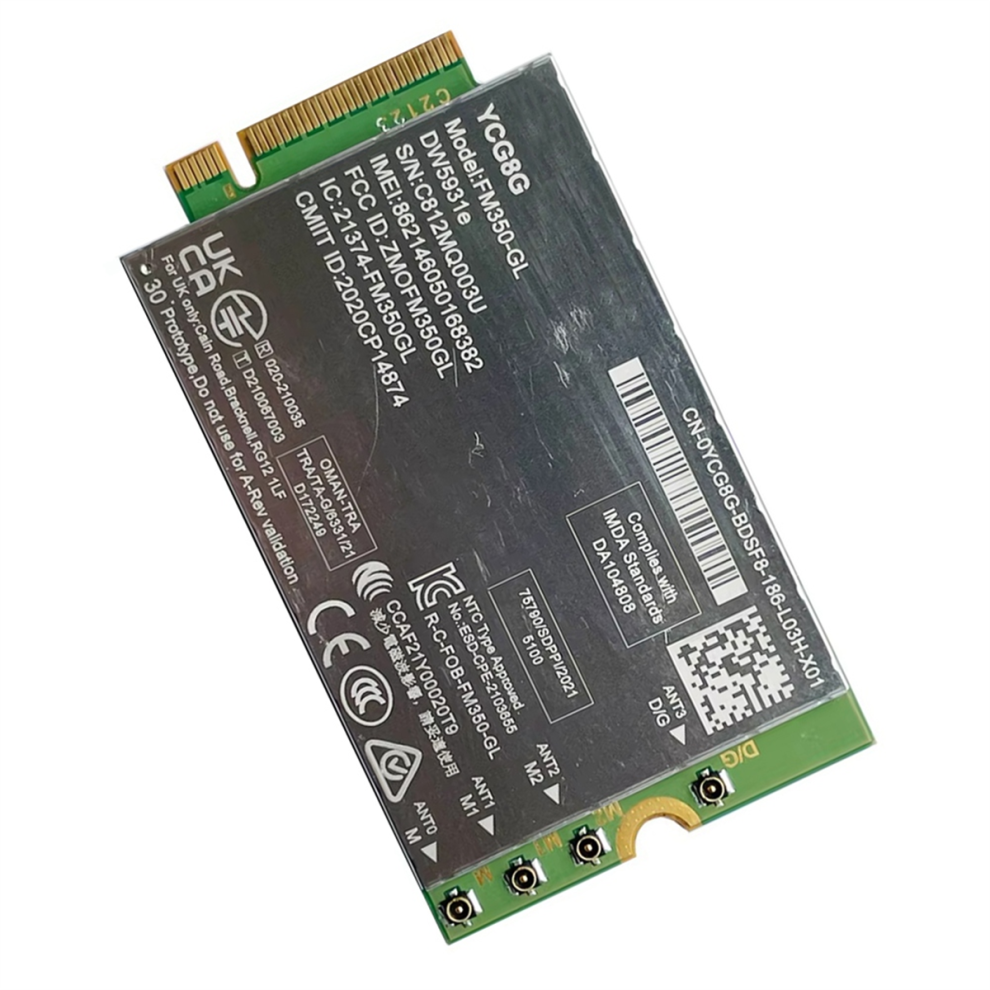

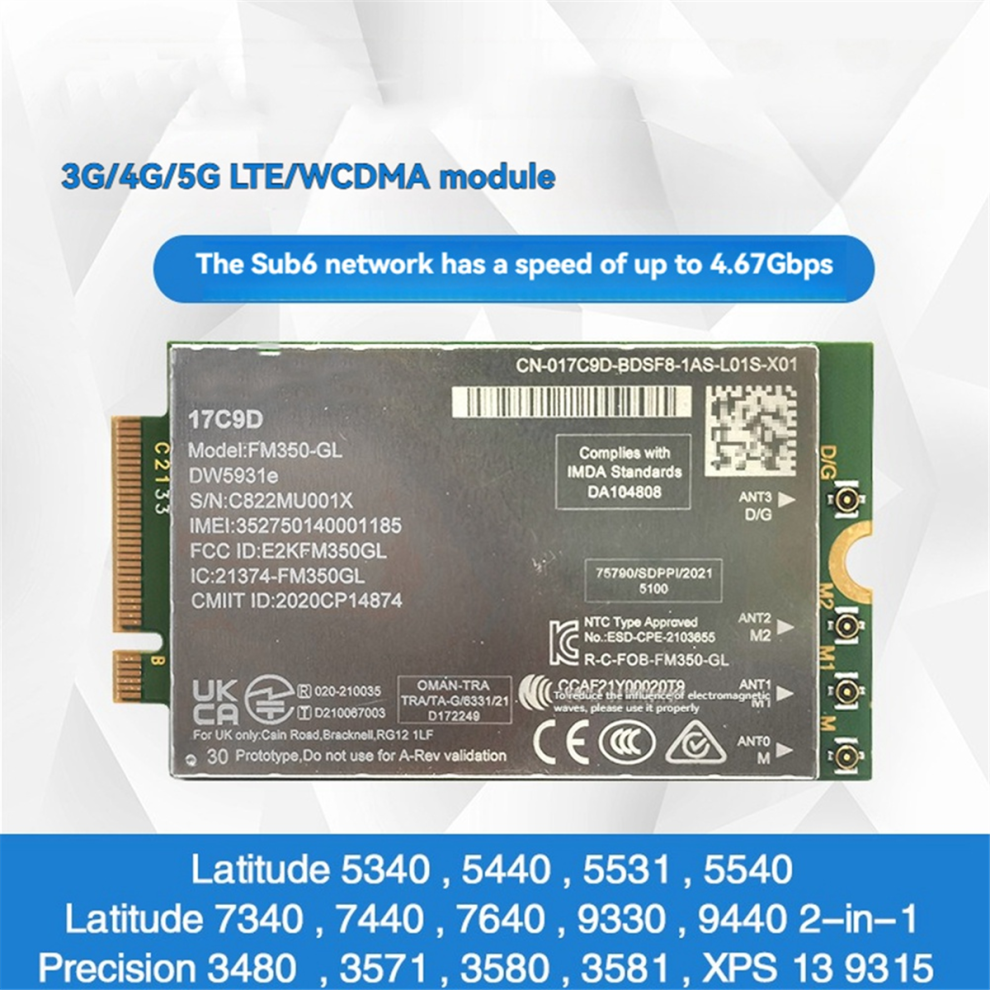

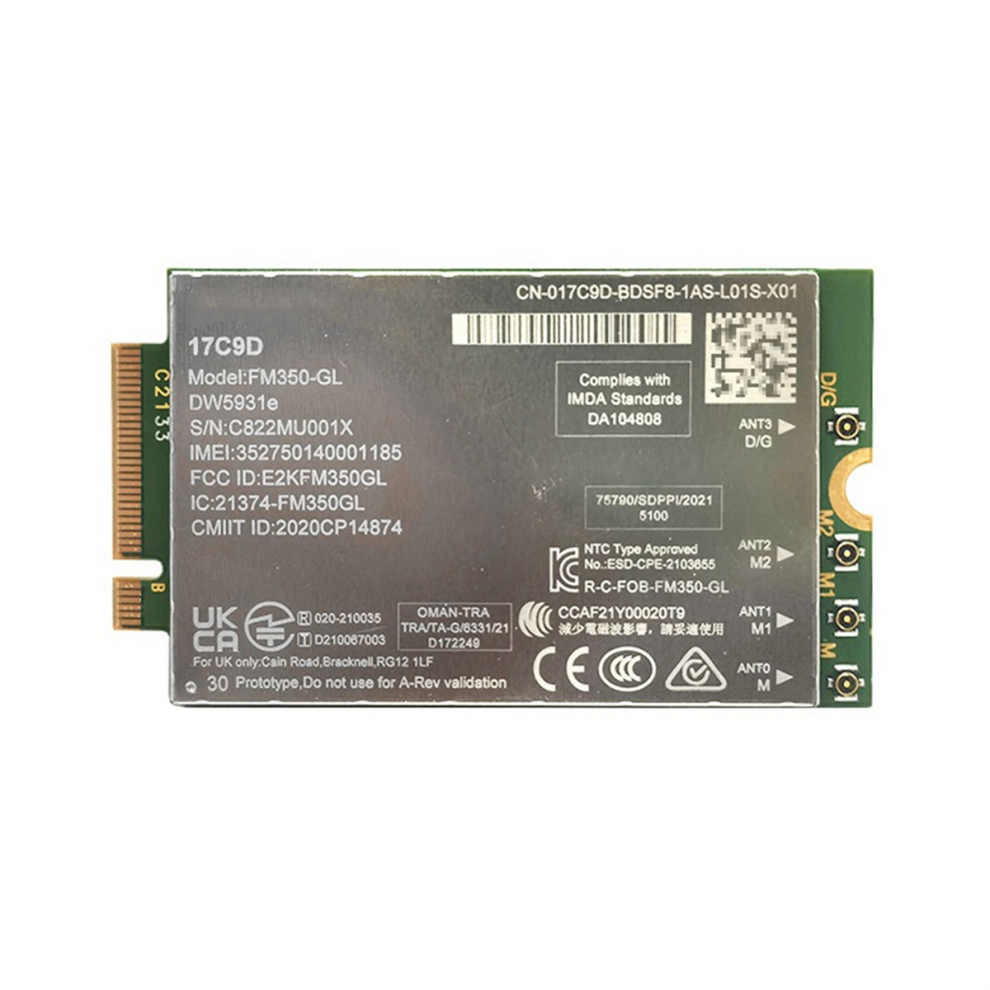

FM350- is a multimode 3G/4G/5G, LTE, and WCDMA module that provides Gigabit speed, unleashing the potential of cellular technology to meet high speed bandwidth application demand.
FM350- provides global mobile network coverage and supports 5G Sub6 networks with downlink up to 4.67Gbps and uplink up to 1.25Gbps. It also provides fallback to LTE and WCDMA networks.
The FM350- is designed with the M.2 factor which is ideally suited for integration with Personal Computer (Laptop, Desktop, Tablet, etc.), IoT Gateway and Routers that run for , and for Linux OS. (LinUX system requires to learn it themselves, we do not provide technical support).
Applicable to the following for : For 5340, 5440, 5531, 5540; For 7340, 7440, 7640, 9330, 9440 2-in-1; For Precision 3480, 3571, 3580, 3581; For XPS 13 9315 2-in-1.

Part Number: FM350-
Sub-6 GHz 5G/4G/3G Module for Global Coverage
Region: Global
5G Bands: n1,n2,n3,n5,n7,n8,n20,n25,n28a,n28b,n30,n38,n40,n41, n48,n66,n71,n77,n78,n79
Fallback: 4G/LTE, 3G
GNSS Standard: GPS,Glonass,BeiDou,,QZSS
LTE/4G Band: B1,B2,B3,B4,B5,B7,B8,,B13,614,B17,B18,B19,B20,B25,B26,B28(a&b),B29,B30,B32,B34,B38,B39,B40,B41,B42,B43,B46,B48,B66,B71
UMTS/HSPA/3GNCDMA Band: B1,B2,B3,B5,B8
IoT: Yes
MIMO: Yes
Drivers: for 10, for Linux
Sensitivity: -102 to -98 dBm
Fomm Factor: M.2 S3 Key-B
Generation: 5G,4G/LTE,3G
Interface: USIM, PCie,12C
Data Rate: 211 Mbps to 4.67 Gbps
Datarate Download Link: 1.6 to 4.7 Gbps
Datarate Uplink: 211 Mbps to 1.25 Gbps
Integrated Features: GNSS
Voltage: 3.135 to 4.4 V
Power: 23 to 23.5 dBm
There are differences in the printing of words/batch numbers due to different batches, which not affect the use; there are color differences in the actual product
Color: Green & Silver
Material: Plastic+Metal

Package Contents:
1 x 5G Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
