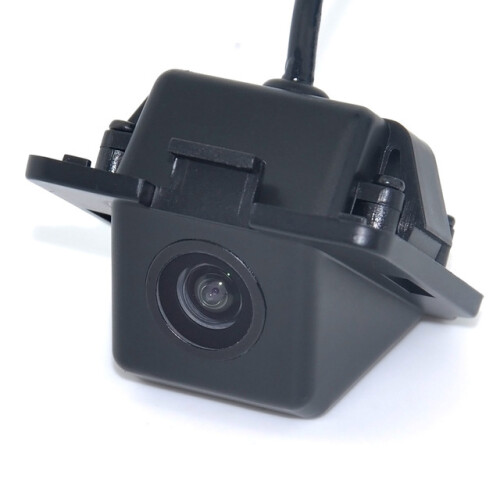

Rear View Camera For Outlander Xl/ Outlander / C-Crosser / 4007 Reverse Camera Backup Waterproof

Opis produktu: Rear View Camera For Outlander Xl/ Outlander / C-Crosser / 4007 Reverse Camera Backup Waterproof

Type: Reverse Camera
Wire or Wireless: Wire
Guiding : Yes
Voltage: 12V
Alarm Type: Vehicle Backup Cameras,Front,Front Side,Rear Side
TV system: NTSC & PAL
Effective pixels:640*480
Resolution: 520 TV-lines
Video output: 1.0Vp-p, 75
Electronic shutter: 1/60 (NTSC) -1 / 10000s, 1/50 (PAL) -1 / 10000s
Waterproof Class: IPX 68
Operating temperature: -20 C ~ + 80 C RH95%
Current consumption: 90 mA max
Installation:
1. Install the camera in the license area of your car plate
2. Adjust the lens of the camera to your best position.
3. Connect the power wire (red and black) to the headlight wiring of the power cables of your car.

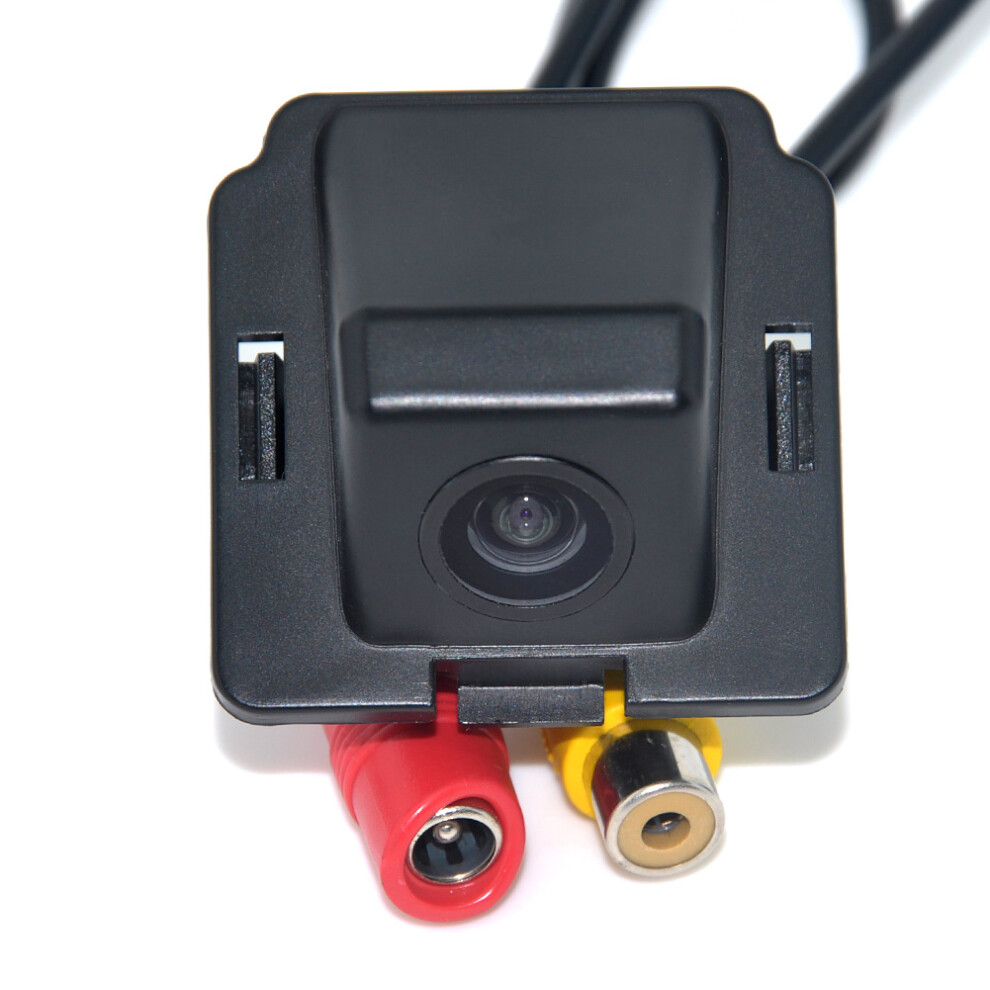

4. Connect the video output (yellow wire) to the display.
About the car's rearview camera system:
Usually most monitors support both NTSC and PAL TV systems. So it doesn't matter if the camera is PAL or NTSC system.
However, if you are not sure, please check that your monitor supports NTSC or PAL system.
Applicable models: Outlander
Viewing angle: 170 degrees
Colour: Black
material: plastic

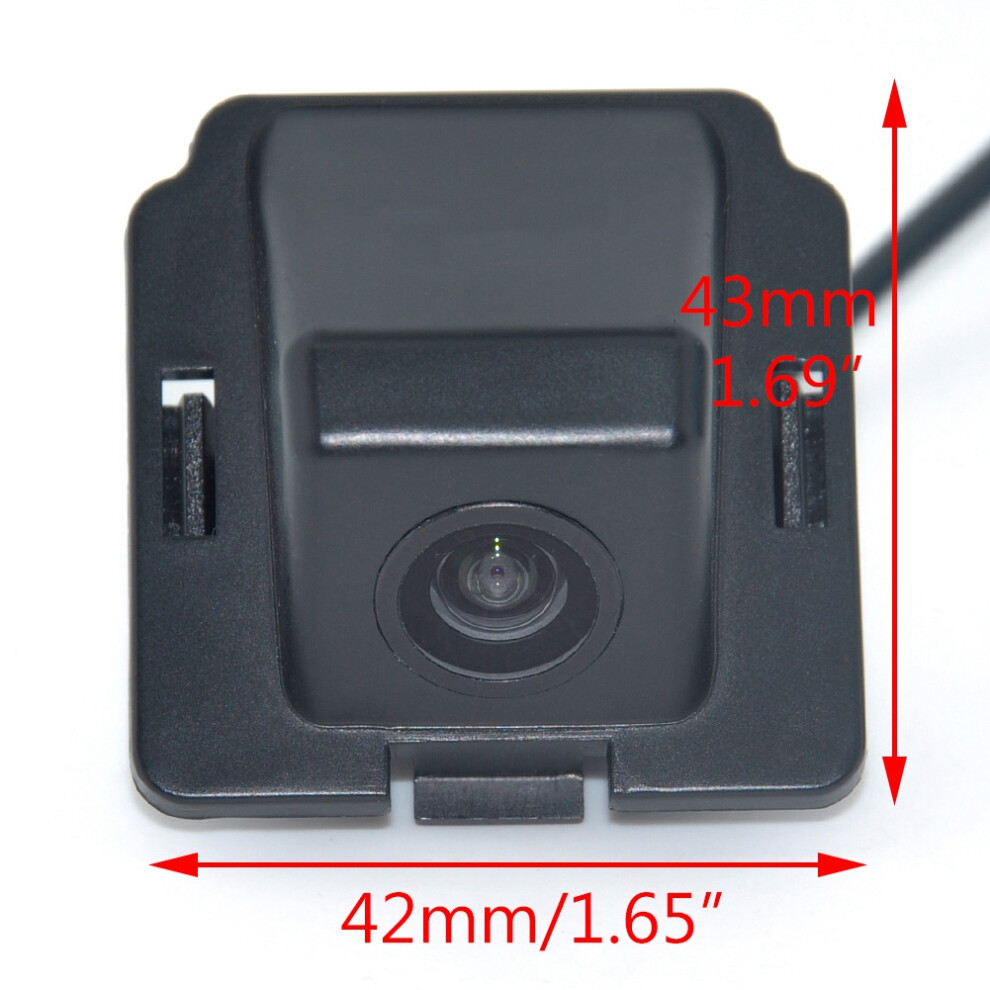

size:43*42mm

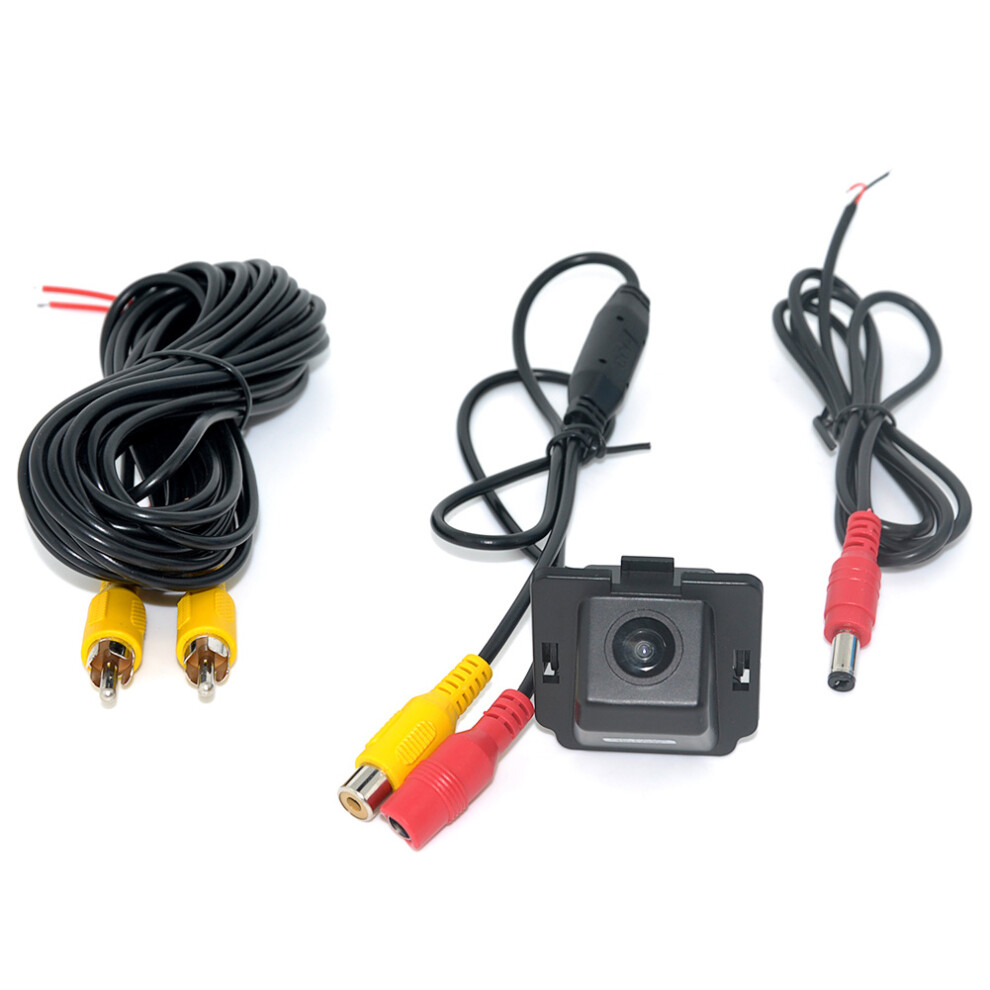

Package Contents:
1* Rear view camera
1* 6m video cable
1* Power cable
