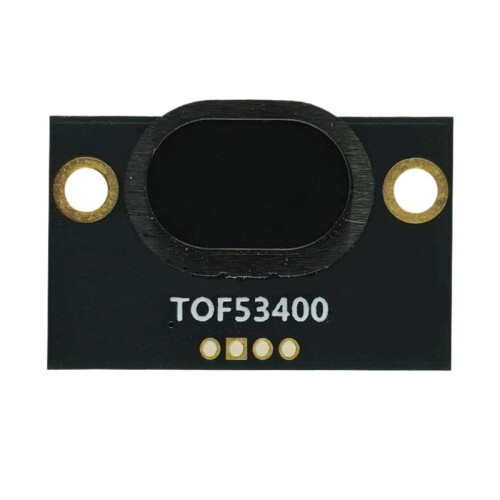

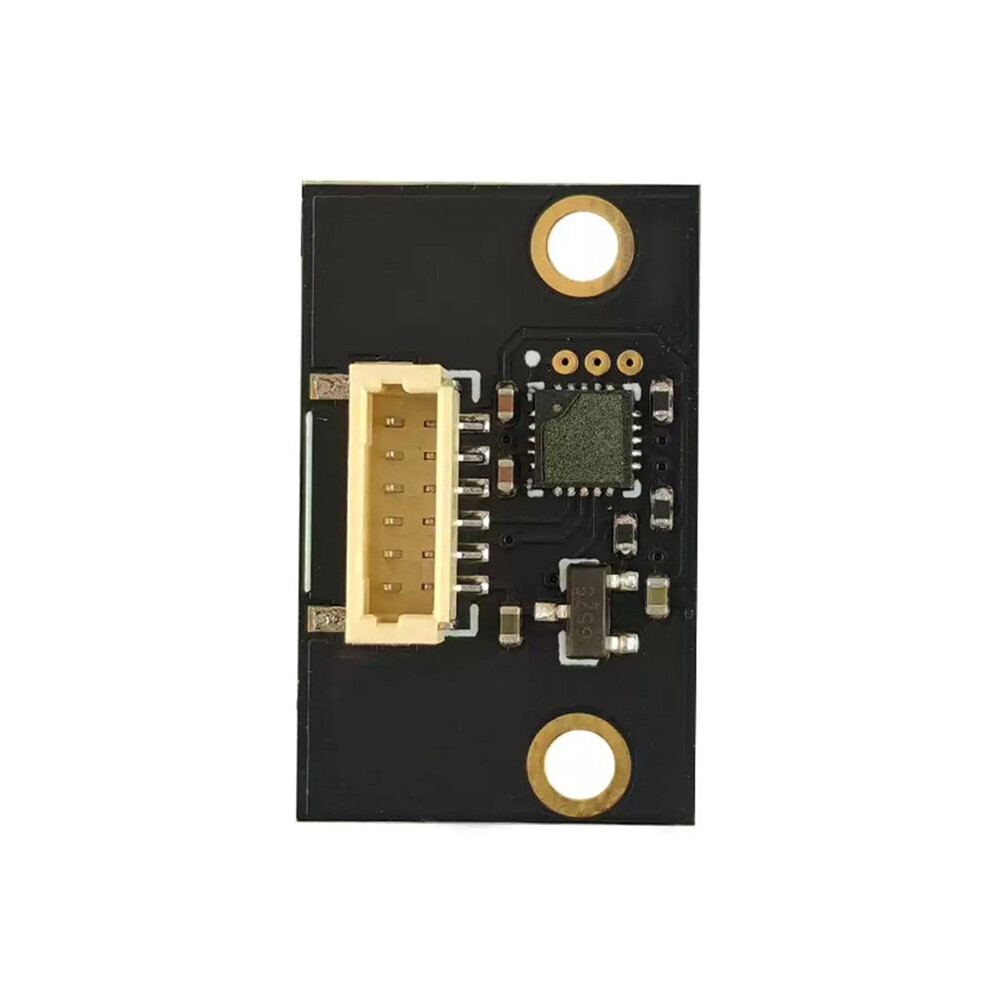

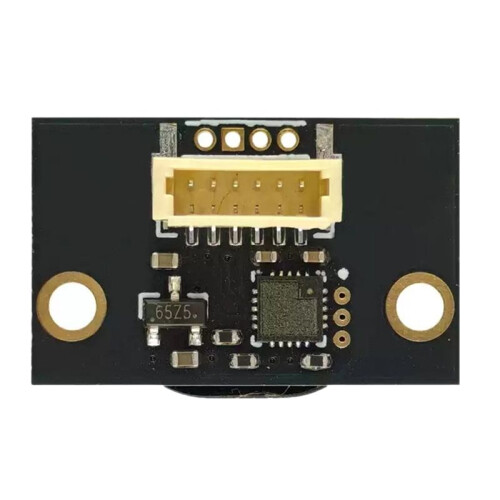

TOF53400 2m-4m Laser Distance Sensor Module VL53L1X Laser Ranging Sensor Module 20x12.5x7.55mm

Opis produktu: TOF53400 2m-4m Laser Distance Sensor Module VL53L1X Laser Ranging Sensor Module 20x12.5x7.55mm

1.940nm laser complies with Class 1 operation according to IEC .
2.60825-1:2014, 3rd Edition Conditions.

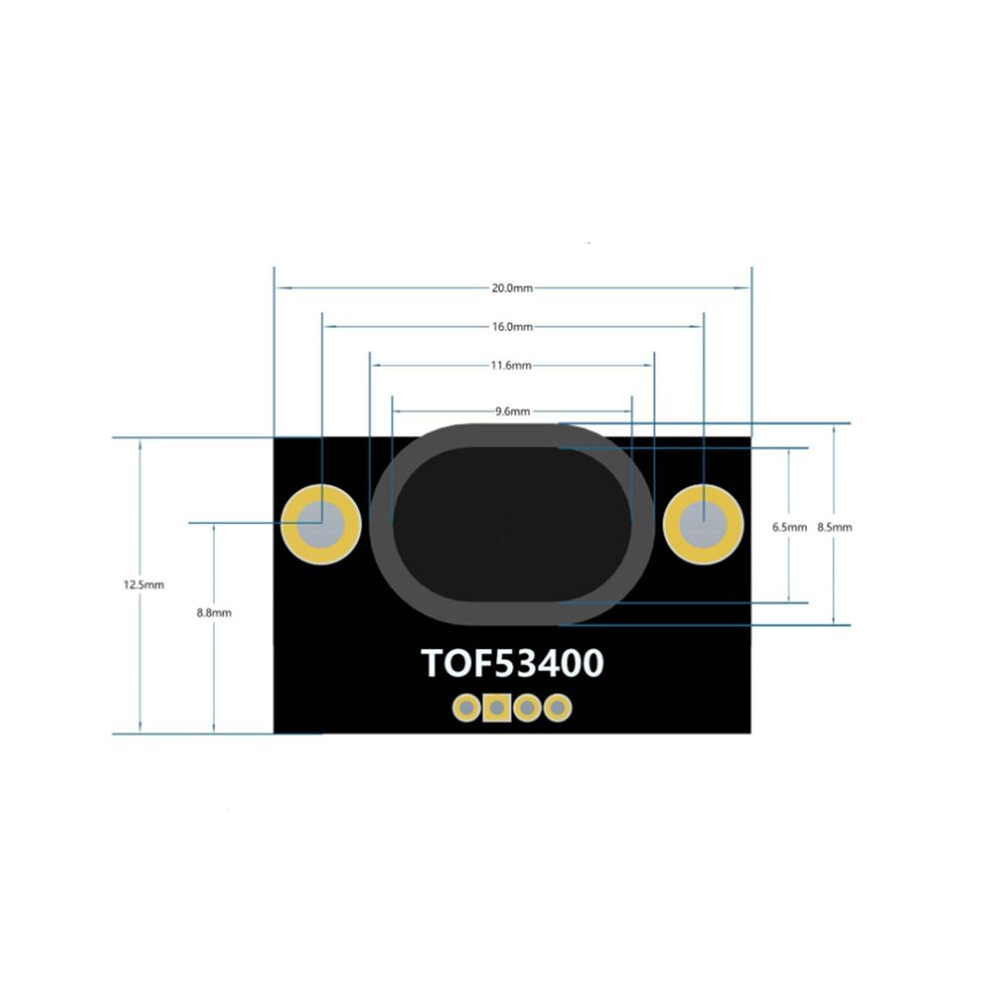

3.Sensor size (20x12.5x7.55mm)
4.Maximum measurement range: 4 meters indoors, accuracy within 5%
5.Measurement range is independent of target reflectivity

The TOF53400 ranging sensor, based ST's VL53L1X, is a laser ranging module that provides accurate and repeatable long-distance measurement. Thanks to its integrated leading- SPAD array (single-photon avalanche diode) and ST's second-generation FlightSense technology, it achieves higher range, more accurate results, and improved immunity to ambient light interference. The TOF53400 also supports serial Modbus-RTU and IIC modes, making it well-suited for a variety of application scenarios.
The TOF53400 has a range of to 4 meters.
Operates in high-infrared light environments
High optical crosstalk compensation
Measurement : less than 30ms
No additional optical components required
Single power supply

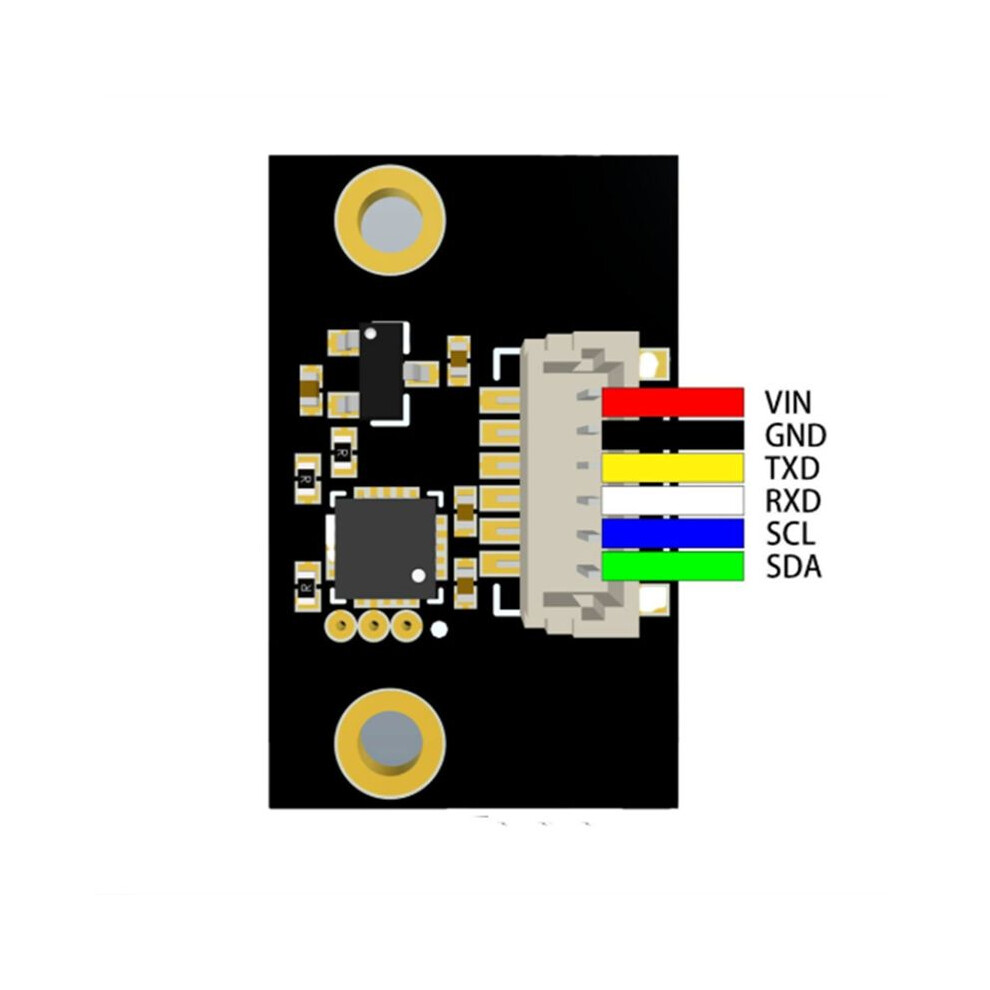

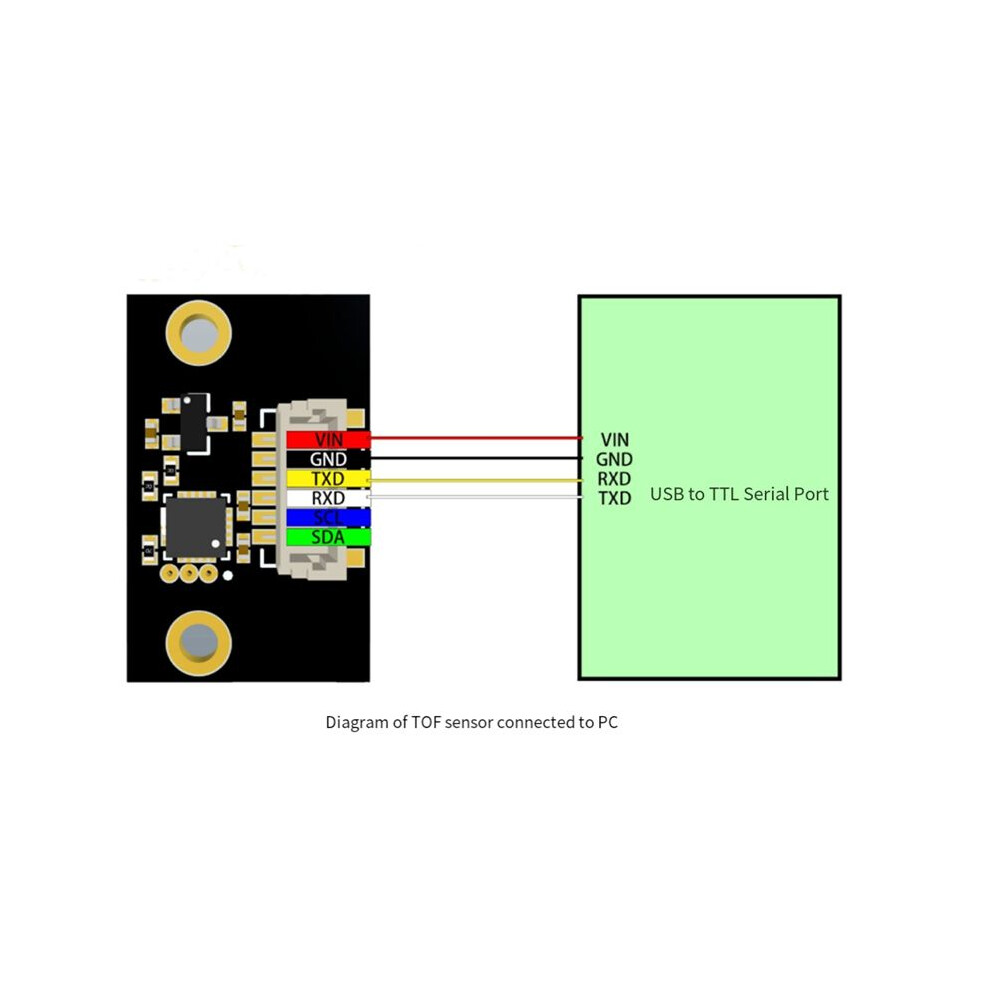

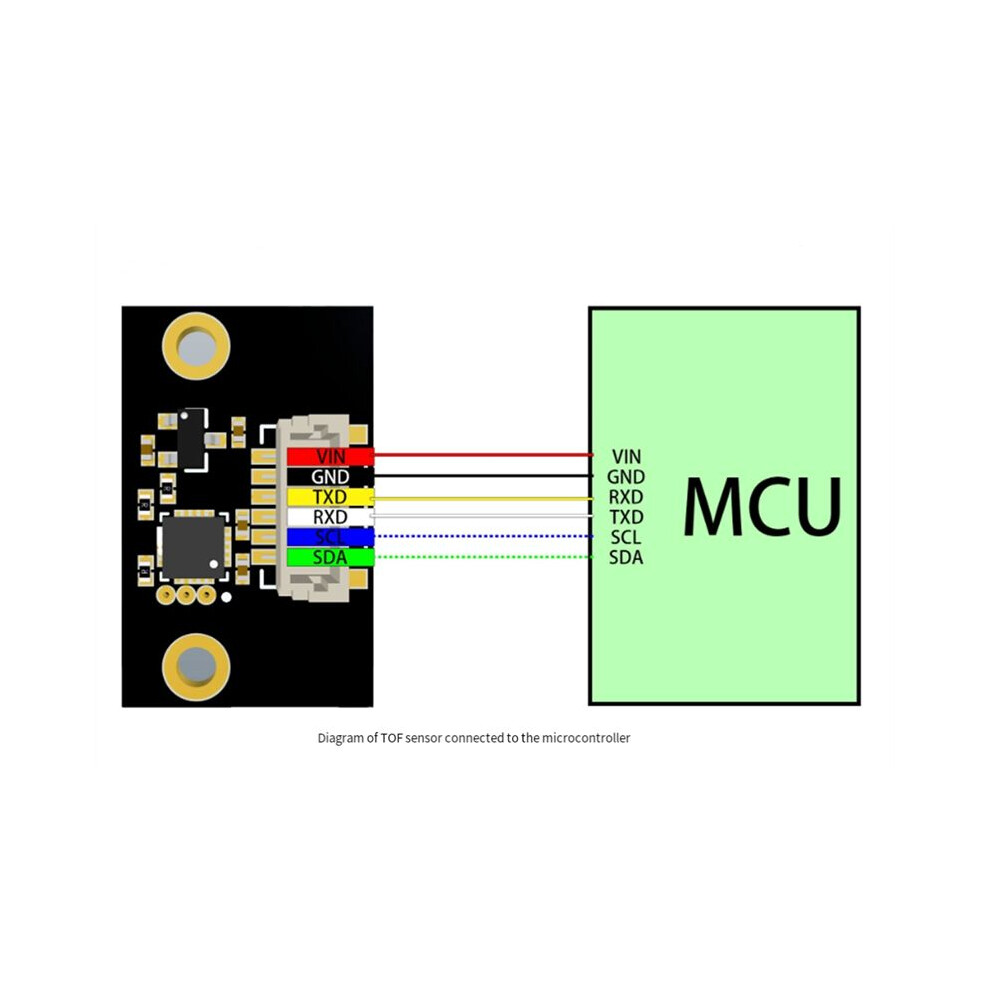

Supports serial port and IIC modes
Applications:1.High-speed autofocus
2.Continuous autofocus for video
3.User detection for computers and other devices
4.Obstacle detection
Color: Black
Material: plastic

Package Contents:
1 x TOF53400 2m-4m Laser Distance Sensor Module
