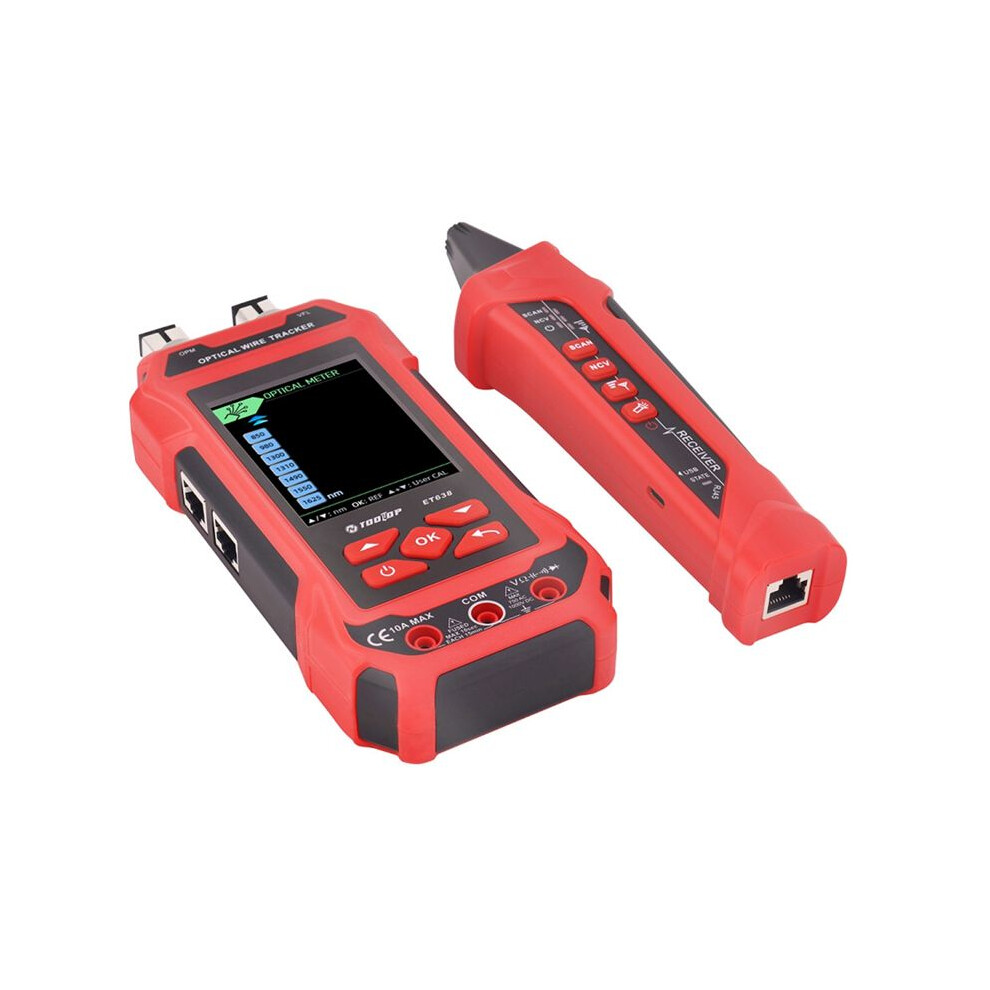

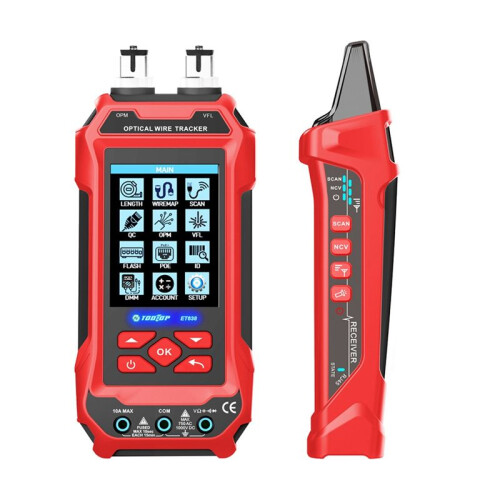

TOOLTOP Network Cable Tester 4 in 1 Multi-Function Fiber Optical Power Meter Visual Fault Locator Noise-Free LAN Tracking

Opis produktu: TOOLTOP Network Cable Tester 4 in 1 Multi-Function Fiber Optical Power Meter Visual Fault Locator Noise-Free LAN Tracking

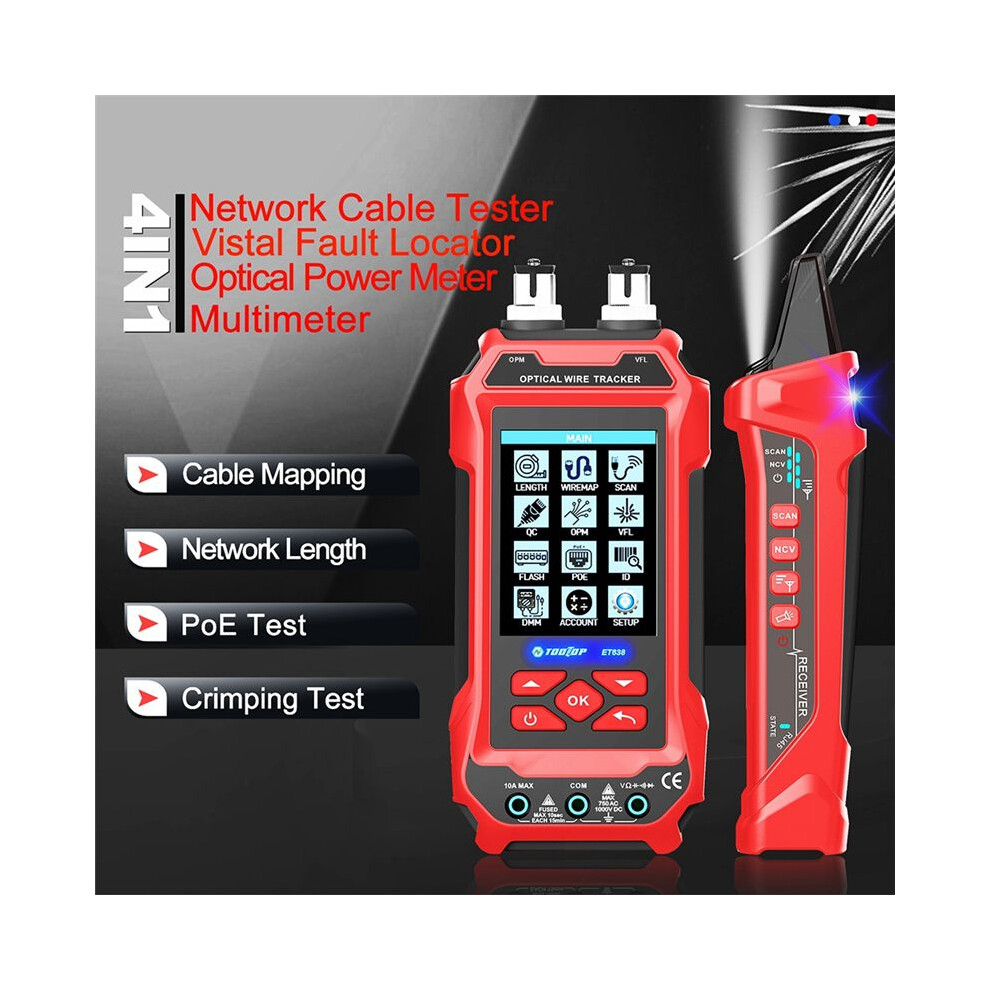

1. Multifuction Network Cable Tester + Multimeter + Optical Power Meter 4 in 1
2. Ethernet, telephone and coaxial video cable length measurement, to 600 meters
3. Powerful network cable analysis function: open circuit, short circuit, crossover and crystal crimping test
4. 6dBm to -70dBm optical power meter design, compatible with ST, SC, FC interfaces
5. Equipped with red laser emission function, the optical fiber transmission distance can reach 10KM, for visual positioning of breakpoints. 6. Scan( finding ),is noise-free and anti-interference, quickly find the target in complex lines, support RJ45 BNC TEL Cable

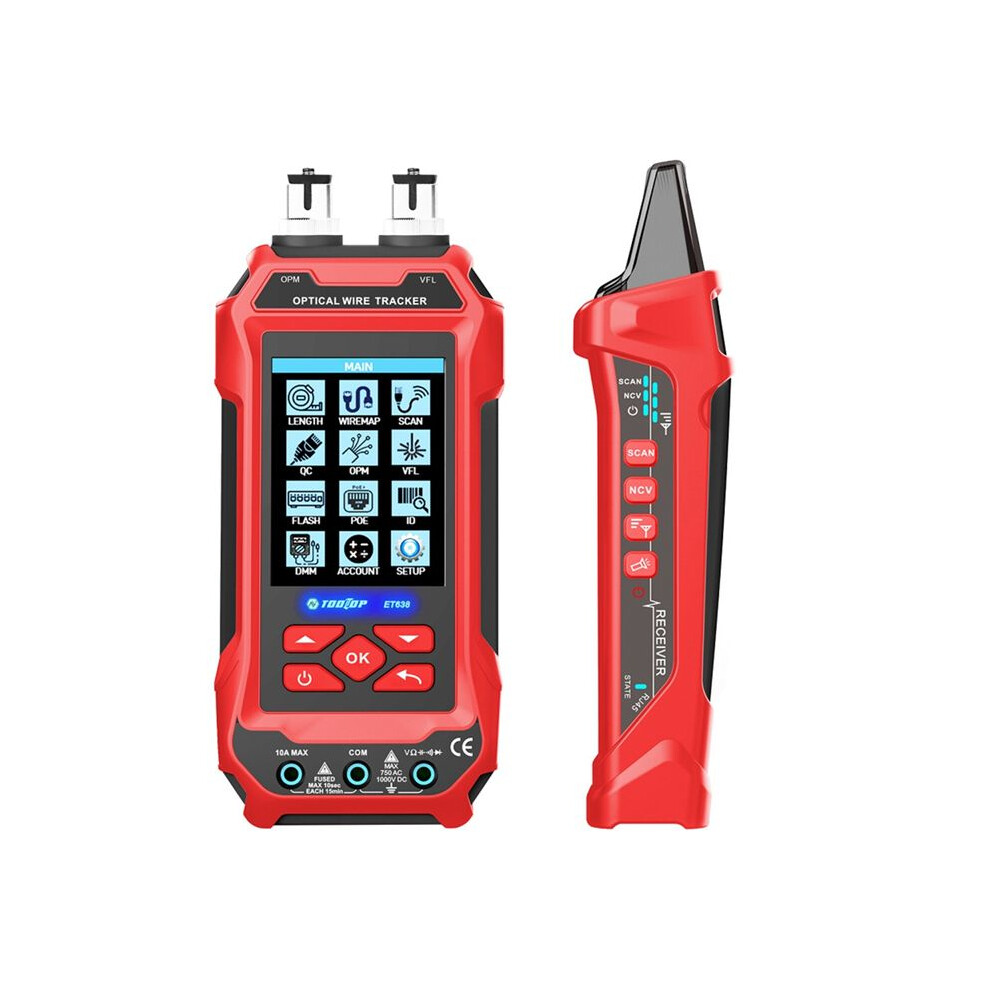

Name: Multifuction Network Cable Tester

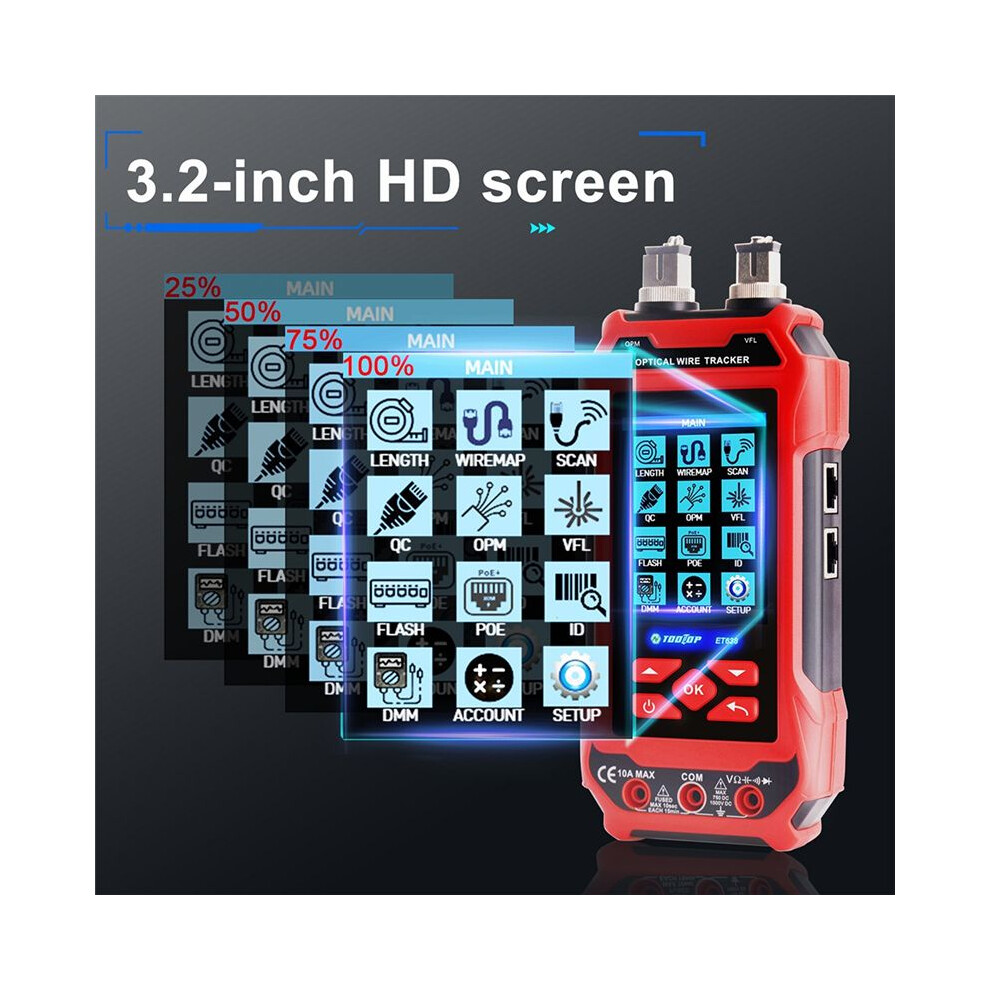

Display: 3.2 inche 240 x 320 color screen
Power supply: 1500mAH(Host) / 800mAH(Receiver) Lithium Battery
Size:Host 187 x 86 x 34mm / Receiver 197 x 47 x 36mm
Network Cable Tester
Cable Length:Network cable (600M), telephone (400M), coaxial cable (400M)
Measurable range: 1m~600m
Length self-calibration: support,the length of the referencel used for calibration must be greater than 5 meters

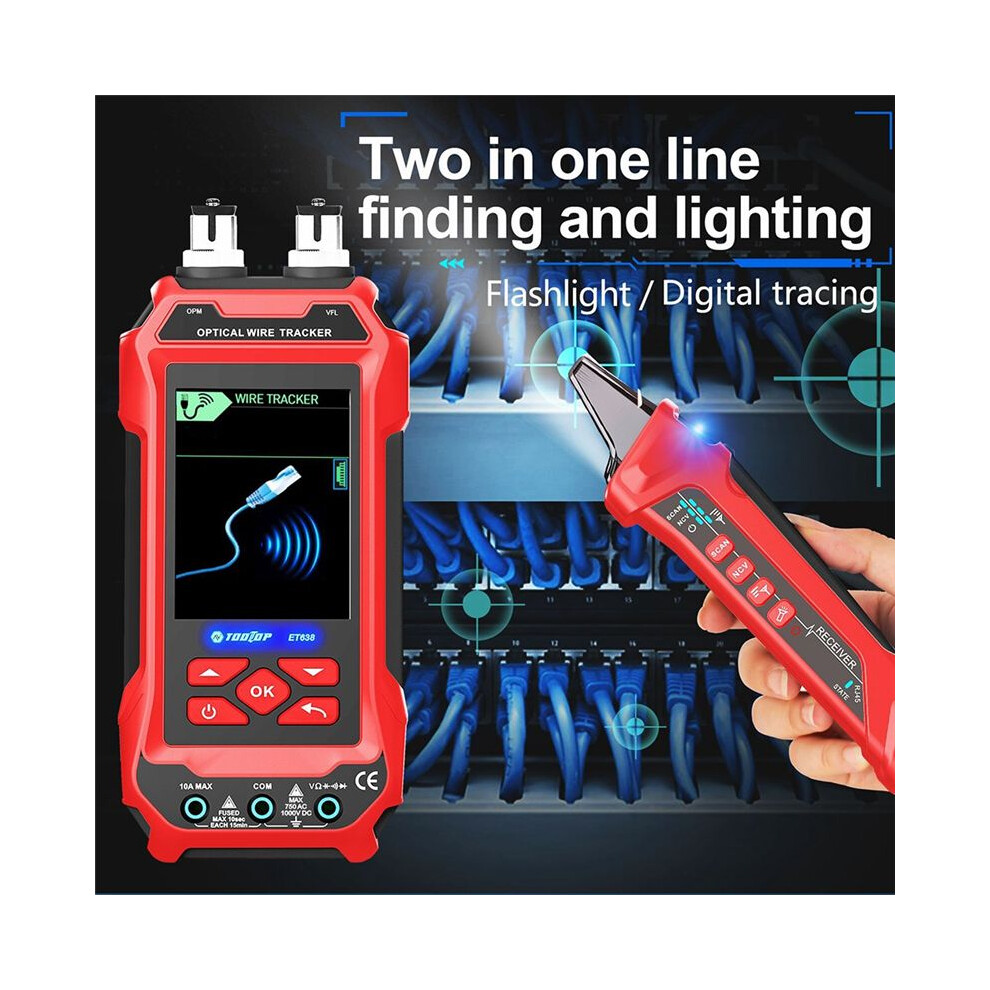

Digital Tracing: Digital mode (ET636)

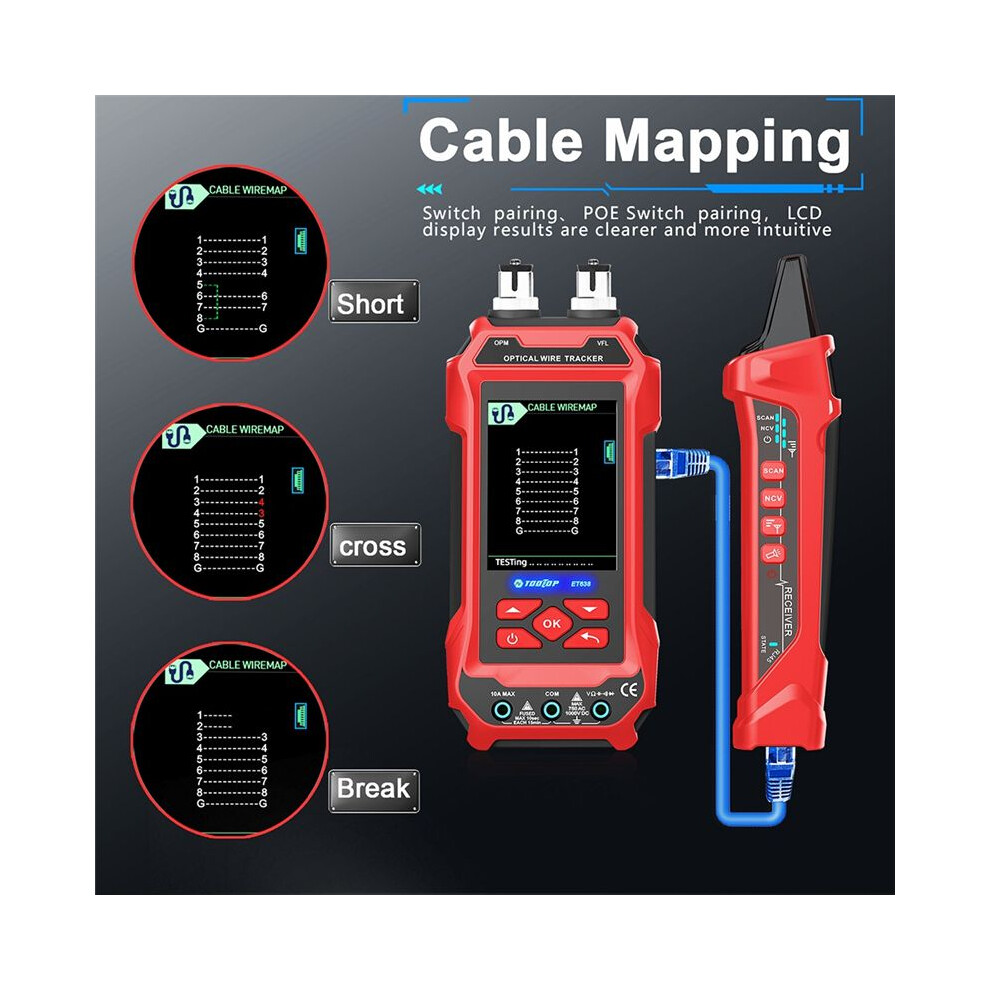

Cable Mapping: Normal/Open/Short/

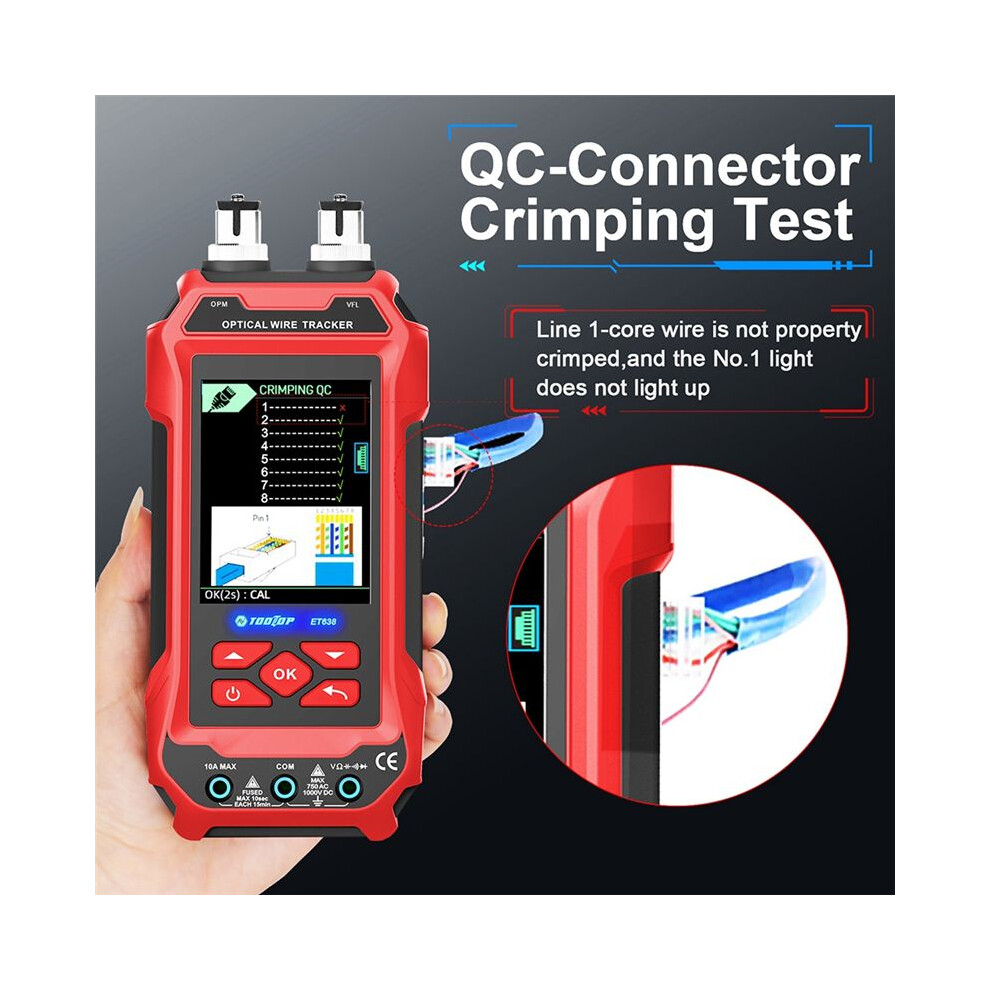

QC Crimping: Support
NCV: Support
Receiver: Sensitivity adjustable
Flash: 10M/100M/1000M
POE Test: Voltage/polarity
Account: 100 records storage/unit price/amount
Visual Fault Locator(VFL):10wm, about 10kM, 1Hz/2Hz/OFF
Optical Meter
Measurement range:-70.00~6.00 dBm
Optical power display: mW/uW/nW/dBm/dB
Interface: ST, SC, FC
Standard wavelength: 850,980,1300,1310,1490,1550,1625nm

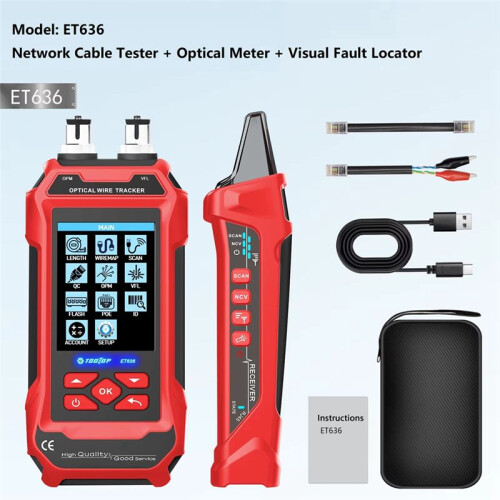

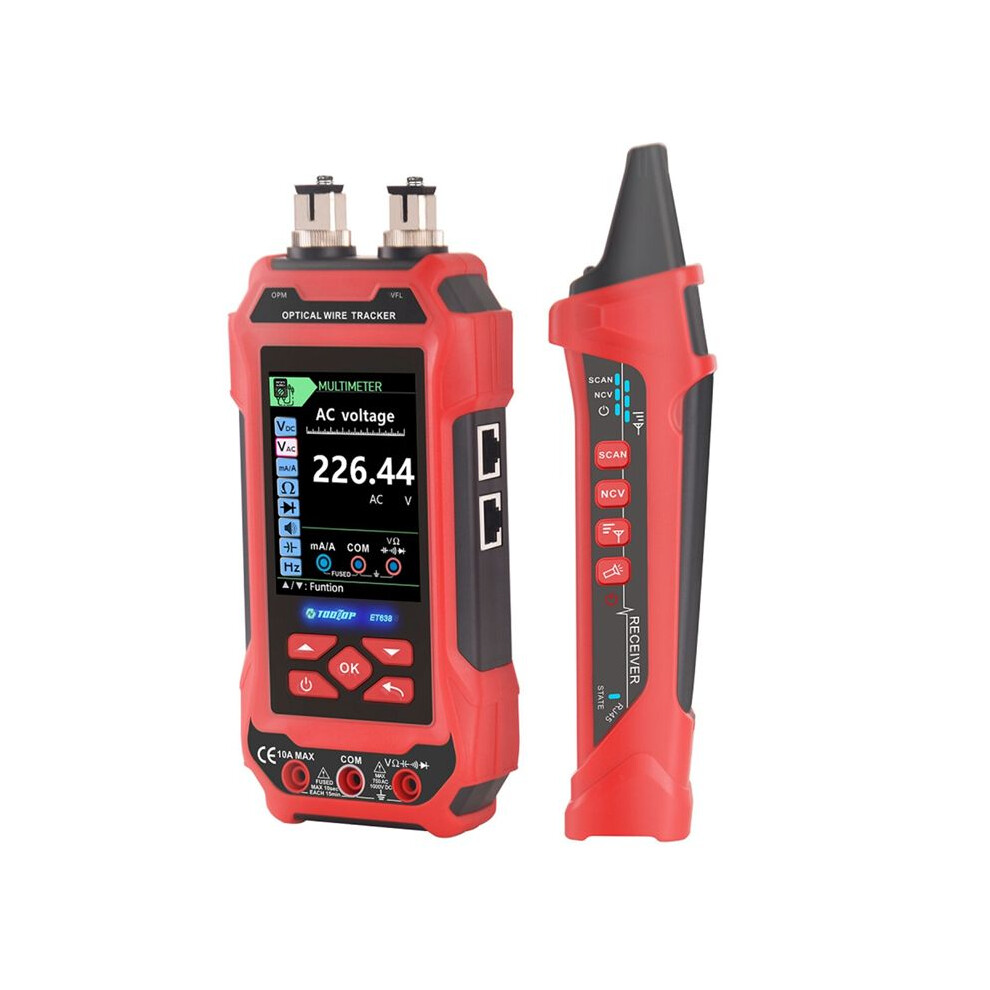

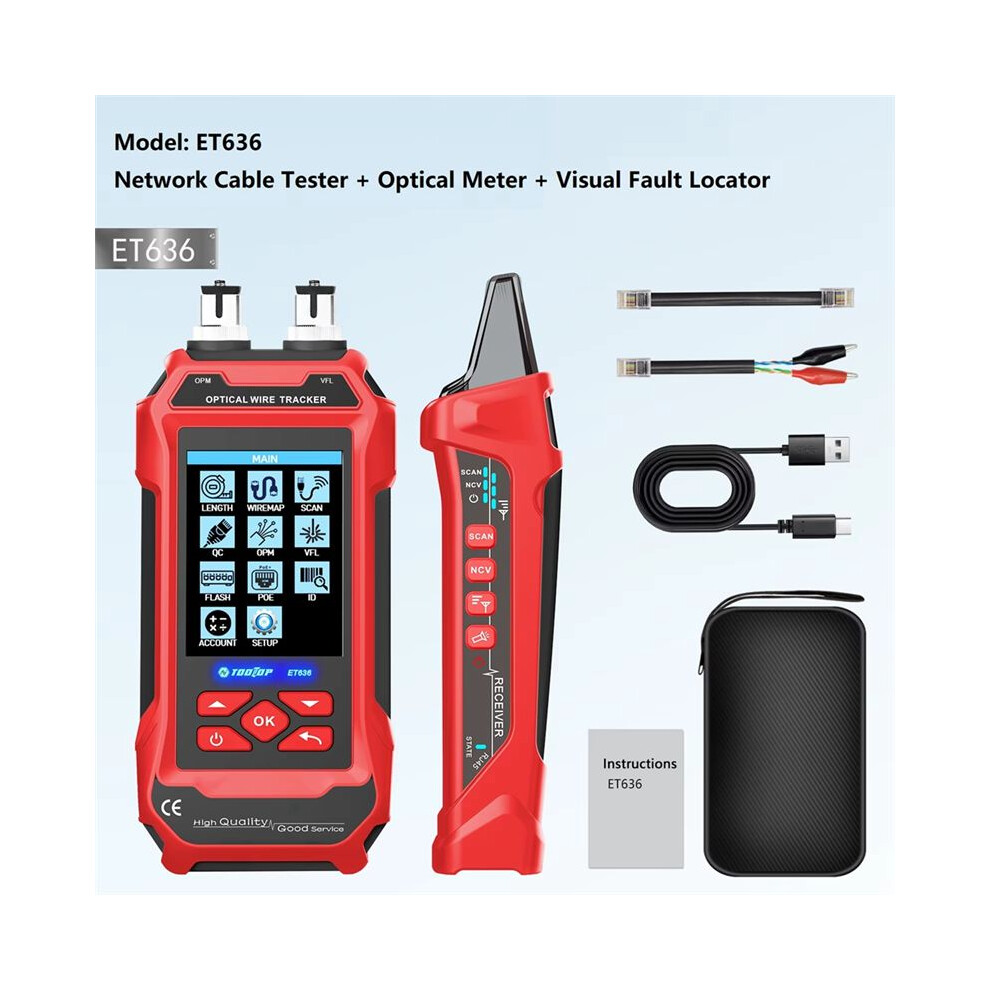

Multimeter[only for ET636]
Color: Red
Material: ABS

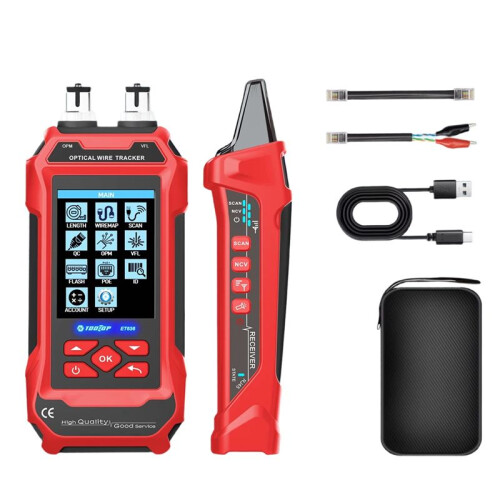

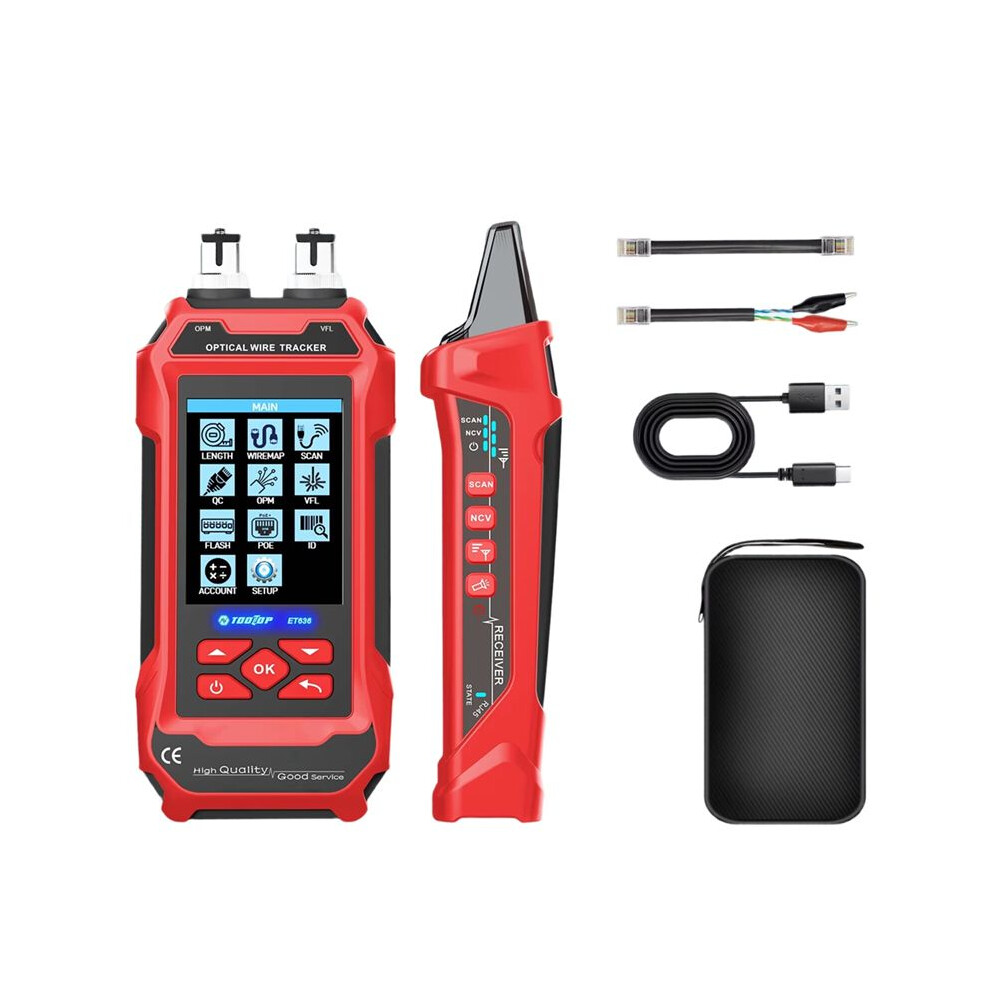

Package Contents:
1 * finder
1 * red light
1 * charging cable
1 * storage box
