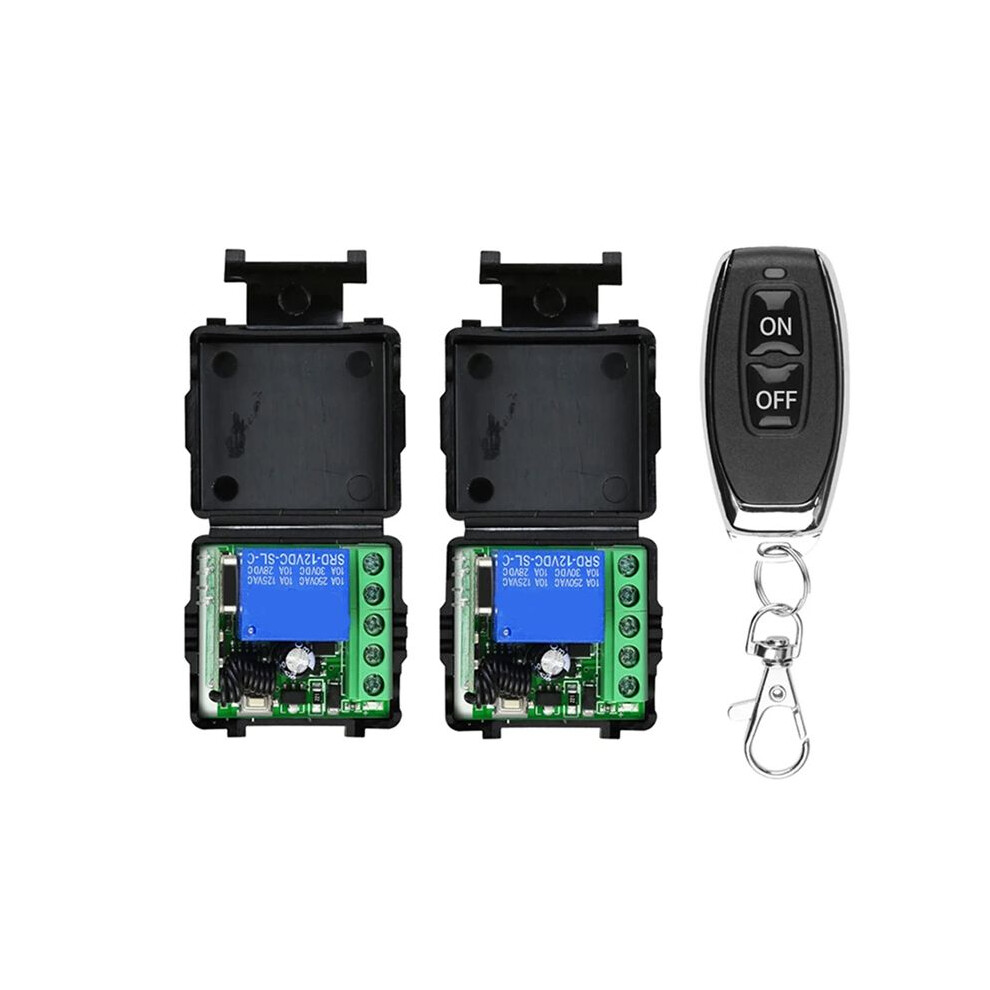

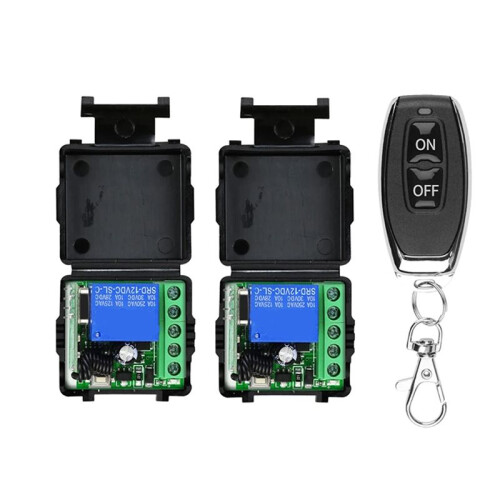

Universal Gate Remote Control 12V RF 433 Mhz Asking Code Relay Receiver for Garage Door LED Lighting

Opis produktu: Universal Gate Remote Control 12V RF 433 Mhz Asking Code Relay Receiver for Garage Door LED Lighting

Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects. Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
Tiem delay mode: Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically.
Clearing the Code:Press the Learning Button the receivers for 8 times, the codes will be cleaned. After cleaning the code, all the remote control cannot work any more.

Please Note:The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
Specifications Of The Receiver:
Input voltage: 12V
Working current: 10A
Maximum load power: 110W
Frequency: 433Mhz
Support encoding format: EV1527

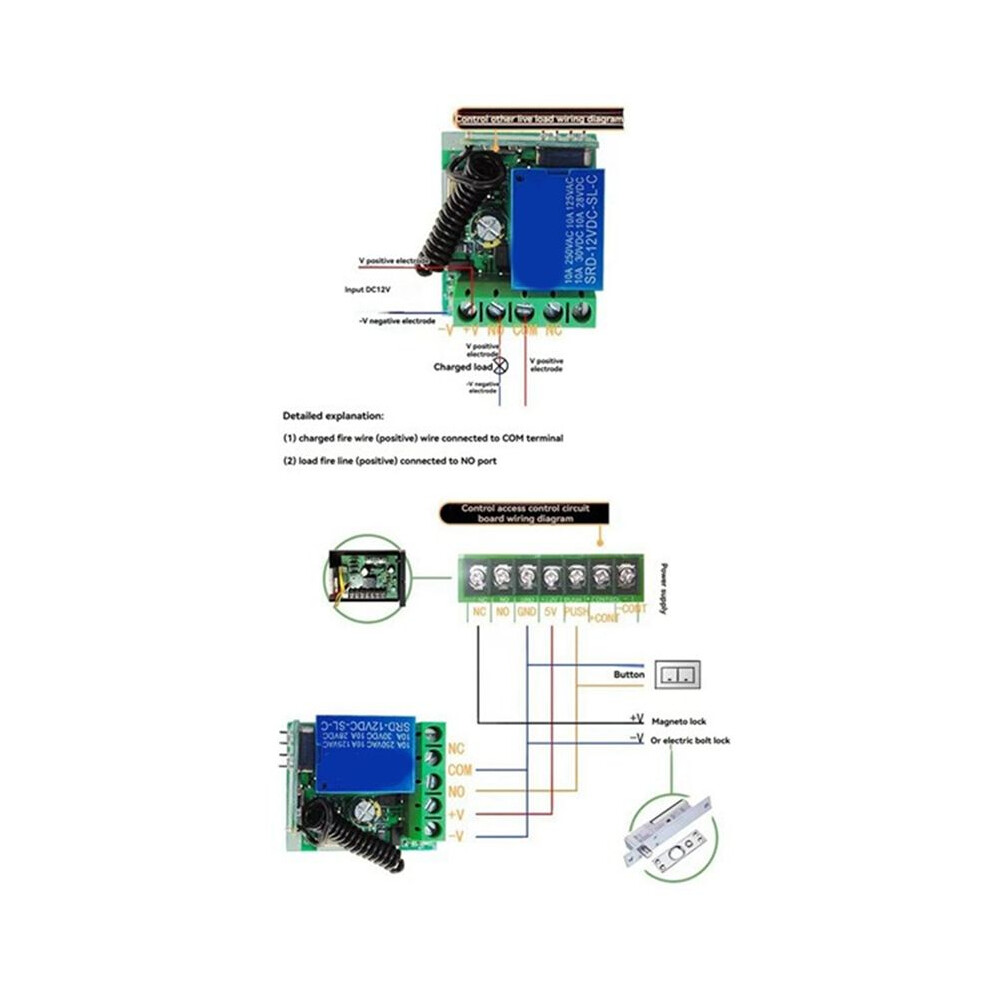

Wiring method: NC COM NO Working mode: Momentary, Toggle, Latching delay (5s ,10s ,15s )
Specifications Of The Remote Control:
Operating RF Frequency: 433MHz.
Coded System: 1527
Learning Code. Working Voltage: 3V.
Working Current: Less than 25mA
Transmitting Power: 10mW.
Wireless Operating Distance: 50m(Free Space).
Transmission Rate: 50 - 60KHz.
Frequency Deviation: +0.2MHz or -0.2MHz.
Note:
Installation guide not included,
Please check as much as possible to make sure the item is what you need.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Color: As Shown
Material: plastic

Package Contents:
2 x remote switches
1 x remote control
