Universal Multifunction Inverter For Backlight Led Constant Current Board Driver Board 12 Connecters Led Strip Tester

Opis produktu: Universal Multifunction Inverter For Backlight Led Constant Current Board Driver Board 12 Connecters Led Strip Tester

new and high quality
Description:Not provide technical support. you should know how to use it. If not, think twice before your order. Thanks!

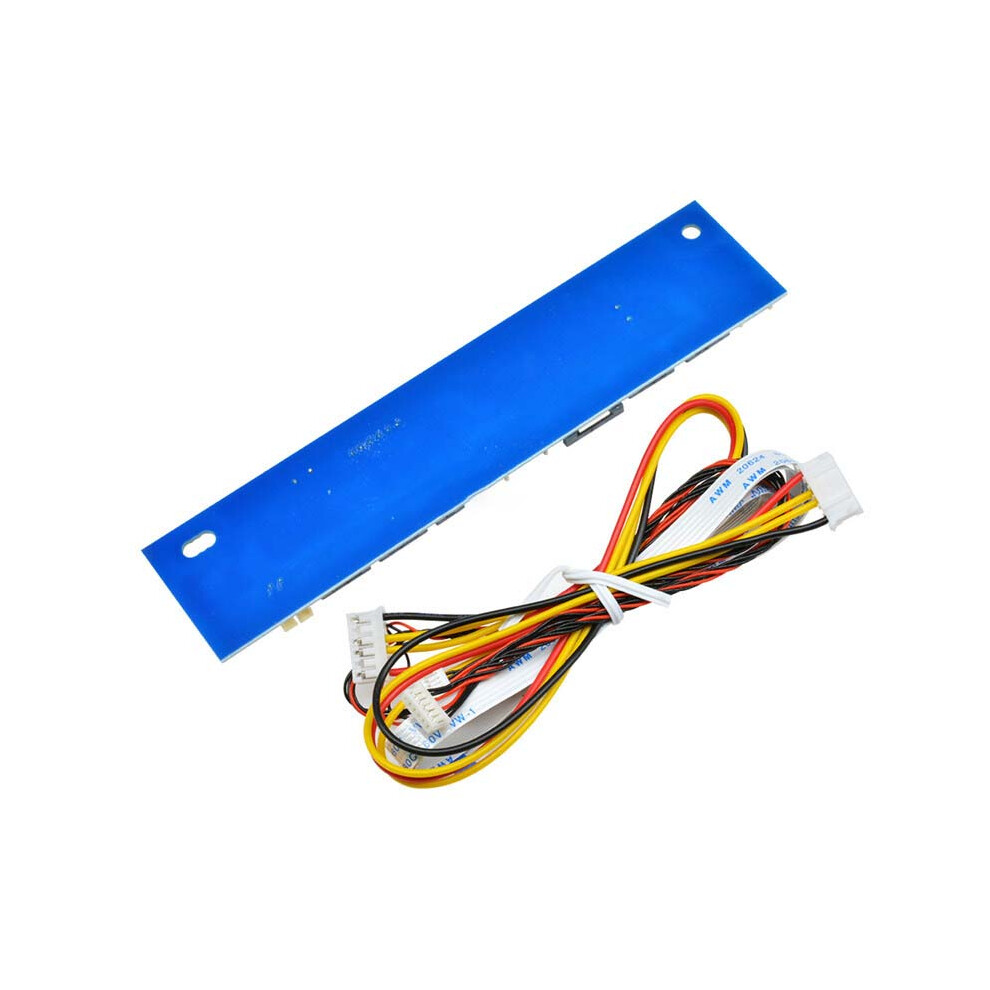

Product Name:Super universal interface 2P 6P 10P 12P full interface universal LED boost board LED high voltage board
LED connection must pay attention to the definition of the interface is only positive and negative points, the positive input power supply must not be reversed or wrong,
Improper connection caused by the consequences of their own, special reminder, but also understanding.
LED high-pressure board conversion instructions
1: Connect the power, ground, and signals required by the booster board to the universal LED booster board
VCC Power Signal ADJ Brightness Control GND Ground
HINT: Connect the same way as the LCD high voltage board
2: with a multimeter to measure the amount of LED light bar is the number of lines, which are a few negative which are the number of lines which are a few lines
is only in the more positive and negative points, engage in technology should not amount to see the original boost board can see out of the definition.
Size:12.3cm * 3.1cm
Interface definition: Outputs 12 interfaces
-3 + 4-3
-4 + 2-4
+ 3-9
-1 + 1
-2 + 2-2 electronic wire
-2 + 2-2FFC
-4 + 2-4
-3 + 4-3
-5 + 2-5 * 2
Small mouth * 2
Input: Power supply signal brightness control ground wire
(Same as LCD)
Not all of the interfaces are soldered , we pre-installed one or more details see above description.
color:
Material: plastic + metal
Package Included:
1x Universal Inverter
1x 4 pin cable
