Waveshare for DeepSeek XiaoZhi AI Voice Chat Robot BOX ESP32 C6 Development Board 1.43inch Round LCD Touch Screen A

Opis produktu: Waveshare for DeepSeek XiaoZhi AI Voice Chat Robot BOX ESP32 C6 Development Board 1.43inch Round LCD Touch Screen A

This product is a high-performance, highly integrated microcontroller development board designed by Waveshare, with large-capacity Flash.
It has an onboard 1.43-inch high-definition AMOLED display, highly integrated RTC, IMU, Micro- card slot, low-power audio codec chip, dual MIC circuit, lithium battery charging and discharging and other peripherals, and reserved USB, UART, I2C and GPIO interfaces, providing flexible expansion capabilities, convenient for development and embedding into products.
Equipped with ESP32-C6 high-performance 32-bit RISC-V processor, with a main frequency of to 160MHz
Integrated Wi-Fi 6, 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications for excellent RF performance
Built-in 512KB , 16KB LP and 320KB ROM, stacked with 16MB Flash

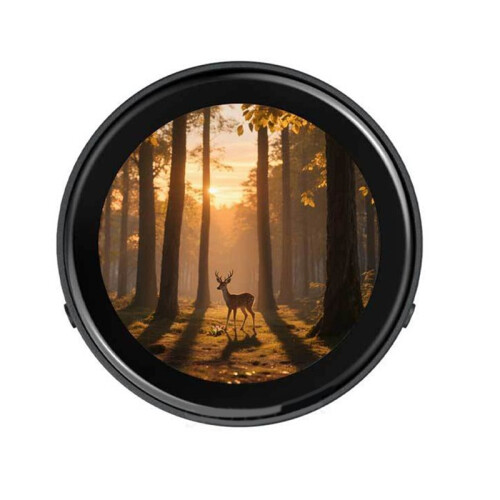

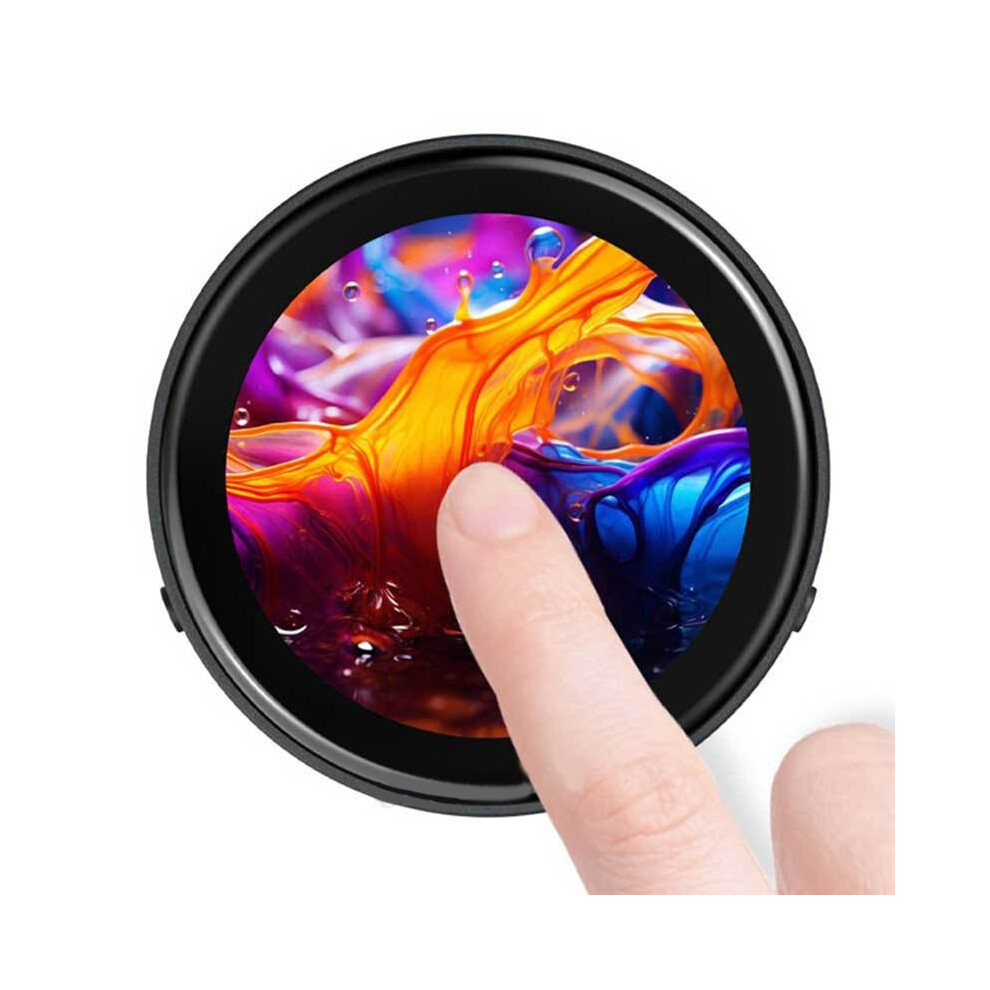

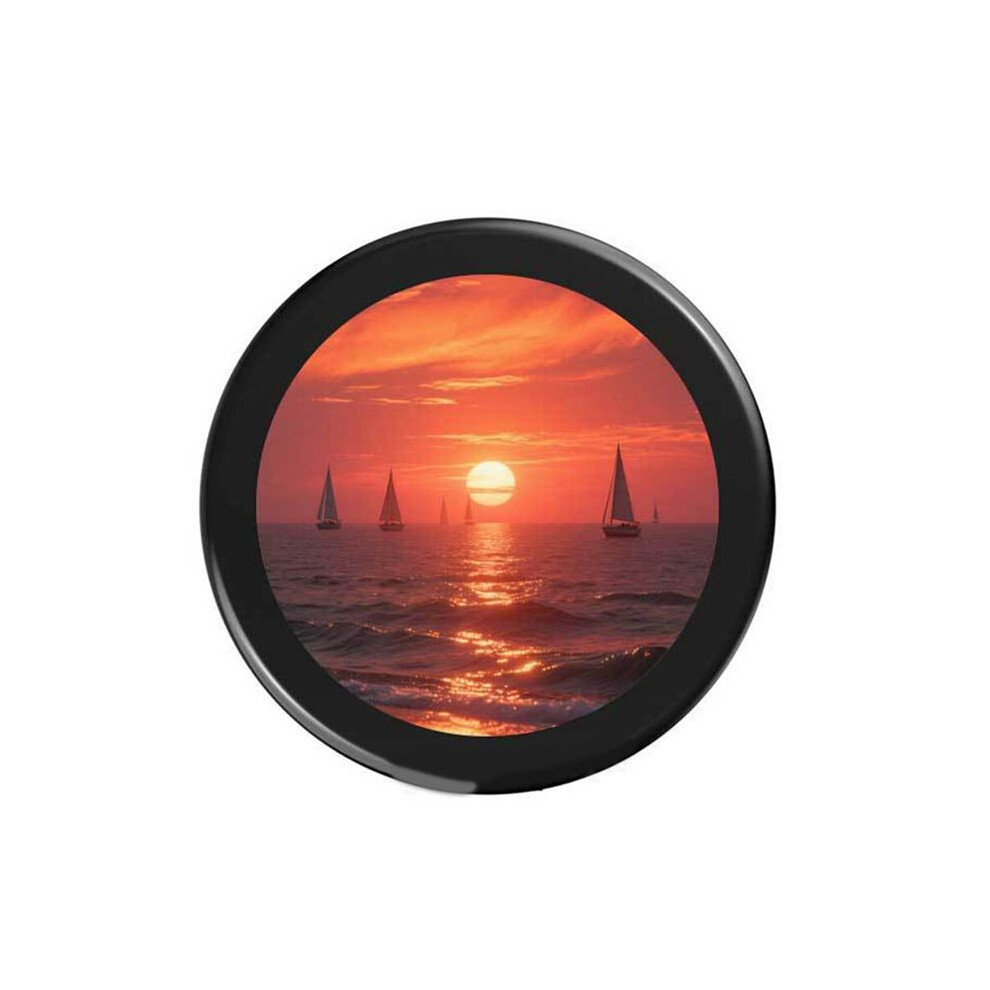

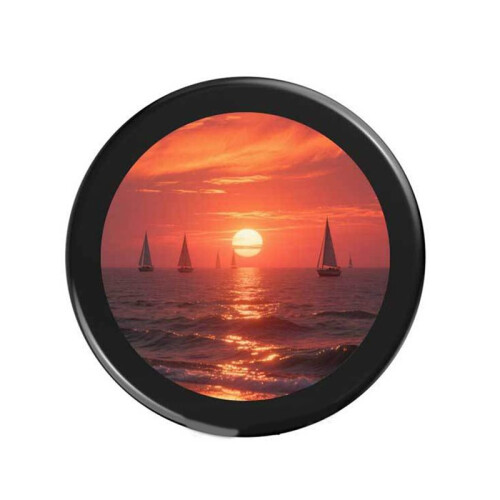

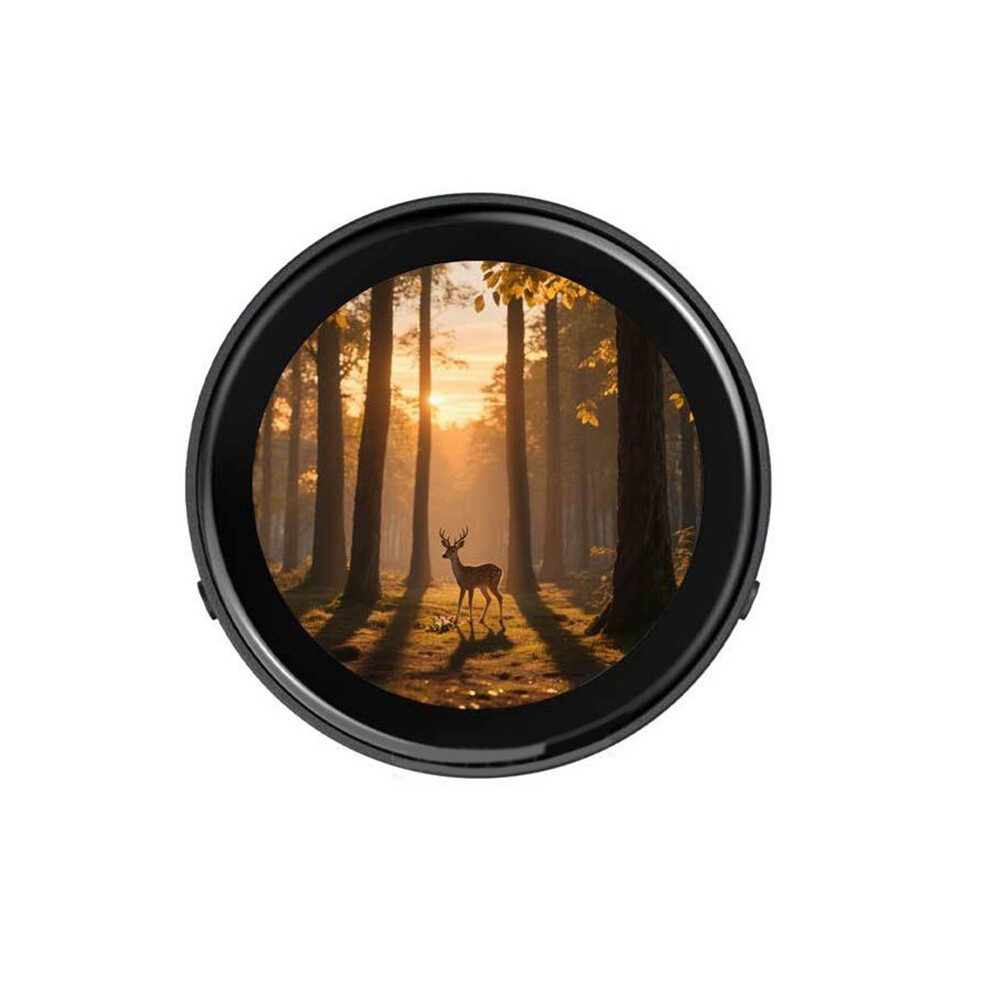

Onboard 1.43-inch capacitive touch HD AMOLED screen, 466x466 resolution, 16.7M color, can clearly display color pictures
Built-in CO5300 driver chip and FT6146 capacitive touch chip, using QSPI and I2C interface communication respectively, improving performance without occupying too many pin resources

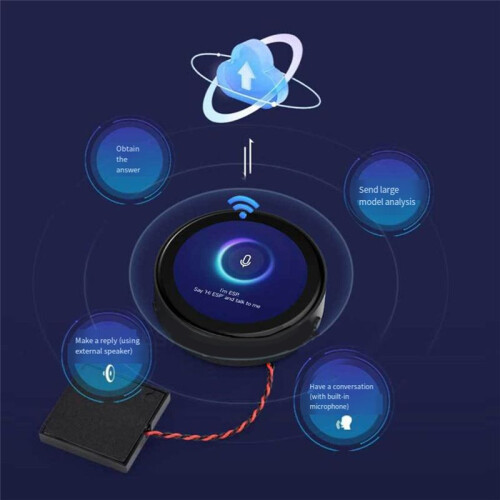

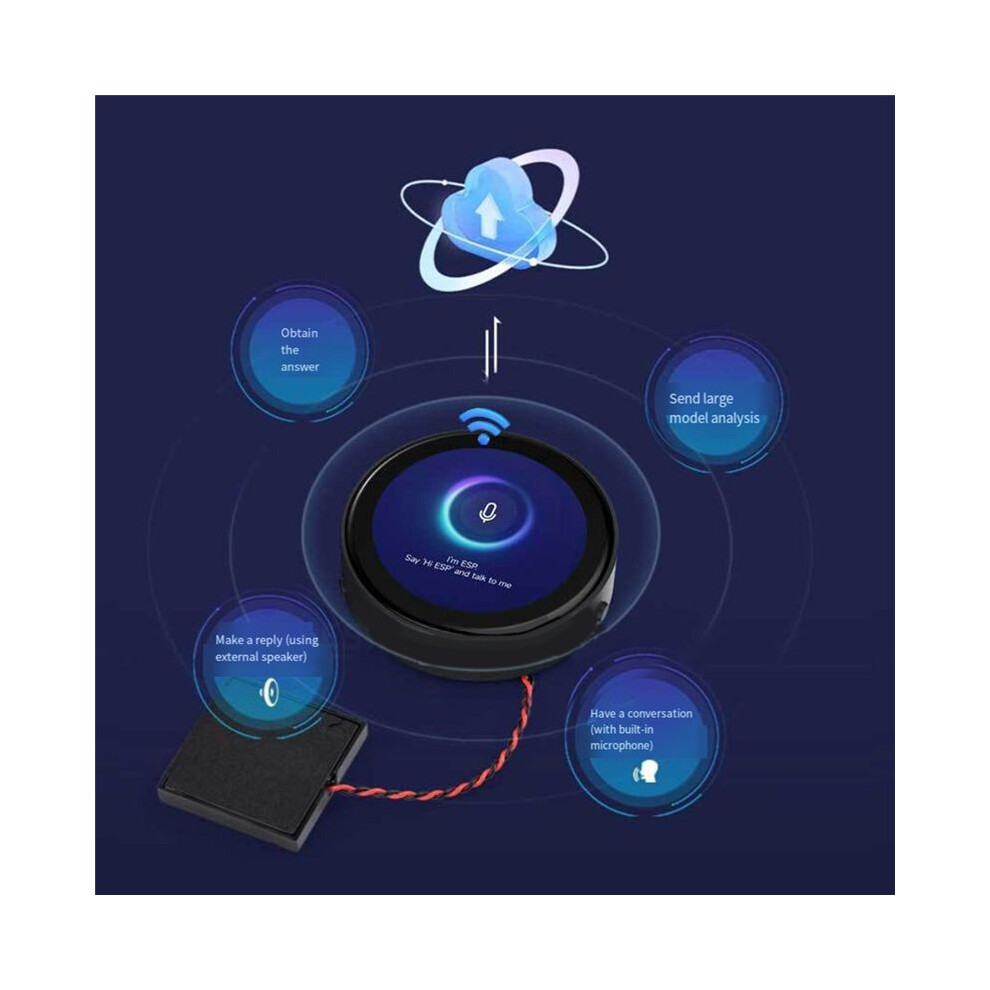

Equipped with dual digital microphone array, it supports richer voice interaction functions and is suitable for accurate voice recognition and near-field/far-field voice wake- applications.
Onboard QM18658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), capable of detecting motion posture, step counting, etc.
Onboard PCF85063 RTC chip, which can easily realize RTC function requirements
Onboard PWR and BOOT two customizable side buttons, convenient for custom function development using buttons
Specifications: A Without housing
Color: As Shown
Material: LCD+Pcb

Package Contents:
1 x 1.43inch Round LCD Touch Screen
