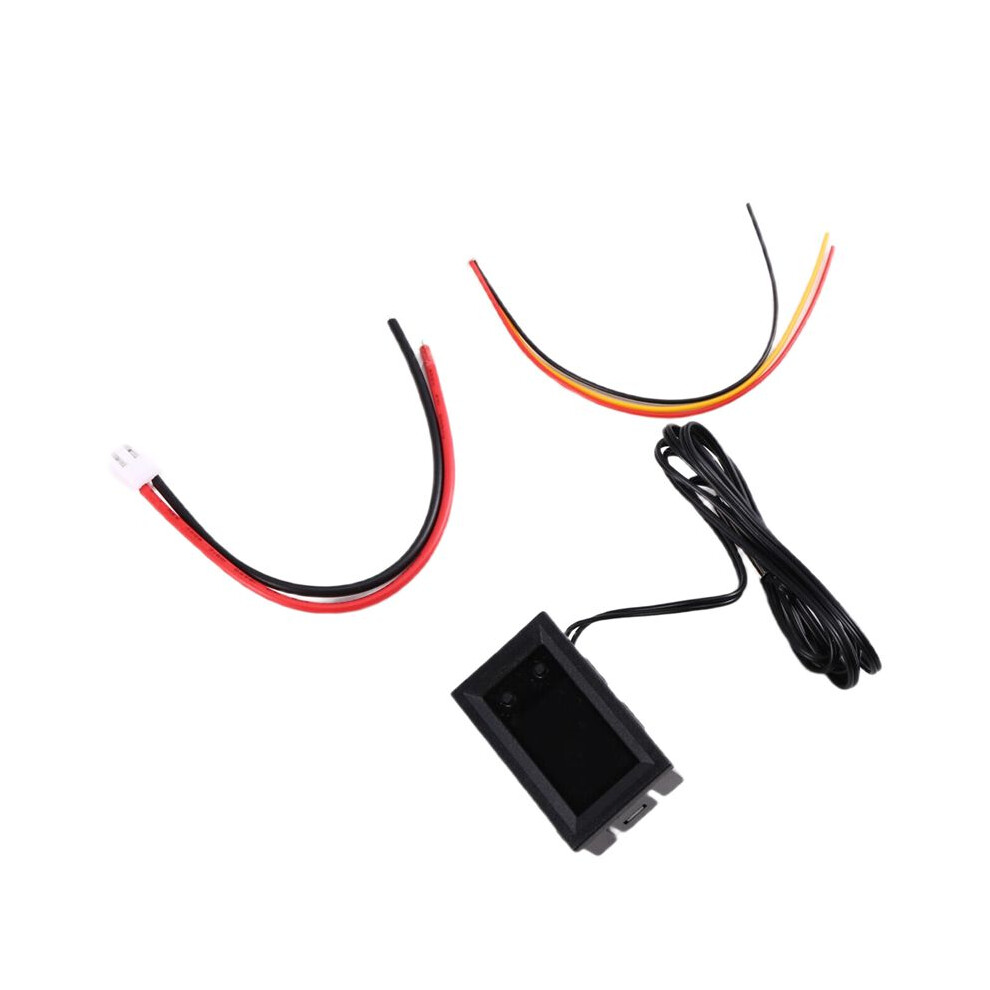

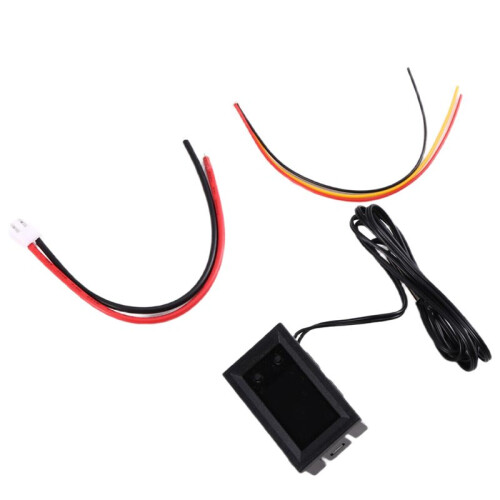

100V 10A Voltmeter Ammeter KWS Power Meter LED Digital Wattmeter 9-in-1 Multi-Function Measuring Instrument

Descriere 100V 10A Voltmeter Ammeter KWS Power Meter LED Digital Wattmeter 9-in-1 Multi-Function Measuring Instrument

Temperature sensor: cylindrical waterproof probe NTC 10K 3950 1% sensor total length about 1 meter
Temperature measurement range: -40-120 (external temperature measured by NTC sensor). measurement range: 0-999:59:59 (hour: minute: second)
Working consumption: 20mA (measured at DC12V)
Support: Accumulated data clearing, no-load forced zeroing, voltage display fine-tuning, current display fine-tuning
Percent power display: percentage power based voltage reference (full power and low power voltage need to be manually set)

Name:9-in-1 Measuring Instrument
10A direct measurement,no external shunt required
Operating Mode:Automatic
Model Number: Power Meter
Display Type:Digital display
Input/output interface:10A
10A Technical Parameters:
Instrument working voltage: XH-3P red and black wire DC4-30V (do not overvoltage power supply)
Introduction to wire definition:
Thin red wire: positive pole of working power supply, cannot be connected to power supply above 30V
Thin black wire: the negative pole of the working power supply, which shares the ground with the thick black wire. It does not need to be connected when the power supply is shared.
Thin yellow wire: voltage test wire, connected to the positive pole of the test circuit power supply
VH-3.96-2P thick red and black wire (thick wire total length: 165mm) current test wire, thick wire connected in parallel with shunt resistor, cannot be directly connected to the two poles of the power supply, it will cause a short circuit
Voltage measurement range: DC0-100V error 1.00V 0.1V starting
Current measurement range: 0.00A-10.00A error 0.1A 0.03A start
Power measurement range: 00.00-1000W
Capacity measurement range: 0-9999999mAh
measurement range: 0-9999999mWh
Colour:Black
