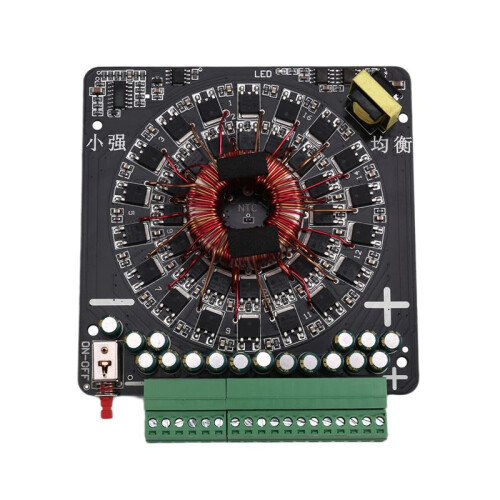

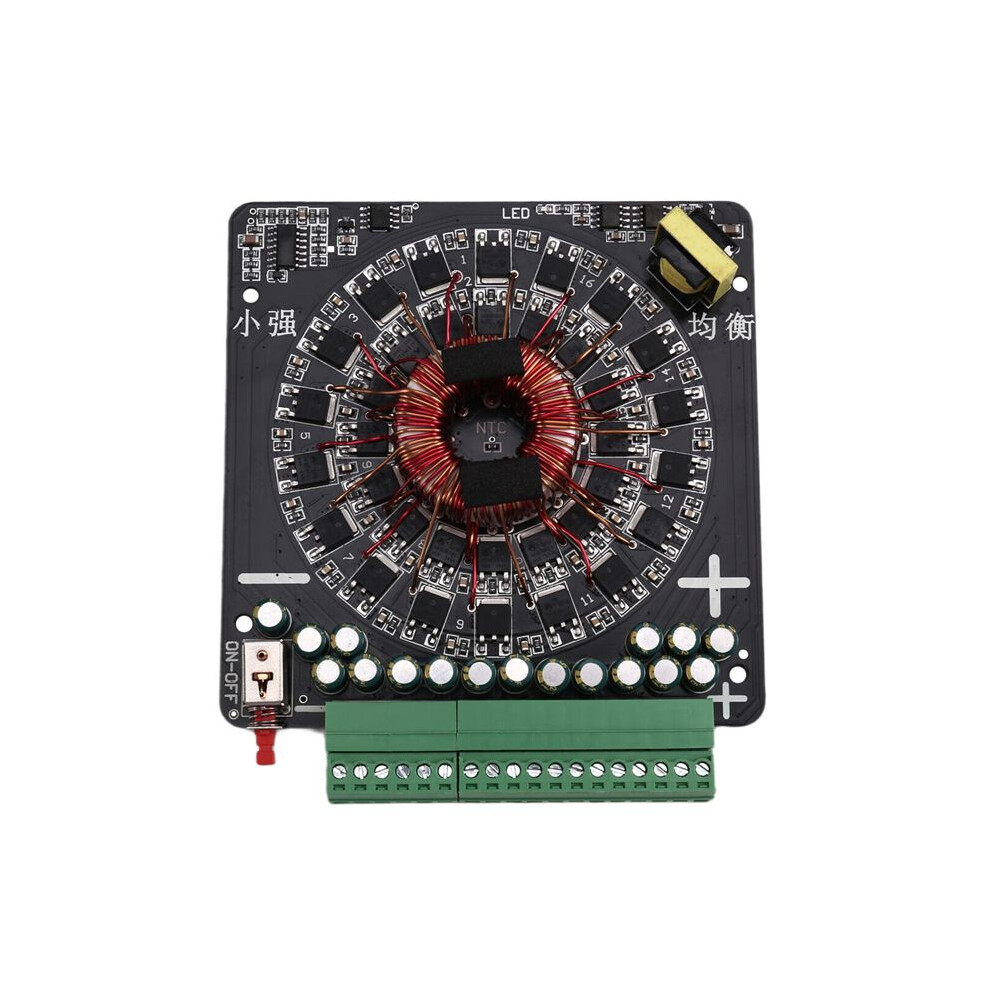

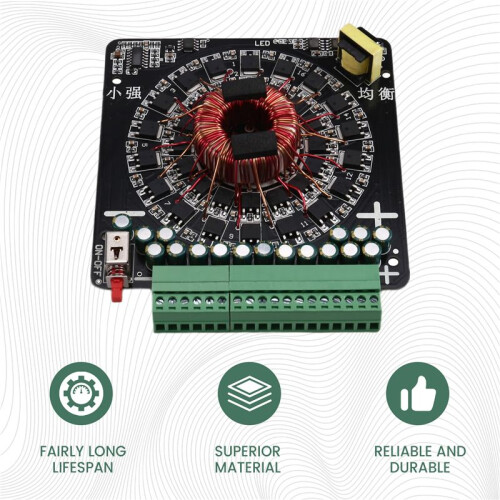

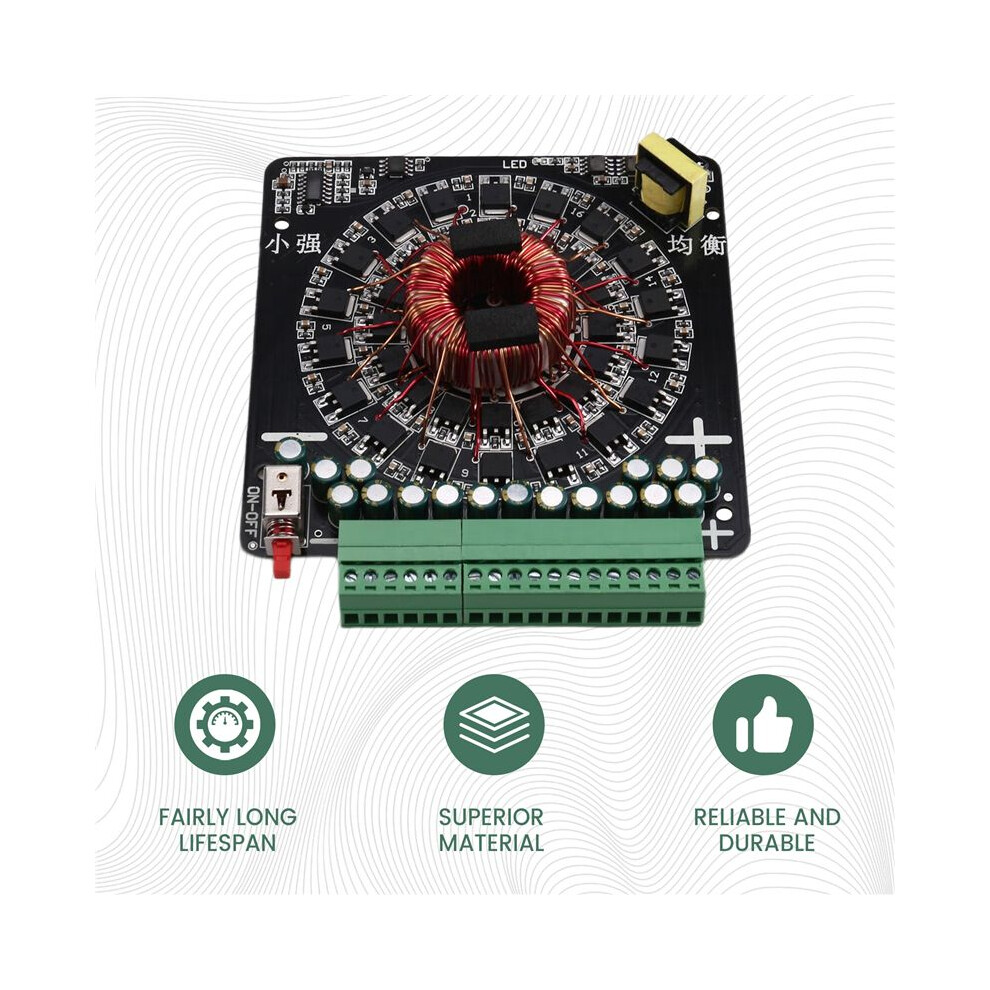

10A Lithium Battery Active Equalizer Support 4-17s Li-Ion Lifepo4 Battery Pack

Descriere 10A Lithium Battery Active Equalizer Support 4-17s Li-Ion Lifepo4 Battery Pack

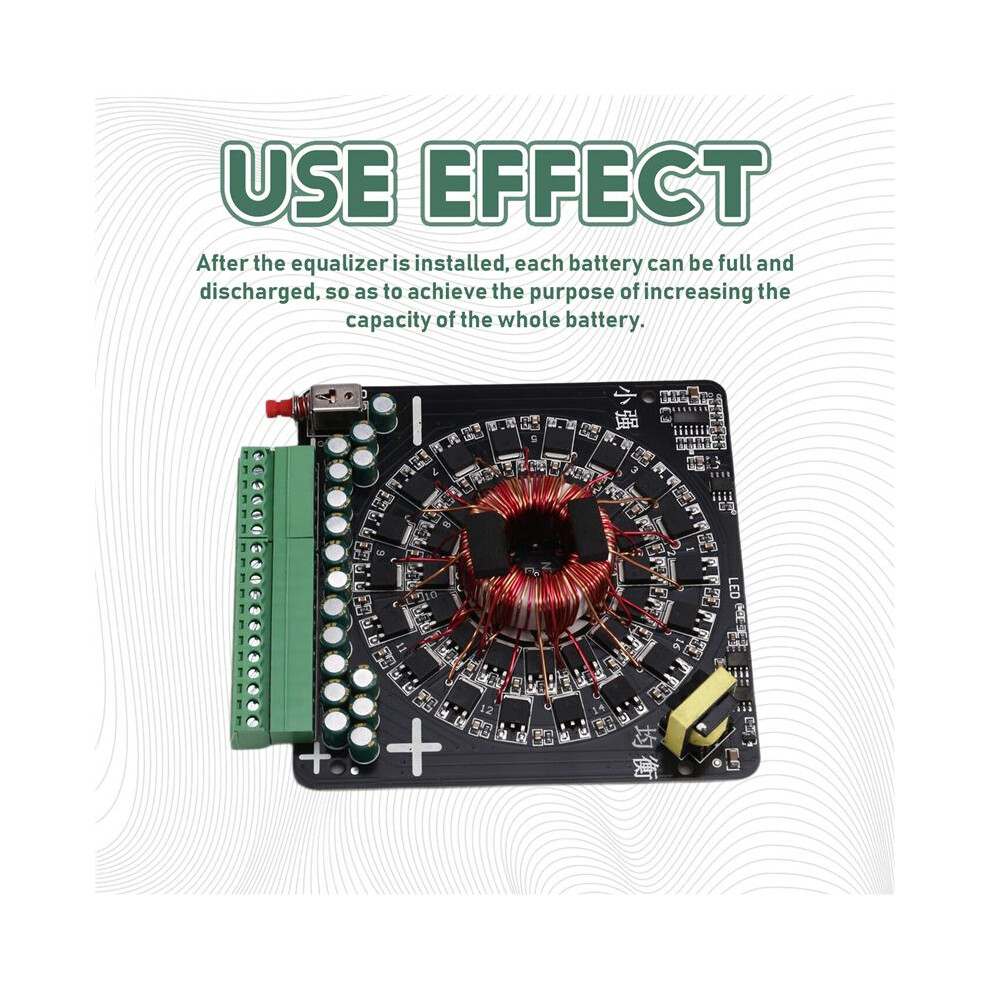

[Use effect]After the equalizer is installed, each battery can be full and discharged, so as to achieve the purpose of increasing the capacity of the whole battery.

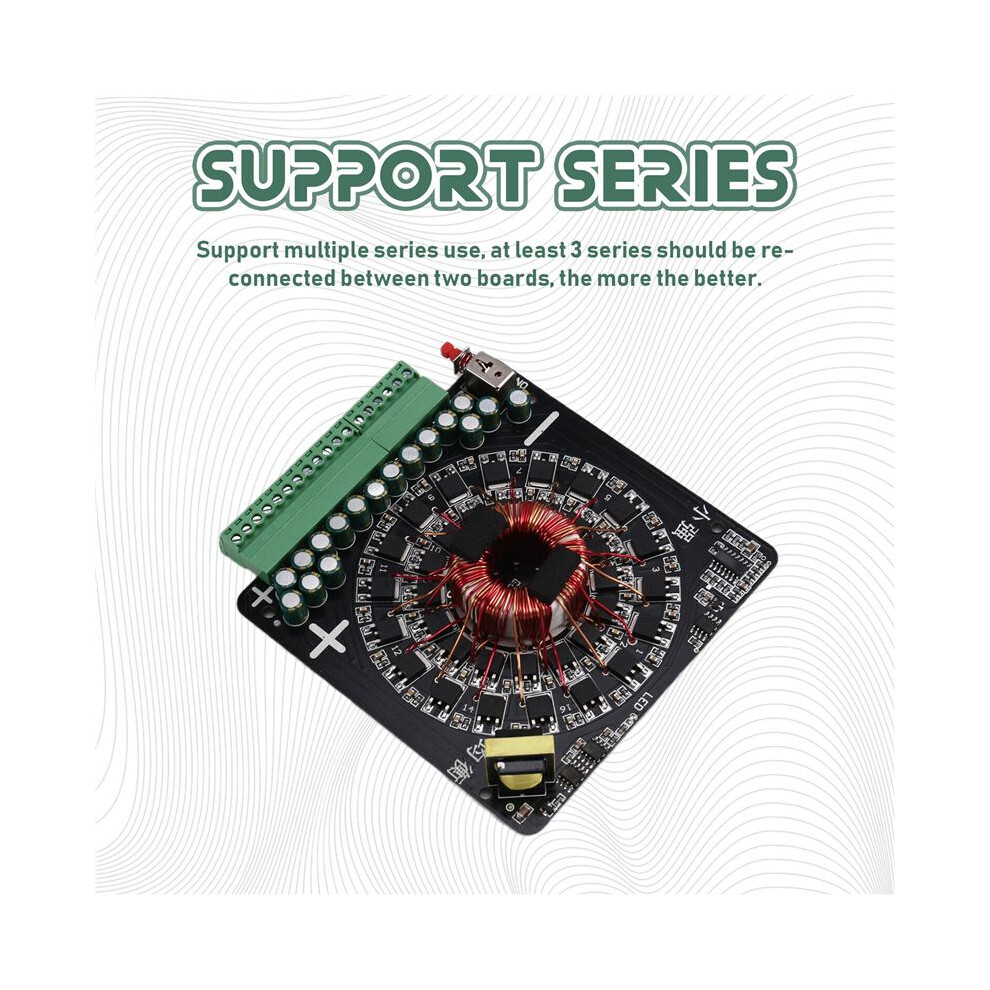

[Support series]Support multiple series use, at least 3 series reconnection between the two plates, the more the better.
[Work independently]Can not replace the use of the protection board, does not participate in the charge and discharge control of the protection board, and the parallel relationship with the protection board, independent work does not affect each other.

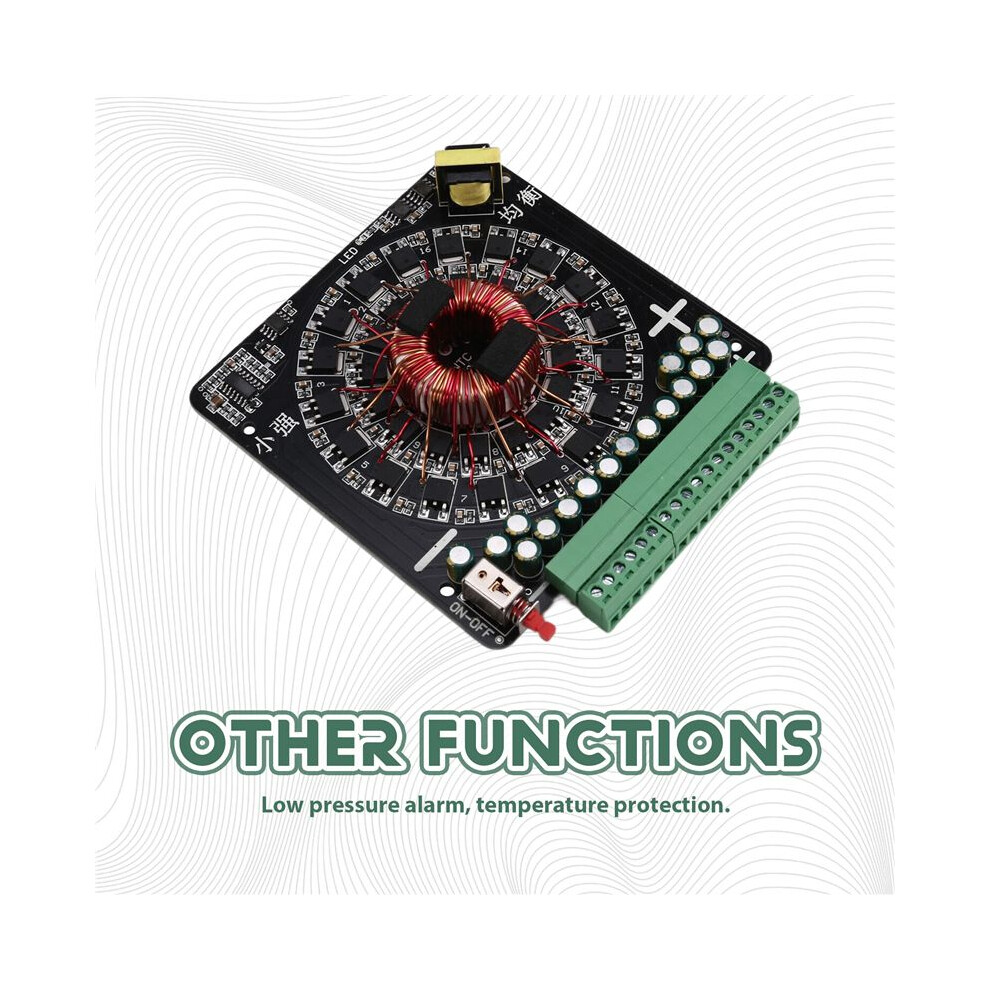

[Other functions]Low pressure alarm, temperature protection.

[Use skill]The best effect is to balance while charging, because the pressure difference is the largest when it is fully charged, and the balanced current is also large, so it can be balanced well soon. When it's full. After unplugging the charger, the balance will be fine for a few hours. The best effect is to balance while charging, because the pressure difference is the largest when it is fully charged, and the balanced current is also large, so it can be balanced well soon. When it's full. After unplugging the charger, the balance will be fine for a few hours.
[Actual effect test]Connect the cable and install the plug, do not plug in the equalizer yet. With a multimeter, measure each section of voltage the equalizer plug and record it before inserting the equalizer. Press the and the red light is . In an hour. Then measure the primary voltage according to the above, and record it for a comparison before and after. Be careful not to charge. Condition testing, because the pressure difference is the biggest inaccuracy when it is nearly fully charged.
Color: As Shown
Material: PC

Package Contents:
1 * lithium battery balancing board
