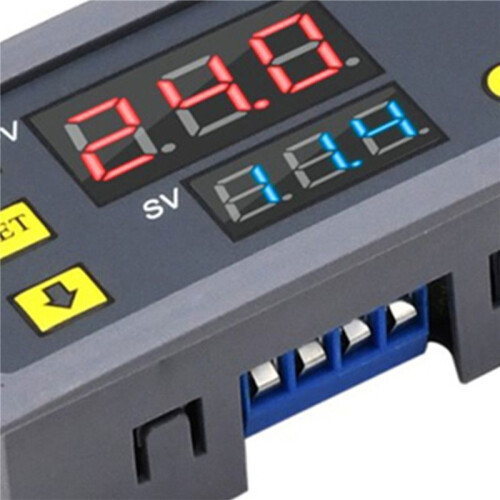

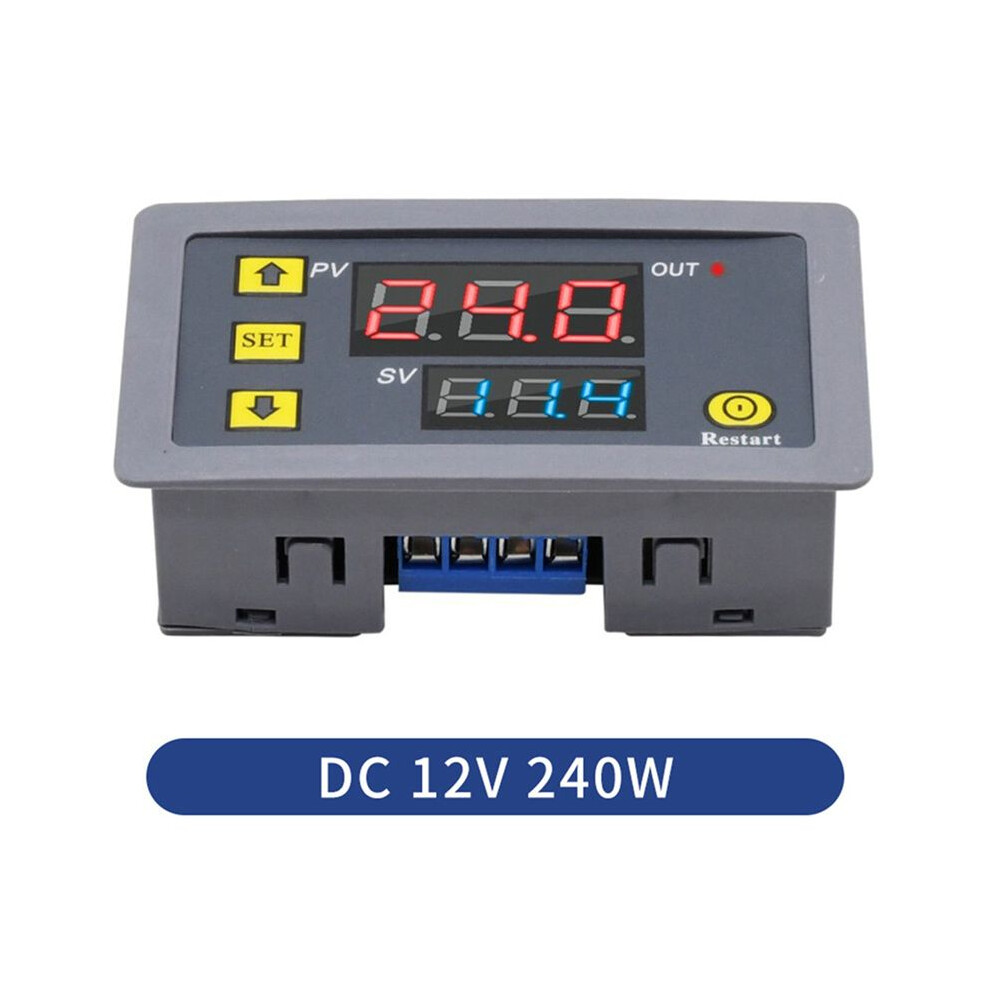

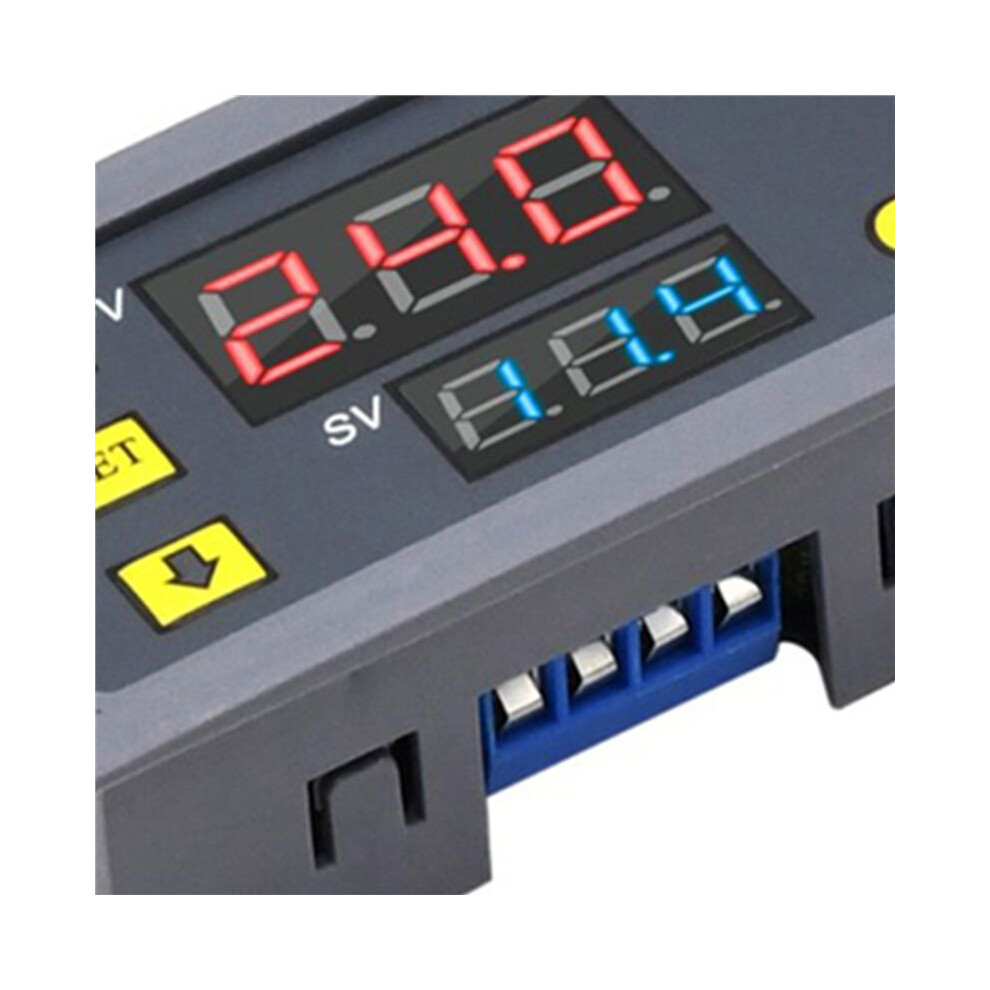

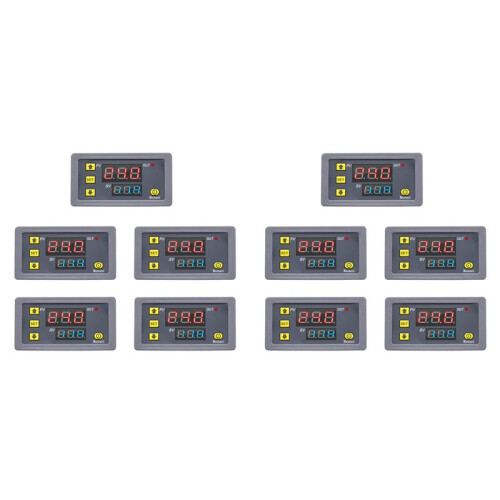

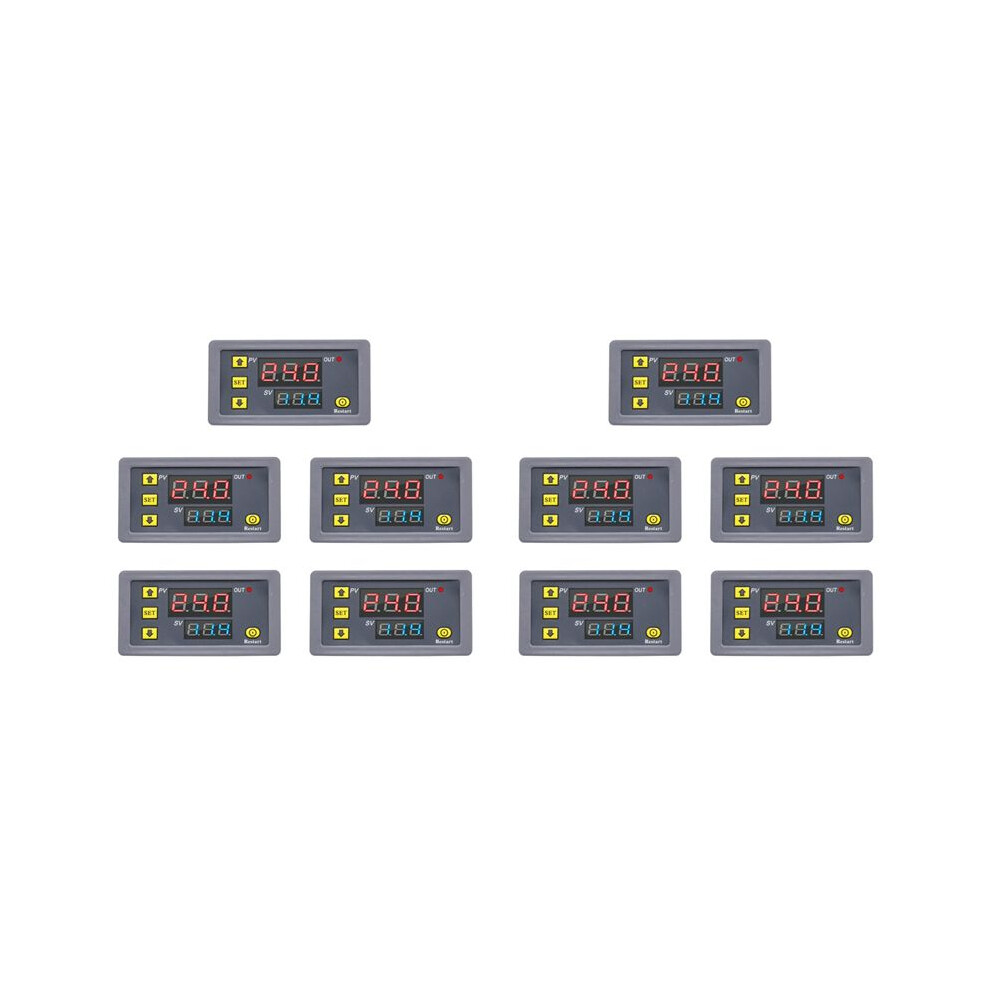

10X Digital Delay Relay LED Display Cycle Timer Control Adjustable Timing Relay Delay DC12V

Descriere 10X Digital Delay Relay LED Display Cycle Timer Control Adjustable Timing Relay Delay DC12V

Instruction Manual: 1. After setting the data, you must wait 6 seconds,6s post modules automatically save memory set data.
2. Press SET key once to enter the setting mode,the red LED flashes, press the key to increase or decrease the setting T1.
3. After setting T1,short press the SET key again, the green LED flashes,and the is set by pressing the key T2, T2 setting is completed,press SET key again, the system will automatically save the memory setting or wait for 6s, 6s module will automatically save the data memory.
4. Long press SET,enter parameter setting mode.There are two sets of parameters for the user to select P0, P1.Short press SET in the current mode to between P0 and P1.
5. In P0 parameter can be set by pressing the key to adjust their own timing mode.In the P1 parameter can be set by adding and subtracting keys work mode.

P0--0:T1 Timing mode is second.
P0-1: T1 timing mode is minutes.
P0--2:T1 Timing mode is hour.
P1--0:Delay T1 ,relay pull(T1 timer)
P1--1:Relay release after T1 delay (T1 timer)
P1--2:Delay T1 ,relay pull(T1 timer),and then relay release after T2 delay(T2 timing),then it is finished.
P1--3:Relay release after T1 delay(T1 timer),then delay T2 ,relay pull(T2 timing),then it is finished.
P1--4:Delay T1 ,relay pull(T1 timer),and then relay release after T2 delay(T2 timer),cycling.
P1--5: Relay release after T1 delay(T1 timer),then delay T2 ,relay pull(T2 timer),cycling.
Specifications:
Timing range: 0-999s,0-999m,0-999h
Relay: 20A
Working current: 10A(maximum)
Power: 1500W (maximum)
Size: 79 x 26 x 43mm/2.99inch x 1.02inch x 1.69inch
Hole size: 72 x 40mm/2.83inch x 1.57inch
: Relay
Contact Load: Low Power
Model Number: Di
