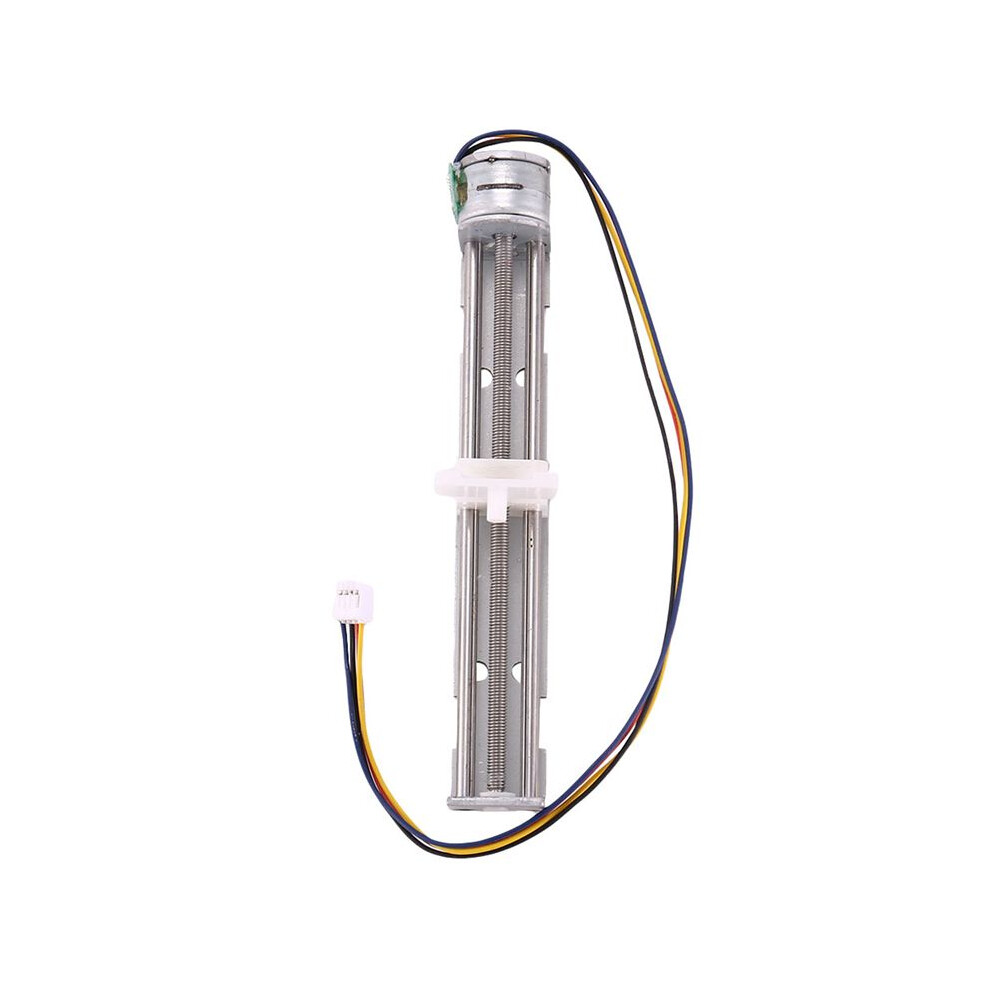

12V Stepper Motor Stroke 80Mm With Slider Motor For Diy Small Engraving Machine

Descriere 12V Stepper Motor Stroke 80Mm With Slider Motor For Diy Small Engraving Machine

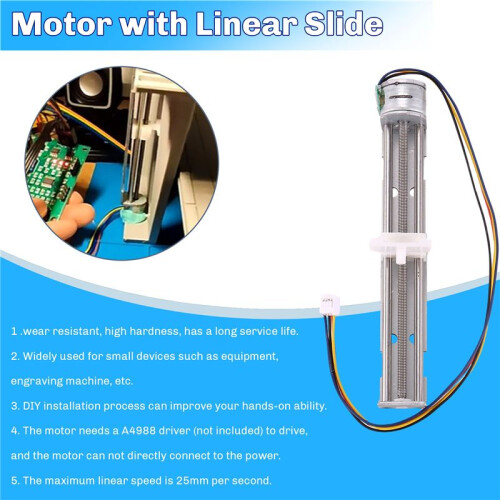

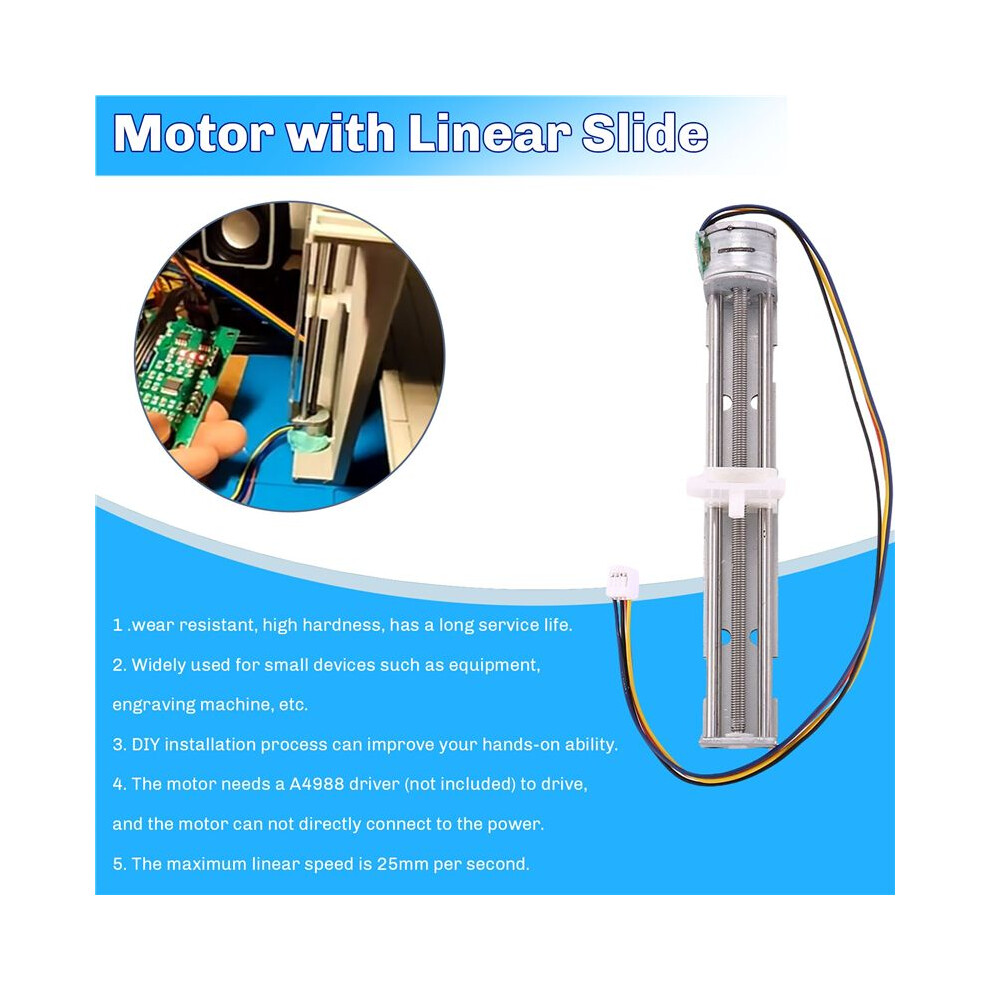

wear resistant, high hardness, has a long service life.
Widely used for small devices such as equipment, engraving machine, etc.
DIY installation process can improve your hands- ability.

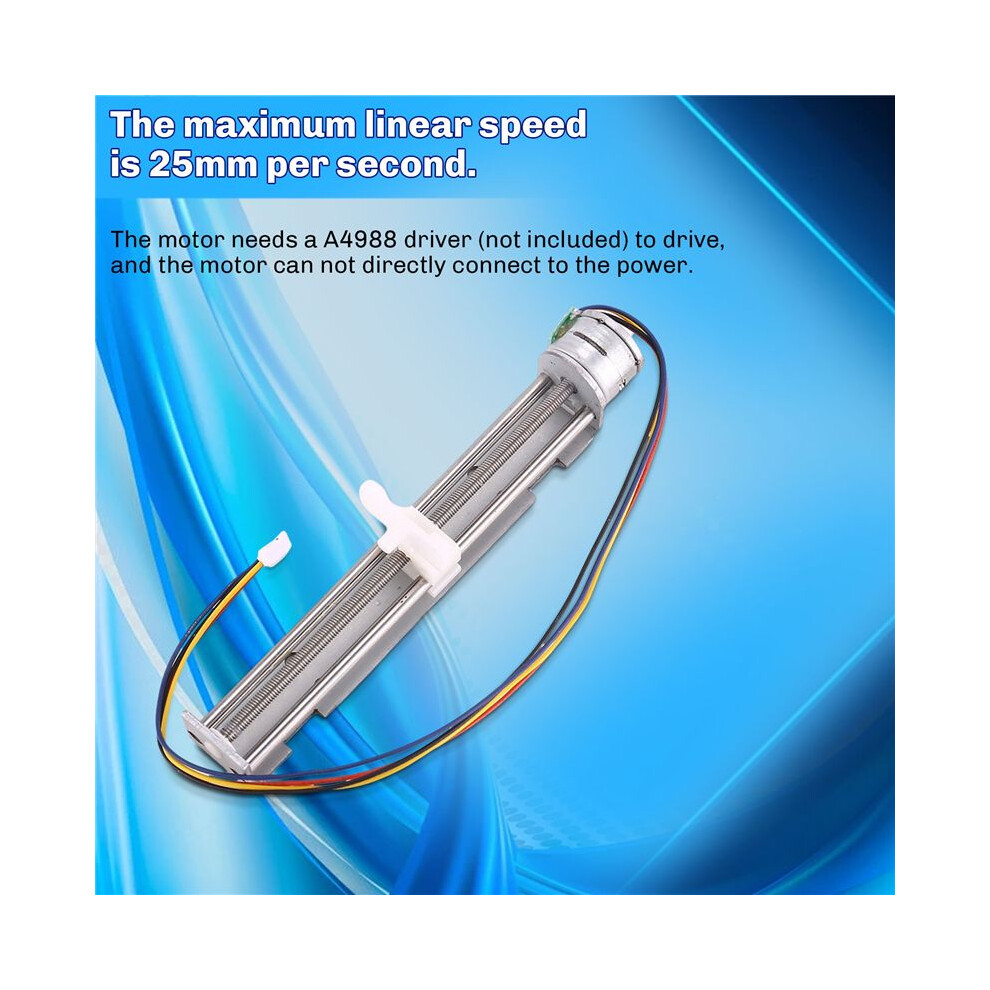

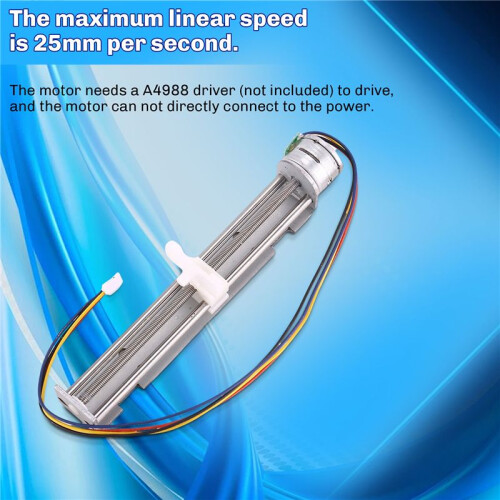

The motor needs a A4988 driver (not included) to drive, and the motor can not directly connect to the power.
The maximum linear speed is 25mm per second.
Material: metal
Color: silver
Model: D8-MOTOR80
Rated voltage: 9-12V

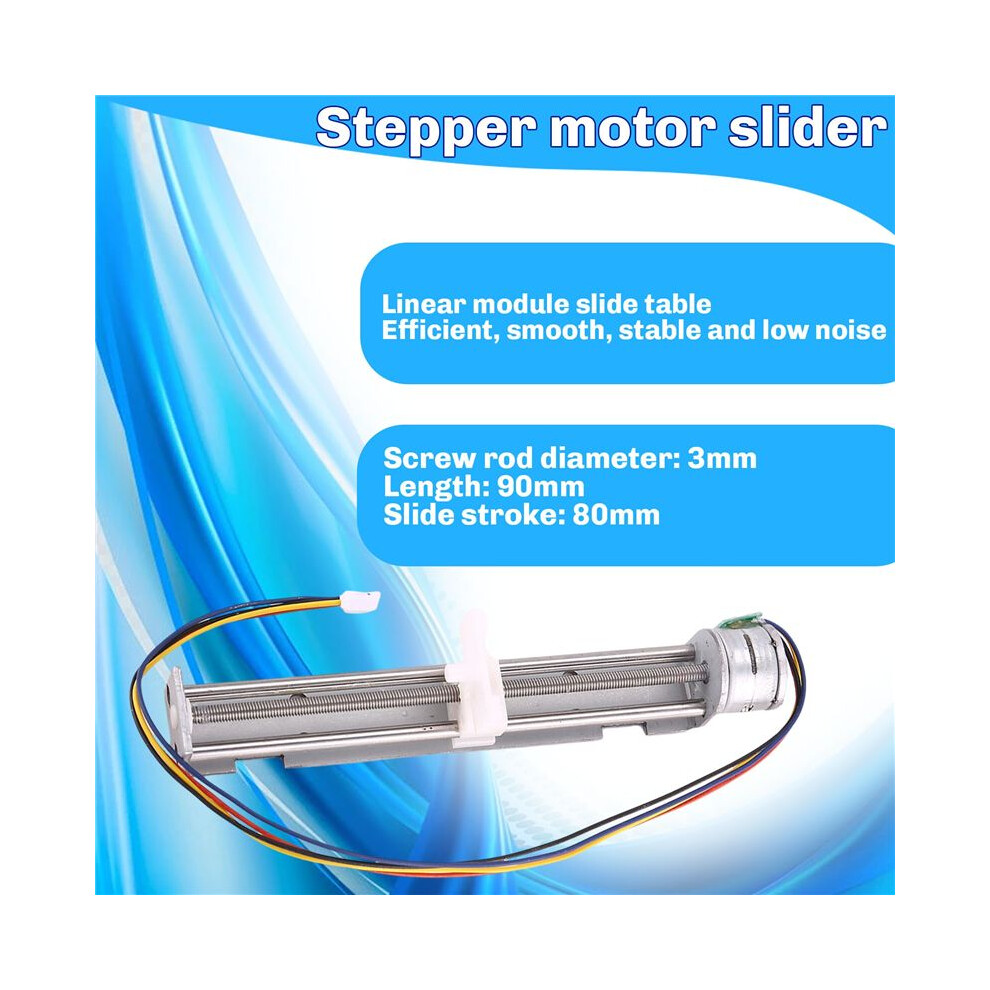

Thread rod diameter: 3mm / 0.1in
Thread rod length: 90mm / 3.5in
Slider block stroke: 80mm / 3.1in
Drive mode: bipolar drive
Thread rod pitch: 0.5mm / 0.02in (Moving 0.025mm for one step, can use microstep driver if needs smaller)
Drive voltage: 12V
Current per phase: 800 ma/phase
Coil resistance: 15 10%Ω/phase
No.of phases: 2 phases
Step angle: 18 ./step
Excitation method: 1-2 phase excitation
Pull-out thrust: 500g above at 125pps
Max response frequency: 1600 pps above
Max starting frequency: 1100 pps above
Insulation class: class E
Insulation strength: 100V AC one second
Insulation resistance: 50M 500V
Operating temperature: 0~+55
Motor surface temperature: 80
Item size: 105 * 15mm / 4.1 * 0.6in
Item weight: 46g / 1.6ounce
Note:
The motor needs to be driven by the driver, not directly connected to the power.
Package list:

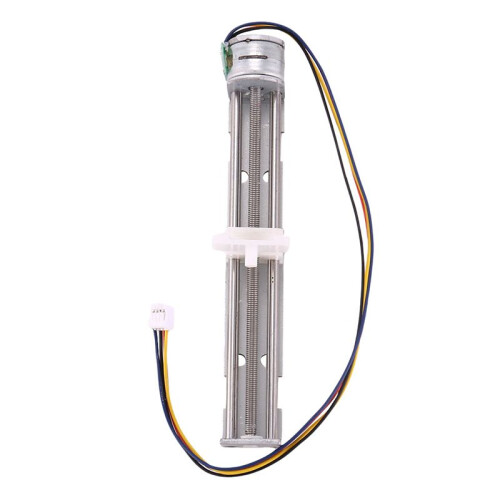

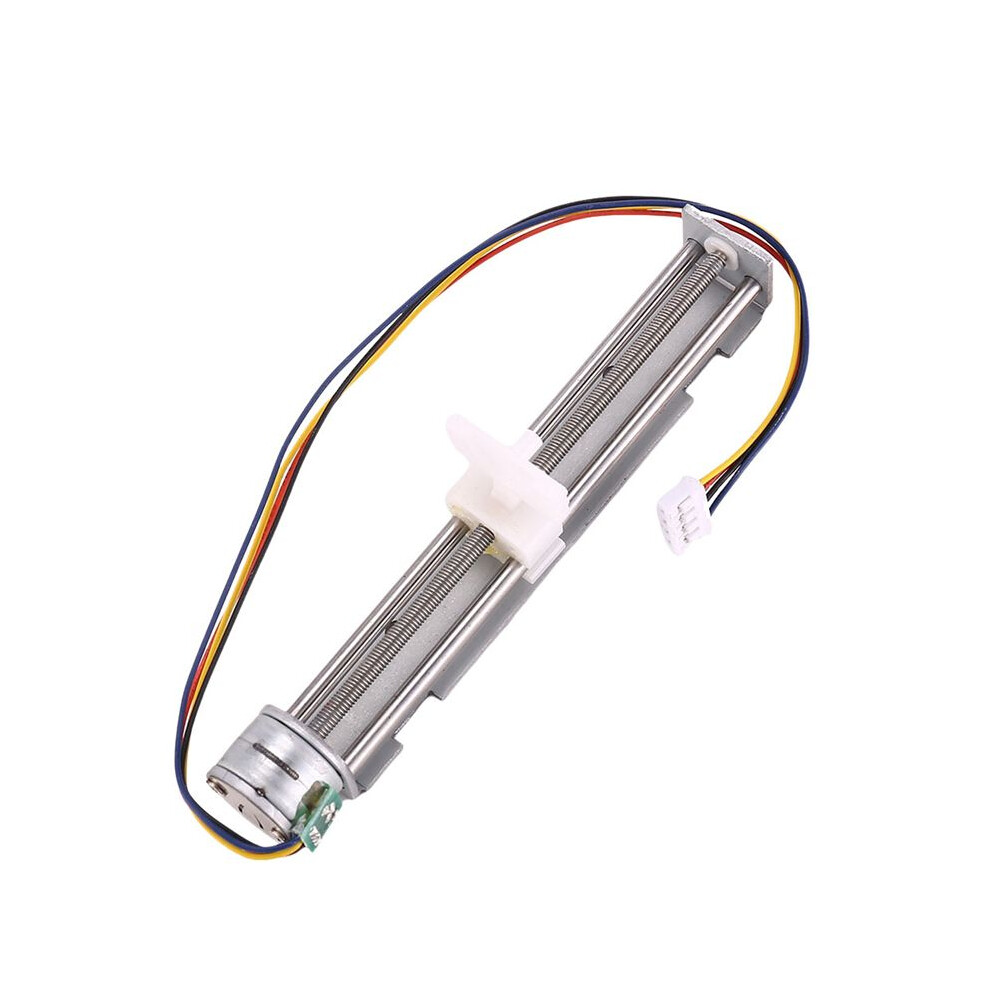

1 * Motor with Linear Slide
Only the above package content, other products are not included.
