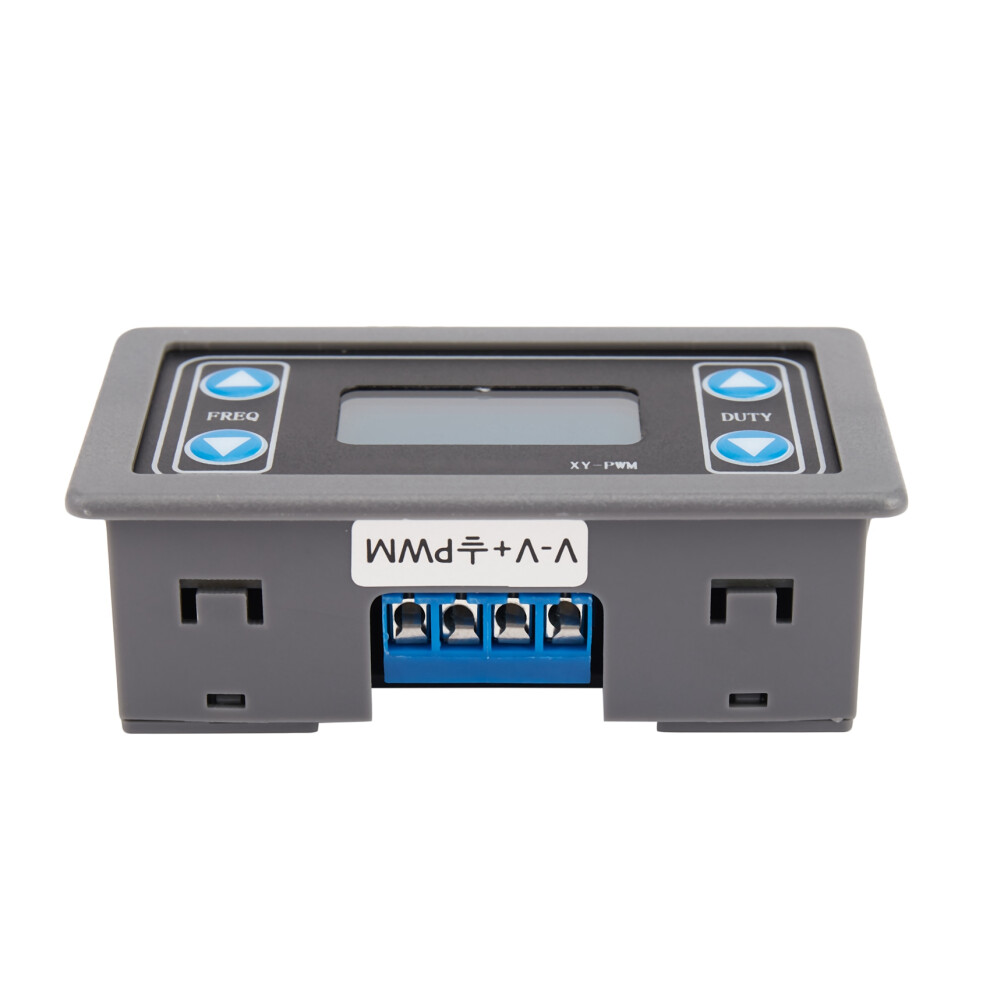

1HZ~150KHZ Signal Generator Digital Display PWM Pulse Frequency Duty Ratio Adjustable Square Wave Rectangular Signal Generator
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 135,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (35,00 RON) | vin 16 - mie 21 oct.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Te-ar putea interesa și
Rezumat
- For example:Display ‘100’ means PWM output frequency is 100Hz;Display ‘1.01’ means PWM output frequency is 1.01KHz;Display ‘54.1’ means PWM output frequency is 54.1KHz;Display ‘1.2.4’ means PWM output frequency is 124KHz;
- Set PWM frequency:‘F101’:Set frequency is 101Hz.‘101’ can by replace by 001~999;‘F1.05’:Set frequency is 1.05KHz.‘1.05’ can by replace by 1.00~9.99;‘F10.5’:Set frequency is 10.5KHz.‘10.5’ can by replace by 10.0~99.9;‘F1.0.5’:Set frequency is 105KHz.‘1.0.5’ can by replace by 1.0.0~1.5.0;
- Frequency set range:Enter the settings interface when short press any button ‘FREQ+’ or ‘FREQ-’ in the normal running status to select frequency range.Automatically switch frequency range.Pay attention to the position where the decimal point moves when the button is pressed.Display ‘XXX’.
- No decimal point,The minimum frequency is 1Hz.The frequency range is 1Hz ~ 999Hz.Display ‘X.XX’.The decimal point is the penultimate, The minimum frequency is 0.01KHz.The frequency range is 1.00KHz ~ 9.99KHz.Display ‘XX.X’.The decimal point is the third last,The minimum frequency is 0.1KHz.The frequency range is 10.0KHz ~ 99.9KHz.Display ‘X.X.X’.The decimal point is fully lit,The minimum frequency is 1KHz.The frequency range is 1KHz ~ 150KHz.
- Duty cycle set range:Enter the settings interface when short press any button ‘DUTY+’ or ‘DUTY-’ in the normal running status to select duty cycle.Automaticallyswitch frequency range.Duty cycle range is 0.00%-100%.
Descriere 1HZ~150KHZ Signal Generator Digital Display PWM Pulse Frequency Duty Ratio Adjustable Square Wave Rectangular Signal Generator
For example:Display '100' means PWM output frequency is 100Hz;Display '1.01' means PWM output frequency is 1.01KHz;Display '54.1' means PWM output frequency is 54.1KHz;Display '1.2.4' means PWM output frequency is 124KHz;
Set PWM frequency:'F101':Set frequency is 101Hz.'101' can by replace by 001~999;'F1.05':Set frequency is 1.05KHz.'1.05' can by replace by 1.00~9.99;'F10.5':Set frequency is 10.5KHz.'10.5' can by replace by 10.0~99.9;'F1.0.5':Set frequency is 105KHz.'1.0.5' can by replace by 1.0.0~1.5.0;
Frequency set range:Enter the settings interface when short press any button 'FREQ+' or 'FREQ-' in the normal running status to select frequency range.Automatically frequency range.Pay attention to the position where the decimal point moves when the button is pressed.Display 'XXX'.
No decimal point,The minimum frequency is 1Hz.The frequency range is 1Hz ~ 999Hz.Display 'X.XX'.The decimal point is the penultimate, The minimum frequency is 0.01KHz.The frequency range is 1.00KHz ~ 9.99KHz.Display 'XX.X'.The decimal point is the third last,The minimum frequency is 0.1KHz.The frequency range is 10.0KHz ~ 99.9KHz.Display 'X.X.X'.The decimal point is fully lit,The minimum frequency is 1KHz.The frequency range is 1KHz ~ 150KHz.
Duty cycle set range:Enter the settings interface when short press any button 'DUTY+' or 'DUTY-' in the normal running status to select duty cycle.Automaticallyswitch frequency range.Duty cycle range is 0.00%-.
Use steps:Connect to power supply;Short or long press button 'FREQ+' or 'FREQ-' to set frequency;Short or long press button 'DUTY+' or 'DUTY-' to set duty cycle;Connect to load.UART communication and parameter settingsThe system supports UART data upload and parameter setting functions (TTL level);
UART: 9600, 8, 1
LCD high definition display;Support UART;Support frequency adjustment;Support duty cyc
Detalii
| OPC | PTQKPJK |
|---|---|
| Coduri | 4713120604718 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 5cm |
|---|---|
| Width | 5cm |
| Length | 9cm |
| Weight | 0.047kg |
| Colour | gray |
| Material | plastic |
