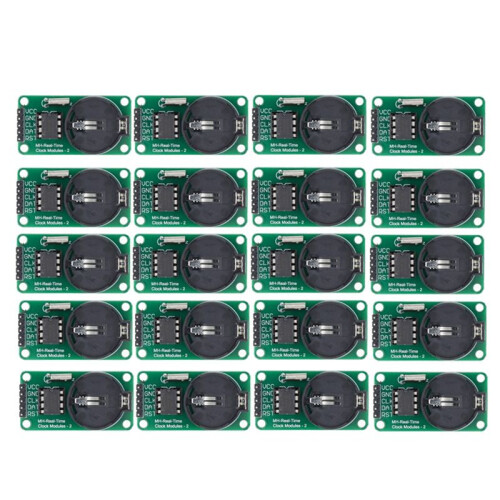

20Pcs/Set DS1302 Real Clock Module Without CR2032 Battery Timing Electronic Components Multifunction Module

Descriere 20Pcs/Set DS1302 Real Clock Module Without CR2032 Battery Timing Electronic Components Multifunction Module

The Real- Clock Has The Ability To Calculate Seconds, Minutes, Hours, Days, Weeks, Months, And Years Before 2100, As Well As The Ability To Adjust For Leap Years; 31 8-Bit Temporary Data Storage Ram;
Serial I/O Port Mode Minimizes The Number Of Pins; Wide Range Of Operating Voltage 2.0 To 5.5v;
When The Operating Current Is 2.0v, It Is Less Than 300na; When Reading/Writing Clock Or Ram Data, There Are Two Transmission Methods: Single-Byte Transmission And Multi-Byte Transmission Character Group Method;
8-Pin Dip Package Or Optional 8-Pin Soic Package Based Surface Mount; Simple 3-Wire Interface;
Compatible With Ttl Vcc=5v; Industrial Temperature Range -40 - +85; Dual Power Tubes For Main Power Supply And Backup Power Supply;

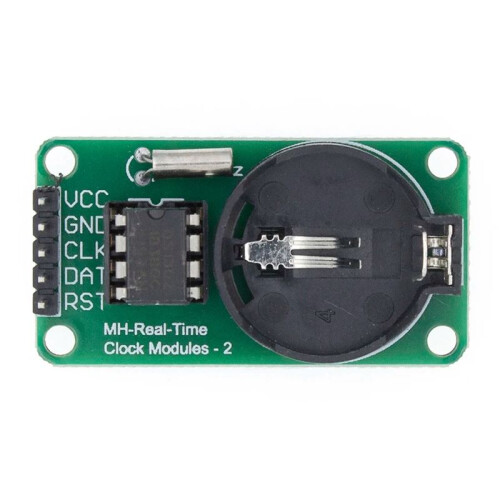

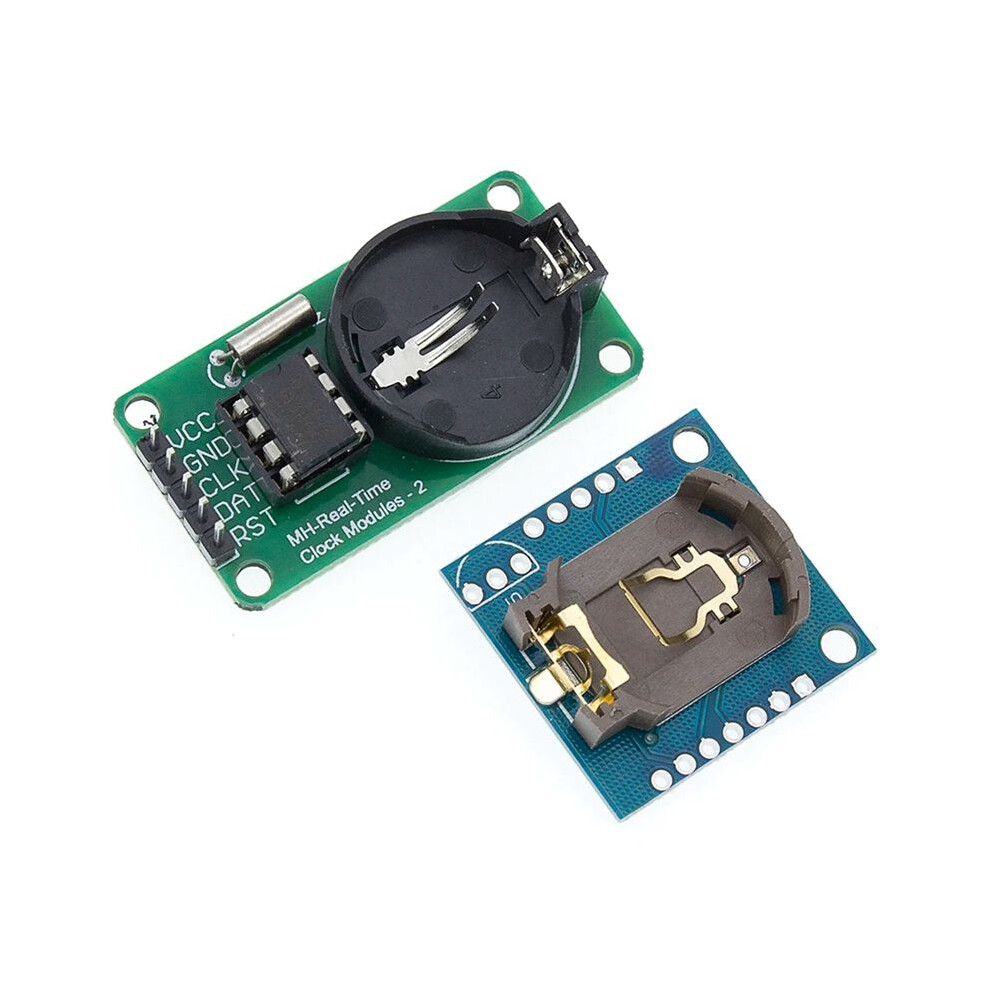

1. Pcb Is A Single Panel, Size: About 44mm x 23mm x 1.6mm
2. With 4 Positioning Holes, Diameter 3.1mm
3. The Backup Battery Is CR2032(Without), Voltage 3v, Current 260mah, Non-Rechargeable Battery. The Theoretical Data Retention Is Greater Than 10 Years!
4. Crystal Oscillator 32.768khz, Crystal Oscillator Imported From Japan, Matching Capacitance Is 6pf, Size 2x6mm
5. Ds1302 Is An 8-Pin Direct-Plug Domestic Large Chip. There Is An Ic Holder Under The Chip To Facilitate The Replacement And Insertion Of The Chip.
6. The Module Working Voltage Is Compatible With 3.3v/5v And Can Be Connected To 5v And 3.3v Microcontrollers.
7. Wiring Method (Take The Provided Program As An Example, You Can Connect Any Io Port, Just Modify The Port Definition In The Program):
VCC+5V/3.3V
GNDGND
CLKP02
DATP01
RSTP00
Note:
Never Connect VCC And Gnd In Reverse To Avoid Burning Out The Chip.
The P0 Port Of The 2.51 Microcontroller Needs To Be Connected To A Pull- Resistor. If Your Microcontroller Does Not Have A Pull- Resistor, You Can Connect The Dat
