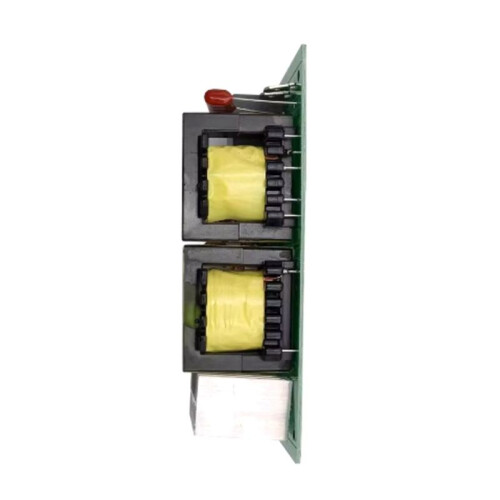

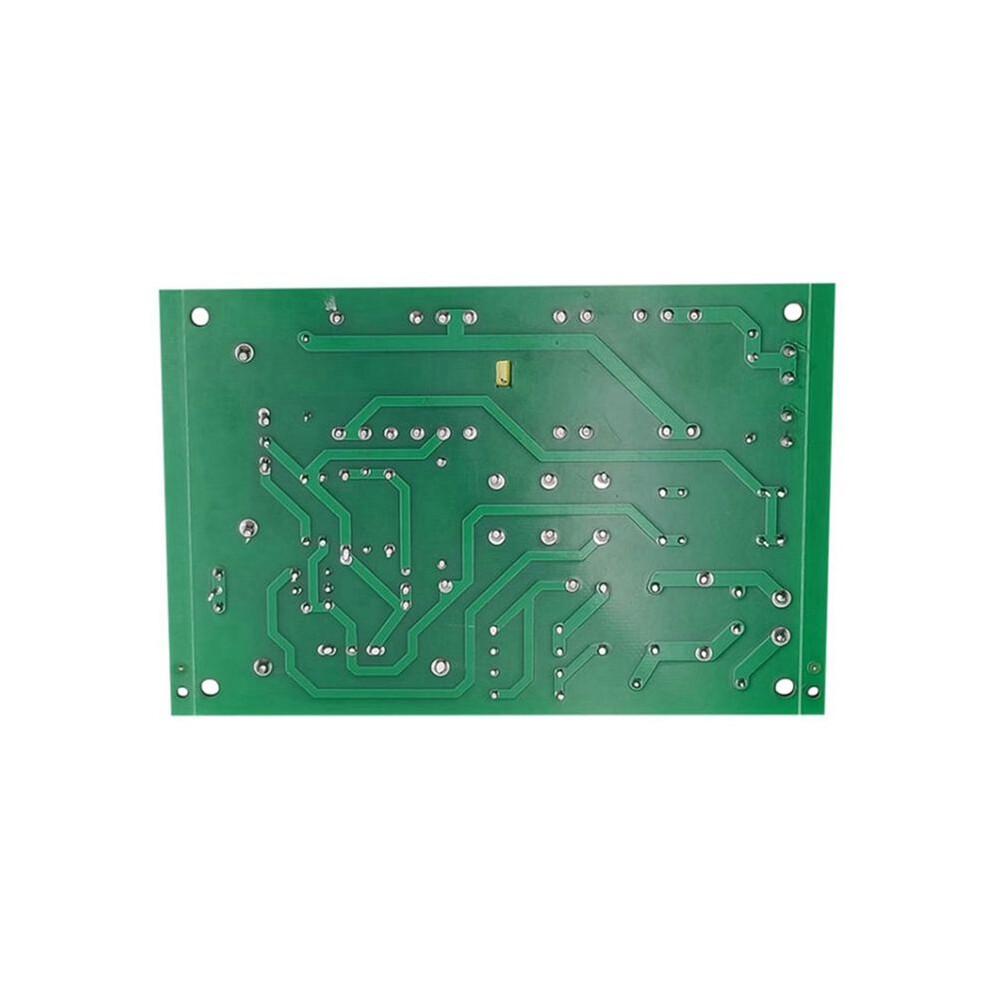

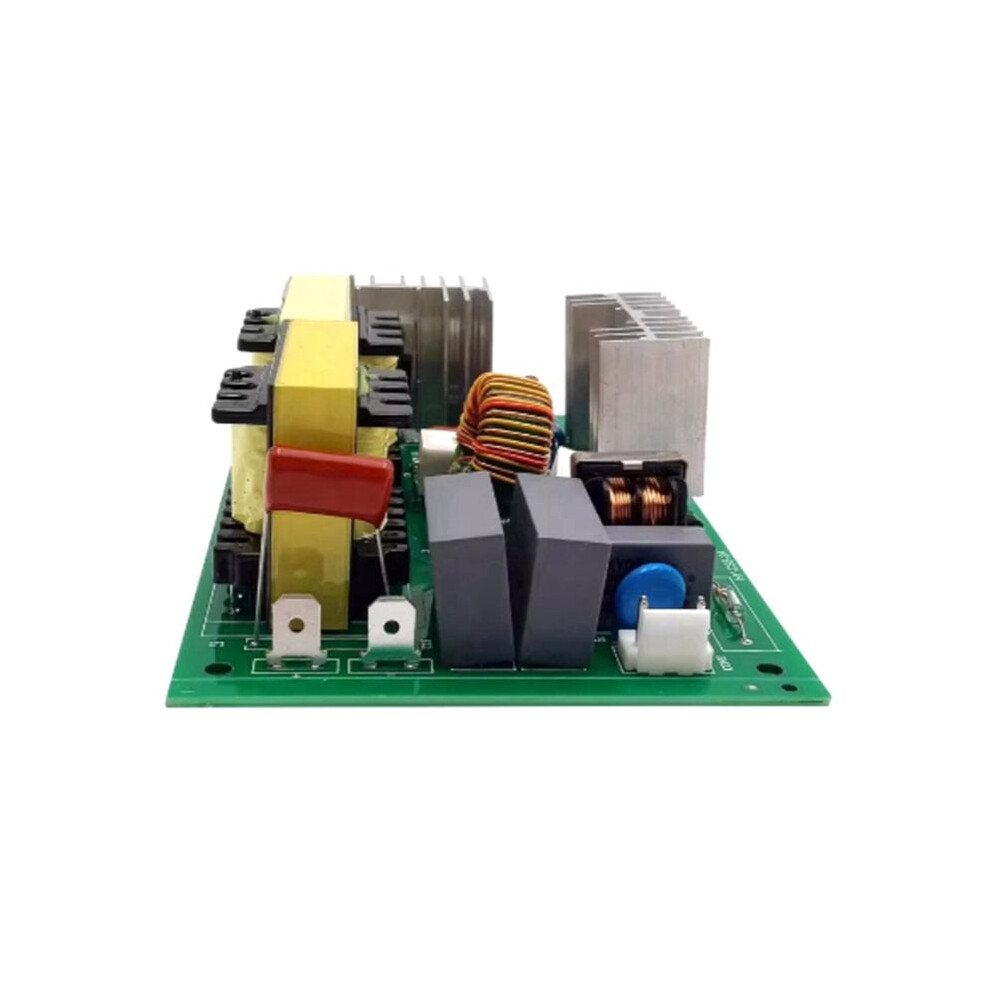

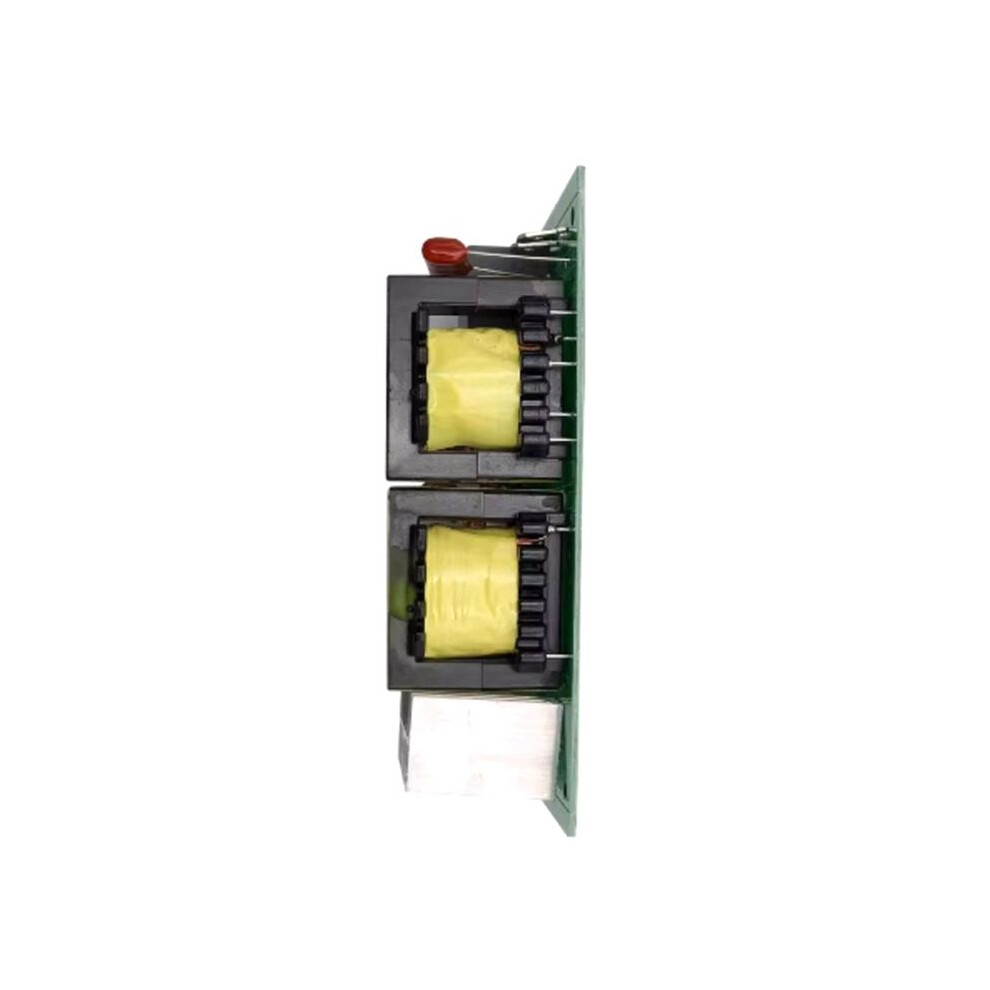

220V Ultrasonic Cleaning Machine Driver Module Power Driver Board 120W Vibration Transducer Board B

Descriere 220V Ultrasonic Cleaning Machine Driver Module Power Driver Board 120W Vibration Transducer Board B

The vibrator has no positive or negative poles
Power board parameters: 120W 40khz uses high-quality materials, quality is guaranteed, wide application and stable performance
Power board parameters: 120W 40khz

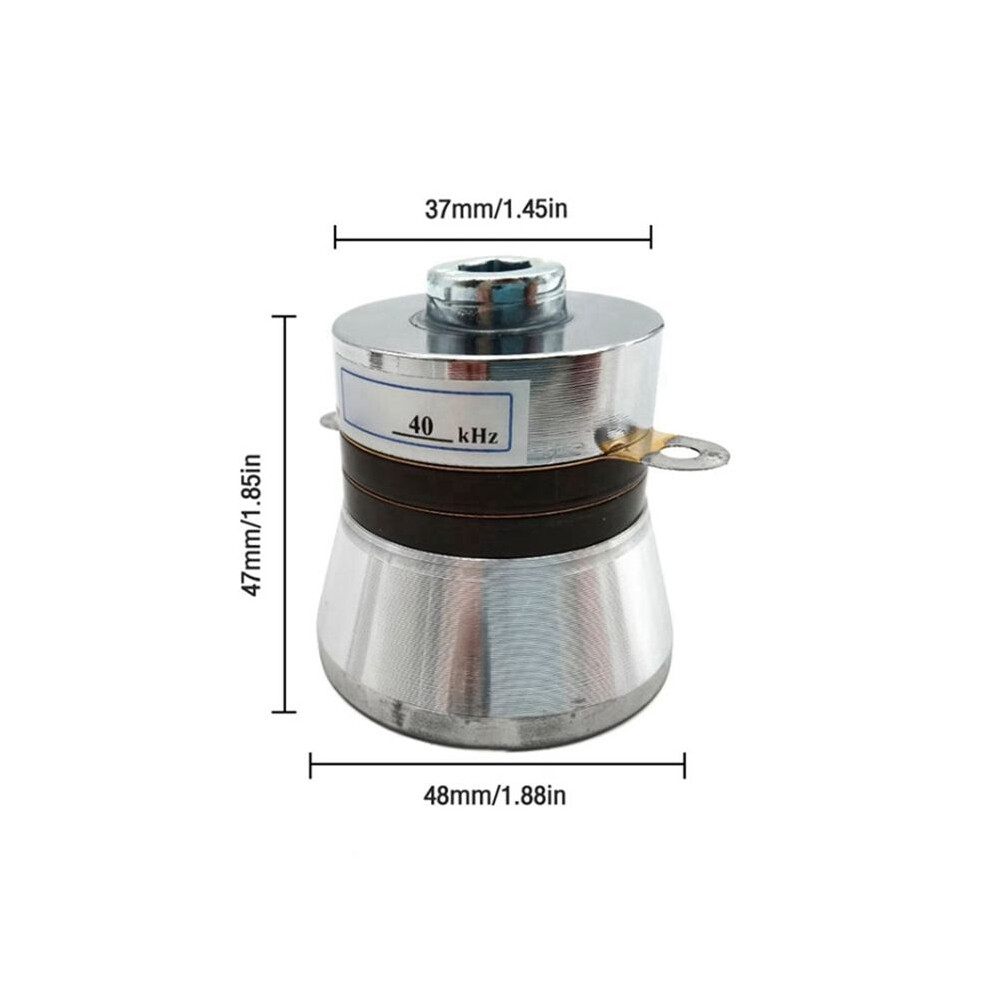

Vibrator parameters: 40khz
Voltage: 220v

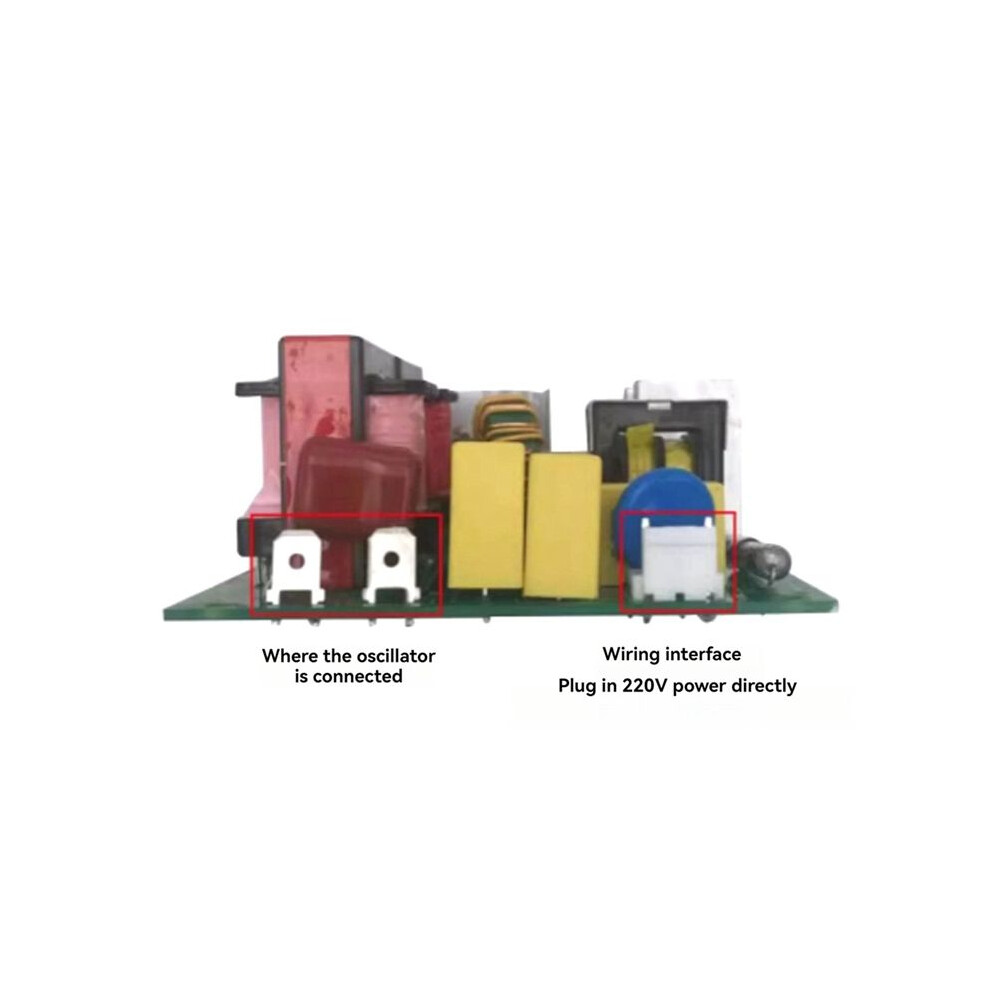

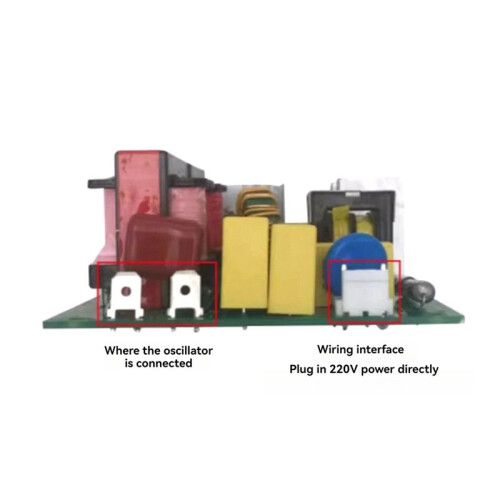

Instructions for wiring the circuit board and the vibration (ceramic transducer):1. The circuit board must not be powered without load; it must not be powered without cleaning fluid during cleaning; the two wiring pieces of the vibration are divided into positive and negative poles and must not be connected in reverse.
2. When welding the power cord of the vibration , it must be welded the side with two silver layers, and the other side is the vibration surface, which can be pasted under the cleaning basin (this is the component description of the purchased ceramic transducer).
3. The silver layer the ceramic sheet is not resistant to high temperatures. When welding the power cord, the temperature of the soldering iron should not exceed 280 degrees. It is best to use a constant temperature soldering iron and set the soldering iron temperature to 250 degrees.
Maximum current 1.2-1.7A
Working frequency: 40 (KHZ)
Working voltage: AC 220V 20% (50-60HZ)
Input current: 0.5A
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Colour:As Shown
Material:PCB+Plastic+Metal
Specifications:B: accessory vibrator

Package Contents:
1 x vibrator
