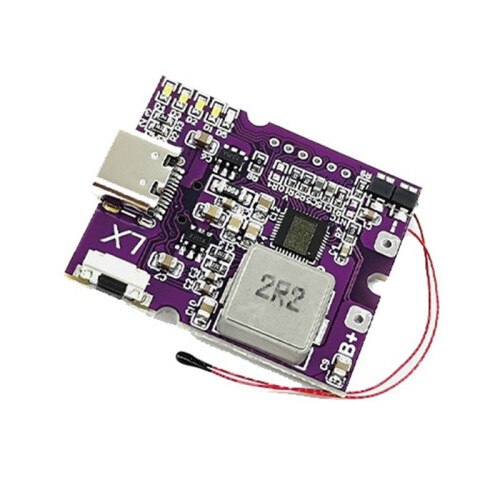

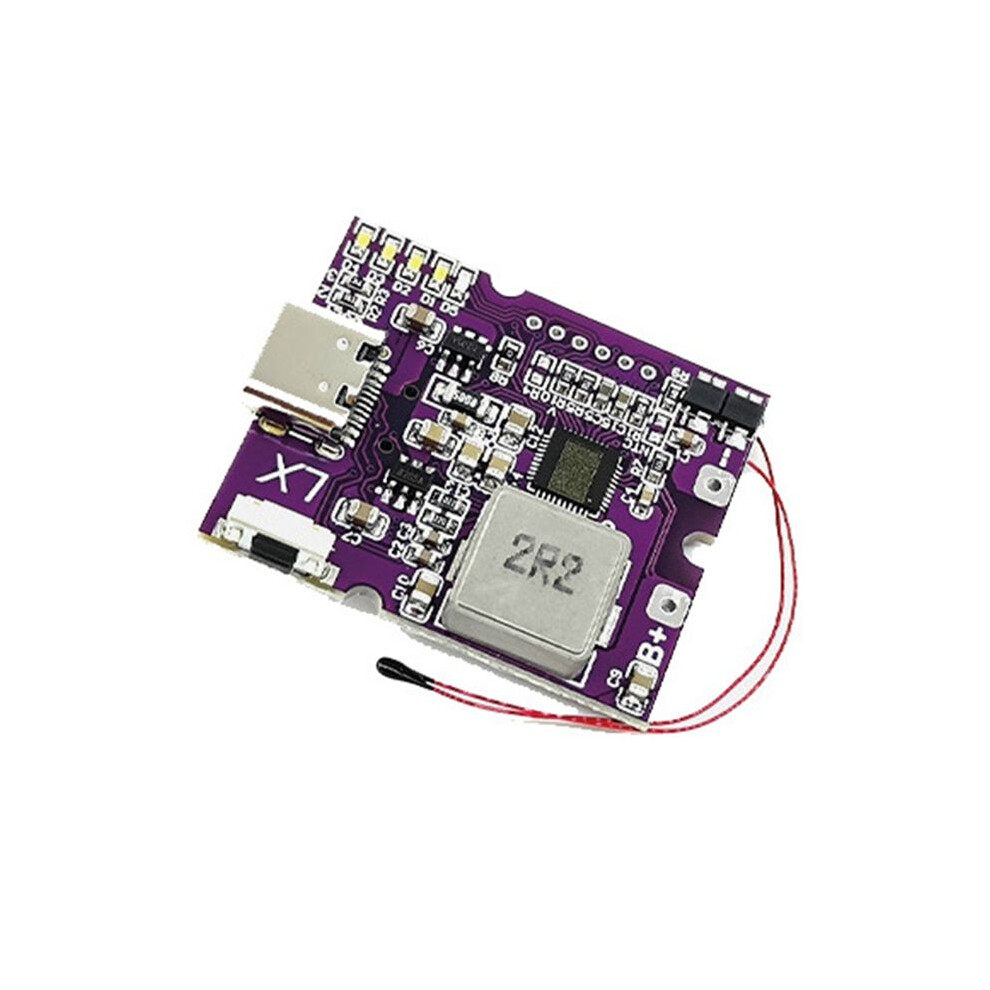

22.5W Power Bank Bidirectional Fast Charging Mobile Power Module Circuit Board W/ Light Display Support PD/QC,Type-C
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 135,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | joi 8 - mar 13 oct.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Rezumat
- 1. Small volume, high power, high efficiency.
- 2. Full protocol, the mainstream open protocol basically support the charging current up to 5A, efficiency up to 96% output power up to 22.5W, efficiency up to 95%.
- 3. Module for 3.7V lithium batteries, including polymer, 18650, 21700 lithium batteries.
- 4. Module volume is relatively small, the heat dissipation area is limited, high-power output heat is a normal phenomenon.
- 5. Wide range of product applications, suitable for a variety of industrial DIY occasions. Automatic load detection/light load detection.
Descriere 22.5W Power Bank Bidirectional Fast Charging Mobile Power Module Circuit Board W/ Light Display Support PD/QC,Type-C
1. Small volume, high power, high efficiency.
2. Full protocol, the mainstream open protocol basically support the charging current to 5A, efficiency to 96% output power to 22.5W, efficiency to 95%.
3. Module for 3.7V lithium batteries, including polymer, 18650, 21700 lithium batteries.
4. Module volume is relatively small, the heat dissipation area is limited, high-power output heat is a normal phenomenon.
5. Wide range of product applications, suitable for a variety of industrial DIY occasions. Automatic load detection/light load detection.
Support small current mode
Output overcurrent/short circuit protection
Charge timeout/over-voltage protection
Support PPS/PD3.0/PD2.0
Support QC4+/QC4/QC3.0/QC2.0
Support FCP, SCP (5V4.5A or 4.5V/5A)
Support FCP, SCP, HSCP
Support SFCP to charge battery
Support PD3.0/PD2.0, AFCFCP, SCP , PE1.1
NOTE:
1. Battery and motherboard cable can not be too thin, try to be thicker. Fast charging board requirements can pass 10A current non-fast charging board should also be able to pass 7A current. Can not be too long, the interface needs to be welded.
2. Batteries can only be connected in parallel (parallel number is not limited), not in series, series must burn the motherboard.
3. Normal application, the battery must be welded, (wire twisting will be insufficient power supply), the battery reverse motherboard must burn. Never pay attention. as thick and short.
4. Access to the battery to determine access to the 3.7V battery, not other batteries. Ensure that the battery is not connected in series, otherwise the battery terminal access voltage higher than 4.5V may burn the board.
Note:Due to different production batches, there are differences in printing/appearance, which does not affect use.
Type:Type-C
Colour:
Material:PCB+Components
Package Contents:
1 * fast charging module
Detalii
| OPC | PVP2T62 |
|---|---|
| Brand | ISTOVO |
| Coduri | 4711981608647 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 1cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.0075kg |
| Colour | Purple |
| Size | Type-C |
| Material | PCB+Components |
