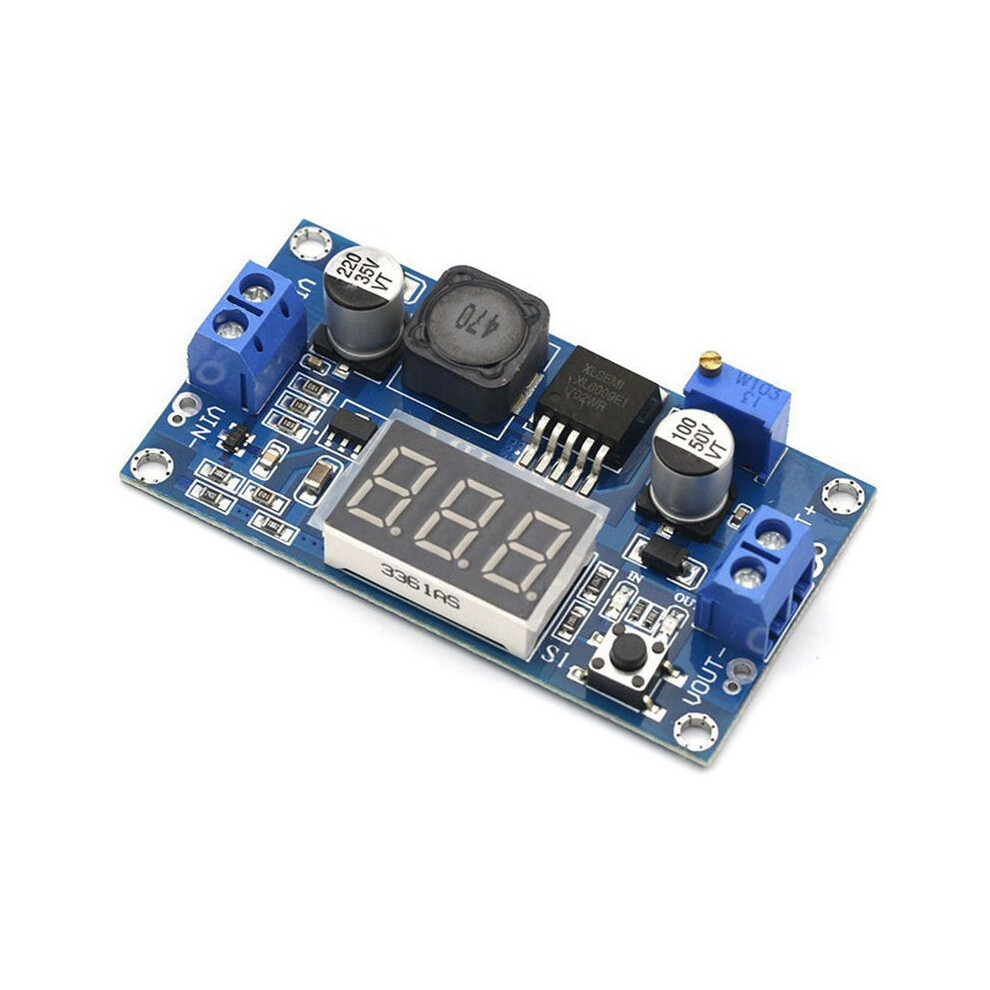

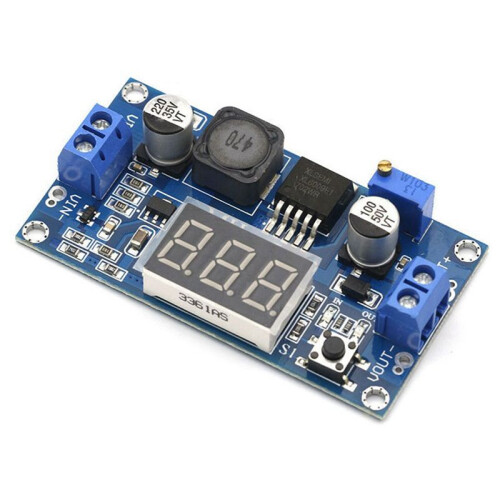

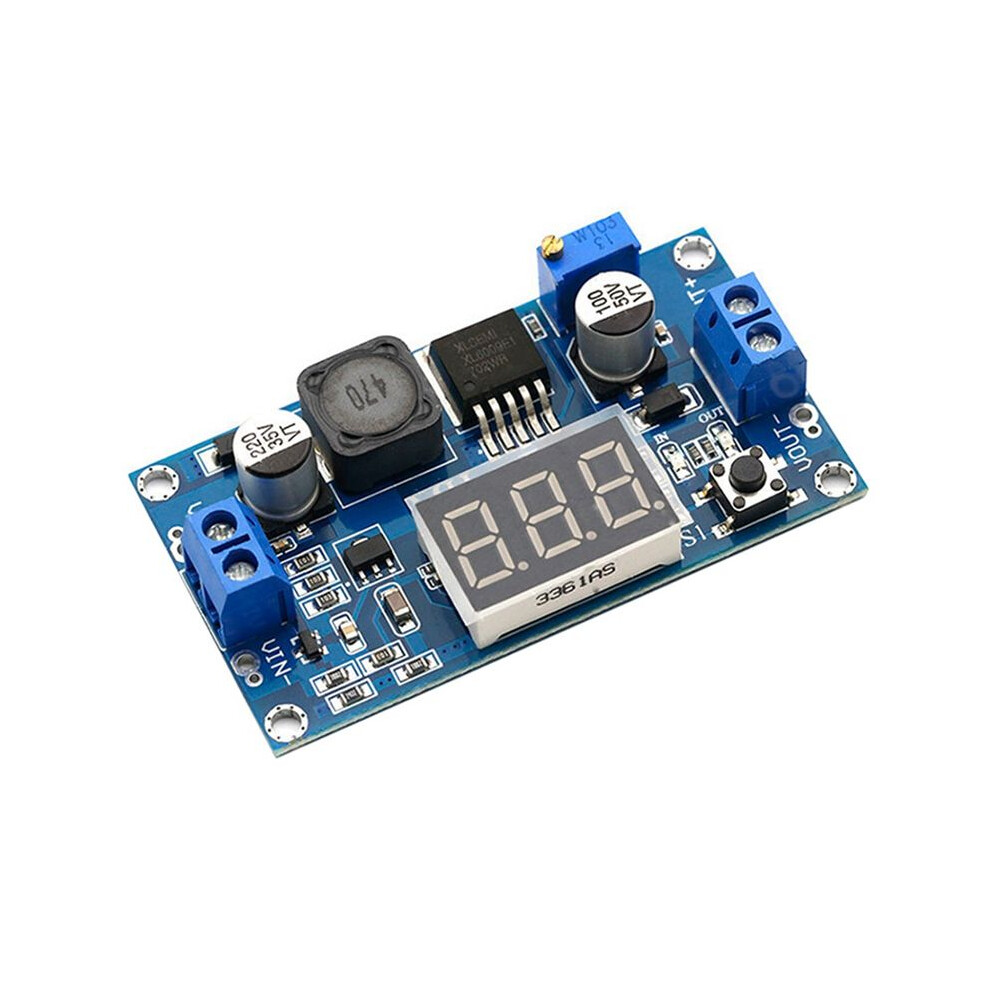

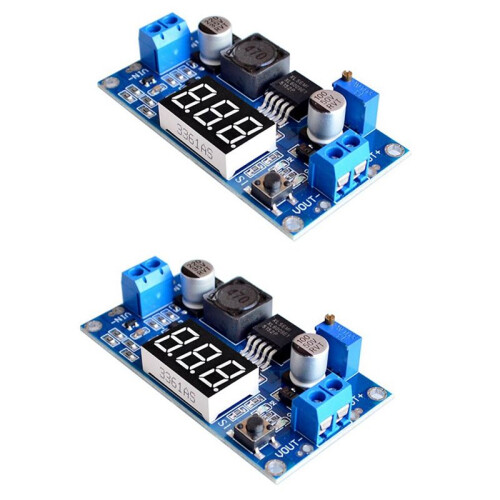

2Pcs XL6009 - Booster Module Adjustable Step- Boost Converter Module - 4.5V-32V to 5V-35V 4A Step- Module
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 128,000 de recenzii cu evaluare “Excelent”
115,83 RON
171,80 RON
Reducere de 33%!
+80,00 RON livrare
1%
Câștigați 1,16 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (80,00 RON) | mar 21 - lun 27 iul.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Convertoare video TV
Descriere & Detalii
Rezumat
- 1. With voltmeter display, the voltmeter error is ±0.1V, and the range is 5~35V. (Note: if the input voltage is lower than 4.5V, the onboard voltmeter will not work and will not display)

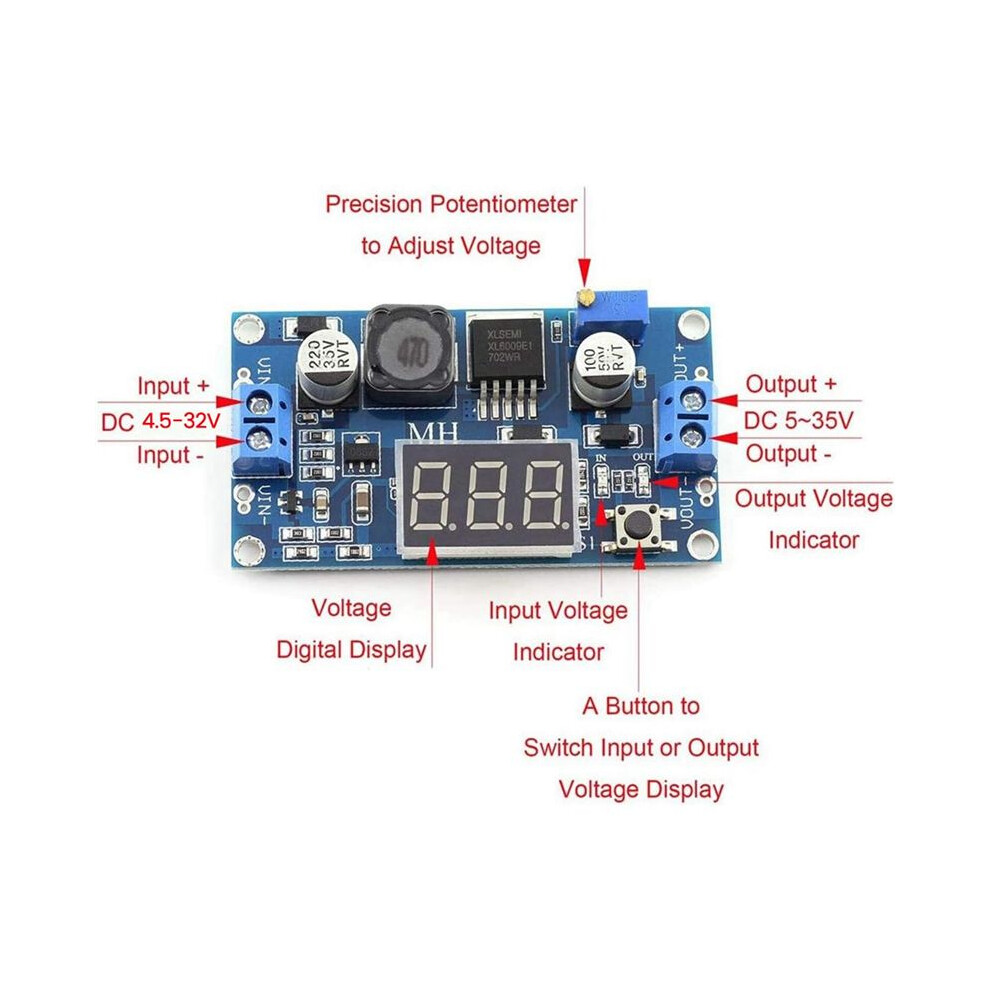

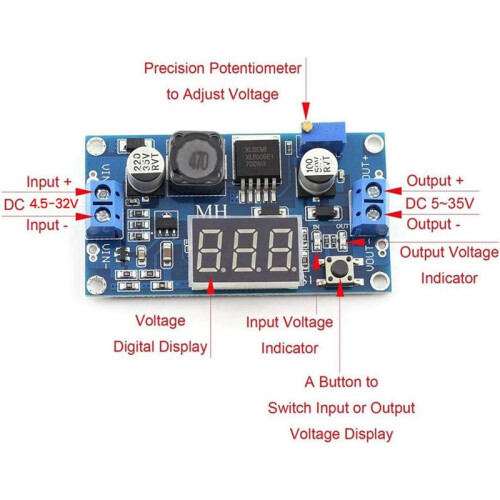

- 2. Touch the button to switch to measure the input or output voltage, and there is an indicator light to show which end voltage is being measured. When the machine is turned on for the first time, the digital tube displays the input voltage by default, and the input indicator IN is on; touch the button, the digital tube displays the output voltage, and the output indicator OUT is on. And it keeps the last setting, even if the power is turned off and then turned on.
- 3. The voltmeter can be turned off by pressing the switch for more than 1 second and less than 4 seconds, and then releasing it. After the voltmeter is turned off, just press the switch shortly to turn on the voltmeter.
- 4. With terminal blocks, it is easy to use without a soldering iron, and the soldering wire connection points are reserved(The input voltage must be more than 1v higher than the output voltage)
- 5. The maximum output current can be up to 3A, and the recommended working current is about 2A. If it exceeds 2A, add a heat sink
Descriere 2Pcs XL6009 - Booster Module Adjustable Step- Boost Converter Module - 4.5V-32V to 5V-35V 4A Step- Module
1. With voltmeter display, the voltmeter error is 0.1V, and the range is 5~35V. (Note: if the input voltage is lower than 4.5V, the onboard voltmeter will not work and will not display)
2. Touch the button to to measure the input or output voltage, and there is an indicator light to show which end voltage is being measured. When the machine is turned for the first , the digital tube displays the input voltage by default, and the input indicator IN is ; touch the button, the digital tube displays the output voltage, and the output indicator OUT is . And it keeps the last setting, even if the power is turned off and then turned .
3. The voltmeter can be turned off by pressing the for more than 1 second and less than 4 seconds, and then releasing it. After the voltmeter is turned off, just press the shortly to turn the voltmeter.
4. With terminal blocks, it is easy to use without a soldering iron, and the soldering wire connection points are reserved(The input voltage must be more than 1v higher than the output voltage)
5. The maximum output current can be to 3A, and the recommended working current is about 2A. If it exceeds 2A, add a heat sink
6. It uses an internal oscillation frequency of 400KHz, which belongs to the second generation of switching voltage regulators, with low power consumption and high efficiency.
7. This module can be used in the boost field where the output voltage is higher than the input voltage, such as batteries, power , DIY adjustable voltage regulators, 24V vehicle-mounted notebook power supplies, industrial equipment step-down, 9 to 12V, 12V to 18V, 18V to 24V, etc.
Input range: 4.5V~32V
Output range: 5V~35V(adjustable)
Input current: 4A (Max)
Note: Batch different, silkscreen/appearance differences, does not affect the use
Colour
Detalii
| OPC | PVWN997 |
|---|---|
| Coduri | 6032476691592 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 2cm |
|---|---|
| Width | 7cm |
| Length | 12cm |
| Weight | 0.049kg |
| Colour | Blue |
| Material | PCB+Electronic Components |
