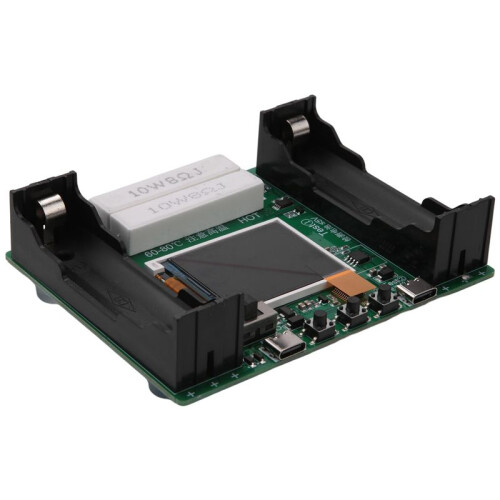

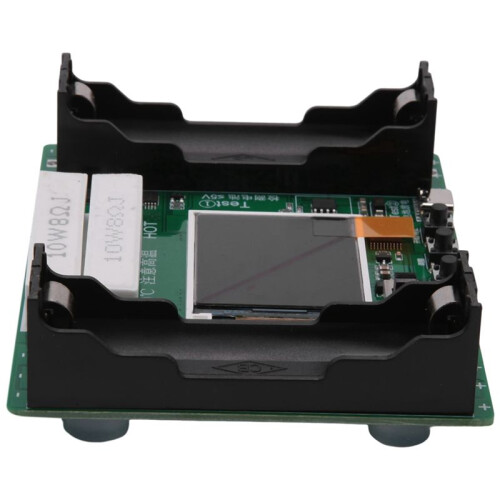

2X 18650 Lithium Battery Capacity Module Measurement Internal Resistance Tester LCD Digital Capacity Tester Module

Descriere 2X 18650 Lithium Battery Capacity Module Measurement Internal Resistance Tester LCD Digital Capacity Tester Module

Specially used to measure 18650 battery capacity.
The integration of charging and discharging eliminates the tedious operation of disassembling and assembling the battery to replace the charging and discharging of the device.
The size of the discharge current can be switched and it is convenient to use.
Small size, easy to carry.
stable performance.

Product name: 18650 battery capacity internal resistance tester charging and discharging integrated version
Working voltage: DC5V
Detection voltage: DC5V
Capacity measurement range: 0~99999mAh
measurement range: 0~99999mWh
Battery internal resistance measurement: support
Display real- voltage: support
Display real- current: support
Display real- power: support
Log run : support
Working mode indication: support
Current Status Indication: Supported
Simultaneous discharge: not supported (simultaneous discharge of 18650 battery Test① and external power supply Test② is not supported)

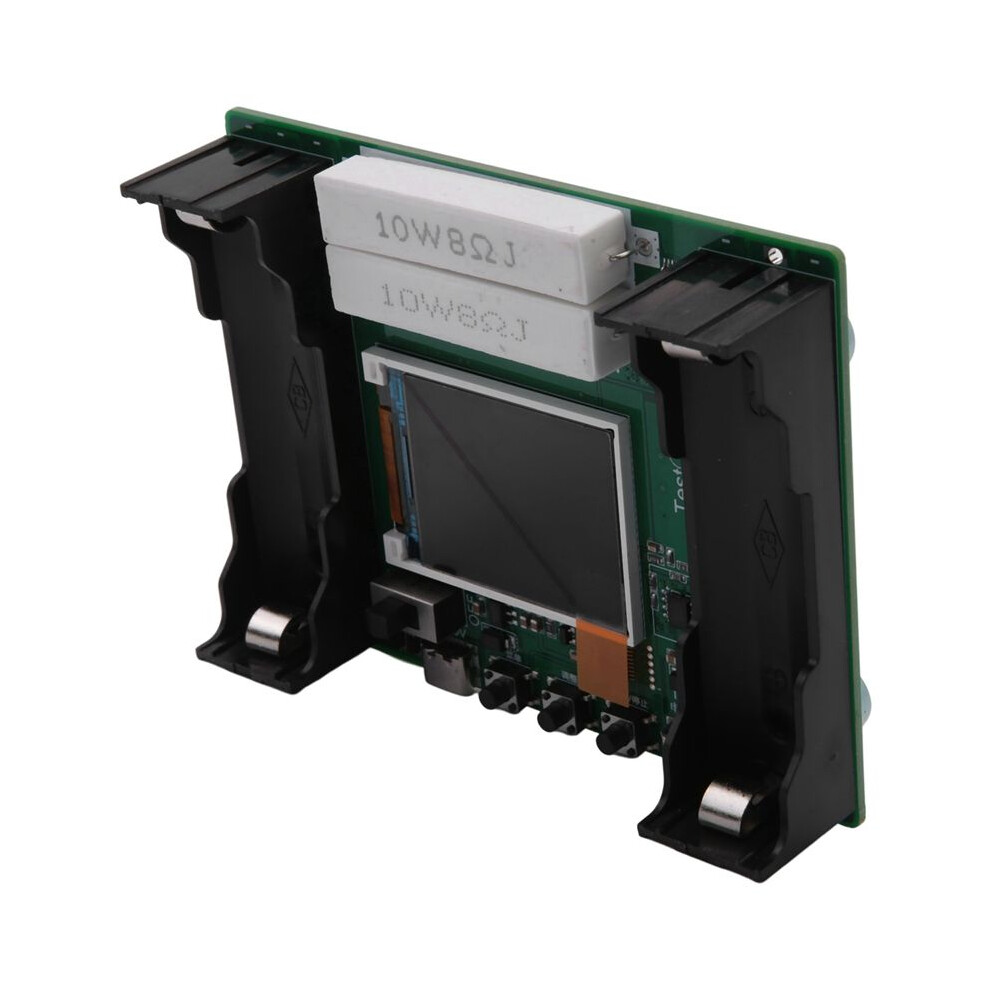

Discharge load: 10W 8QJ cement resistance x 2
Discharge current selection: x0.5A or ~1A
Charging interface: Type-C
External discharge interface: Type-C
Preset discharge stop voltage: 3V (not adjustable)
Preset full stop voltage: 4.2V (not adjustable)
Data storage: The measurement data is not saved, and the accumulated data is automatically cleared when the power is turned off or when the working mode is switched.
Product size: 108x85x24mm
Type: 18650 lithium battery capacity internal resistance tester
color:Green
Material:plastic

Package Contents:

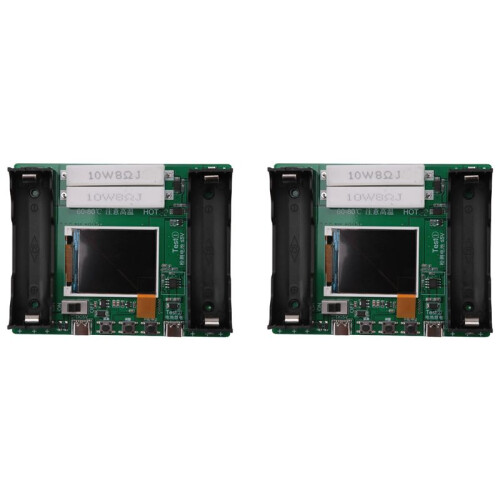

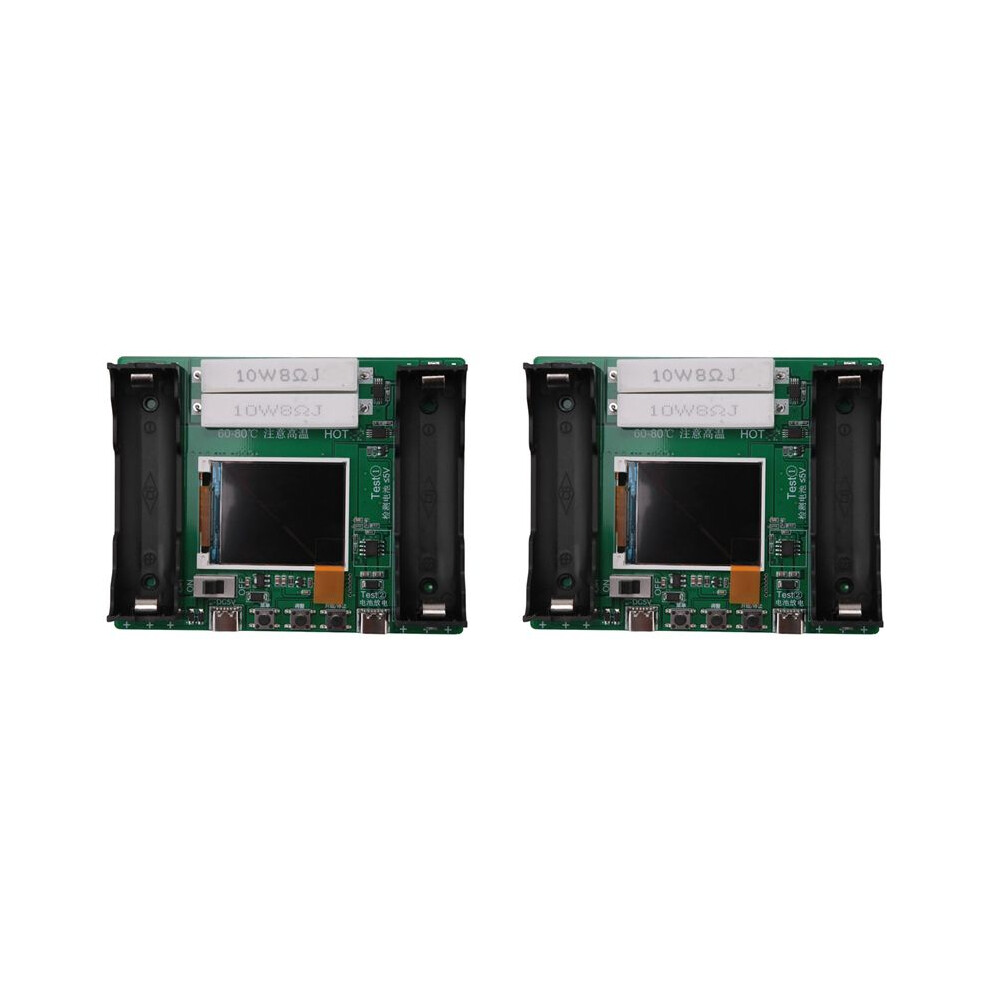

2 x Module
