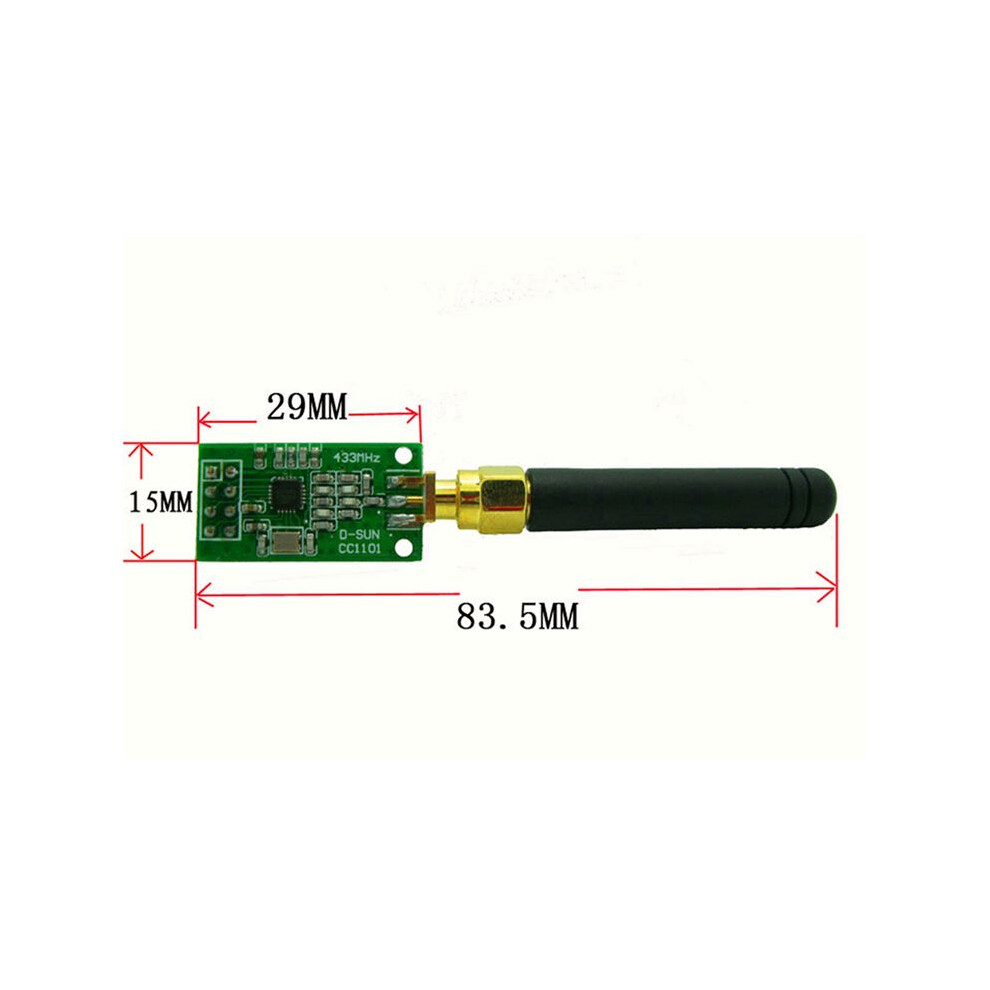

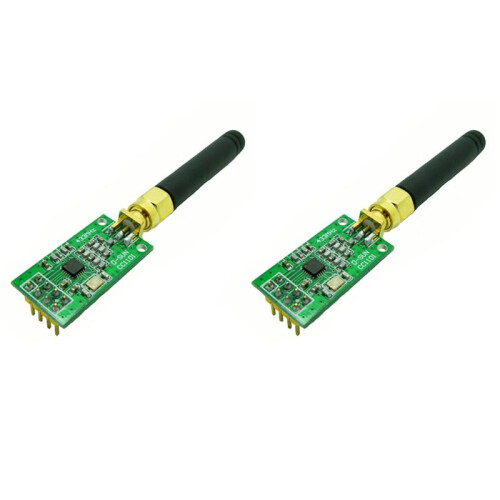

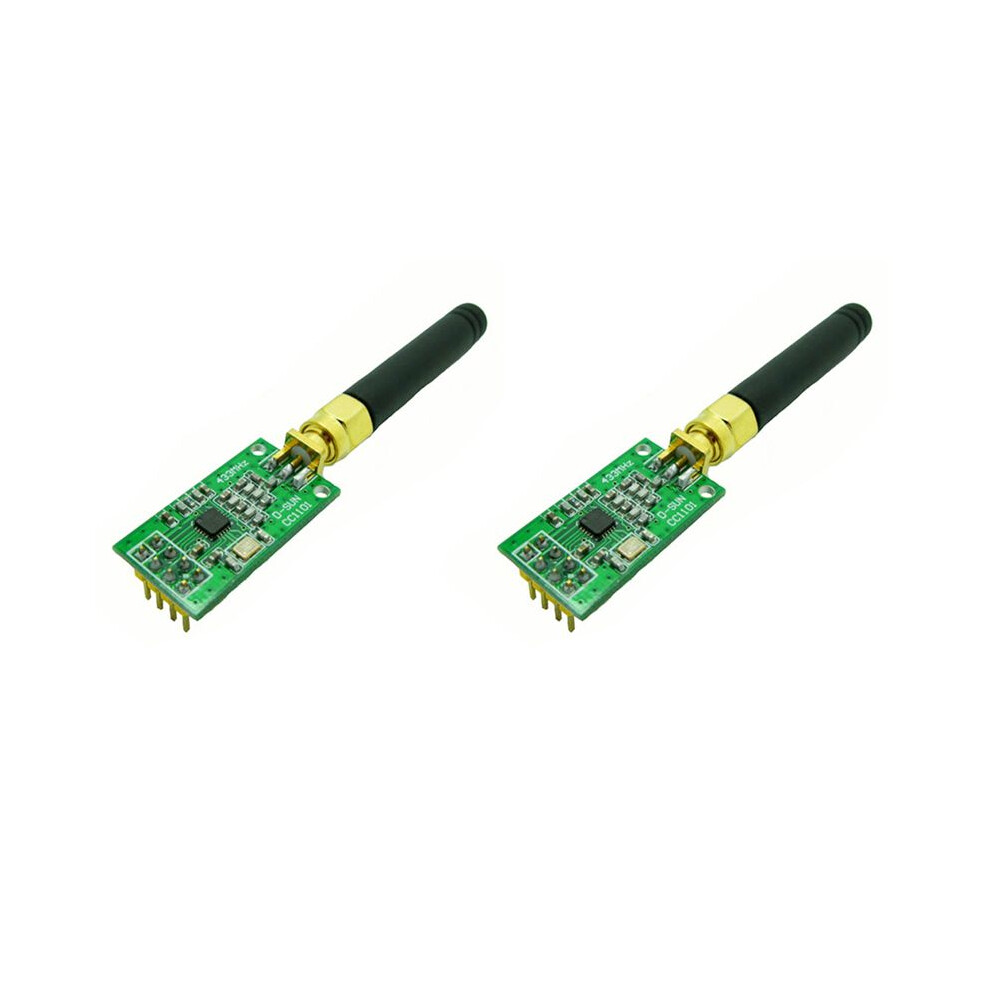

2X 433M Wireless Module Wireless Transceiver Module CC1101 Module

Descriere 2X 433M Wireless Module Wireless Transceiver Module CC1101 Module

(1) Operating voltage: 1.8V~3.6V, 3.3V recommended
(2) Work in 433MHz band license-free use
(3) High operating rate 500kbps, support 2-FSK, GFSK and MSK modulation
(4) Software modifiable baud rate parameters to better meet customer requirements under different conditions of use
High baud rate: faster data transmission rate. Low baud rate: stronger anti-interference and penetration ability, longer transmission distance

High sensitivity (-110dBm at 1.2Kbps, 1% packet BER)
Built-in hardware CRC error detection and point-to-multipoint communication address control
Low current consumption (15.6mA in RX, 2.4Kbps, 433MHz)
Programmable control of output to +10dBm for all supported frequencies
Wireless wake- function, support low-power electromagnetic wave activation, wirelessly wake the low-power sleep state of the device
support for automatic channel clearance access (CCA) before transmission, that is, the carrier listening system
fast frequency change synthesizer to bring the appropriate frequency hopping system
Module can be software set address, software programming is very convenient

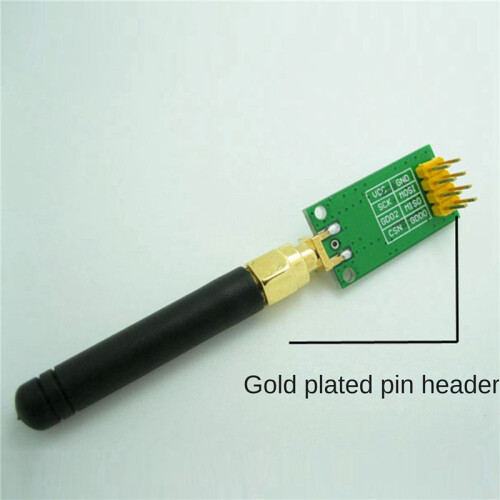

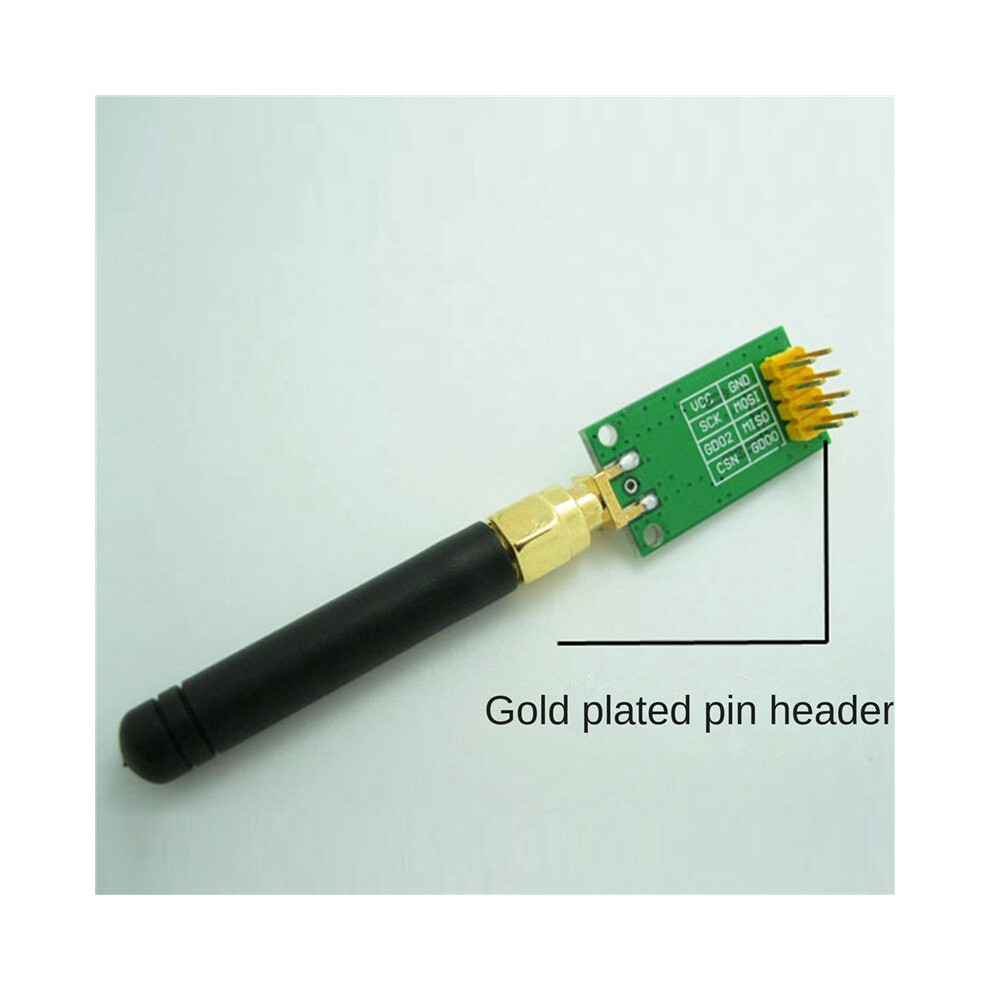

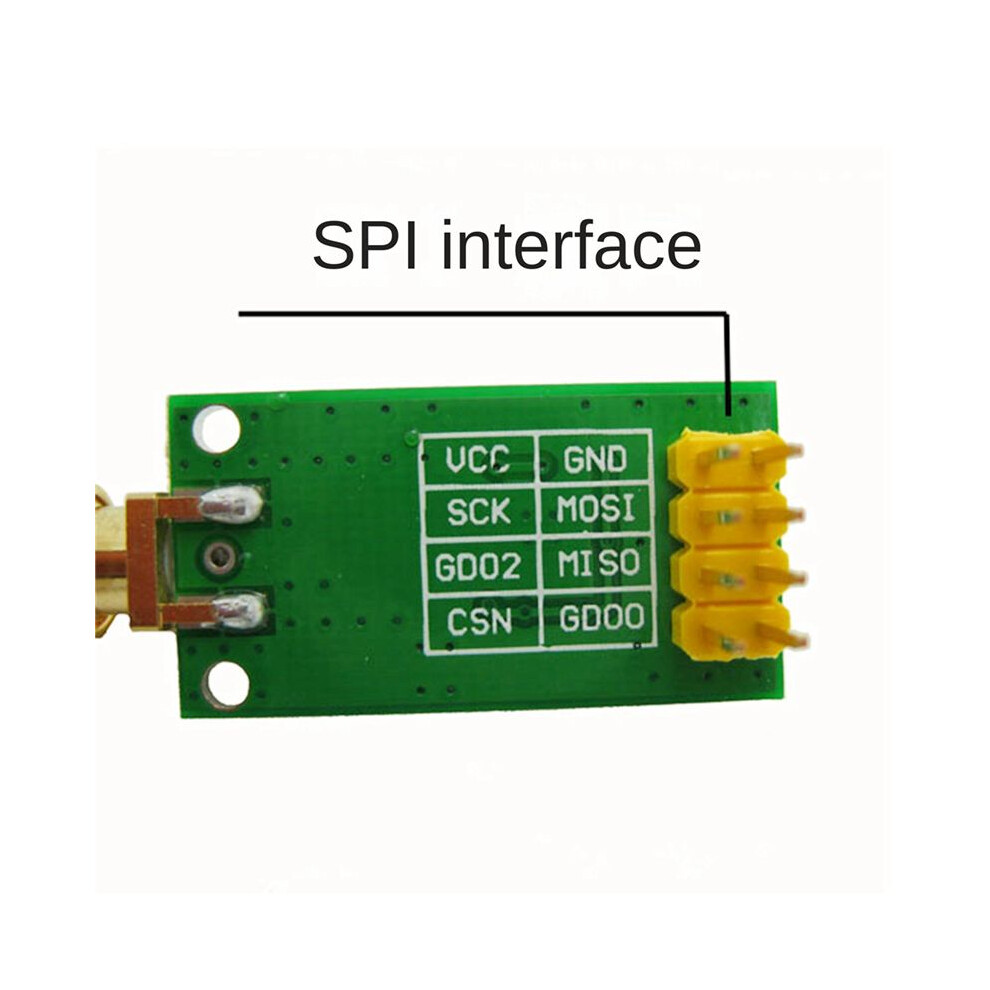

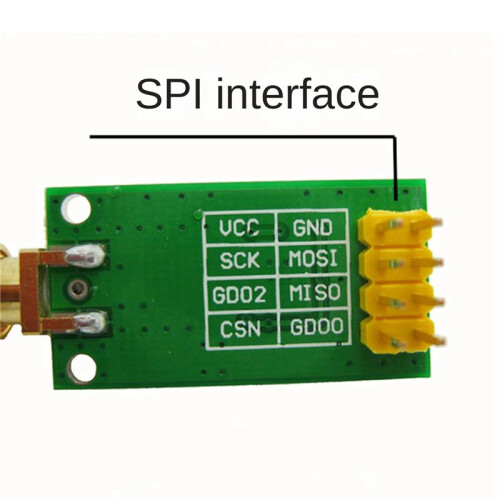

Standard DIP pitch interface for embedded applications
Separate 64-byte RX and TX data FIFO
Actual transmission distance of 200 meters or more in open area (depending specific environment and communication baud rate, etc.)
Material: PCB
Color as shown

Package Contents:
2 x module
