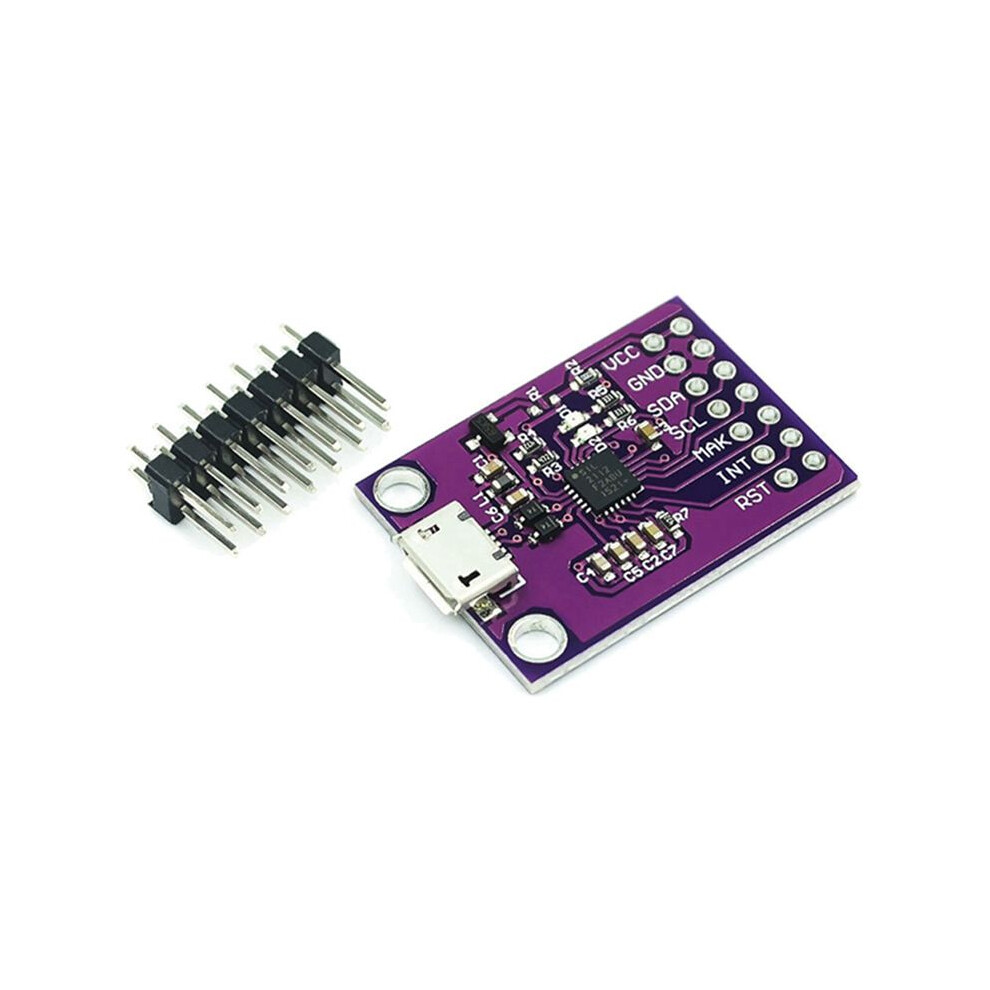

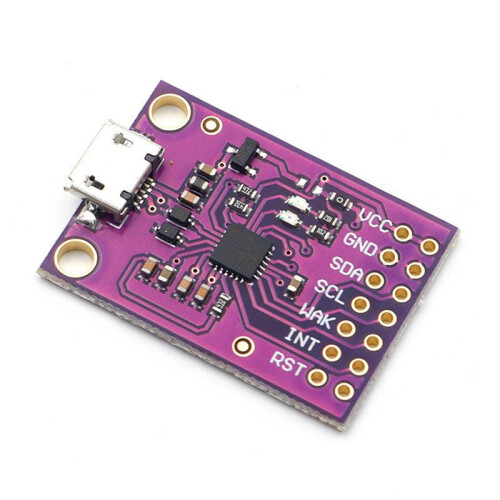

2X CP2112 Module CCS811 Debug Board USB to SMBus/I2C Communication Module USB to I2C Communication Module Fast

Descriere 2X CP2112 Module CCS811 Debug Board USB to SMBus/I2C Communication Module USB to I2C Communication Module Fast

CP2112 highly integrated USB to SMBus bridge controller integrates a USB2.0 full-speed function controller, USB transceiver oscillator and 8 GP10 pins.
via a simple GUI-based Single configurator selects all customization and configuration options, eliminating the need to develop complex firmware for standard HID class devices Supplied with software and drivers
the CP2112 device enables fast USB connectivity with minimal development effort.

1. USB bus powered 4.0 to 5.25V
2. Self-powered 3.0 to 3.6V, I/0 voltage 1.8V to VDD
3. Working environment temperature: -40C~85C
4. -chip reset circuit, -chip voltage regulator: 3.45V output
5. Comply with USB specification 2.0 standard, full speed (12Mbps)
6. Support USB suspend state through SUSPEND pin
7. Integrated 194-byte one- programmable ROM for storing customizable product information
8.512-byte SMBus data buffer, configurable clock speed device address 7-bit value i.e.
CP2112 slave device address
9. for Windows, and Linux HID to SMBus library for rapid application development API, open river access interface specification
10. 8 GPIOs configurable as input/output and open drain/push-pull for external devices
Configurable clock output 48MHz to 94KHZ, read/write SMBus device toggled LED
11. Application areas: portable controller, USB dongle, data recording
Material: plastic+metal
colour:

Package Contents:
2 x module
4 x row pins
