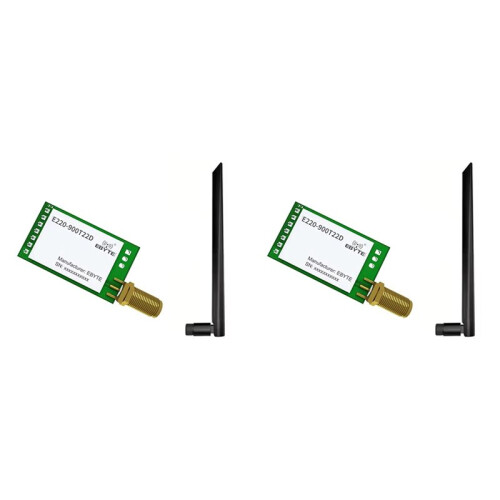

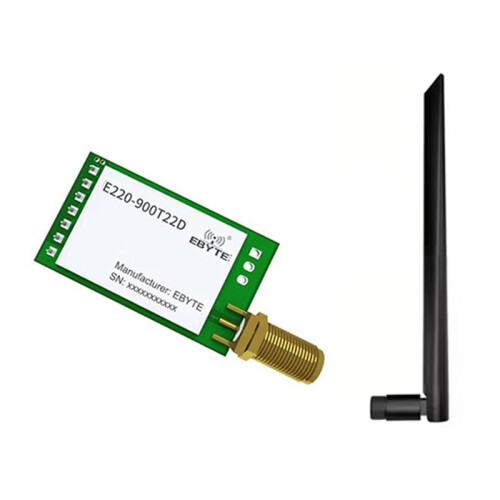

2X EBYTE E220-900T22D LoRa LLCC68 Wireless Module 22dBm 5km SMA-K UART RSSI Transmitter Receiver DIP W/ 868MHz Antenna
New
136,51 RON
Produse similare care te-ar putea interesa
Would you like us to let you know when it's back?
Descriere & Detalii
Rezumat

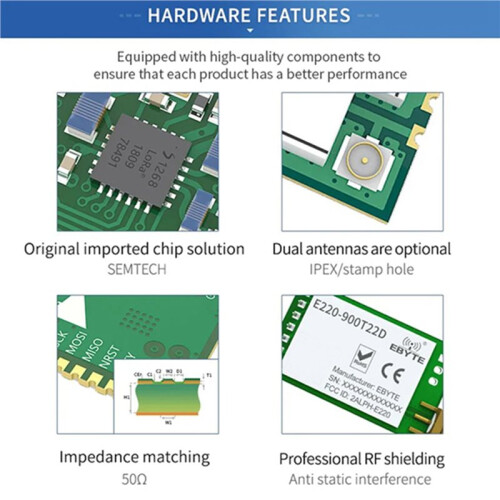

- Use chips LLCC68. Compared with the SX1278/SX1276 solution, the transmission distance is longer,the speed is faster ,and the power consumption is lower.
- Cost-effective LoRa wireless UART module.
- Communication key. RSSI environmental monitoring.
- Power failure protection.
- Power multi-level adjustable.
Descriere 2X EBYTE E220-900T22D LoRa LLCC68 Wireless Module 22dBm 5km SMA-K UART RSSI Transmitter Receiver DIP W/ 868MHz Antenna
Use chips LLCC68. Compared with the SX1278/SX1276 solution, the transmission distance is longer,the speed is faster ,and the power consumption is lower.
Cost-effective LoRa wireless UART module.
Communication key. RSSI environmental monitoring.
Power failure protection.
Power multi-level adjustable.
Working Frequency band:850.125-930.125MHZ (Support ISM band)
Transmitting Power:22dBm
Air rate: 2.4k-62.5kbps (user-configured)
Reference distance: 5000m
Transmitting current: 110mA (instantaneous power consumption)
Receiving current: 16.8mA
Operating voltage: 3.0-5.5V (Greater than 5.0V can guarantee output power)
Operating temperature: -40C-+85C (industrial grade design)
Communication interface: UART serial port (TTL level)
Color: As Shown
Material: Plastic+Metal
Package Contents:
2 x E220-900T22D Module
2 x 868MHz Antenna
Detalii
| OPC | PWHDHPG |
|---|---|
| Coduri | 6032343783177 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 6cm |
|---|---|
| Width | 4cm |
| Length | 20cm |
| Weight | 0.068kg |
| Colour | As Shown |
| Material | Plastic+Metal |
