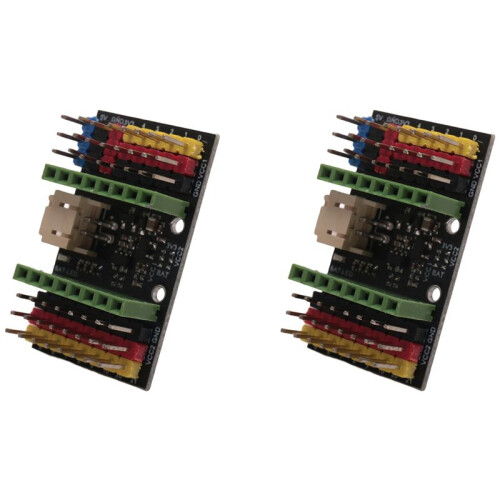

2X ESP32-C3 SuperMini Expansion Board for ESP32-C3 Development Board ESP32 SuperMini Development Board

Nou

În stoc

De ce îți va plăcea să cumperi de la OnBuy:

Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
Livrare gratuită – la milioane de produse de pe site
Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”

Vezi descrierea completă și detaliile produsului

Cantitate

45,15 RON

123,21 RON Reducere de 63%!

+30,00 RON livrare

1% Ce este Cashback instant? Află mai multe

Adaugă în coș

Prețurile articolelor vândute de OnBuy includ TVA.

Opțiuni de plată în rate fără dobândă disponibile

Vezi descrierea completă și detaliile produsului

Livrare: Standard (30,00 RON) | sâm 13 - mar 16 iun.

Vândut de: YPDblue

Returnări: 30 zile

Protecție la plată pentru 180 de zile

Adaugă în coș

Descriere & Detalii

Rezumat

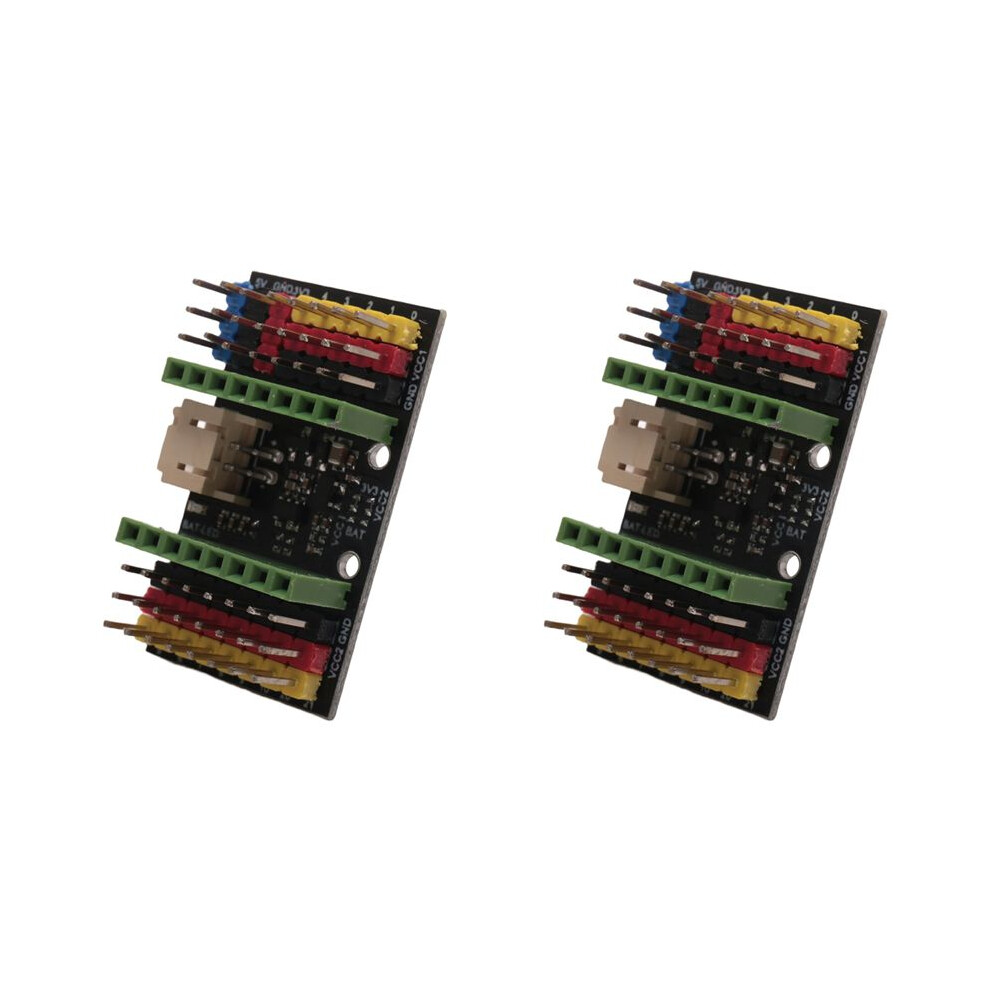

The ESP32-C3 SuperMini expansion board is an expansion board specially designed for the ESP32-C3 SuperMini development board. It makes up for many shortcomings of the ESP32-C3 SuperMini development board.
You can use the expansion board to connect an external 3.7V lithium battery, which supports charging the lithium battery through USB. The green indicator light lights up during charging. When the green indicator light goes out, the lithium battery is fully charged. The expansion leads to all IO ports, which is convenient for users to save various functions. Various sensors.
The expansion board provides users with a better power supply solution. The expansion board has two power supplies, VCC1 and VCC2.
The default output voltage of VCC1 and VCC2 is 3.3V. When you need to output a higher voltage, you can short-circuit the PCB. At this time, the output voltage of VCC1 and VCC2 is the power supply voltage 3.7V.
The factory default is to use a 0R resistor connected to 3.3V. If you need to output 3.7V, directly remove the 0R resistor and short-circuit the three pads with tin. VCC1 and VCC2 control the voltage output respectively. If you need to use one, just handle which one.

Descriere 2X ESP32-C3 SuperMini Expansion Board for ESP32-C3 Development Board ESP32 SuperMini Development Board

The ESP32-C3 SuperMini expansion board is an expansion board specially designed for the ESP32-C3 SuperMini development board. It makes for many shortcomings of the ESP32-C3 SuperMini development board.
You can use the expansion board to connect an external 3.7V lithium battery, which supports charging the lithium battery through USB. The green indicator light lights during charging. When the green indicator light goes out, the lithium battery is fully charged. The expansion leads to all IO , which is convenient for users to save various functions. Various sensors.
The expansion board provides users with a better power supply solution. The expansion board has two power supplies, VCC1 and VCC2.
The default output voltage of VCC1 and VCC2 is 3.3V. When you need to output a higher voltage, you can short-circuit the PCB. At this , the output voltage of VCC1 and VCC2 is the power supply voltage 3.7V.
The factory default is to use a 0R resistor connected to 3.3V. If you need to output 3.7V, directly remove the 0R resistor and short-circuit the three pads with tin. VCC1 and VCC2 control the voltage output respectively. If you need to use one, just handle which one.

Color: multi-color
Material: PCB

Package Contents:
2 x Expansion Board

Detalii

OPC	PTQVB79
Coduri	4713677661929 (EAN)

Date despre produs

Height	4cm
Width	6cm
Length	9cm
Weight	0.018kg
Colour	multi-color
Material	PCB
