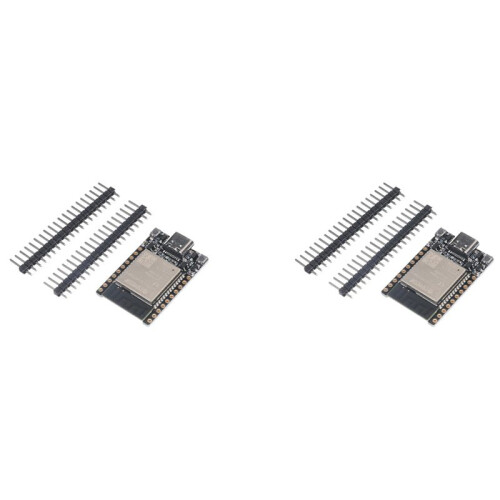

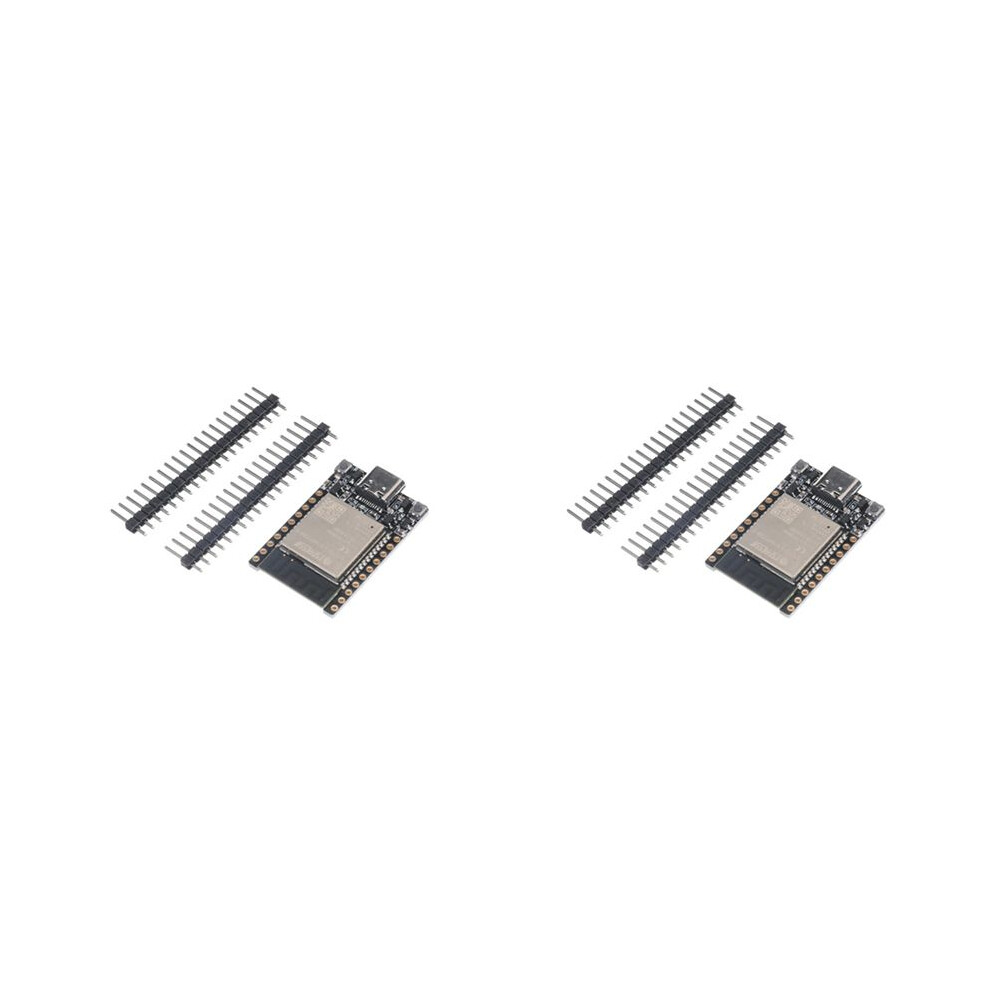

2X ESP32-C6 Development Board ESP32-C6 Series Module WiFi6 ESP32 Board Microcontroller Module Board
Grăbește-te – mai este doar 1 în stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (30,00 RON) | vin 12 - lun 15 iun.
Vândut de: YPDblue
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Rezumat
- Equipped with RISC-V 32-bit single-core processor, the operating frequency is up to 160 MHz with 320 KB ROM,512 KB SRAM,16 KB Low-power (LP) SRAM
- Support IEEE 802.11ax protocol, IEEE 802.11 b/g/n-compliant
- Support Bluetooth BLE 5
- Rich peripheral interfaces, including 23 GPIOs, UART, I2C, I2S, RMT (TX/RX),LED PWM, etc.
- ESP32-C6-WROOM-1-N4 Module
Descriere 2X ESP32-C6 Development Board ESP32-C6 Series Module WiFi6 ESP32 Board Microcontroller Module Board
Equipped with RISC-V 32-bit single-core processor, the operating frequency is to 160 MHz with 320 KB ROM,512 KB ,16 KB Low-power (LP)
Support IEEE 802.11ax protocol, IEEE 802.11 b/g/n-compliant
Support BLE 5
Rich peripheral interfaces, including 23 GPIOs, UART, I2C, I2S, RMT (TX/RX),LED PWM, etc.
The ESP32-C6 Development board is a versatile Wi-Fi, IEEE 802.15.4, and LE module with powerful features. It uses the ESP32-C6 chip, equipped with RISC-V 32-bit single-core processor, has 4 MB external SPI flash memory, and integrates rich peripherals, including SPI, UART, I2C, -board antenna, and to 23 GPIO and other interfaces. Integrated lithium battery charging chip. Rich peripherals and high performance make this module Perfect for homes, industrial automation, healthcare, consumer electronics, and more.
Model:ESP32-C6-WROOM-1-N4 Module
Chip:ESP32-C6 chip, RISC-V 32-bit single-core processor, supports clock frequency to 160 MHz
Works in 2.4 GHz frequency band, 1T1R
Supports Low 5.0
4 x virtual Wi-Fi interfaces
Support IEEE 802.11ax protocol
Compatible with IEEE 802.11b/g/n protocols, supporting 20 MHz and 40 MHz bandwidth-data rates to 150 Mbps
Compatible with IEEE 802.15.4-2015 protocol, working in 2.4 GHz frequency band, supporting OQPSK PHY/Thread 1.3/Zigbee 3.0
Antenna form:onboard PCB antenna
Support interface:UART, I2C, I2S, RMT (TX/RX), LED PWM, USB Serial/JTAG controller, etc.
Operating temperature:-40-85
Power supply range:0-3.6V
SPI Flash:4MB
Colour:Black
Material:PCB+Metal
Size:37x24mm
Package Contents:
2 x Development Board
4 x pin
Detalii
| OPC | PTPGTP7 |
|---|---|
| Coduri | 4712491613404 (EAN) |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 8cm |
| Length | 14cm |
| Weight | 0.024kg |
| Colour | Black |
| Material | PCB+Metal |
