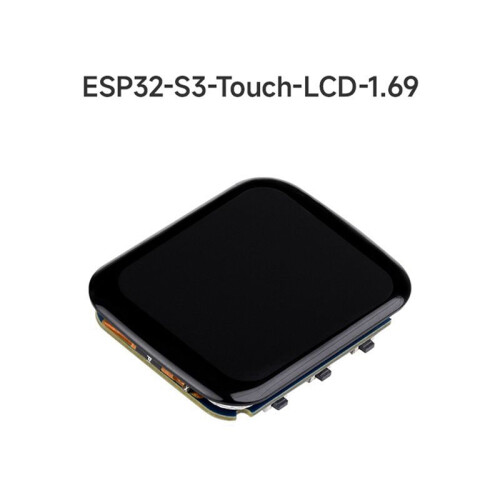

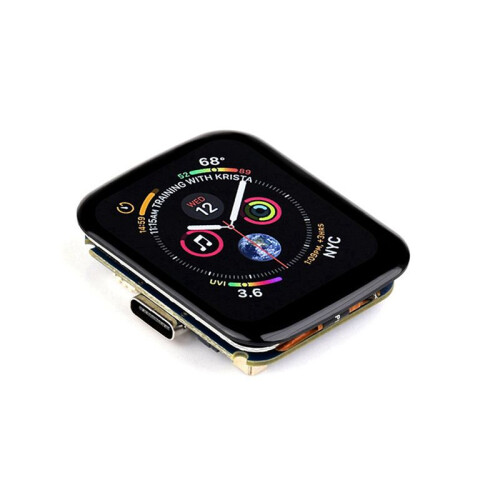

2X ESP32-S3 1.69-Inch Touch LCD Display Microcontroller Development Board 240x280 ST7789V2 3-Axis Acceleration
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
310,74 RON
415,25 RON
Reducere de 25%!
+30,00 RON livrare
1%
Câștigați 3,11 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (30,00 RON) | vin 12 - lun 15 iun.
Vândut de: YPDblue
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Descriere & Detalii
Rezumat

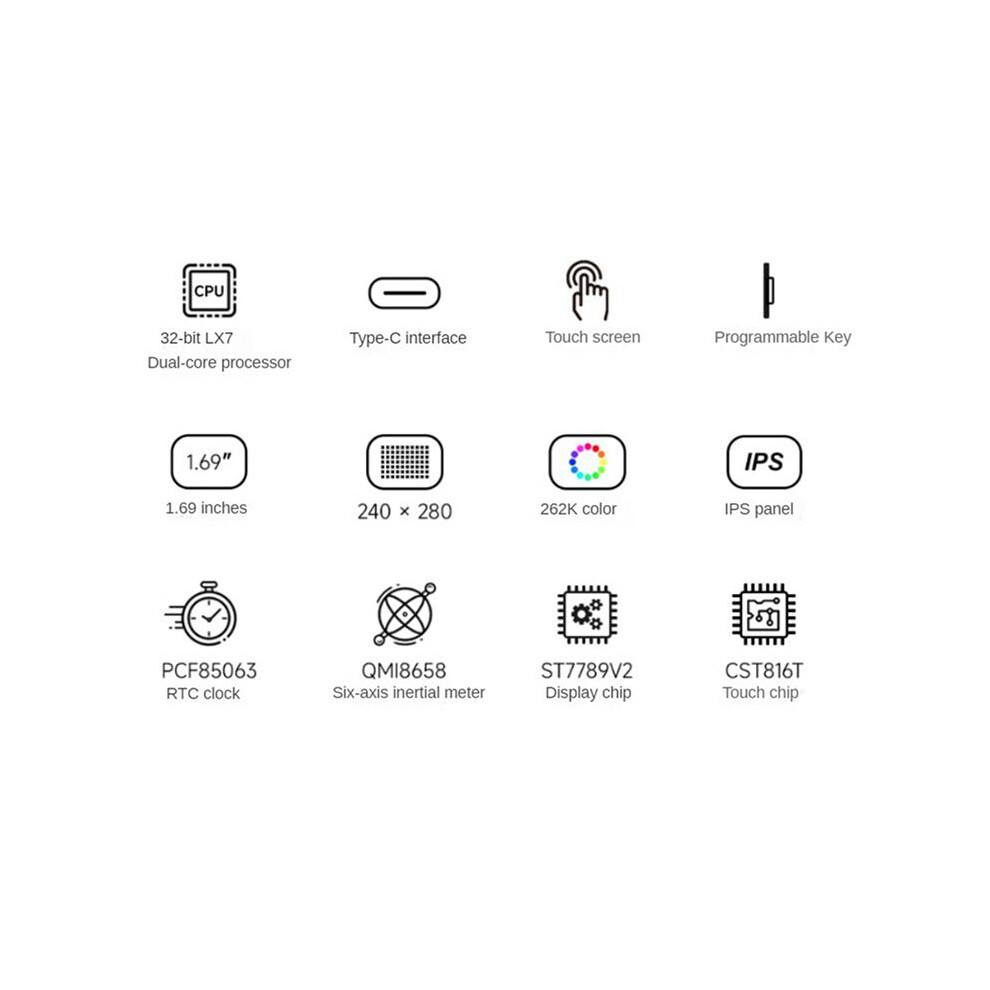

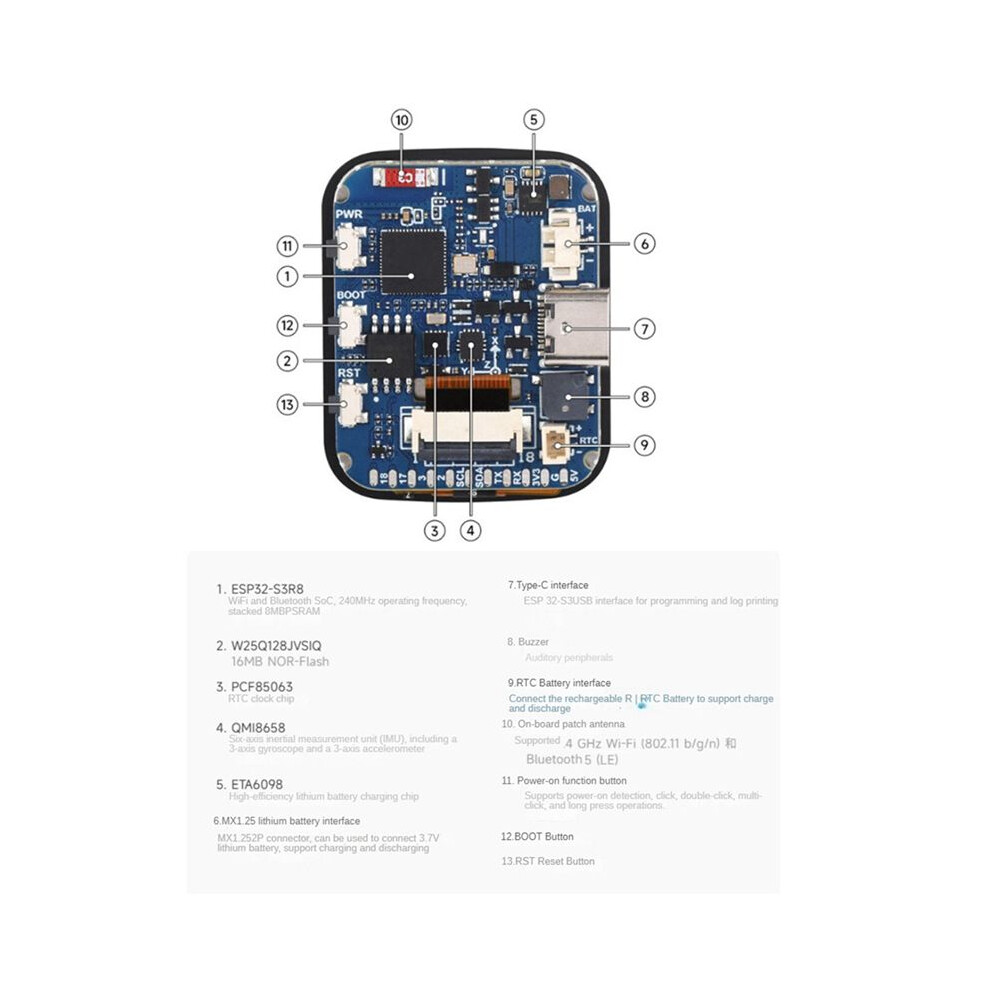

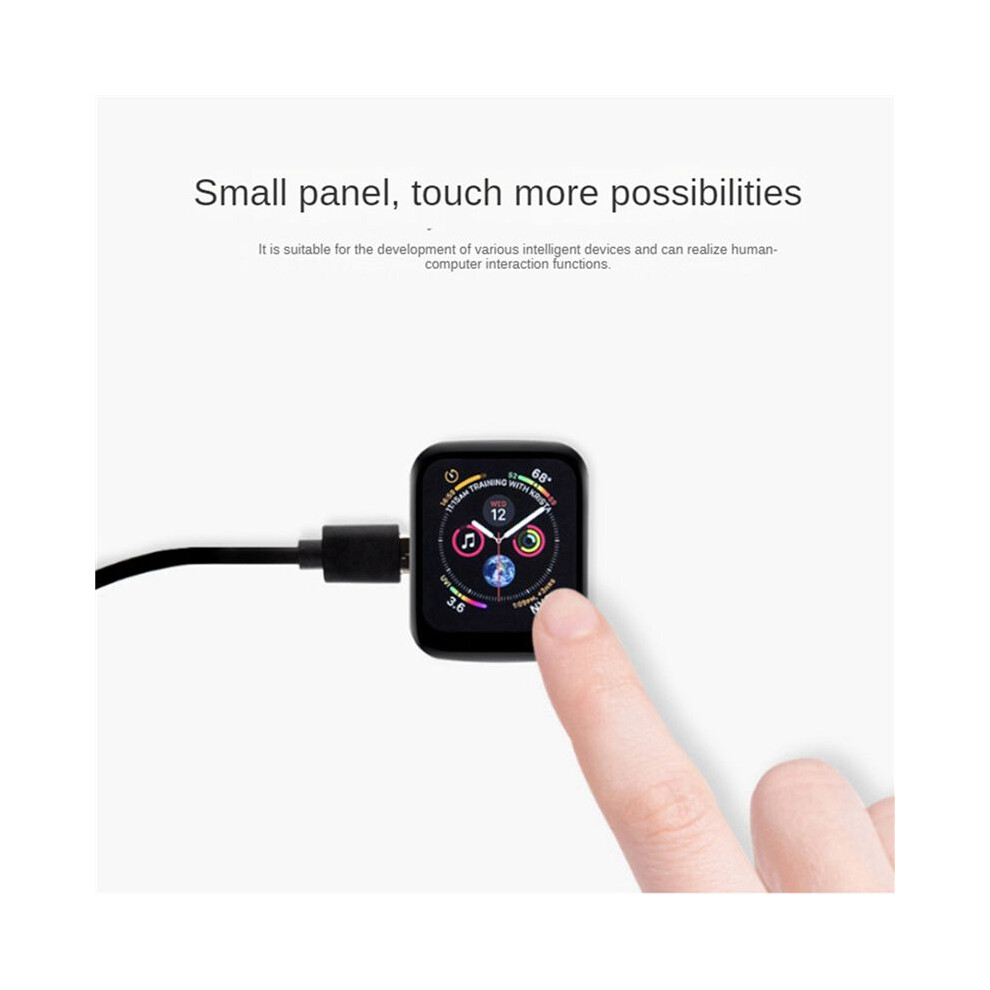

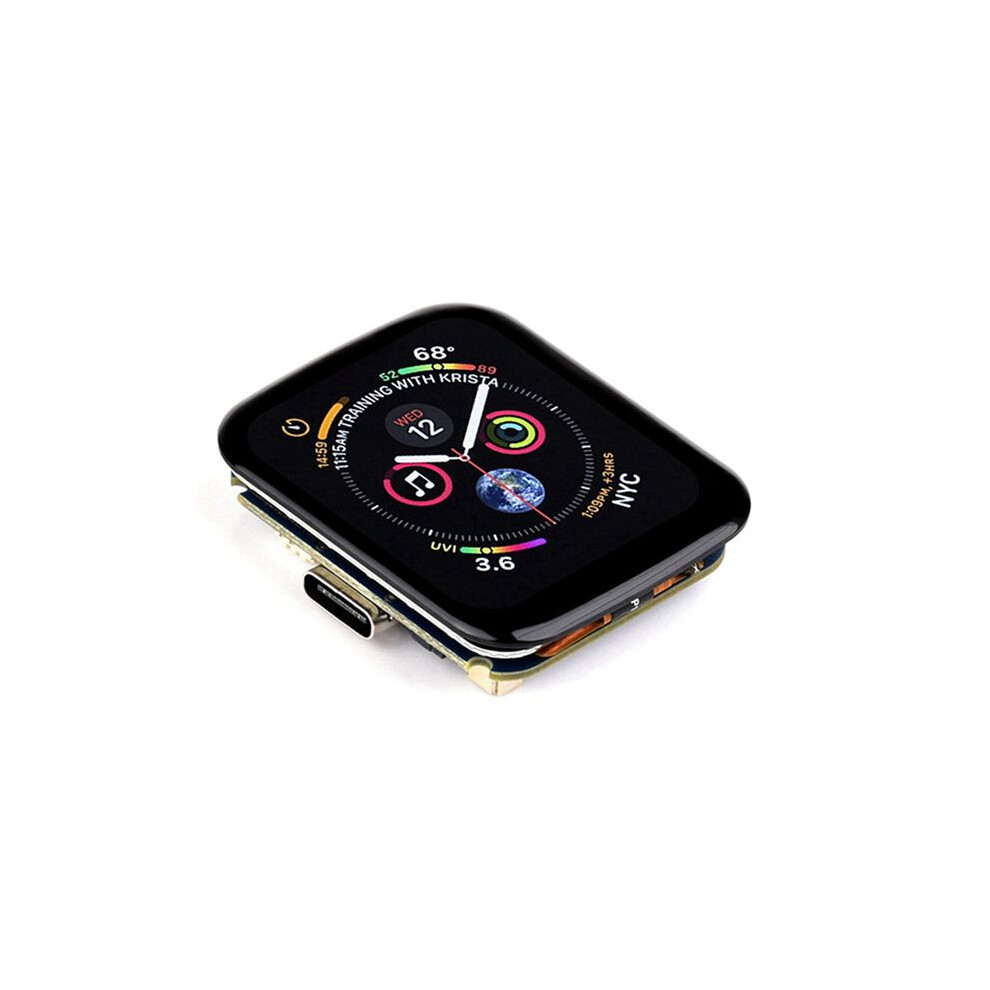

- ESP32-S3-Touch-LCD-1.69 is a high-performance microcontroller development board. In a small form factor, it has a 1.69-inch capacitive touch LCD screen, a lithium battery charging chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), RTC and other peripherals, making it easy to develop and embed applications into products. Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240 MHz.

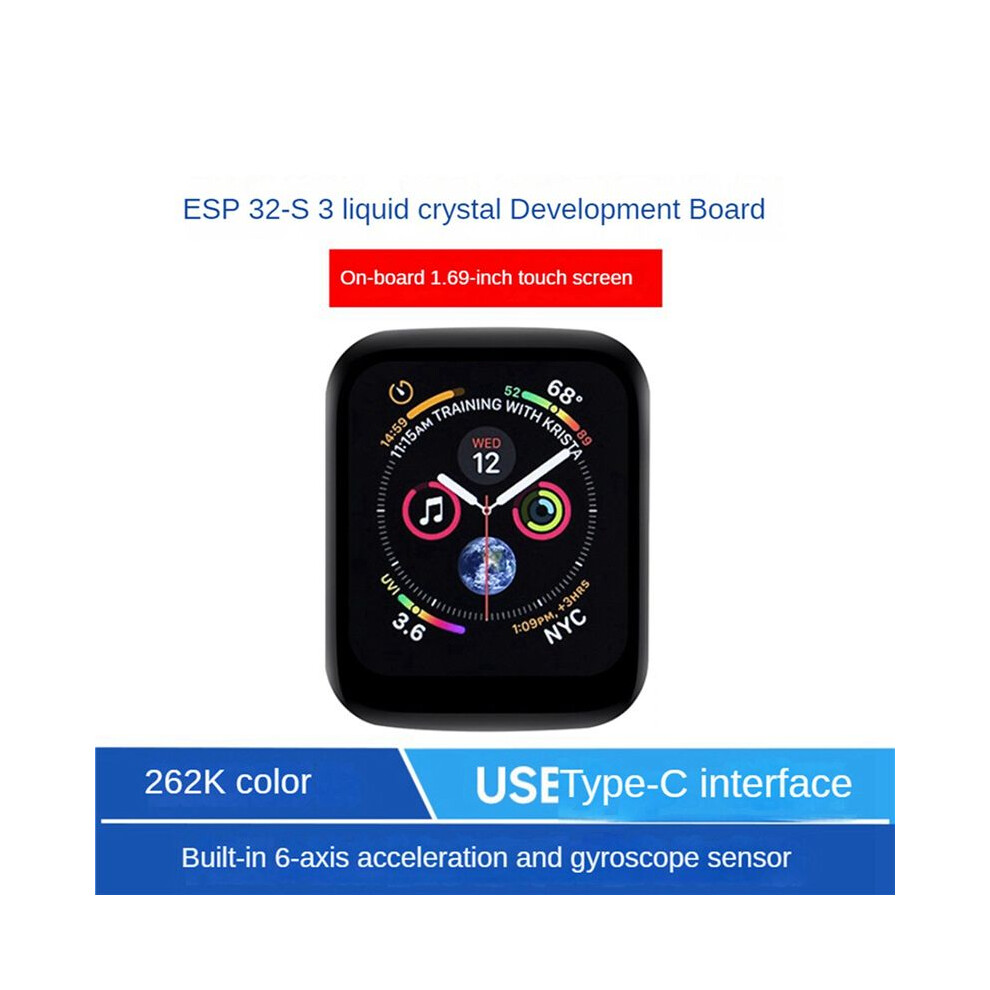

- Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with an onboard antenna. Built-in 512KB SRAM and 384KB ROM, stacked 8MB PSRAM and external 16MB Flash. Onboard 1.69-inch capacitive touch LCD screen, 240x280 resolution, 262K color, can clearly display color pictures. Built-in ST7789V2 driver chip and CST816T capacitive touch chip, using SPI and I2C interface communication respectively, without occupying too many interface pin resources.
- Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 1-axis gyroscope), can detect motion posture, step counting, etc.
- Onboard PCF85063 RTC chip, reserved 1.25 RTC battery slot (supports charging), can conveniently realize RTC function requirements.
- Onboard RST, BOOT and a side button with customizable functions, convenient to use buttons for custom function development.
Descriere 2X ESP32-S3 1.69-Inch Touch LCD Display Microcontroller Development Board 240x280 ST7789V2 3-Axis Acceleration

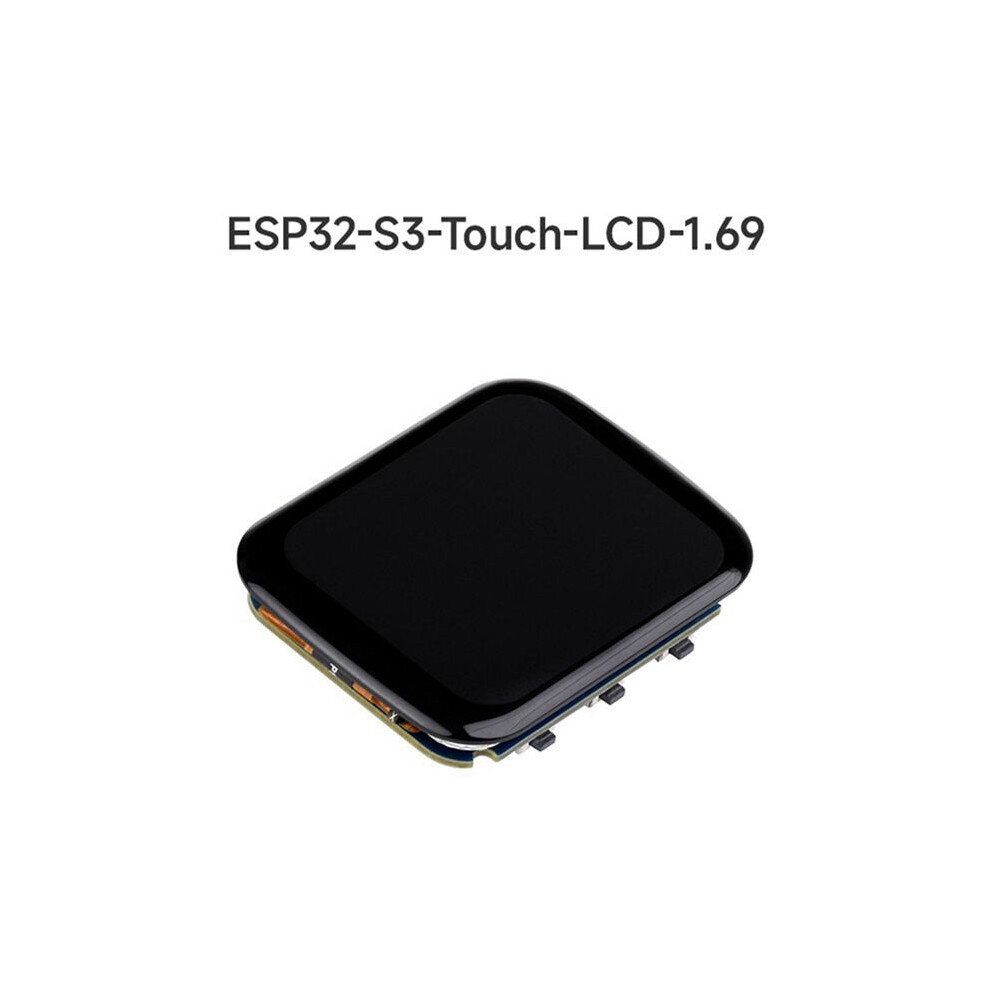

ESP32-S3-Touch-LCD-1.69 is a high-performance microcontroller development board. In a small form factor, it has a 1.69-inch capacitive touch LCD screen, a lithium battery charging chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), RTC and other peripherals, making it easy to develop and embed applications into products. Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor with a main frequency of to 240 MHz.
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. Built-in 512KB and 384KB ROM, stacked 8MB PSRAM and external 16MB Flash. Onboard 1.69-inch capacitive touch LCD screen, 240x280 resolution, 262K color, can clearly display color pictures. Built-in ST7789V2 driver chip and CST816T capacitive touch chip, using SPI and I2C interface communication respectively, without occupying too many interface pin resources.
Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 1-axis gyroscope), can detect motion posture, step counting, etc.
Onboard PCF85063 RTC chip, reserved 1.25 RTC battery slot (supports charging), can conveniently realize RTC function requirements.
Onboard RST, BOOT and a side button with customizable functions, convenient to use buttons for custom function development.
Onboard 3.7V MX1.25 lithium battery charging and discharging interface.

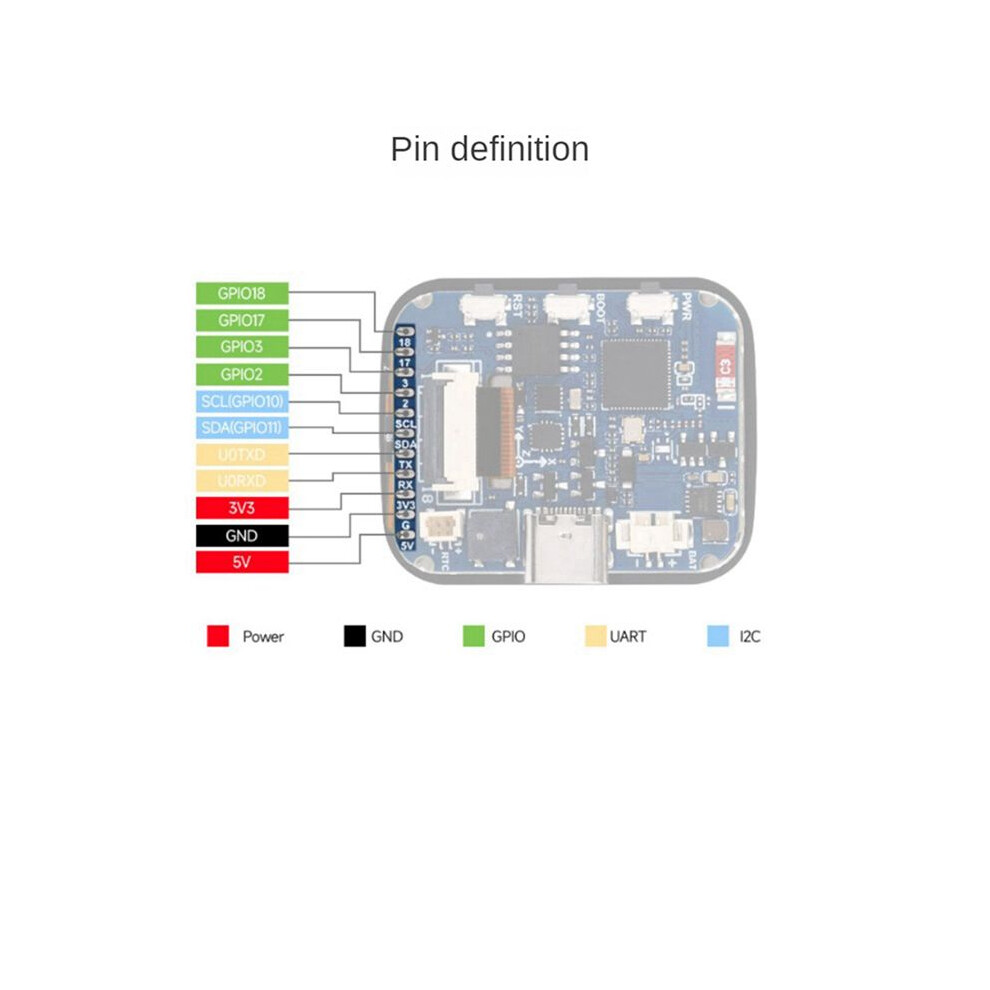

Lead out 4 GPIO, I2C and UART pads, which can be used for external devices and debugging, and flexibly configure peripheral functions.
Support flexible clock, module power separate setting and other precise control, to achieve multi-scenario low power consumption mode
The touch screen has high transmittance, fast response and long life.
Different batches may have different appearance, which does not affect use.
Colour:Black
Material:PCB+electronic components
Detalii
| OPC | PTQNR76 |
|---|---|
| Coduri | 6034194409770 (EAN) |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 6cm |
| Length | 11cm |
| Weight | 0.026kg |
| Colour | Black |
| Material | PCB+electronic components |
