2X LED Flashing Finger Tip Gyroscope DIY Electronic Kit 51 Microcontroller Circuit Board Welding Assemble Components
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 127,000 de recenzii cu evaluare “Excelent”
59,29 RON
142,43 RON
Reducere de 58%!
+30,00 RON livrare
1%
Câștigați 0,59 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (30,00 RON) | mar 23 - joi 25 iun.
Vândut de: YPDblue
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Kituri de instrumente pentru construcția de modele
Descriere & Detalii
Rezumat
- The spinning top is a gadget that has beenanded down from ancient times to today. The flash electronic top is a novel electronic ythat combines modern technology and tradition. It not only retains the primitive connotation of the top, but also reflects the attractive charm of modern electronic technology.

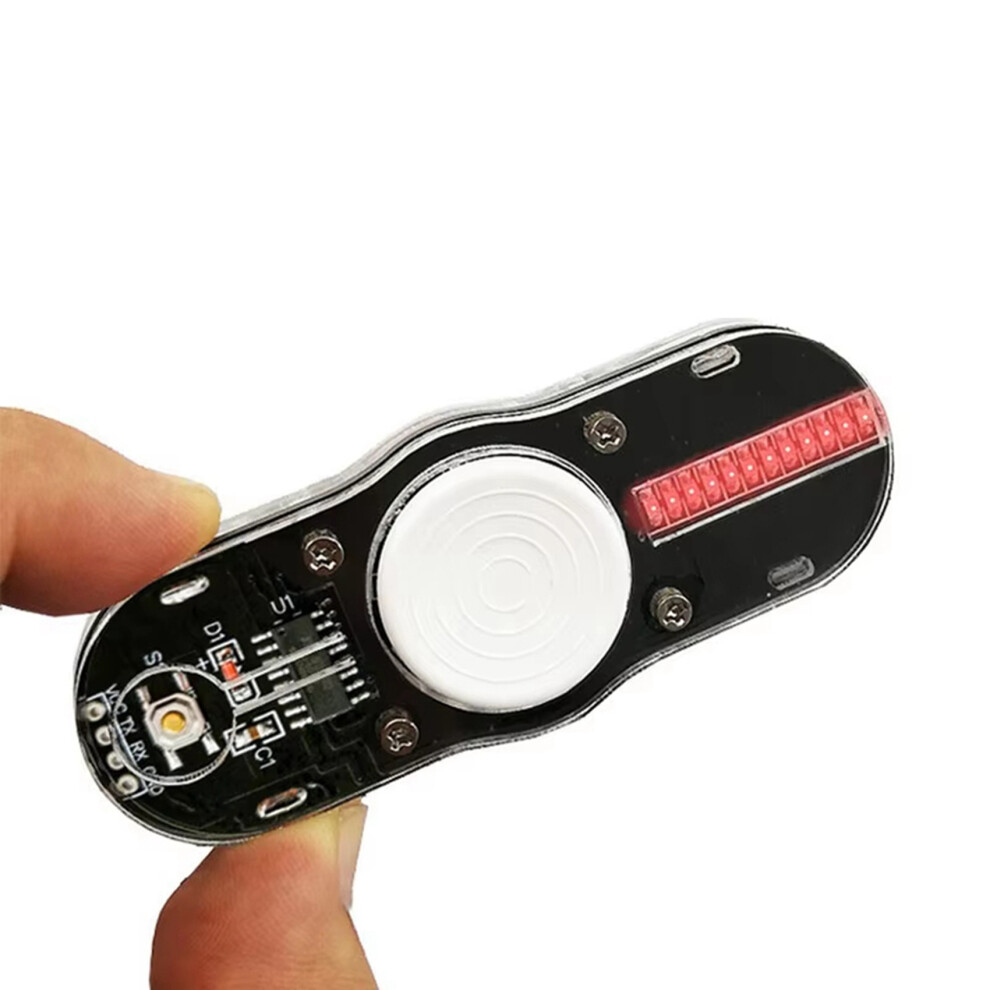

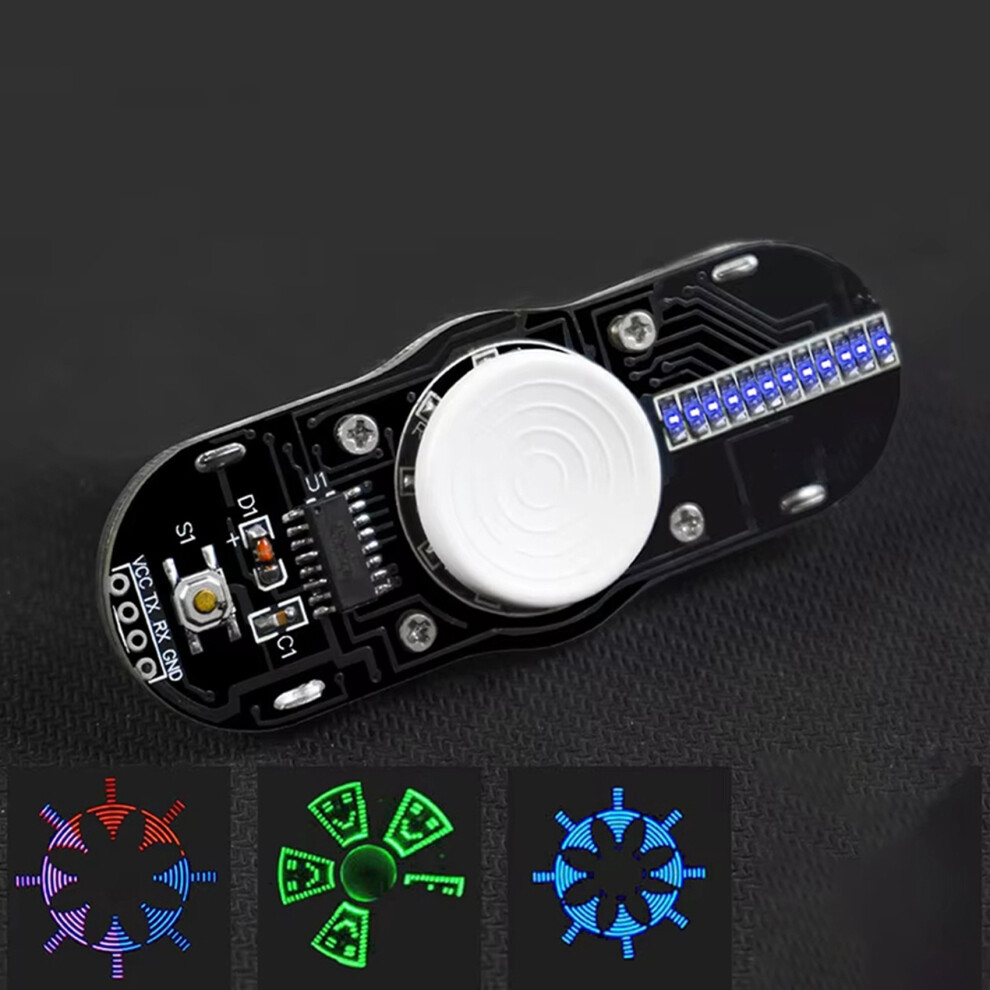

- The gyro uses a single chip microcomputer to control 12 light-emitting diodes to flash in turn. The flashing time of each LED and the flashing sequence are controlled by the single-chip microcomputer. When the electronic gyroscope rotates, the corresponding pattern and text will appear.
- In order to improve the stability of patterns and characters, adopts Hall IC to control the regular display of the pattern, that is, every time it rotates, the Hall IC senses the magnet, and then the model is fed back to the microcontroller.
- The coin-cell battery is used for power supply, and the microcontroller automatically enters low power consumption when the battery gyro is turned off. When the switch is pressed, the LED is turned on.
- Welding Assemble Component
Descriere 2X LED Flashing Finger Tip Gyroscope DIY Electronic Kit 51 Microcontroller Circuit Board Welding Assemble Components
The top is a gadget that has beenanded down from ancient times to today. The flash electronic top is a novel electronic ythat combines modern technology and tradition. It not only retains the primitive connotation of the top, but also reflects the attractive charm of modern electronic technology.
The gyro uses a single chip microcomputer to control 12 light-emitting diodes to flash in turn. The flashing of each LED and the flashing sequence are controlled by the single-chip microcomputer. When the electronic gyroscope rotates, the corresponding pattern and text will appear.
In order to improve the stability of patterns and characters, adopts Hall IC to control the regular display of the pattern, that is, every it rotates, the Hall IC senses the magnet, and then the model is fed back to the microcontroller.
The coin-cell battery is used for power supply, and the microcontroller automatically enters low power consumption when the battery gyro is turned off. When the is pressed, the LED is turned .
Product name:two-page LED fingertip gyro DIY production kit
Product model:TJ-56-307
Working voltage:DC6V (two 2032 button batteries)
Product size:79x26x11mm
Color:As Shown
Material:Metal+Plastic

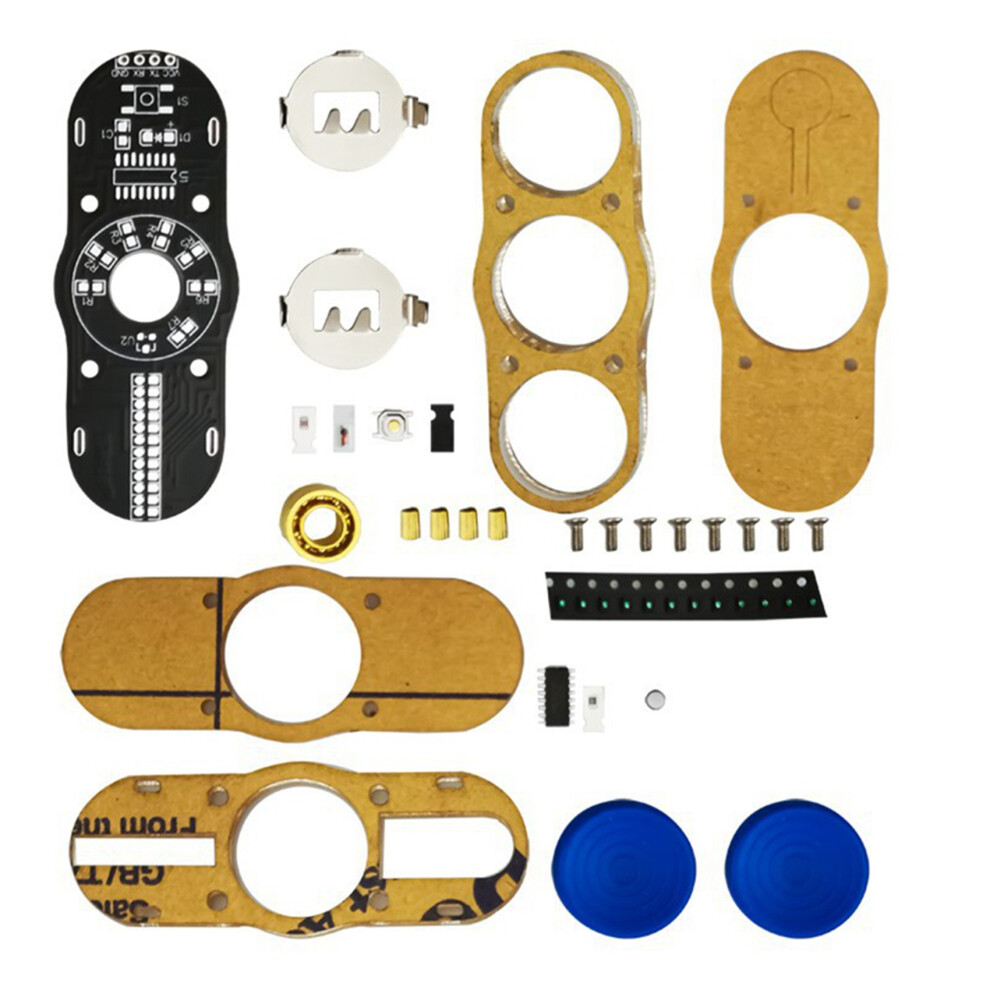

Package Contents:
2 x Finger Tip Gyroscope DIY Kit
Detalii
| OPC | PT89XCB |
|---|---|
| Coduri | 6033107811846 (EAN) |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 6cm |
| Length | 9cm |
| Weight | 0.054kg |
| Colour | As Shown |
| Material | Metal+Plastic |
