2X Tang 20K FPGA Development Board RISCV Linux for Retro Game Player

Descriere 2X Tang 20K FPGA Development Board RISCV Linux for Retro Game Player

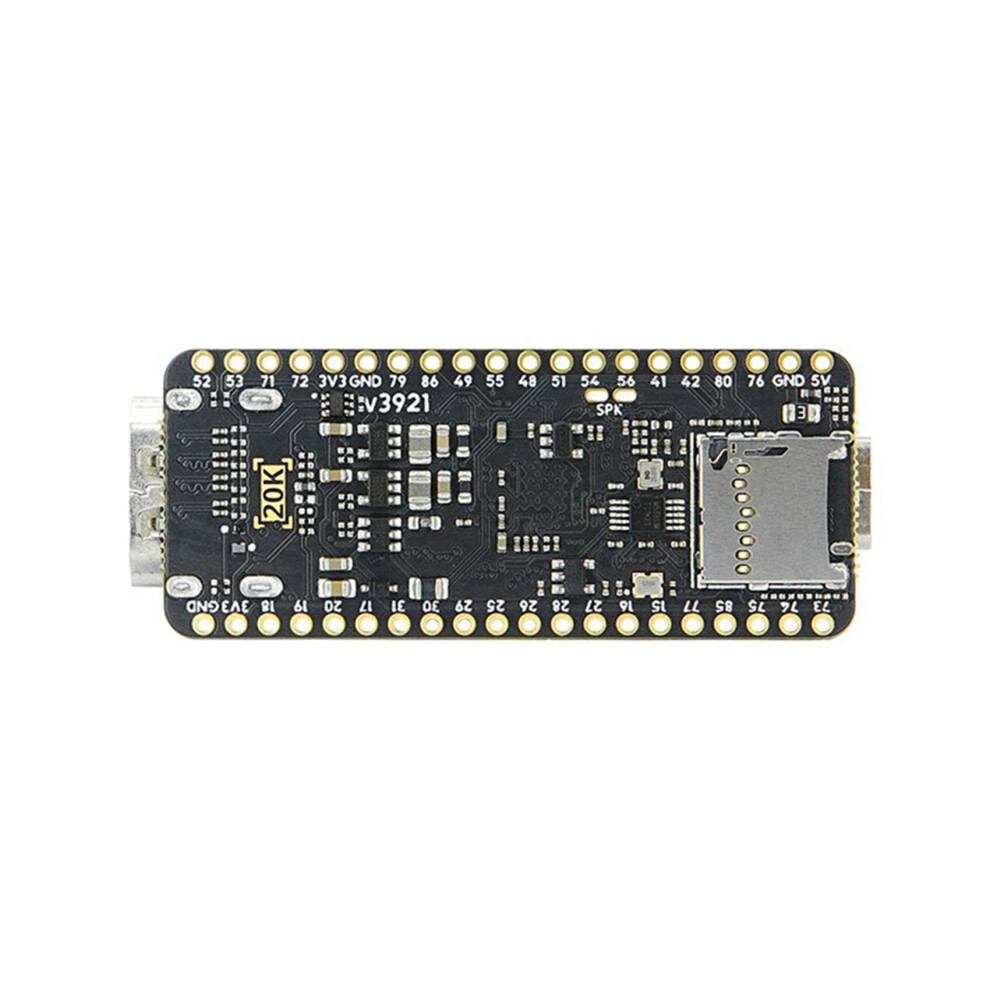

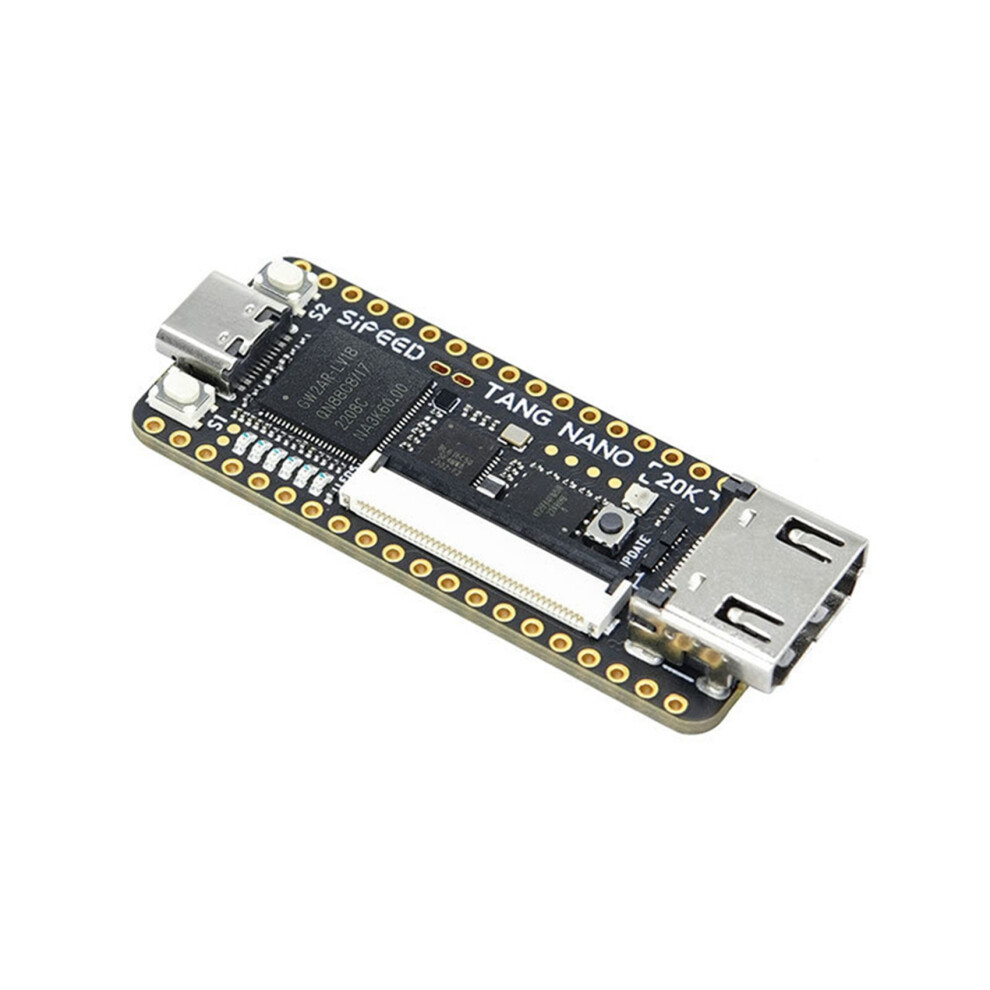

Tang 20K is a core board using GOWIN Semiconductor GW2AR-18 QN88. The chip has 20736 logical lookup tables (LUT4) and 15552 registers (FF). There are two PLLs inside and multiple DSP units. Supports 18-bit x 18-bit multiplication to speed number operations.
It has built-in low-latency 64Mbits SDRAM, making it easier to run the NES emulator and better able to run soft-core Linux systems.
The onboard BL616 chip serves as the FPGA JTAG downloader and serial port for communication with the FPGA.
The board uses a 27MHz crystal oscillator by default to multiply the clock required for -compatible display, and is also equipped with an MS5351 clock generation chip to generate a variety of required clocks at will.
The onboard download chip has been upgraded to a USB2.0 HS interface, with the functions of high-speed JTAG download, serial communication, high-speed SPI reception, and precise clock configuration.

color:black
Material:PCB+electronic components
Different batches may have different appearances, but will not affect the use

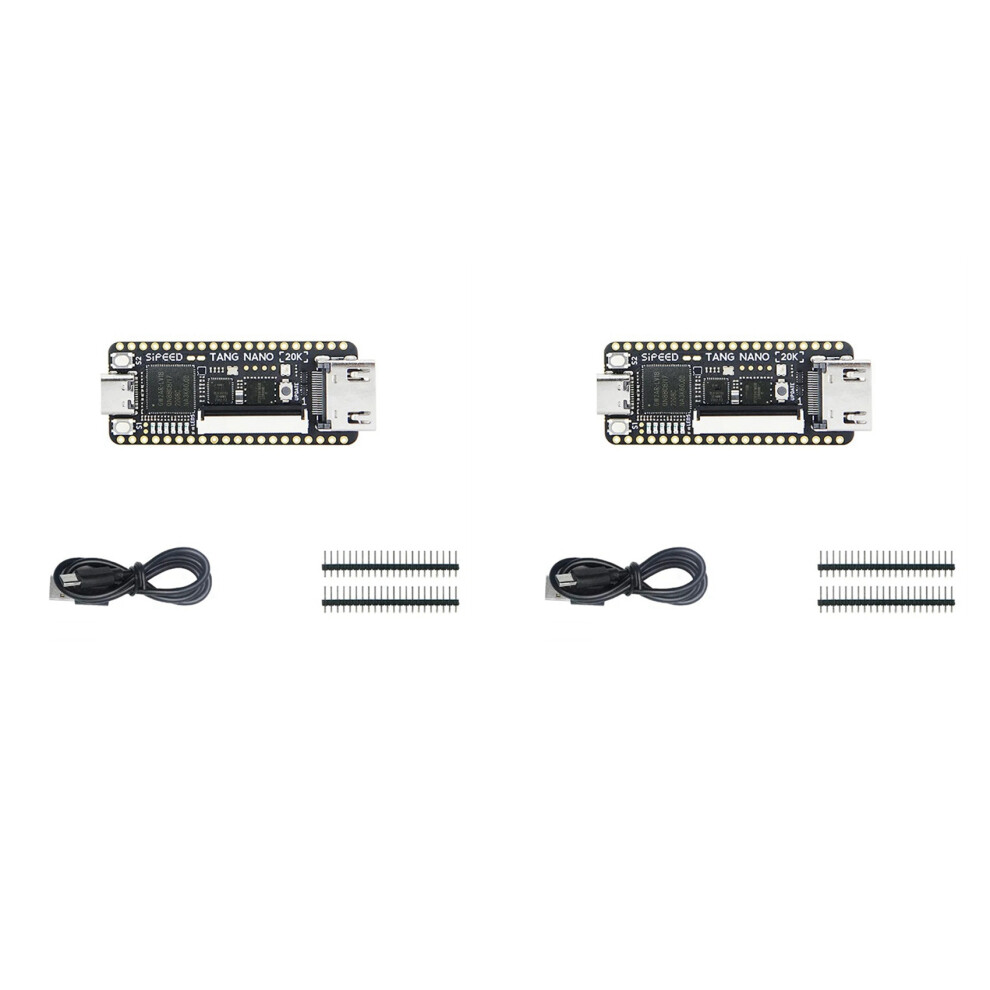

Package Contents:
2 x Tang 20K Core Board
2 x data cable
4 x PIN
