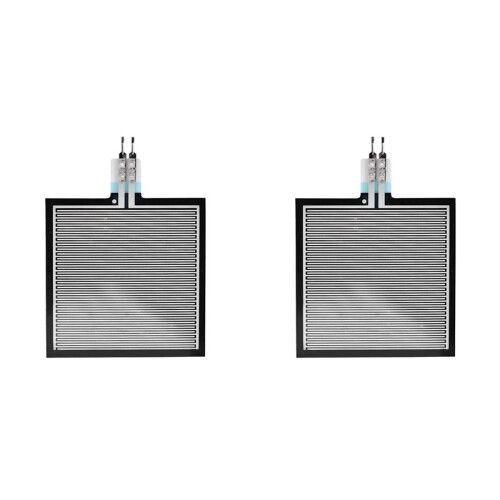

2X Thin Film Pressure for High-End for 20g-10kg Intelligent Force Sensitive Resistor Flexible Sensor Module

Descriere 2X Thin Film Pressure for High-End for 20g-10kg Intelligent Force Sensitive Resistor Flexible Sensor Module

product description
resistive pressure sensitive sensor is a flexible thin film senso!
whose resistance decreases with the increase of the pressure acting the induction region.
The flexible has the characteristics of flexible ultra-thin, ultra-low power consumption and extreme speed response, etc. Small size, this flexible pressure is based new nanometer pressure-sensitive materials supplemented by ultra-thin film substrate.
This pressure has the characteristic of high stability, high consistency.

Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.
When detects outside pressure, the resistance of will change.
Pressure can be converted into a corresponding electrical output using simple circuit..
Film pressure
specification
The greater the force applied, The smaller the sensor resistance is When no force is applied, Sensor resistance tends to Thin film pressure sensor
Output signal: analog
Pressure induction range: 20g-10kg
Not trigger resistance: Greater than 10MΩ
Typical applications
resistive pressure sensitive sensors can be used in the following applications:
Monitor in bed out of bed
running shoes: Record the intensity and frequency of compression
Intelligent : set force identification to prevent misoperation
Counter: Records The Times of compression
The pressure level of the human body is measured medica
equipment
Note:
Installation guide not included, we strongly recommend you seek professional installation.
Please check as much as possible to make sure the item is what you need.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Colour: Ph
