This is 2.13inch E-Ink display HAT for Raspberry Pi,250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is a perfect choice for applications such as shelf label, industrial instrument, and so on.
No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.
Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.Onboard voltage translator, compatible with 3.3V/5V MCUs
Operating voltage: 3.3V/5V. Interface: SPI. Outline dimension: 65mm x 30.2mm. Display size: 23.71mm x 48.55mm. Dot pitch: 0.194 x 0.194. Resolution: 250 x 122. Display color: black, white. Grey level: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW(typ.). Standby power: 170°.
250x122 Pixel E-Paper Screen LCD

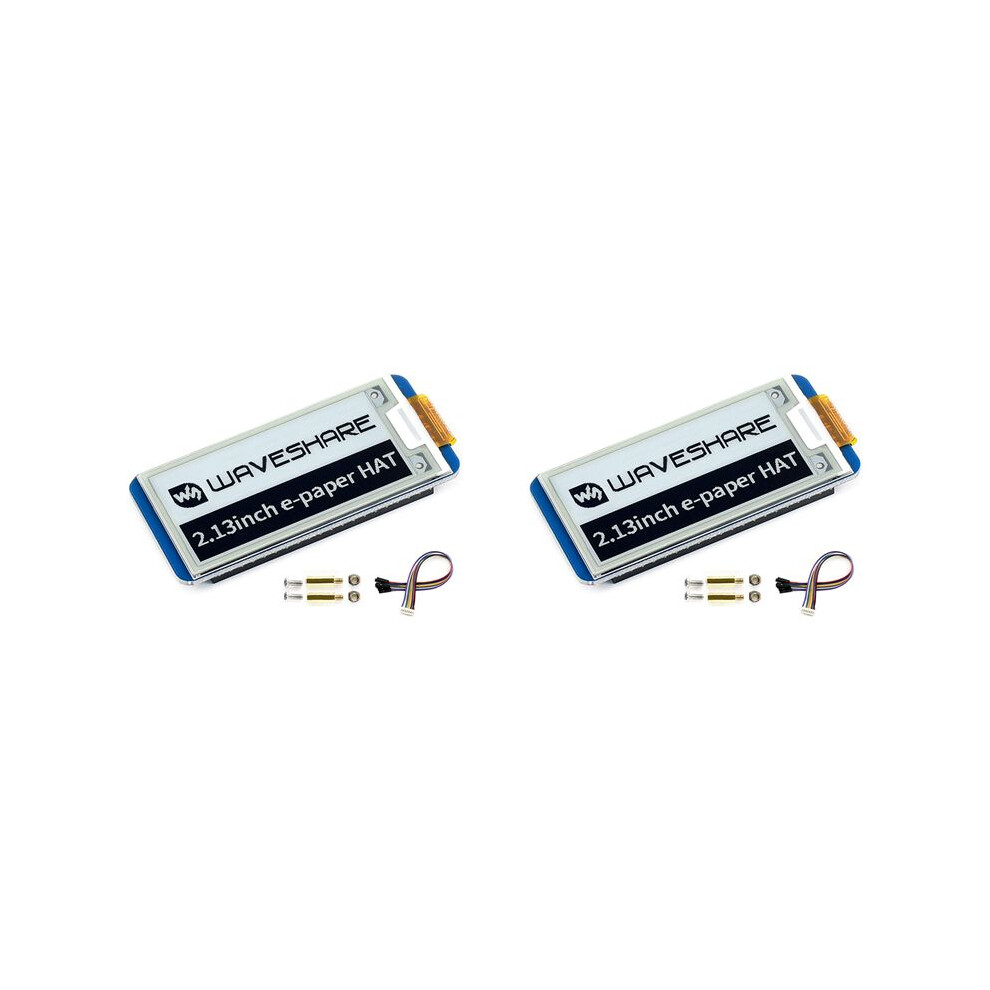

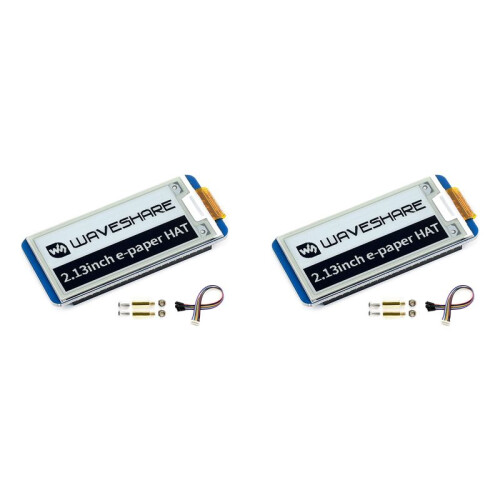

Descriere 2X Waveshare 2.13Inch E-Ink Display HAT, White Two-Color 250X122 Pixel E-Paper Screen LCD for Raspberry Pi 4B/3B+/3B/2B/Zero

This is 2.13inch E-Ink display HAT for Raspberry Pi,250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is a perfect choice for applications such as shelf label, industrial instrument, and so .
No backlight, keeps displaying last content for a long even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson .
Preserved solder pads for SPI interface, for connecting with other controller boards like /Nucleo, etc.Onboard voltage translator, compatible with 3.3V/5V MCUs
Operating voltage: 3.3V/5V. Interface: SPI. Outline dimension: 65mm x 30.2mm. Display size: 23.71mm x 48.55mm. Dot pitch: 0.194 x 0.194. Resolution: 250 x 122. Display color: black, white. Grey level: 2. Partial refresh : 0.3s. Full refresh : 2s. Refresh power: 26.4mW(typ.). Standby power: 170.

color:
Material:PCB

Package Contents:
2 x 2.13inch e-Paper HAT
2 x RPi screws pack
2 x 20cm 8Pin Cable

Detalii

OPC	PT7WBZB
Coduri	6031417190477 (EAN)
	Informații despre produs și siguranță

Date despre produs

Height	4cm
Width	5cm
Length	7cm
Weight	0.064kg
Colour	Blue
Material	PCB

Compară vânzătorii pentru 2X Waveshare 2.13Inch E-Ink Display HAT, White Two-Color 250X122 Pixel E-Paper Screen LCD for Raspberry Pi 4B/3B+/3B/2B/Zero

Nou de la 389,17 RON

Vânzător	Note	Garanție	Retururi	Preț	Livrare	Total	Cantitate
Vânzător Profesionist Zames Vizitează magazinul Expediat din:	(105 recenzii)	-	30 zile Retur gratuit Nu	355,17 RON	+34,00 RON Delivery Livrare estimată: 8-14 aug.	389,17 RON	Cantitate Adaugă în coș
