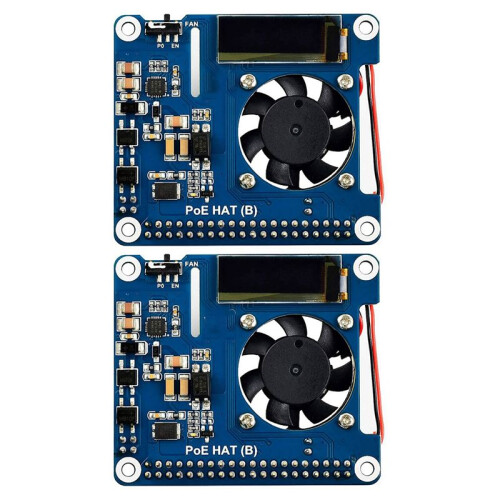

2X Waveshare Power Over Ethernet HAT Support 802.3Af PoE Network Expansion Board with OLED for Raspberry Pi 4 Model B

Descriere 2X Waveshare Power Over Ethernet HAT Support 802.3Af PoE Network Expansion Board with OLED for Raspberry Pi 4 Model B

POE HAT (B) for Raspberry Pi 4B/3B+,Power Over Ethernet HAT,Support 802.3af PoE Network,802.3af Power-Sourcing Equipment Required

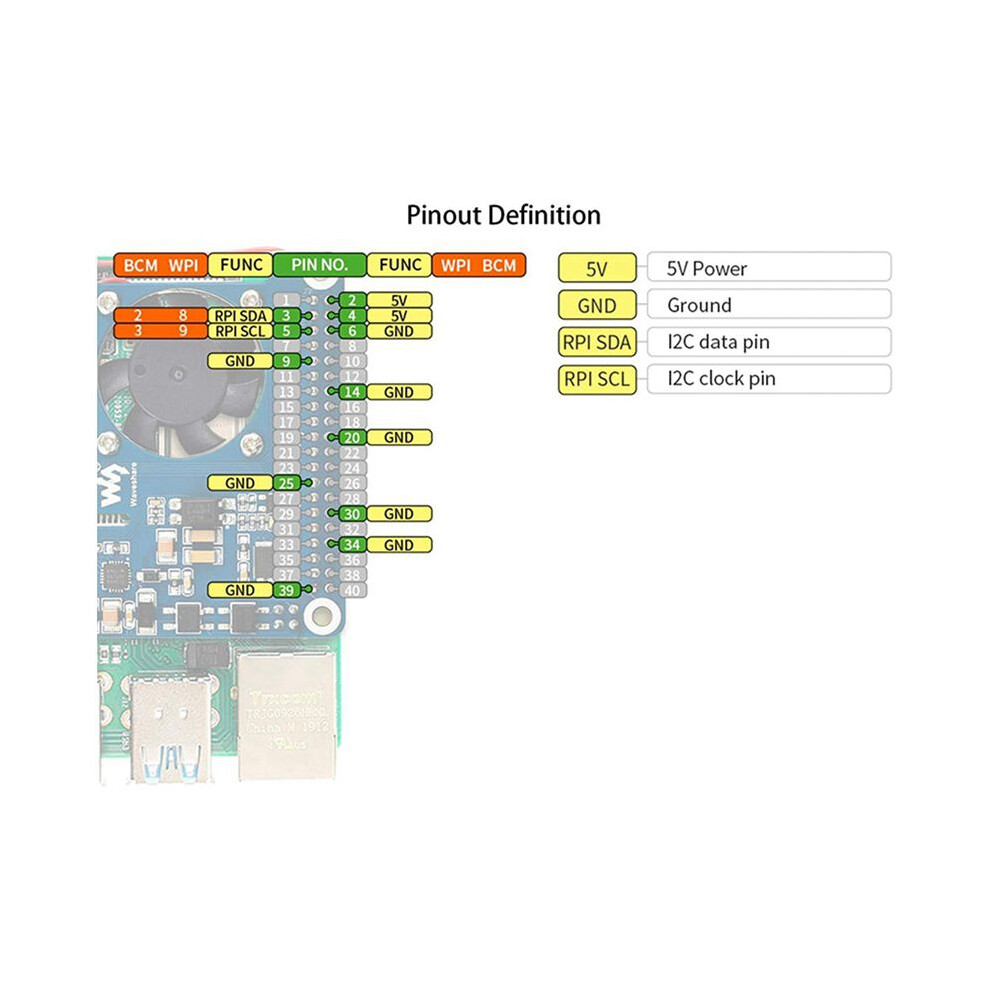

Integrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare IO pins
0.91Inch OLED, for monitoring processor temperature, IP address, and fan status in real-; Onboard cooling fan, allows auto running powerup OR programmable control, configured by
POE POWER INPUT:37V ~ 57V in. POE POWER OUTPUT:5V 2.5A out .
OLED PIXELS:128x32. NETWORK STANDARD:802.3af PoE. OLED DRIVER:SSD1306. OLED DISPLAY COLOR:white.

DESCRIPTION

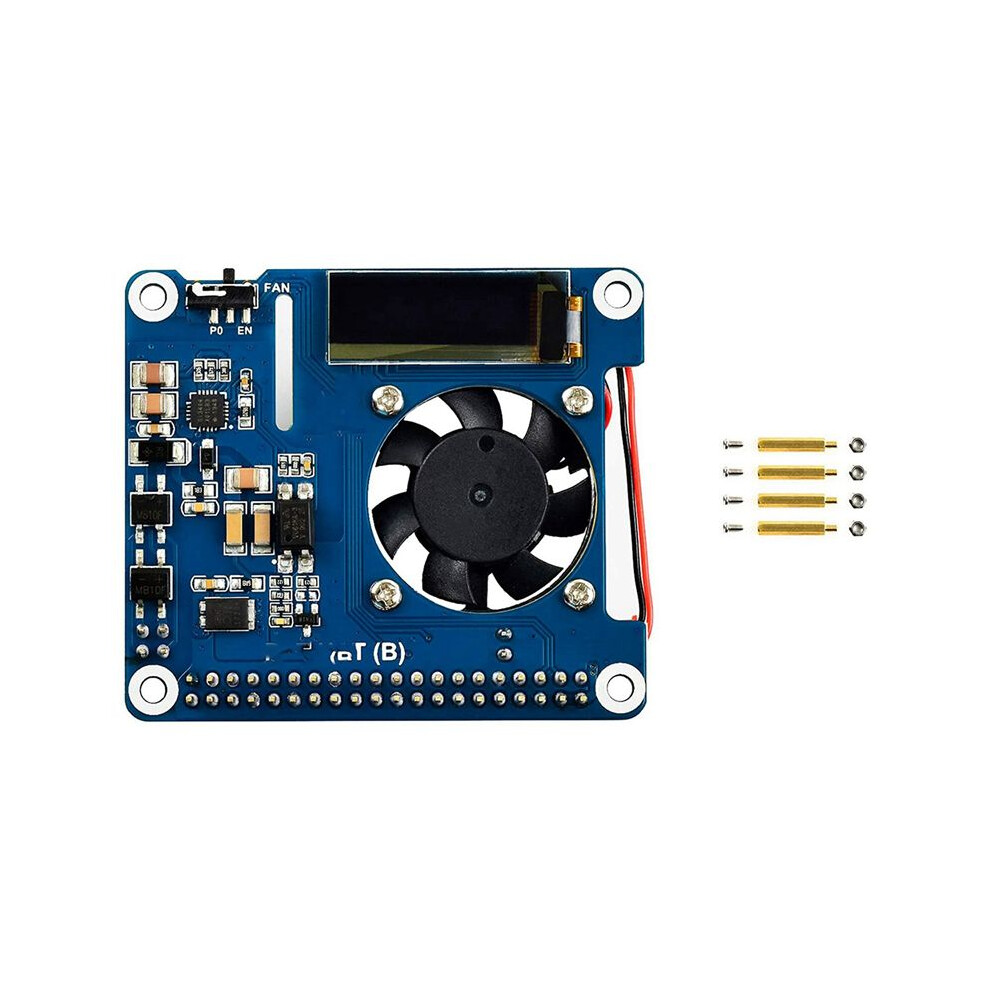

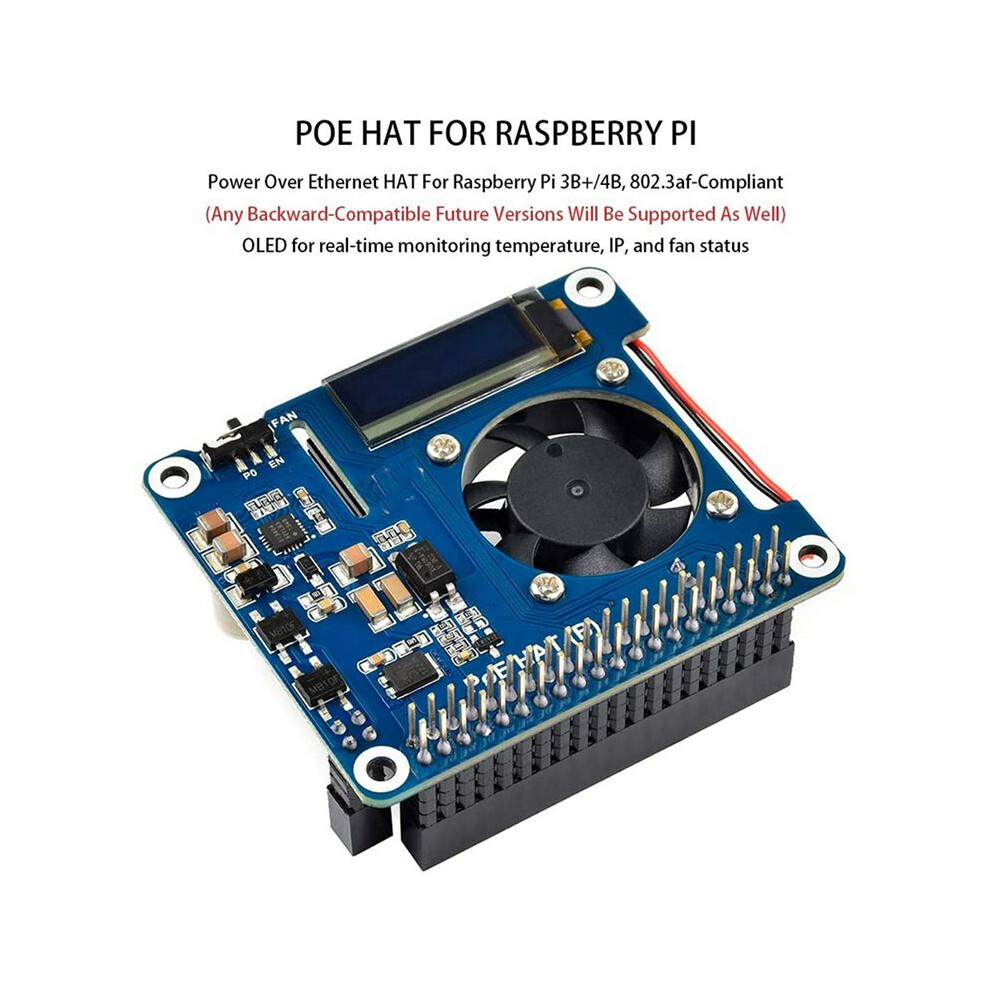

Power Over Ethernet: Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable
Cooling Fan: Allows Auto Running Powerup OR Programmable Control, Configured By ; Automatically Turn /Off Depending The Raspberry Pi Processor Temperature
Onboard PCF8574 Chip: PCF8574 IO Expander For I2C Bus, Providing 8 IO Pins, Of Which P0 For Fan Control; And Extra Spare Pins Solder Pads (P1-P7, INT)
PoE (Power Over Ethernet) capability,802.3af-compliant
Fully isolated switched-mode power supply (SMPS)
colour:
Material: PC board + metal
size: 65x56.5mm

Package Contents:

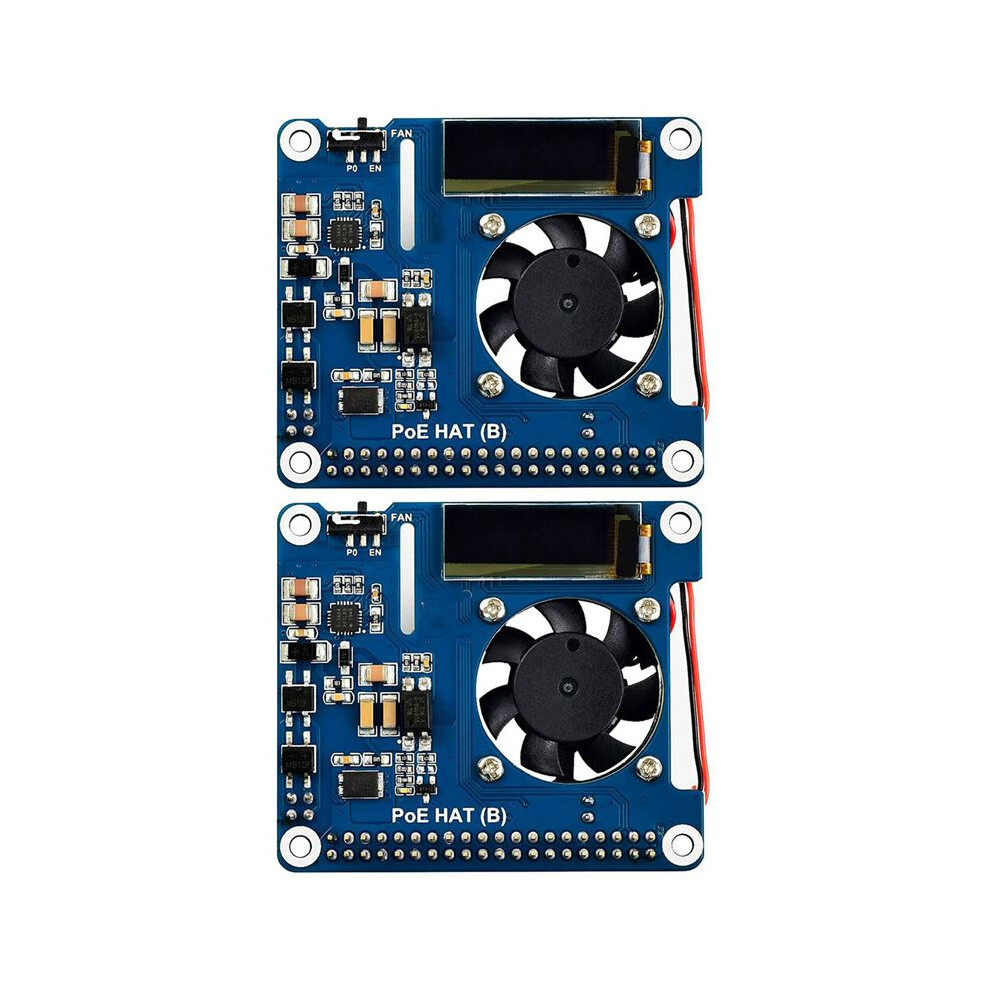

2 x PoE HAT Expansion Board
2 x Screws kit
