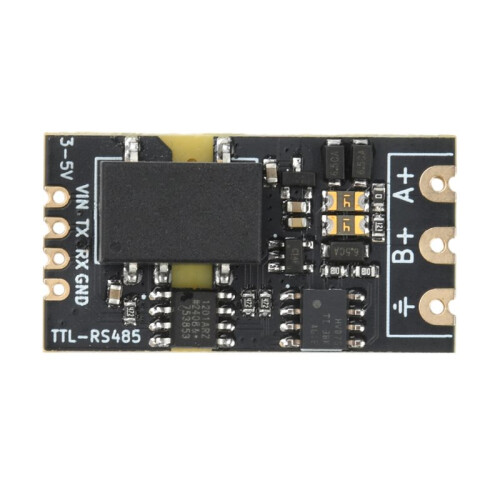

3.3V/5V Isolated TTL to RS485 Level Module Serial Port Auto-Reversing High-Speed 2Mbps Module

Descriere 3.3V/5V Isolated TTL to RS485 Level Module Serial Port Auto-Reversing High-Speed 2Mbps Module

Supply Voltage Compatibility: This module is designed to operate efficiently with a 3.3V/5V power supply, ensuring compatibility with various computer systems and reducing the need for additional power adjustments.
Advanced Communication Rate: Featuring a rapid communication rate of 2Mbps, this module facilitates high-speed data transfer between devices, making it ideal for applications requiring fast and reliable serial communication.
Integrated -board Features: Equipped with a 120Ω balancing resistor and a TTL pin pitch of 2.54mm, this module is ready for immediate integration into your projects with minimal additional setup required.
Description/Features:

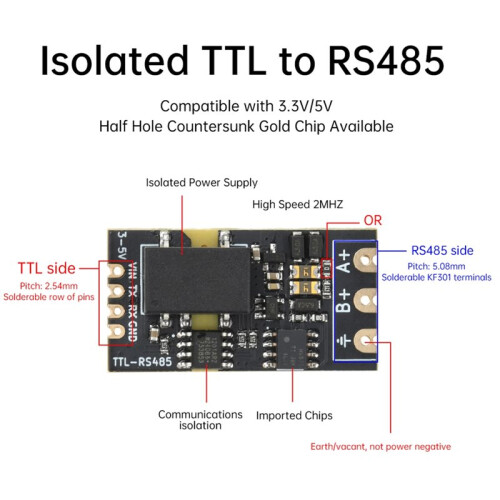

1. Fully Isolated Design: Features a TTL-to-RS485 level conversion module that is fully isolated to prevent signal interference and enhance communication stability.
2. Dual Voltage Compatibility: Supports both 3.3V and 5V for power supply and communication, accommodating a wide range of device requirements.
3. High-Speed Communication: Achieves a maximum communication rate of 2Mbps, suitable for high-bandwidth applications.
4. Enhanced Protection: Equipped with -board TVS diodes and fuse protection to guard against overvoltage and surges, ensuring dependable performance.
5. Efficient Assembly: Incorporates half-hole immersion gold pads for easy surface-mount assembly, improving both efficiency and flexibility.

Specifications:
Supply Voltage: 3.3V/5V compatible
Communication Rate: to 2Mbps
-board Balancing Resistor: 120Ω
TTL Pin Pitch: 2.54mm (solderable pin header)
RS485 Pin Pitch: 5.08mm (solderable KF301 terminal)
Color: As Shown
Material: Plastic+Metal

Package Contents:
1 3.3V/5V Isolated TTL to RS485 Level Module
