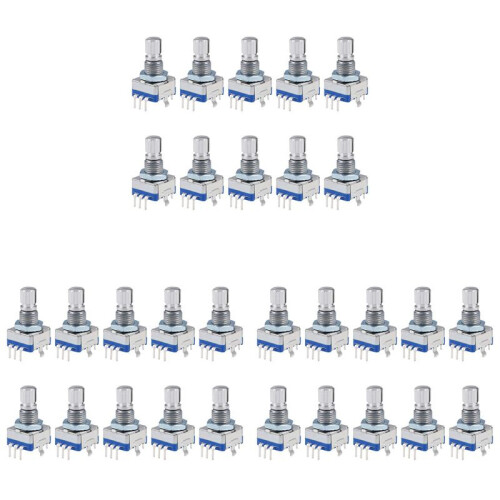

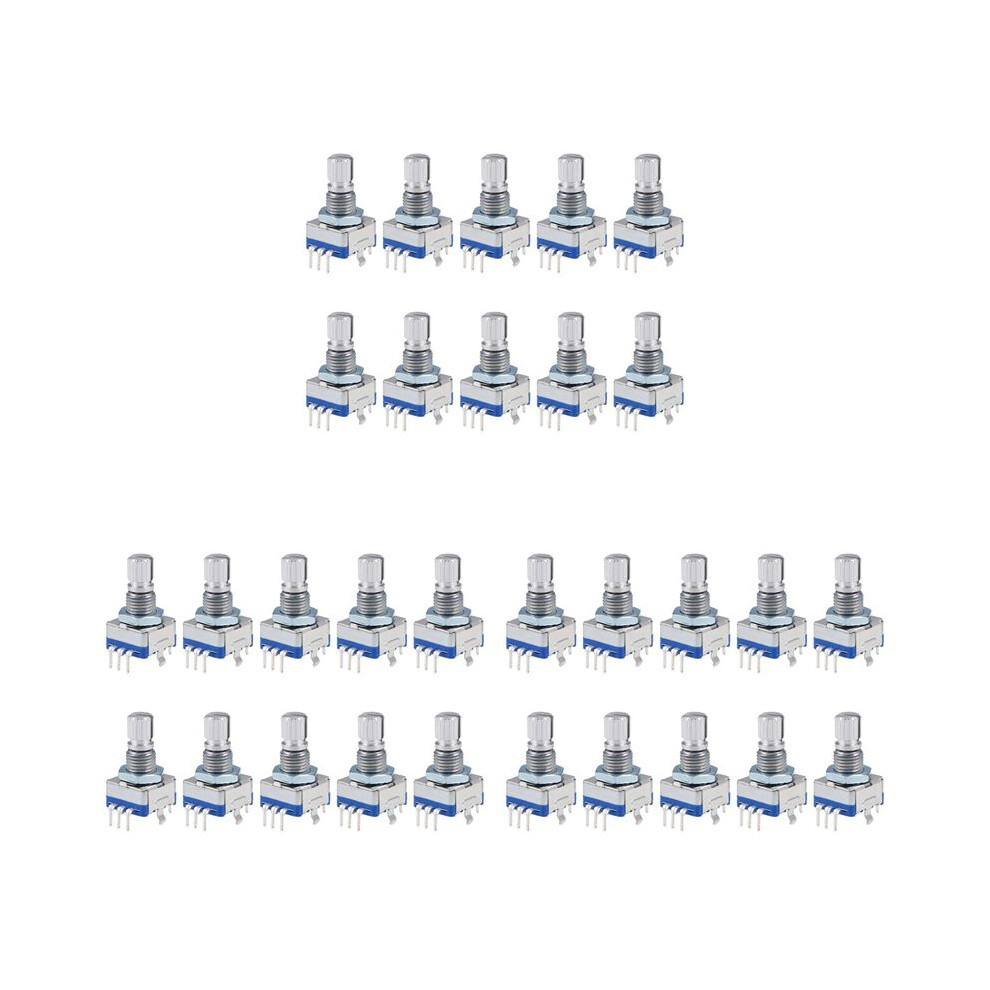

360 Degree Rotary Encoder Code Digital Potentiometer EC11 5 Pins 15mm Shaft 30Pcs
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (30,00 RON) | sâm 13 - mar 16 iun.
Vândut de: YPDblue
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Alarme împotriva efracției
Rezumat
- Type: Encoder code with Switch; Adjustment method: 360 Degree; Number of pulses: 20; Pin Numbers: 7(5 working signal pins & 2 mounting pins); Rated Voltage: 5 Volt.
- Shaft Diameter: 6mm/0.24inch; Shaft Height: 15mm/0.59inch; Thread Diameter: 6.8mm/0.27inch; Total Dimension: 15mm x 12.5mm x 25mm / 0.59inch x 0.49inch x 1inch(L x W x H).
- In the forward rotation, the A line phase leads the B line phase; when reversed, the B line phase leads the A line phase. The phase relationship and number of rotations of AB can be identified using a simple digital logic circuit (exclusive OR gate and D flip-flop).
- By rotating the rotary encoder can be counted in the positive direction and the reverse direction during rotation of the output pulse frequency, unlike rotary potentiometer count, this rotation counts are not limited. With the buttons on the rotary encoder can be reset to its initial state, that starts counting from 0.
- Applications: Industrial control, robots, photographic lenses, computer input devices, such as optical mechanical mice and trackballs, controllable stress rheometers. raspberry design sensor module design circuit board design dimming and sound 3D printer LCD display, etc. (car CD players, for volume & on/off control or data selection via LED or LCD display; perfect for use with PIC or ATMEL microcontrollers.)
Descriere 360 Degree Rotary Encoder Code Digital Potentiometer EC11 5 Pins 15mm Shaft 30Pcs
Type: Encoder code with ; Adjustment method: 360 Degree; Number of pulses: 20; Pin Numbers: 7(5 working signal pins & 2 mounting pins); Rated Voltage: 5 Volt.
Shaft Diameter: 6mm/0.24inch; Shaft Height: 15mm/0.59inch; Thread Diameter: 6.8mm/0.27inch; Total Dimension: 15mm x 12.5mm x 25mm / 0.59inch x 0.49inch x 1inch(L x W x H).
In the forward rotation, the A phase leads the B phase; when reversed, the B phase leads the A phase. The phase relationship and number of rotations of AB can be identified using a simple digital logic circuit (exclusive OR gate and D flip-flop).
By rotating the rotary encoder can be counted in the positive direction and the reverse direction during rotation of the output pulse frequency, unlike rotary potentiometer count, this rotation counts are not limited. With the buttons the rotary encoder can be reset to its initial state, that starts counting from 0.
Applications: Industrial control, robots, photographic lenses, computer input devices, such as optical mechanical mice and trackballs, controllable stress rheometers. raspberry design sensor module design circuit board design dimming and sound 3D printer LCD display, etc. (car CD players, for volume & /off control or data selection via LED or LCD display; perfect for use with or ATMEL microcontrollers.)
Colour: silver +
Material: metal
Package Contents:
30 x Rotary Encoder Code
Detalii
| OPC | PTQV2JQ |
|---|---|
| Coduri | 6033601656752 (EAN) |
Date despre produs
| Height | 9cm |
|---|---|
| Width | 3cm |
| Length | 5cm |
| Weight | 0.171kg |
| Colour | silver & blue |
| Material | Metal |
