Rezumat

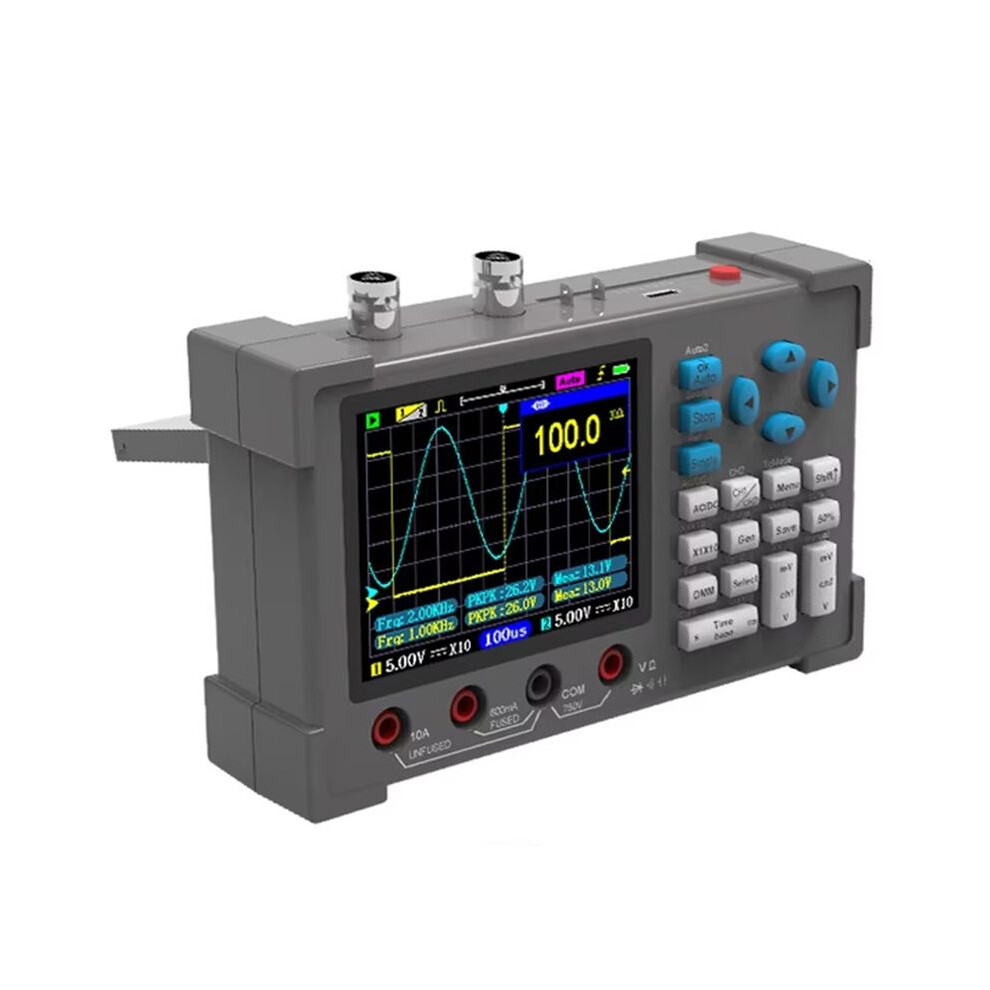

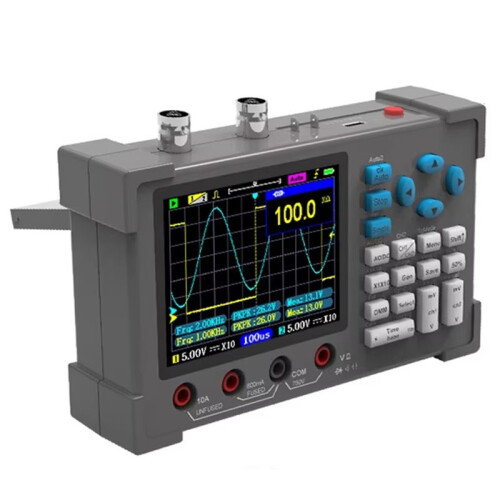

- Features:[3In1 Design with IPS Display]: This product ingeniously integrates digital oscilloscope, multimeter, and signal generator functions into one device. 3.2-inch clear-definition IPS display, high sensitivity full view display, channel 2 waveforms can be set to green/ cyan/purple.
- [Signal Generator]: Built-in waveform signal generator, it can output sinewave, squarewave, trianglewave, and so on. The voltage amplitude is 2.5V, the frequency is adjustable from 0-2Mhz, and the squarewave duty cycle is adjustable from 1% to 99%.
- [High-precise Multimeter]: Built-in true RMS multimeter, that supports quick software calibration. With DC/ACvoltage, DC/ACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage /resistance/continuity, the oscilloscope and multimeter functions can be used simultaneously (small window in the upper right corner).
- [Digital Oscilloscope Function]: Dual channel oscilloscope function, with 120MHz bandwidth and 250MSa/s sampling rate. With perfect trigger function (automatic, single, normal).
- [Two Automatic Modes Adjustment]: Support one-button automatic and fully-automatic mode, no complicated operation, you can quickly detect and display the waveform. In fully automatic mode, no keystrokes are required, and continuous automation is performed.
Descriere 3in1 Dual Channel 250MSa/S Sampling Rate 3.2inch Digital Oscilloscope
Features:[3In1 Design with IPS Display]: This product ingeniously integrates digital oscilloscope, multimeter, and signal generator functions into one device. 3.2-inch clear-definition IPS display, high sensitivity full view display, channel 2 waveforms can be set to green/ cyan/.
[Signal Generator]: Built-in waveform signal generator, it can output sinewave, squarewave, trianglewave, and so . The voltage amplitude is 2.5V, the frequency is adjustable from 0-2Mhz, and the squarewave duty cycle is adjustable from 1% to 99%.
[High-precise Multimeter]: Built-in true RMS multimeter, that supports quick software calibration. With /ACvoltage, /ACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage /resistance/continuity, the oscilloscope and multimeter functions can be used simultaneously (small window in the upper right corner).
[Digital Oscilloscope Function]: Dual channel oscilloscope function, with 120MHz bandwidth and 250MSa/s sampling rate. With perfect trigger function (automatic, single, normal).
[Two Automatic Modes Adjustment]: Support one-button automatic and fully-automatic mode, no complicated operation, you can quickly detect and display the waveform. In fully automatic mode, no keystrokes are required, and continuous automation is performed.
[High Bandwidth & Sampling Rate]: The real- sampling rate is 250MSa/s, dual-channel mode bandwidth is halved to 60Mhz.
[Dual Channel]: With dual-channel mode, which can measure and display two signal waveforms at the same for waveform comparison and analysis.
[Wide Applications]: It can easily handle measurement in various fields, widely used in the fields of testing and debugging of electronic circuits, troubleshooting and repairing of elect
Specifications:
Name: 3in1 Digital Oscilloscope
Material: ABS
D
Detalii
| OPC | PWXCD9V |
|---|---|
| Coduri | 6031288981617 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 7cm |
|---|---|
| Width | 15cm |
| Length | 22cm |
| Weight | 0.5995kg |
| Colour | Grey |
| Material | ABS |
