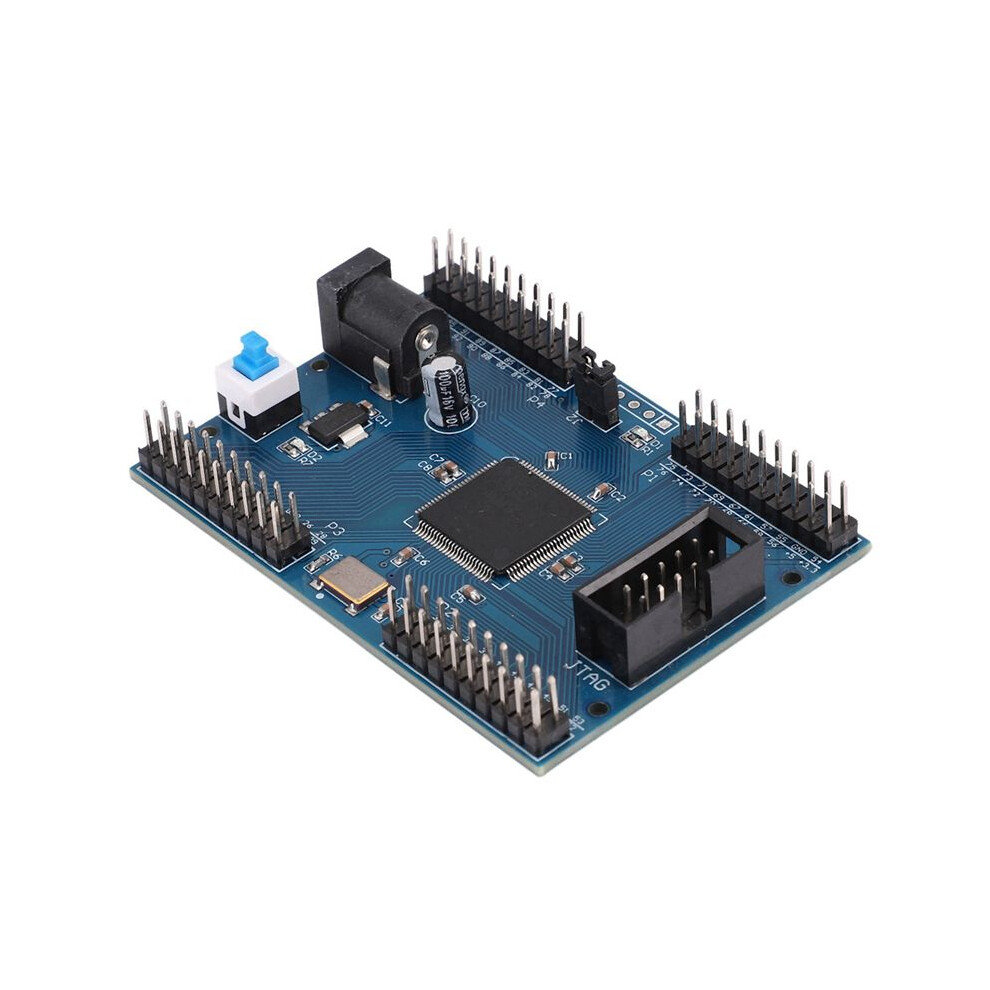

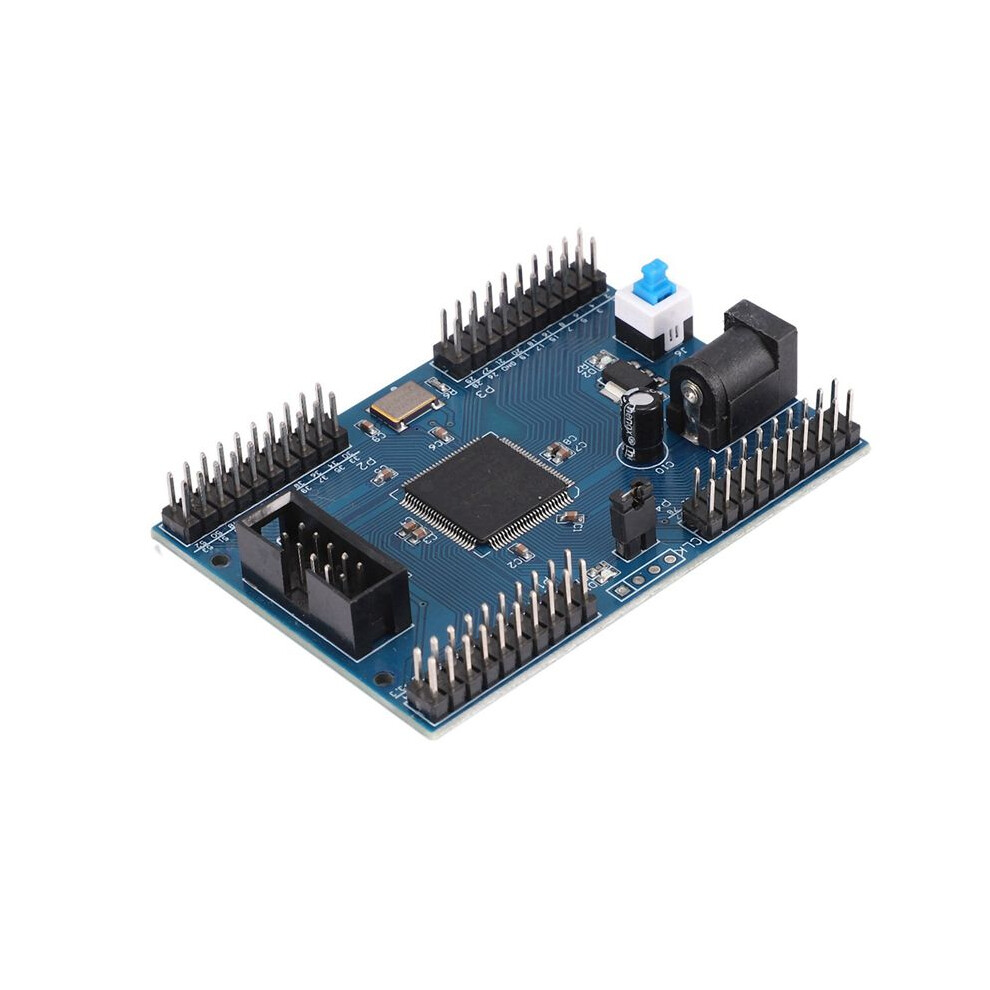

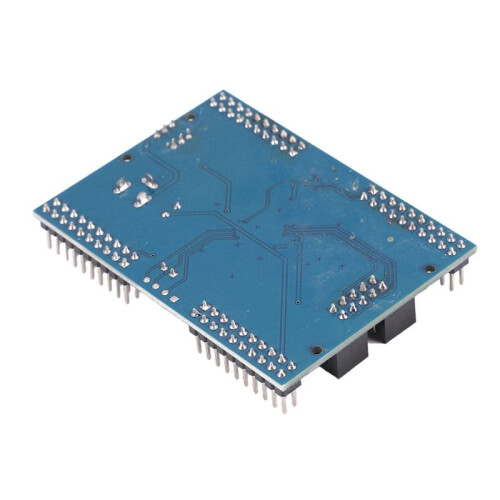

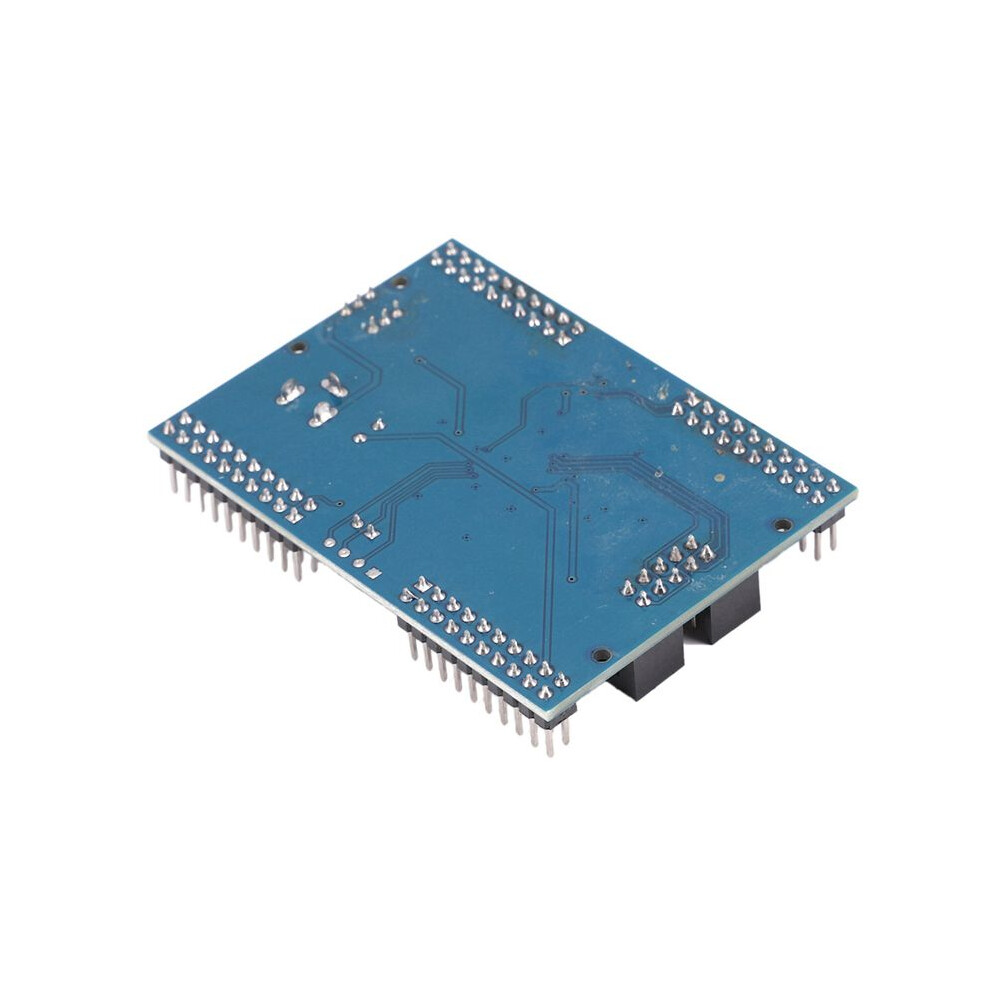

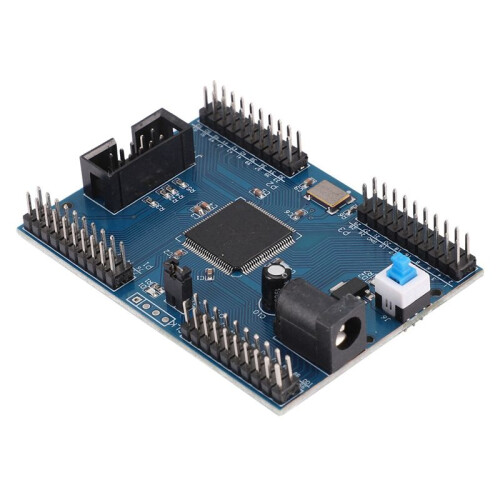

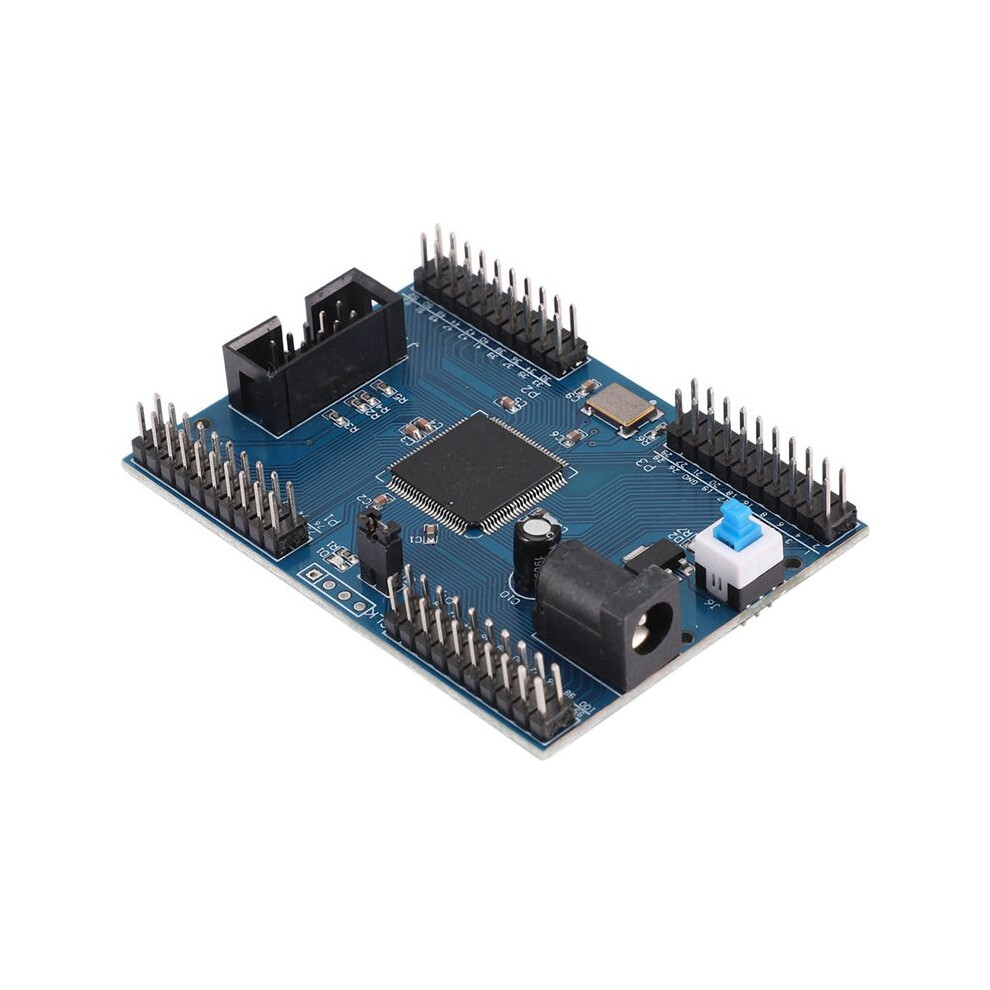

The product is ALTERA MAX II family CPLD chip EPM240T100C5N minimum system board, together with a Byte-Blaster and USB-Blaster Download for product validation and development.
JTAG and power supply interface board has been set aside, and leads to all the pins, simply connect the 5V power supply can work extremely convenient to use.
The CPLD chip for the entry of low-cost CPLD / FPGA is very appropriate, the user according to the IO port of the core plate leads to expansion of the external circuitry such as: LED lights, digital tube, LCD liquid crystal, serial communications, etc.
Facilitate the users to develop their own products to maximize the learning development cost savings for the user.
Altera MAX II EPM240 CPLD Test Panel

Descriere 3X for Altera MAX II EPM240 CPLD Development Board Learning Board Test Panel

The product is ALTERA MAX II family CPLD chip EPM240T100C5N minimum system board, together with a Byte-Blaster and USB-Blaster Download for product validation and development.
JTAG and power supply interface board has been set aside, and leads to all the pins, simply connect the 5V power supply can work extremely convenient to use.
The CPLD chip for the entry of low-cost CPLD / FPGA is very appropriate, the user according to the IO port of the core plate leads to expansion of the external circuitry such as: LED lights, digital tube, LCD liquid crystal, serial communications, etc.
Facilitate the users to develop their own products to maximize the learning development cost savings for the user.

chip board EPM240T100C5.
Board JTAG interface.
Active board 50MHZ crystal.
With a programmable LED.
With a 5V chip, 3.3V AMS1117-3.3 .
5 V power supply with .
All the leads all the IO.
Colour:
Material: PCB
Size: 70 x 50mm

Package Contents:

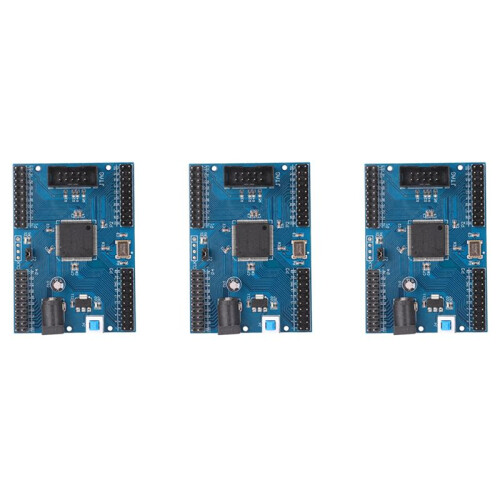

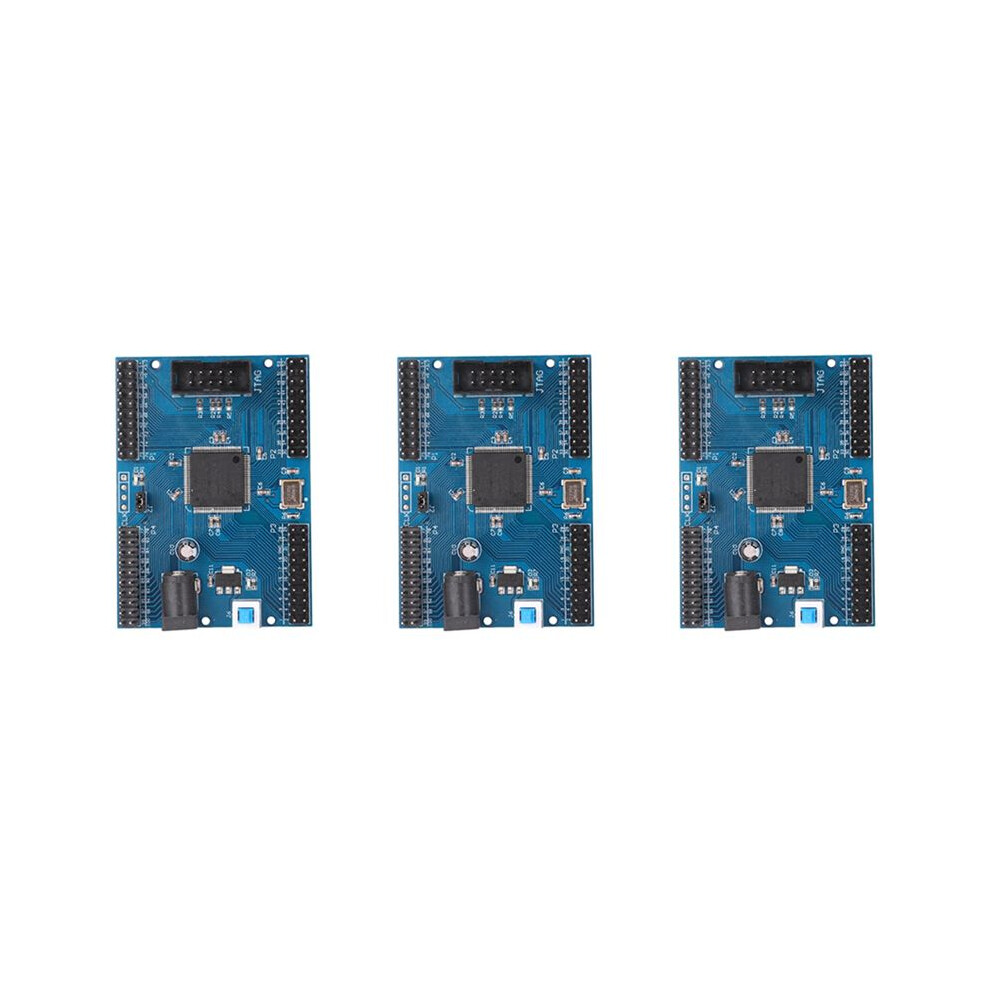

3 x Altera EPM240T100C5 (MAXII) CPLD Development Board

Detalii

OPC	PTPKT87
Coduri	4712030771183 (EAN)

Imagini produs

3X for Altera MAX II EPM240 CPLD Development Board Learning Board Test Panel 1

3X for Altera MAX II EPM240 CPLD Development Board Learning Board Test Panel 2

Date despre produs

Height	3cm
Width	5cm
Length	7cm
Weight	0.069kg
Colour	Blue
Material	PCB
