1. The carrier board that integrates the KQ-330F module and peripheral circuits does not require other coupling components, and can be directly connected to 220V AC power. The external dimension is 53x38x17 mm (LxDxH), and the single row of pins leads out. 1 and 2 pins are connected to 220V AC power supply without direction (1 pin, 2 pin spacing 2X0.1 inches), 2 feet and 3 feet are 1.1 inches apart, and the rest of the feet are 0.1 inches apart.
2. The working frequency is 120~135KHZ, and the interface baud rate is 9600bps. The actual baud rate is 100bps.
3. The maximum length of one frame of continuous transmission is ≤252 bytes, the length of one frame of continuous transmission is defined by the user from 1 to 252, and the module will not send redundant data
4. Receiving sensitivity ≤1mV
5. Out-of-band rejection capability ≥ 60 dB

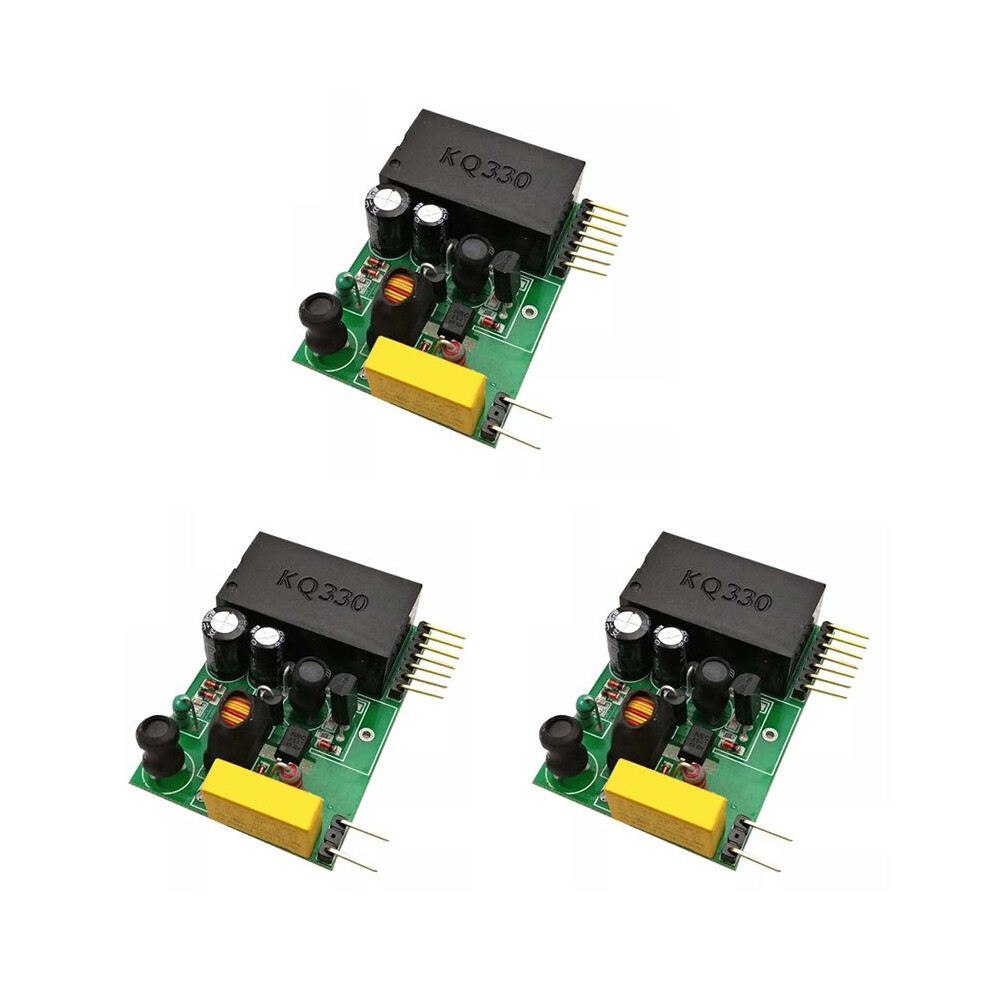

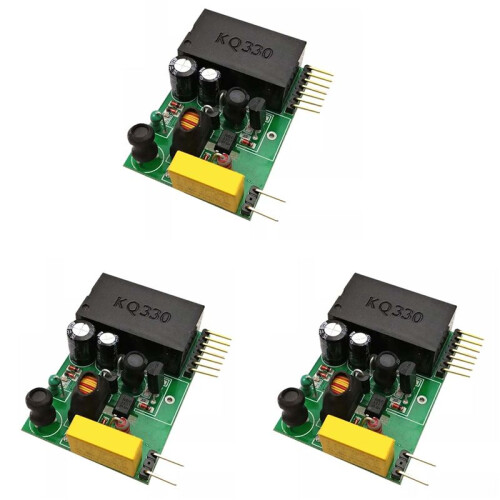

Descriere 3X KQ-130F Power Carrier Module / No External Components Required

1. The carrier board that integrates the KQ-330F module and peripheral circuits does not require other coupling components, and can be directly connected to 220V AC power. The external dimension is 53x38x17 mm (LxDxH), and the single row of pins leads out. 1 and 2 pins are connected to 220V AC power supply without direction (1 pin, 2 pin spacing 2X0.1 inches), 2 feet and 3 feet are 1.1 inches apart, and the rest of the feet are 0.1 inches apart.
2. The working frequency is 120~135KHZ, and the interface baud rate is 9600bps. The actual baud rate is 100bps.
3. The maximum length of one frame of continuous transmission is 252 bytes, the length of one frame of continuous transmission is defined by the user from 1 to 252, and the module will not send redundant data
4. Receiving sensitivity 1mV
5. Out-of-band rejection capability 60 dB

Bandwidth 10 KHZ
Insulation resistance 500V 500MΩ
Power supply: +5V when receiving: 11mA when sending 230mA
Power frequency insulation withstand voltage: 3000V 1min test between AC and GND has no breakdown and no leakage current.
Anti--strike: TVS tube protection inside the board, from PCB board wiring material selection to component material selection, are designed according to wide temperature, high pressure resistance, and high pressure shock resistance.
Working temperature: -25~70 Humidity90%
KQ-130F power carrier module does not need any peripheral devices, as long as it provides a 5V power supply, it can be used. The transmission power supply is independent pin. If the user needs bidirectional transmission, two 5V pins can be connected in parallel.
All modules of our company support point-to-point, point-to-multipoint networking communication mode, and control the collection of multipoint data through polling.
color:As shown
Material:PCB

Detalii

OPC	PTHQKPB
Coduri	6033970356789 (EAN)

Date despre produs

Height	6cm
Width	5cm
Length	5cm
Weight	0.099kg
Colour	As Shown
Material	PCB
