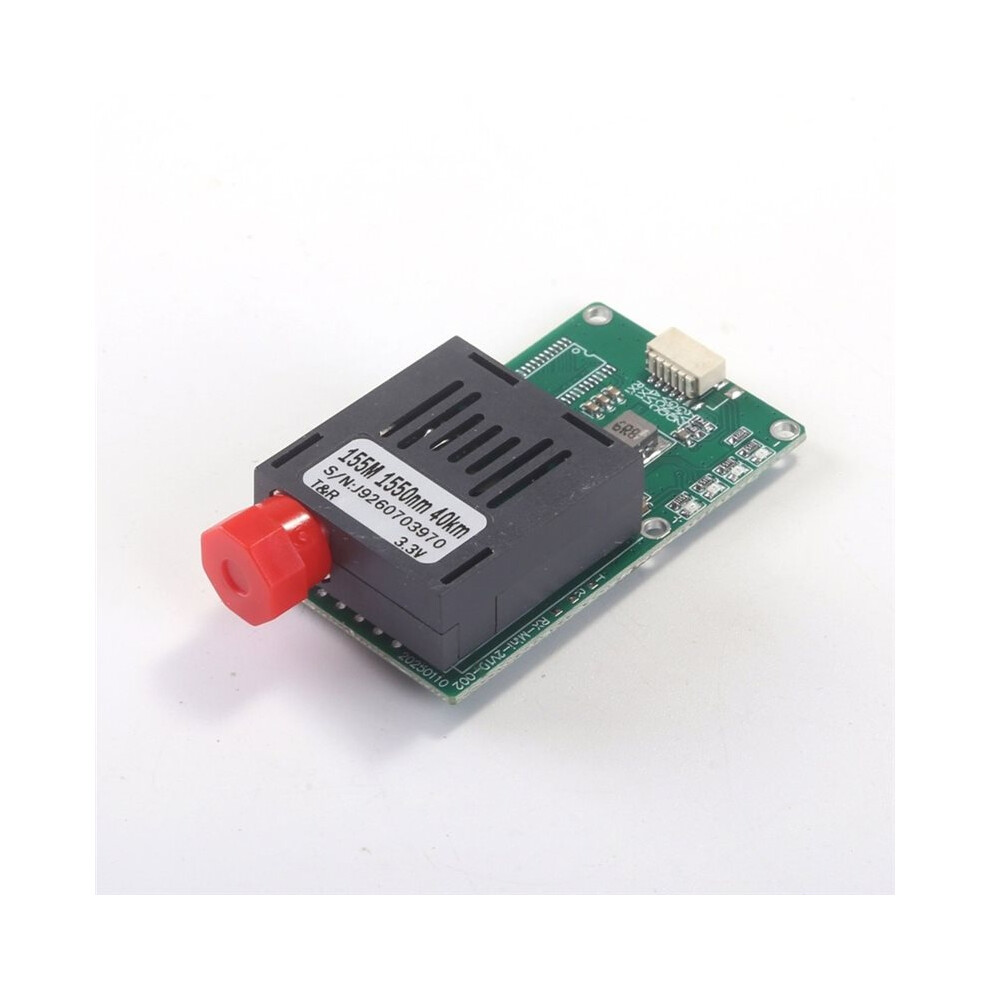

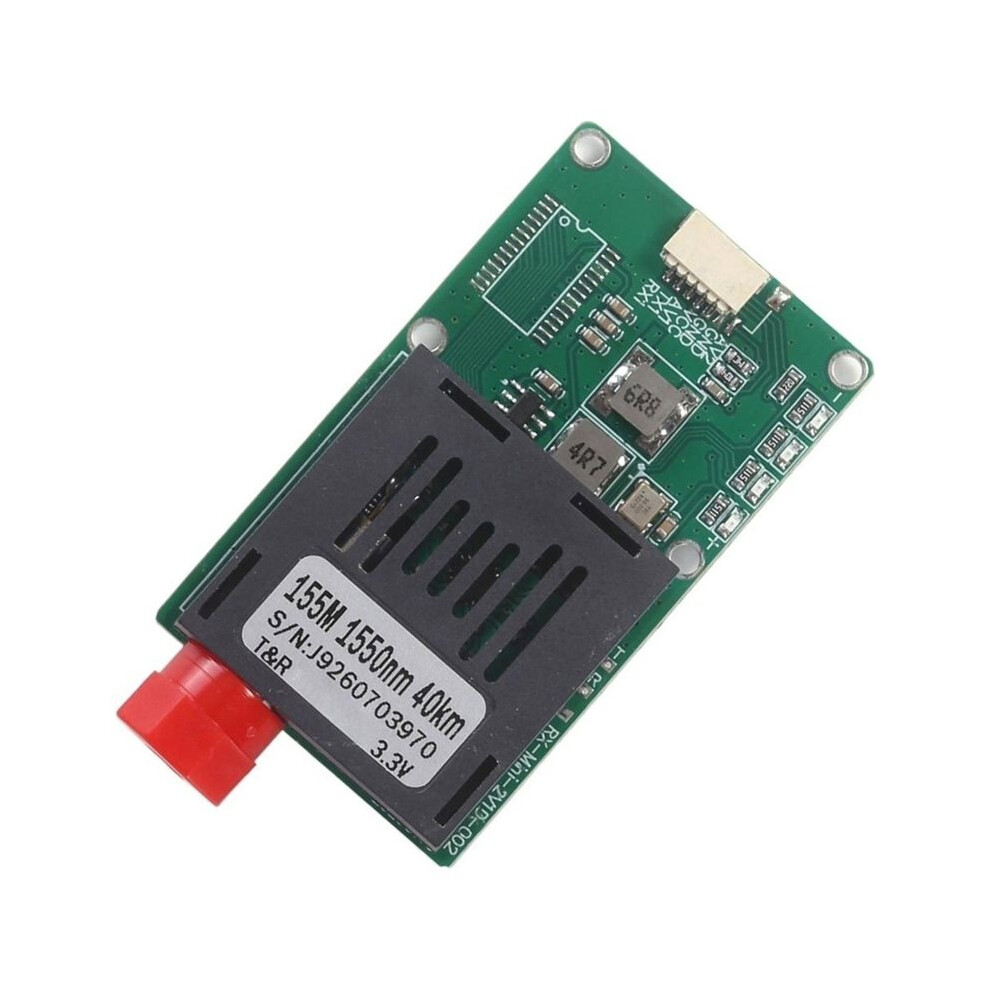

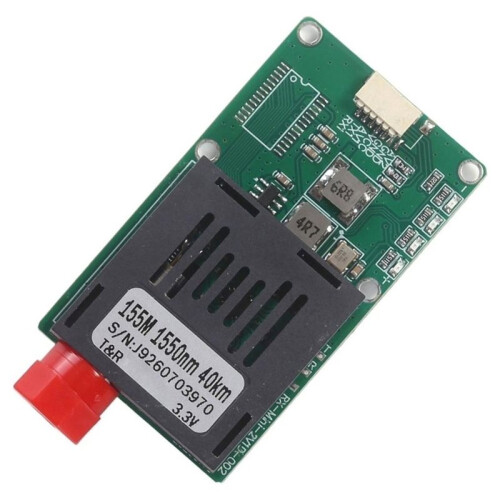

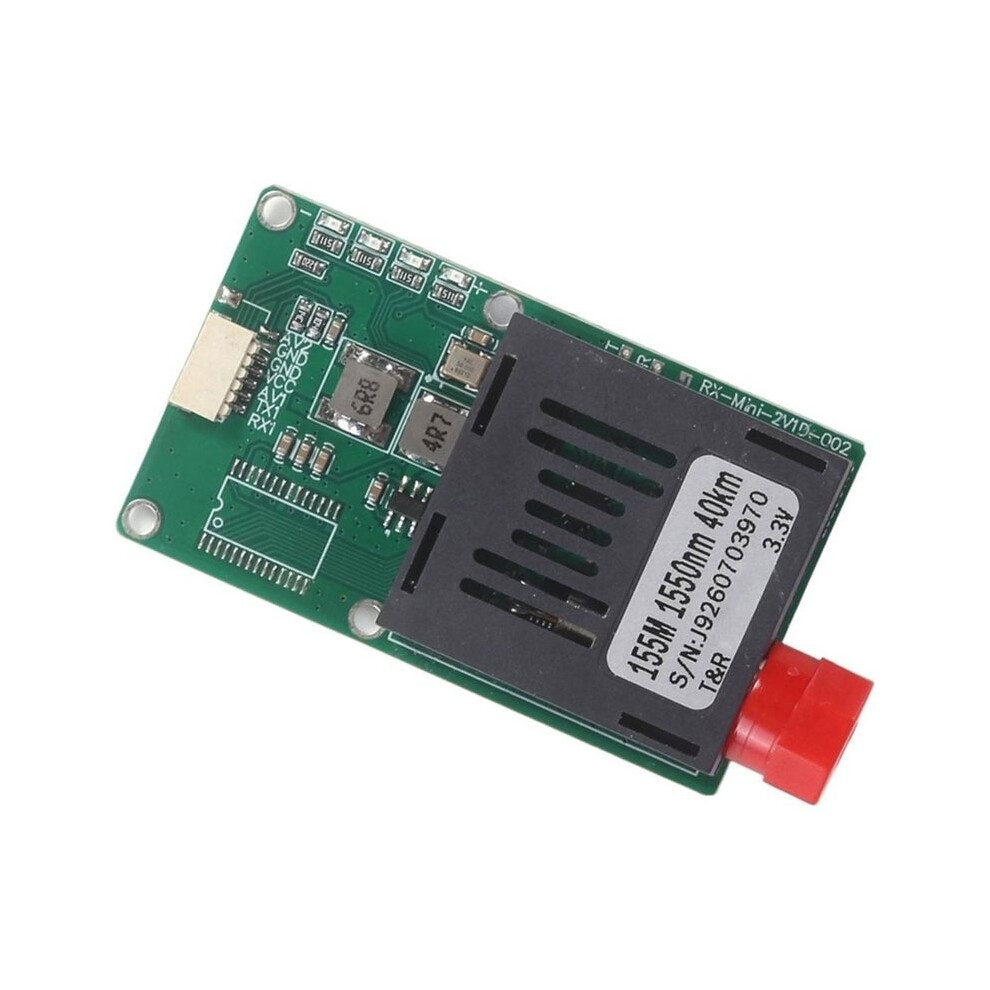

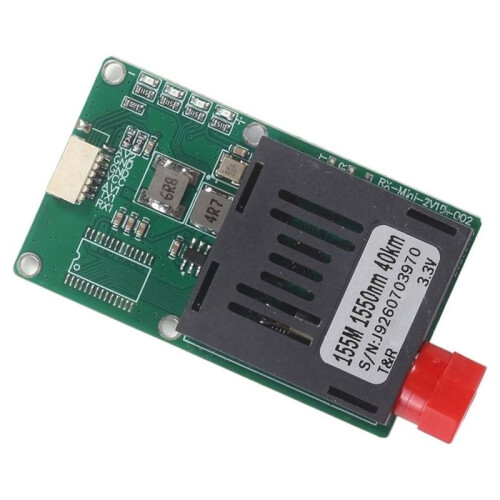

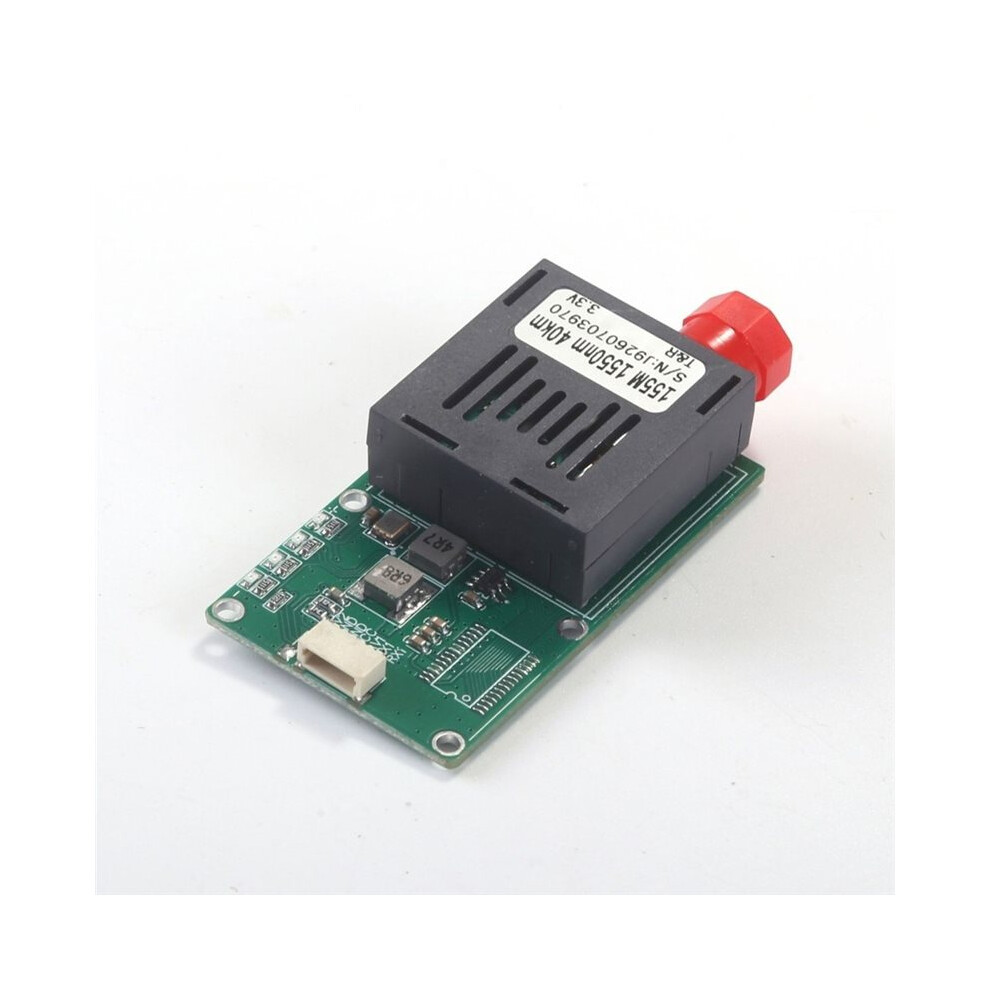

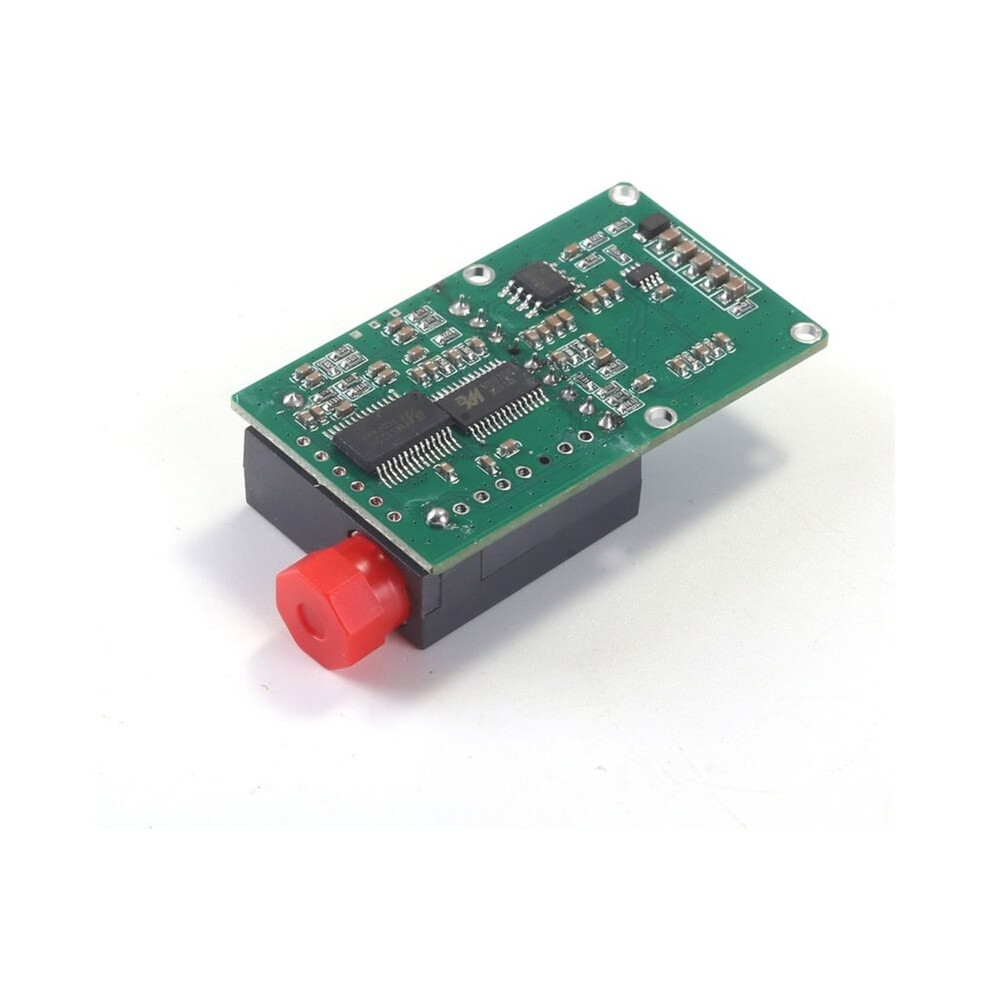

40 TTL Optical Transceiver Module 5.5-26V FC RX/TX/AV/VCC/GND Interface TTL to Fiber Optic Module for Drones
Brand Melitt
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 136,000 de recenzii cu evaluare “Excelent”
206,33 RON
271,49 RON
Reducere de 24%!
Livrare GRATUITĂ
1%
Câștigați 2,06 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | lun 26 - vin 30 oct.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Descriere & Detalii
Rezumat
- This device is an optical transceiver designed for signal transmission systems in drones, unmanned ground vehicles (UGVs), and unmanned surface vessels (USVs).
- The ground unit utilizes 1550nm wavelength fiber-optic communication, achieving a transmission range of up to 40 km. It features a lightweight, compact design and low power consumption (≤5W), significantly reducing the equipment load and enhancing flight or navigation efficiency.
- Equipped with multiple status indicators, it allows for the immediate monitoring of power, fiber-optic, video, and data statuses, facilitating easy maintenance.
- The FC fiber-optic interface offers strong anti-interference capabilities and supports the simultaneous transmission of analog video and TTL signals, ensuring safety and reliability.
- It is suitable for a wide range of applications, including long-range FPV control, pipeline communication, emergency rescue communication, underwater robots, and exploration robots.
Descriere 40 TTL Optical Transceiver Module 5.5-26V FC RX/TX/AV/VCC/GND Interface TTL to Fiber Optic Module for Drones
This device is an optical transceiver designed for signal transmission systems in drones, unmanned ground vehicles (UGVs), and unmanned surface vessels (USVs).
The ground unit utilizes 1550nm wavelength fiber-optic communication, achieving a transmission range of to 40 . It features a , compact design and low power consumption (5W), significantly reducing the equipment load and enhancing flight or navigation efficiency.
Equipped with multiple status indicators, it allows for the immediate monitoring of power, fiber-optic, video, and data statuses, facilitating easy maintenance.
The FC fiber-optic interface offers strong anti-interference capabilities and supports the simultaneous transmission of analog video and TTL signals, ensuring safety and reliability.
It is suitable for a wide range of applications, including long-range FPV control, pipeline communication, emergency rescue communication, underwater robots, and exploration robots.
Product Parameters
Product Name: TTL Optical Transceiver Module
Power Supply: 5.5-26V (2S-6S battery)
Power Consumption: 5W
Communication Interfaces: MX-SH1.0mm-5P; CRSF interface / CVBS video port
Fiber Optic Interface: FC
Communication Range: to 40km
Indicators: Power, Fiber Optic, Video Signal, Data
Interface Definitions and Wiring Instructions
Ground Unit (Fiber wavelength: 1550nm)

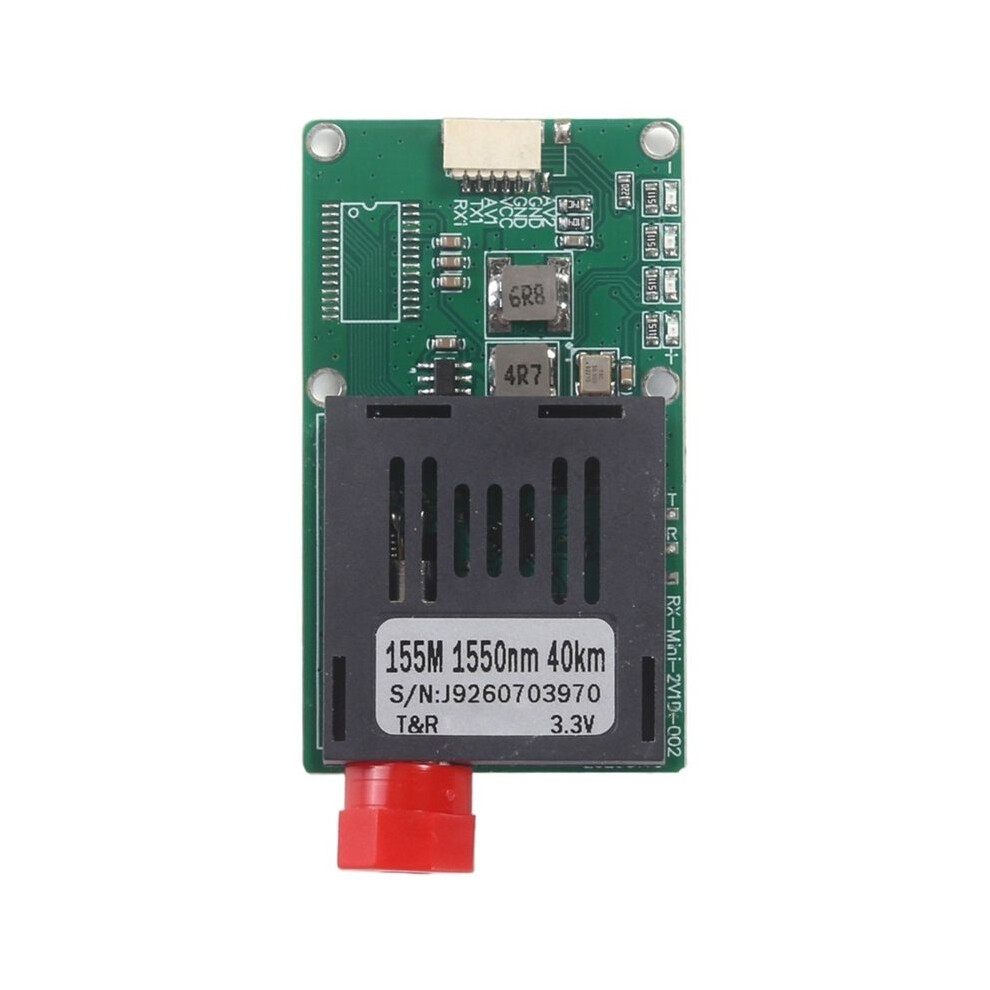

Interface Definitions: RX / TX / AV / VCC / GND
Wiring Instructions: Connect RX to the CRSF TX pin of the remote control receiver; connect TX to the CRSF RX pin of the remote control receiver; connect AV output to a display screen or the AV signal input port of a video transmitter (VTX).
[Precautions]
Ensure the power supply voltage does not exceed 26V; exceeding this limit poses a risk of burnout.
Ensure the voltage does not drop b
Detalii
| OPC | PYMZD5W |
|---|---|
| Brand | Melitt |
| Coduri | 4712848593137 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 2cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.03kg |
| Colour | Green |
| Material | PCB+Plastic+Metal |
