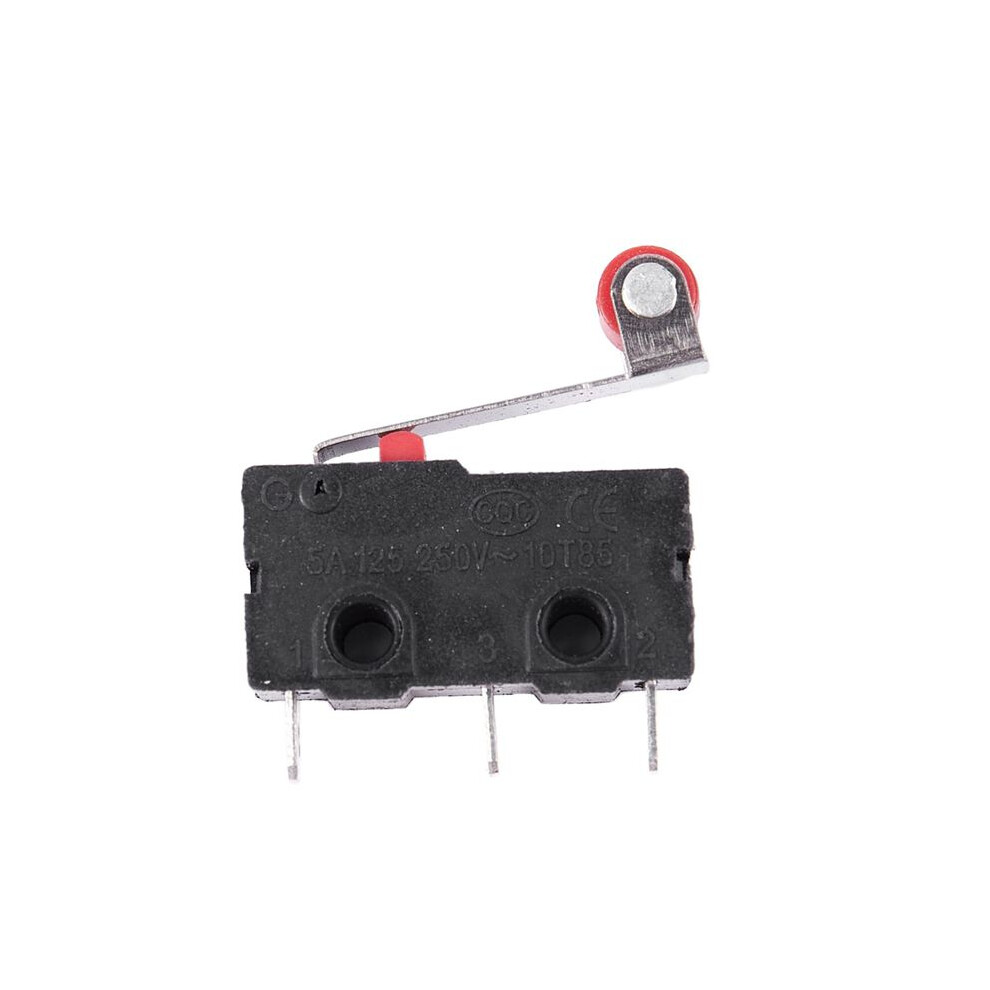

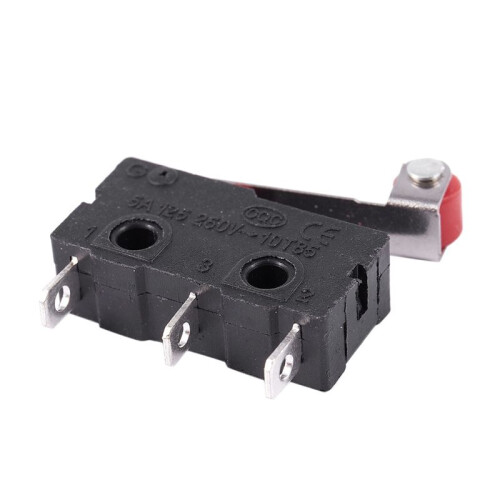

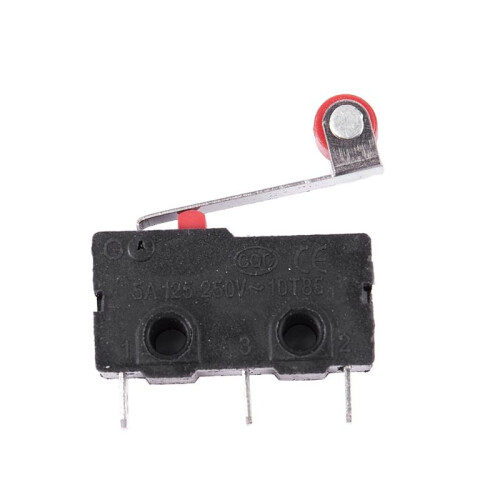

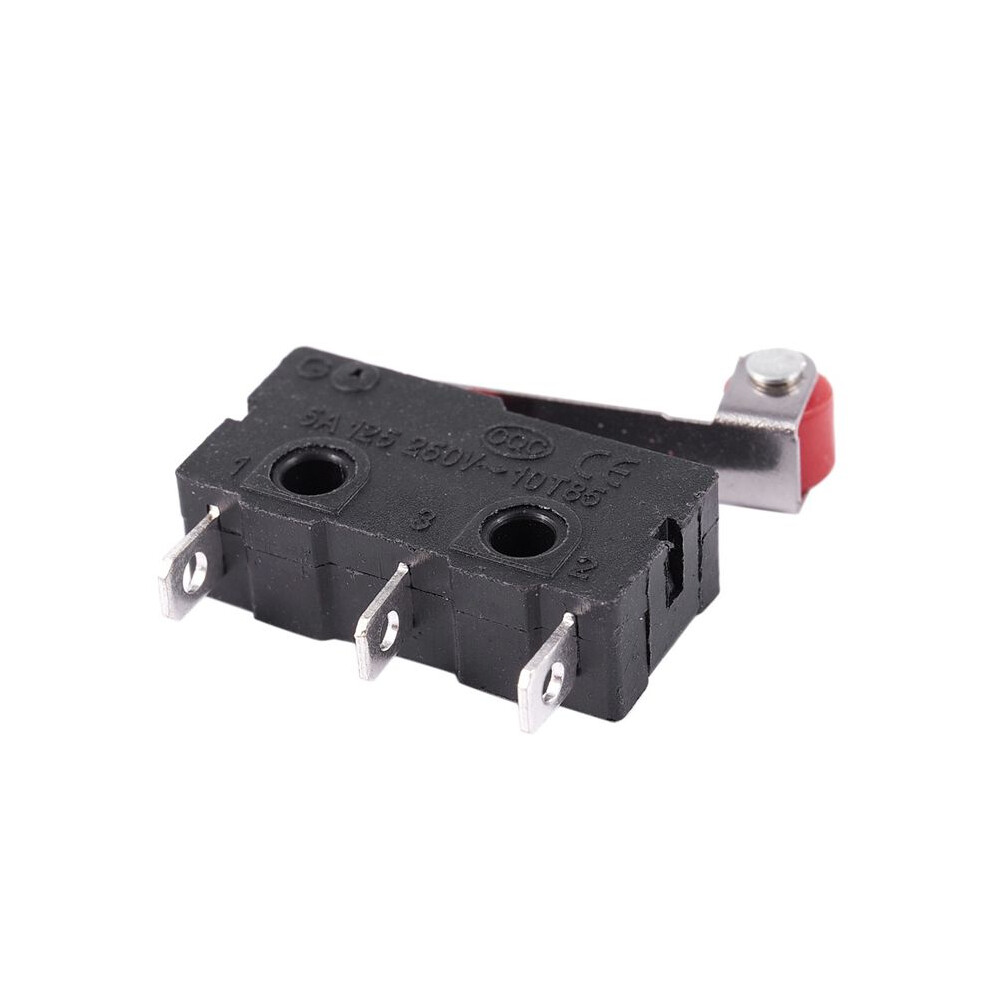

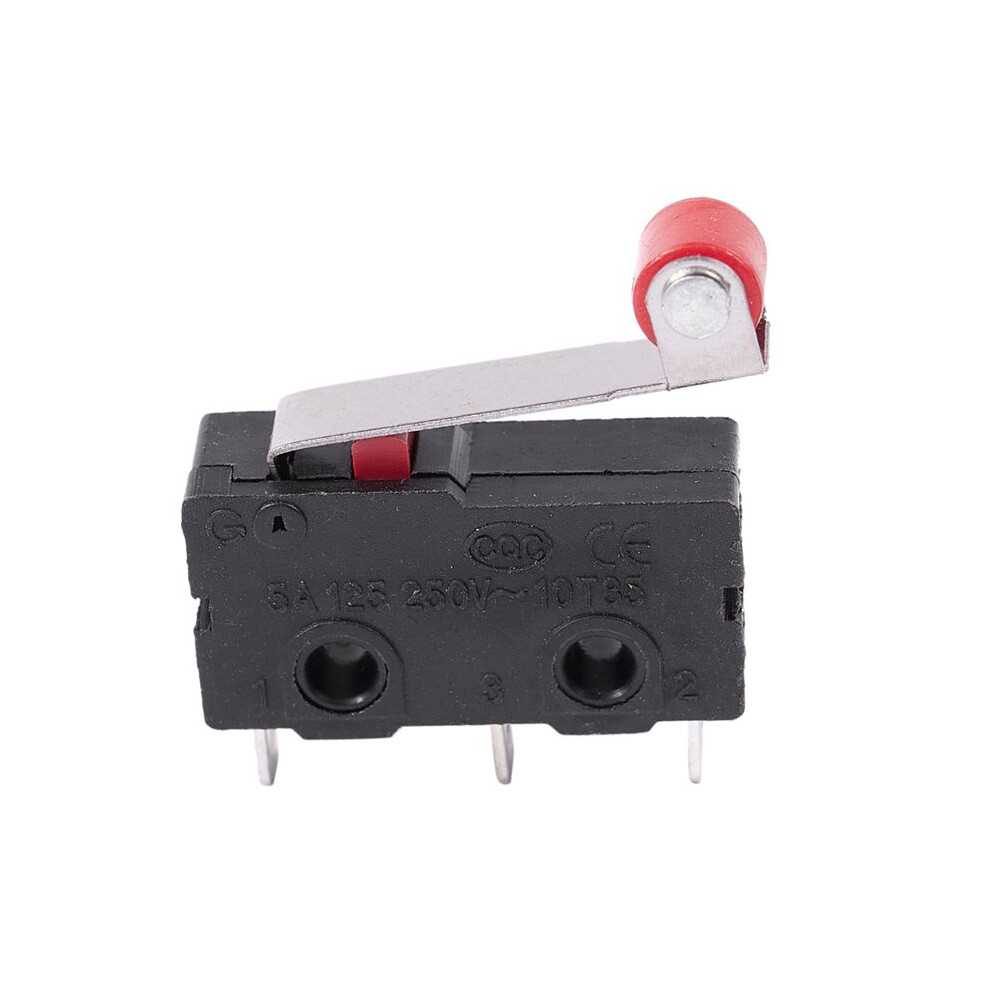

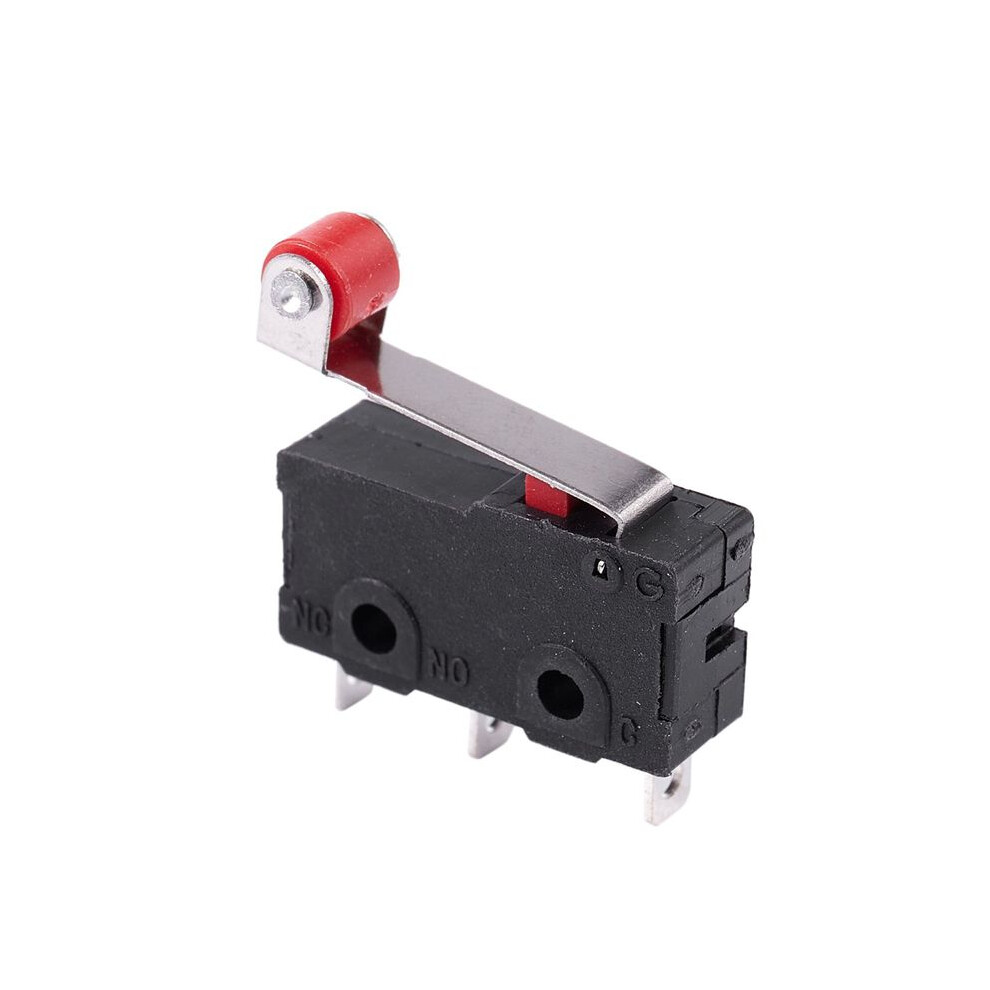

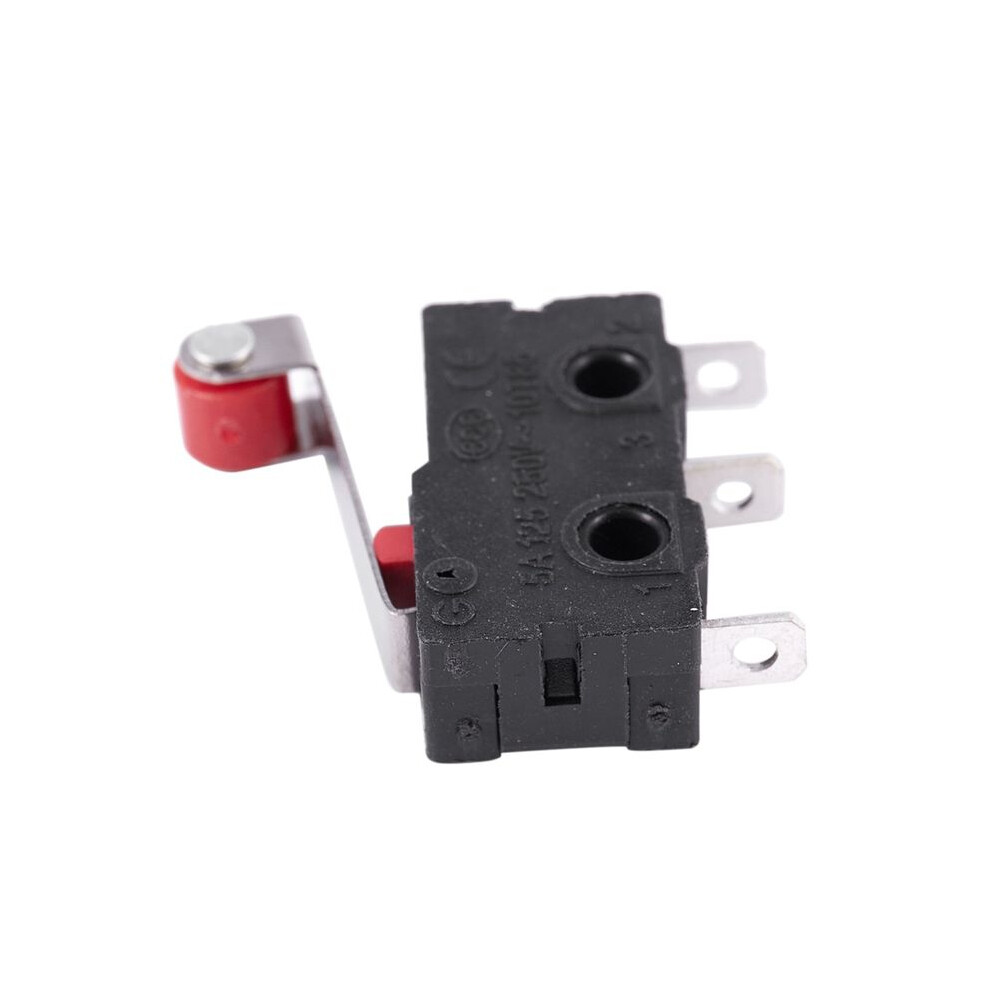

40Pcs Micro-Roller Lever Arm Open Close Limit Kw12-3 Pcb Microswitch

Descriere 40Pcs Micro-Roller Lever Arm Open Close Limit Kw12-3 Pcb Microswitch

Application:
Apply in A computer mouse, car mouse, automobile electronic products, communications equipment,
military products, test instrument, gas water heater, gas burner, small home appliance,
microwave oven, electric rice cooker, floating supporting equipment,
equipment, building automation, electric tools, ect.

Operating temperature: -40 Celsius to 70 Celsius
Rated voltage: AC 125V-250V
Current rating: 5A
Size: 20 x 10 x 6mm (L X W X H)
PCB Terminals Circuit Board
With Roller Lever Limit
Working principle:
1.By external mechanical force transmission elements (by pins, buttons, levers, rollers, etc.) will be used to force action a reed,
2.Producing reed instantaneous action when action shifted to the critical point,
3.so moving contact with the fixed contact spring at the end of the action point fast or off.
4.When the force is removed the drive components,
5.Action reed produce reverse action force transmission elements reverse stroke
6.The action reaches a critical point reed, instantaneous reverse action.
Feature: contact spacing is small,short stroke action,according to the power of small,fast-break
colour:black + red
Material:PC+ metal

Package Contents:
40 x Micro-roller switches
