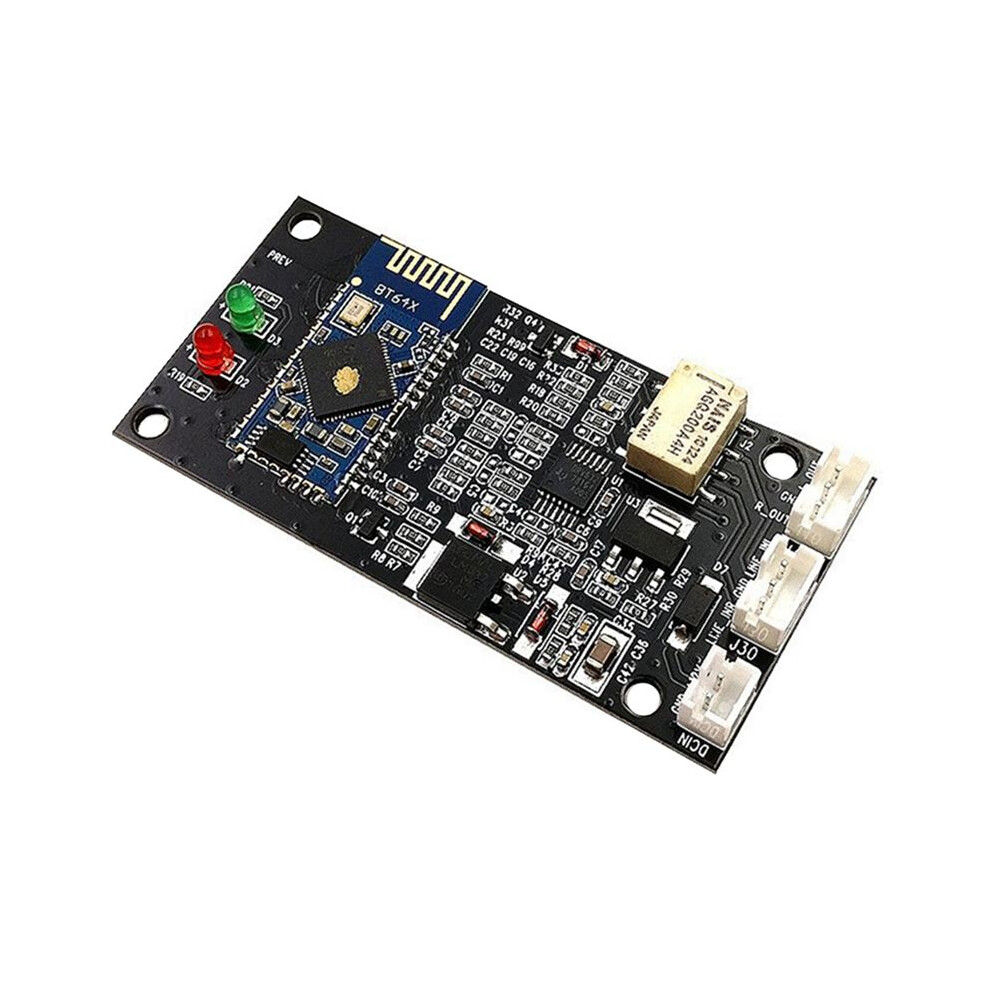

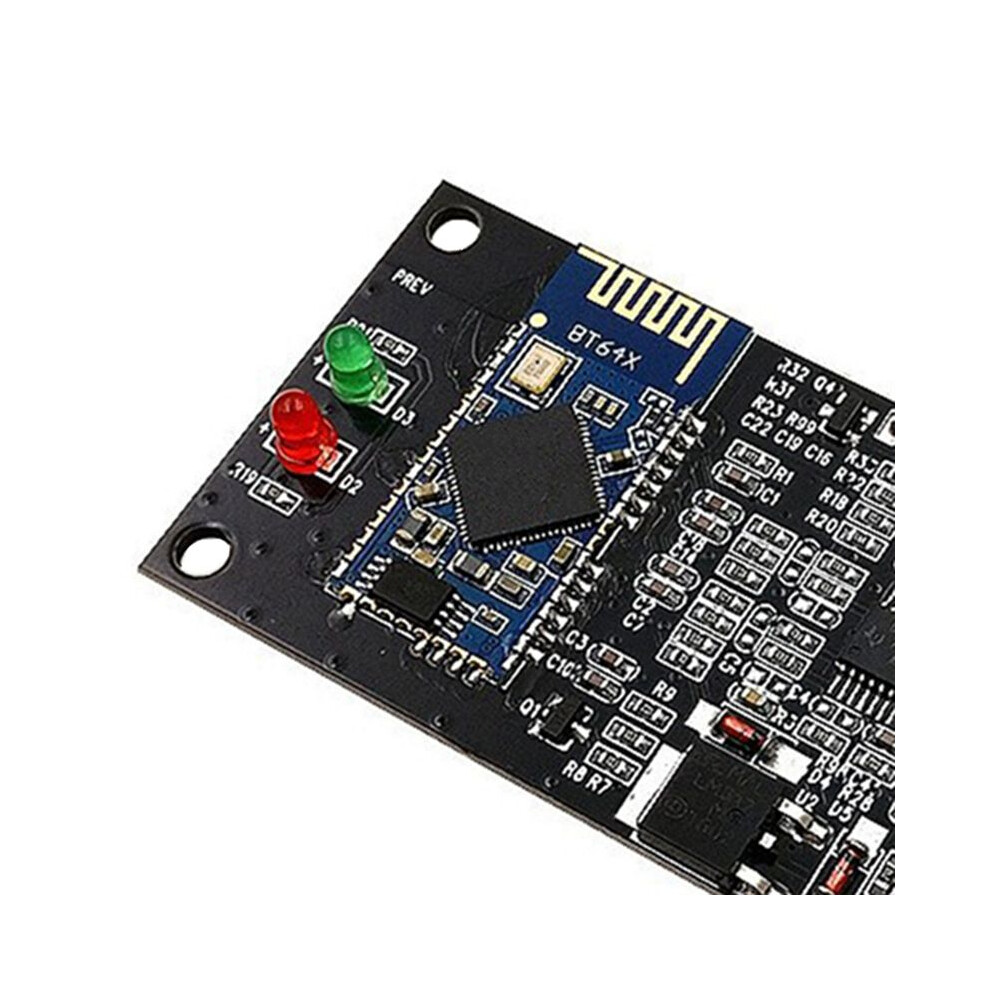

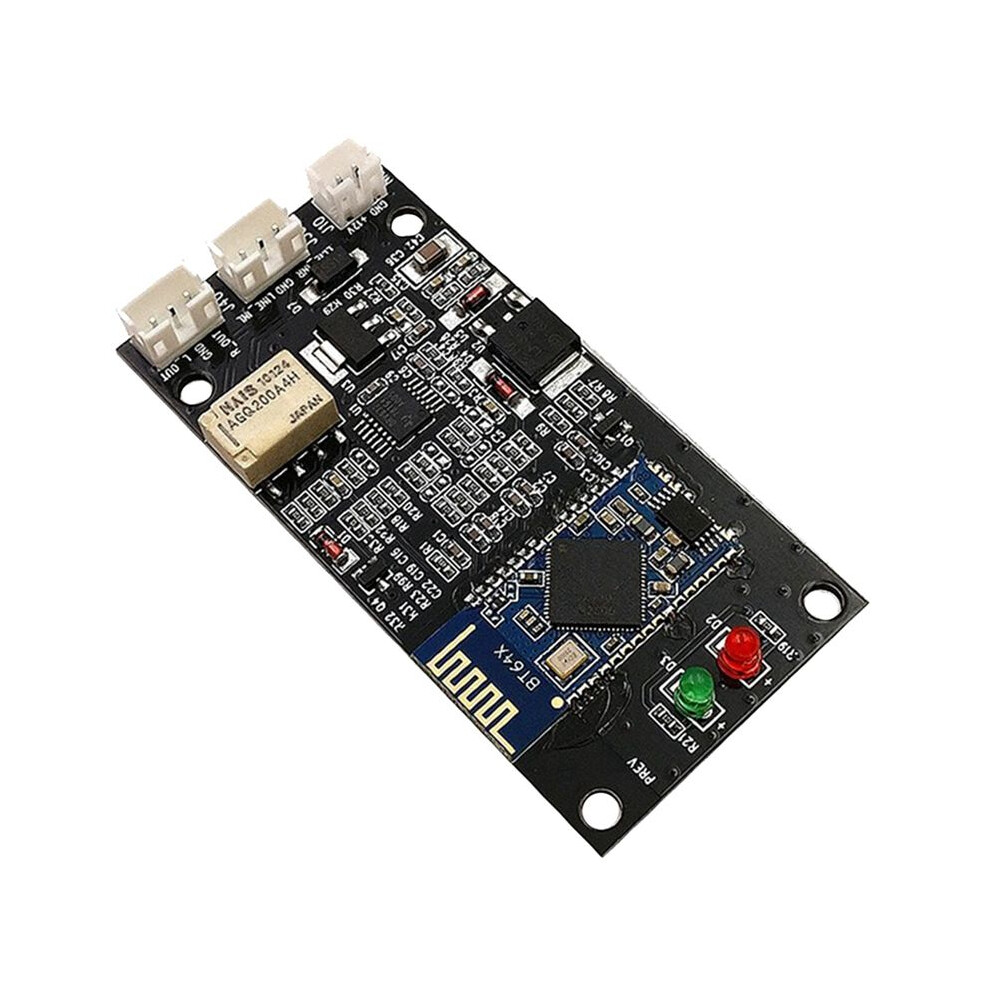

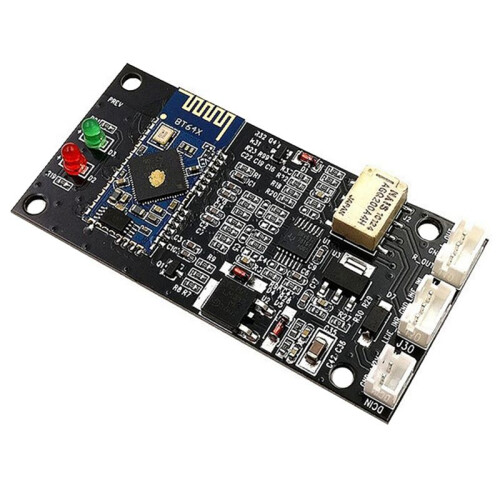

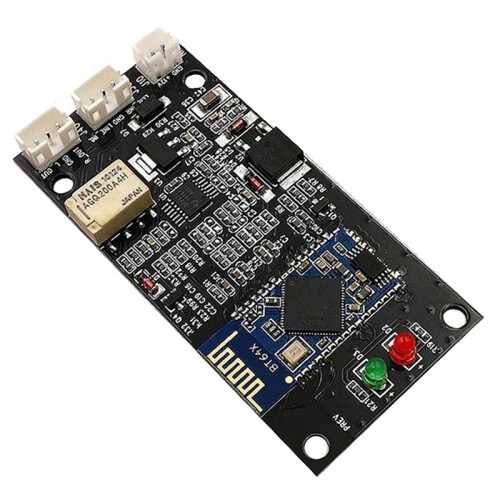

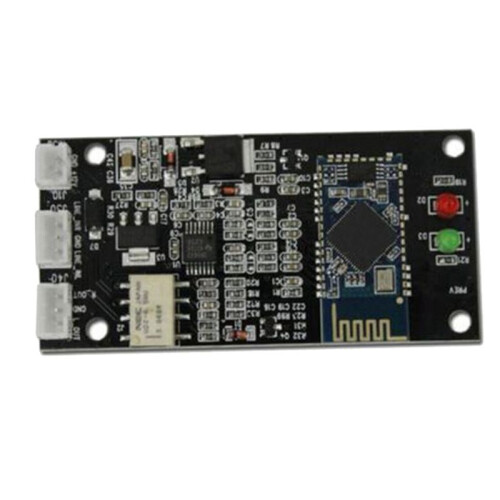

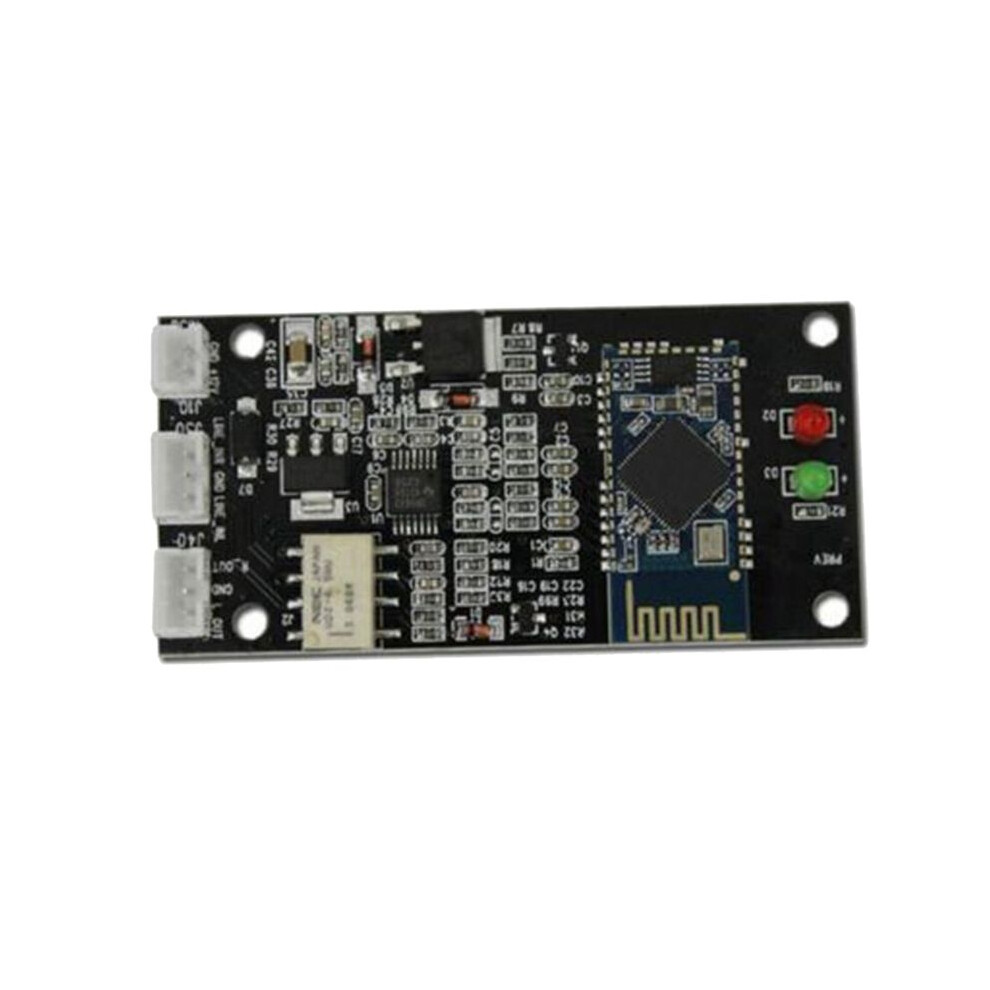

4.2 Receiver Board QCC3005 Amplifiers Module Lossless APTX DIY Audio Amplifier Module

Descriere 4.2 Receiver Board QCC3005 Amplifiers Module Lossless APTX DIY Audio Amplifier Module

Characteristic: 1. The product is suitable for converting audio amplifiers, DIY amplifier boards, preamp effects, etc.
2. Traditional cable transmission becomes wireless transmission. The module uses the high-fidelity CSR64215 chip. High-speed 4.2 transmission ensures that the audio data is transmitted to the analog amplifier without loss. In order to achieve wireless HIFI level sound quality.
3. The module supports APT-X lossless reception and the sound quality level reaches CD level. Is it really a lossy receiver module with ? This module is a receiver that outputs a single-ended standard analog audio signal.
4. The audio signal can be supplied directly to the front or rear stage analog amplifier without additional DAC decoder. To facilitate the DIY friends conversion needs.
5. The module supports auxiliary input to facilitate external linear audio. Between AUX and , high-precision imported relays are used to . The auxiliary input is switched directly by the relay without any chip processing. Ensures lossless output of auxiliary audio to the amplifier.

color: Black
material: plastic
1. power input interface, GND for negative power supply, + 12V for positive power supply. Wide voltage: 6-36V
2. Auxiliary audio interface, LINE_INR right channel input, GND common ground, LINE_INL left channel input
3. Audio output interface, R_OUT right channel output, GND common ground, LINE_OUT left channel input
4. Audio switching relay, imported
5. antenna to receive signals
6. work light 1
7. work light 2
8.QCC3008 program, support APT-X lossless signal reception
color: black
Material: plastic

Package Contents:
1 x Receiver Board
