4X ESP32-C3 SuperMini Expansion Board for ESP32-C3 Development Board ESP32 SuperMini Development Board
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
56,42 RON
144,82 RON
Reducere de 61%!
+45.000,00 RON livrare
1%
Câștigați 0,56 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (45.000,00 RON) | sâm 20 - vin 26 iun.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Descriere & Detalii
Rezumat

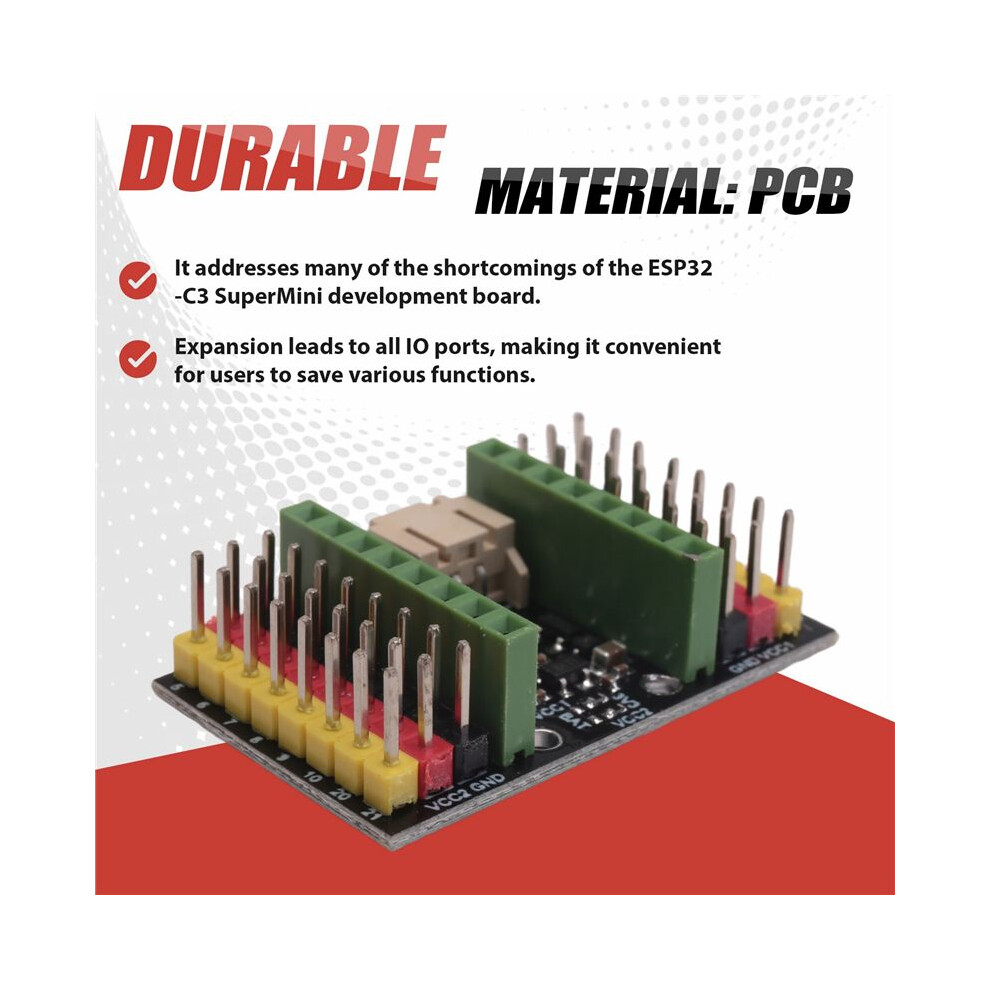

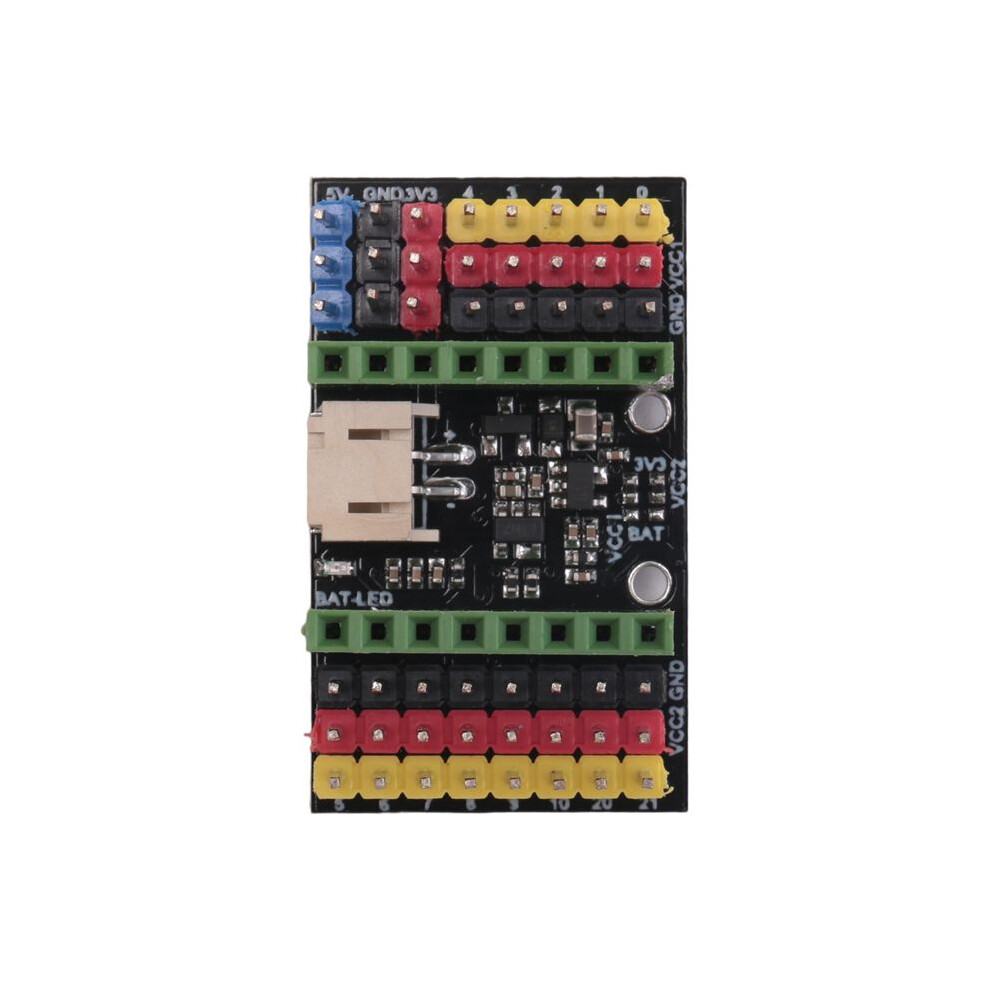

- The ESP32-C3 SuperMini expansion board is an expansion board specially designed for the ESP32-C3 SuperMini development board. It makes up for many shortcomings of the ESP32-C3 SuperMini development board.
- You can use the expansion board to connect an external 3.7V lithium battery, which supports charging the lithium battery through USB. The green indicator light lights up during charging. When the green indicator light goes out, the lithium battery is fully charged. The expansion leads to all IO ports, which is convenient for users to save various functions. Various sensors.
- The expansion board provides users with a better power supply solution. The expansion board has two power supplies, VCC1 and VCC2.
- The default output voltage of VCC1 and VCC2 is 3.3V. When you need to output a higher voltage, you can short-circuit the PCB. At this time, the output voltage of VCC1 and VCC2 is the power supply voltage 3.7V.
- The factory default is to use a 0R resistor connected to 3.3V. If you need to output 3.7V, directly remove the 0R resistor and short-circuit the three pads with tin. VCC1 and VCC2 control the voltage output respectively. If you need to use one, just handle which one.
Descriere 4X ESP32-C3 SuperMini Expansion Board for ESP32-C3 Development Board ESP32 SuperMini Development Board
The ESP32-C3 SuperMini expansion board is an expansion board specially designed for the ESP32-C3 SuperMini development board. It makes for many shortcomings of the ESP32-C3 SuperMini development board.
You can use the expansion board to connect an external 3.7V lithium battery, which supports charging the lithium battery through USB. The green indicator light lights during charging. When the green indicator light goes out, the lithium battery is fully charged. The expansion leads to all IO , which is convenient for users to save various functions. Various sensors.
The expansion board provides users with a better power supply solution. The expansion board has two power supplies, VCC1 and VCC2.
The default output voltage of VCC1 and VCC2 is 3.3V. When you need to output a higher voltage, you can short-circuit the PCB. At this , the output voltage of VCC1 and VCC2 is the power supply voltage 3.7V.
The factory default is to use a 0R resistor connected to 3.3V. If you need to output 3.7V, directly remove the 0R resistor and short-circuit the three pads with tin. VCC1 and VCC2 control the voltage output respectively. If you need to use one, just handle which one.
Color: multi-color
Material: PCB
Package Contents:
4 x Expansion Board
Detalii
| OPC | PQSGWQX |
|---|---|
| Coduri | 6132466966263 (EAN) |
Date despre produs
| Height | 8cm |
|---|---|
| Width | 6cm |
| Length | 9cm |
| Weight | 0.036kg |
| Colour | Multi-Color |
| Material | PCB |
