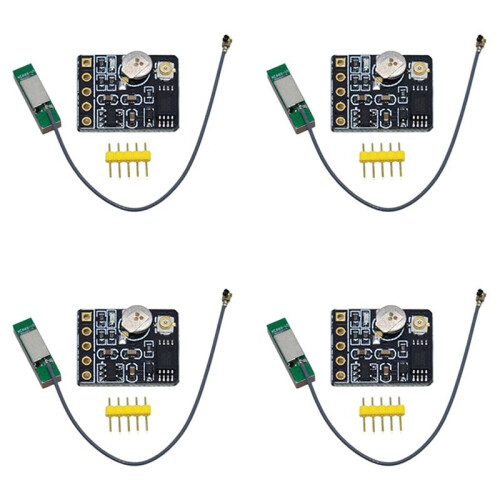

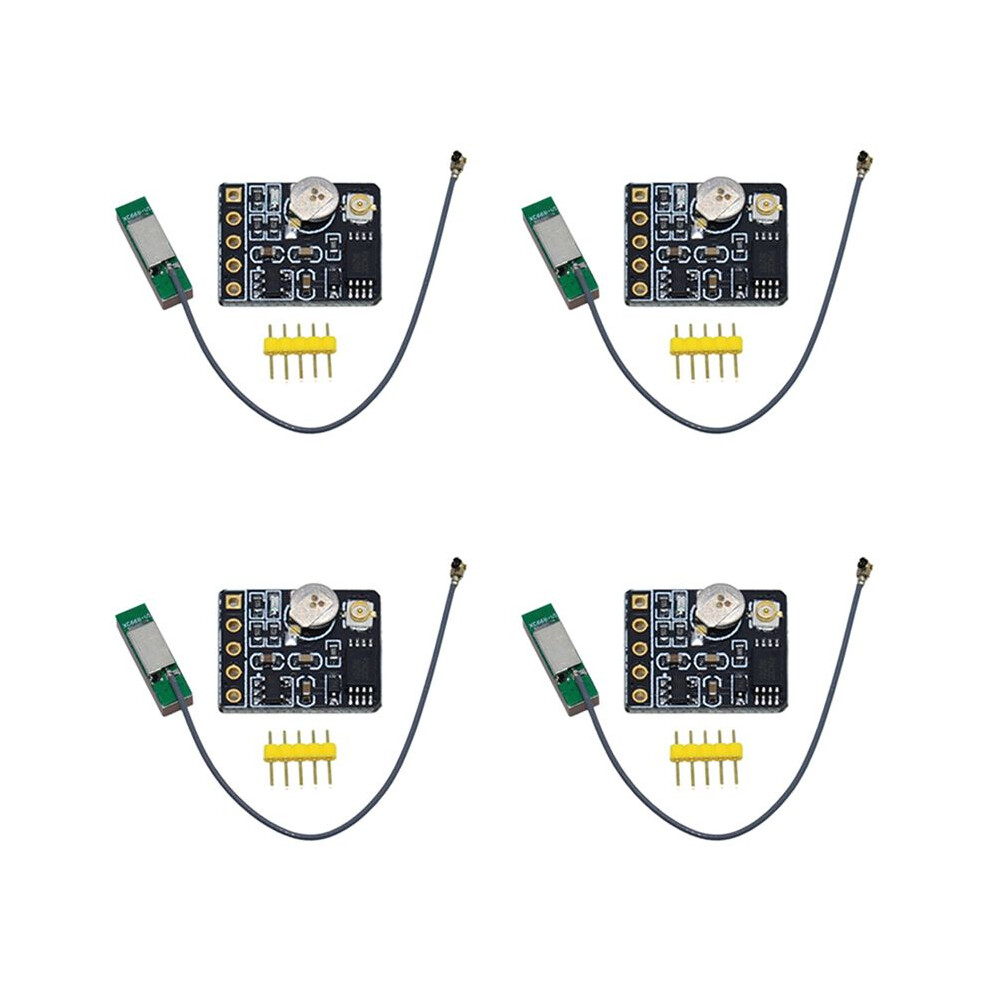

4X GPS+BDS Dual Mode Module Flight Control Satellite Positioning Navigator Atgm336H Replacement for NEO-M8N
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 134,000 de recenzii cu evaluare “Excelent”
160,03 RON
216,04 RON
Reducere de 26%!
+32,11 RON livrare
1%
Câștigați 1,60 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (32,11 RON) | lun 5 - sâm 10 oct.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Te-ar putea interesa și
Descriere & Detalii
Rezumat

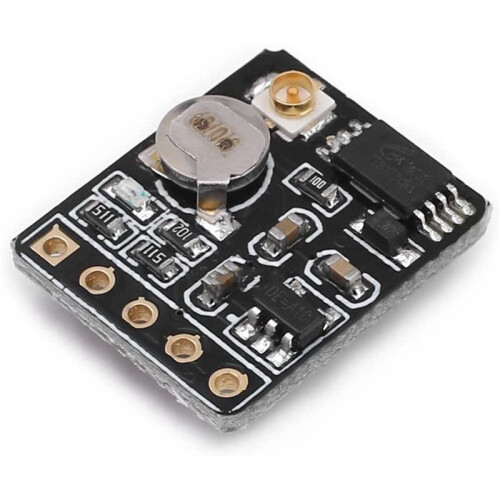

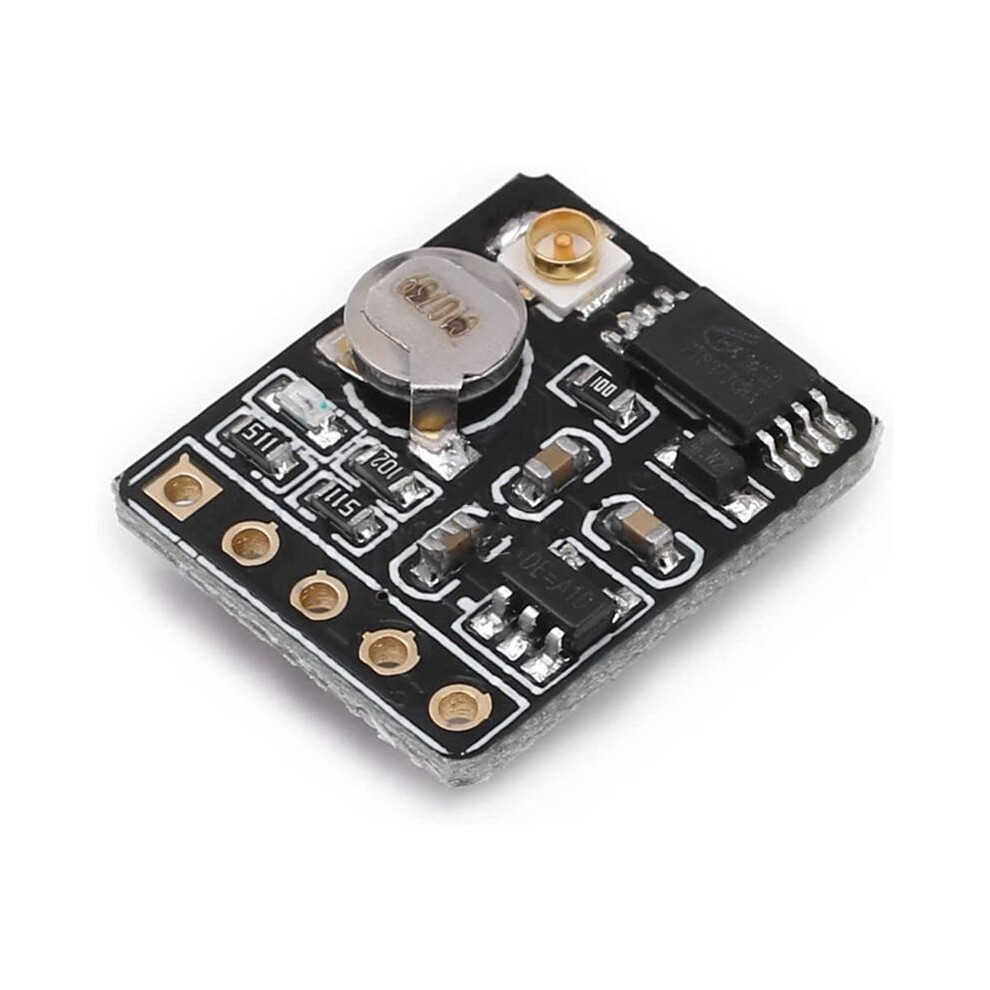

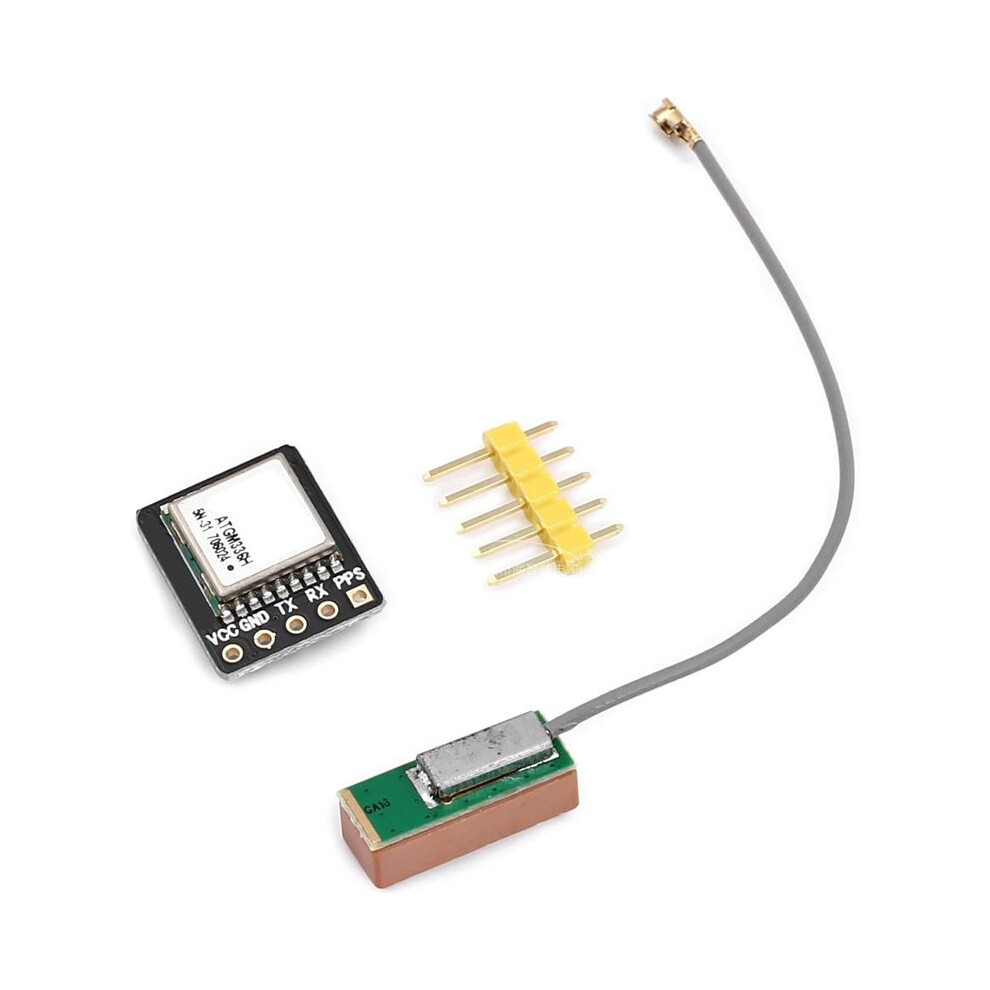

- ATGM336H-5N series module is the general name of the small size high performance BDS/GNSS full constellation positioning and navigation module series. This series of module products are based on Zhongke Micro's fourth-generation low-power GNSS SOC single-chip-AT6558.
- Supports a variety of satellite navigation systems, including China's BDS (Beidou Satellite Navigation System), US GPS, Russia's GLONASS, EU's GALILEO, Japan's QZSS and satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS).
- AT6558 is a true six-in-one multi-mode satellite navigation and positioning chip, including 32 tracking channels, can receive GNSS signals of six satellite navigation systems at the same time, and realize joint positioning, navigation and timing.
- This series of modules ATGM336H-5N has the advantages of high sensitivity, low power consumption, low cost, etc. It is suitable for car navigation, handheld positioning, wearable devices, and can directly replace Ublox MAX series modules.
- Output protocol: ATGM332D-5N series modules use UART as the main output channel and output according to the NMEA0183 protocol format. For details, please refer to "CASIC Multimode Satellite Navigation Receiver Protocol Specification".
Descriere 4X GPS+BDS Dual Mode Module Flight Control Satellite Positioning Navigator Atgm336H Replacement for NEO-M8N
ATGM336H-5N series module is the general name of the small size high performance BDS/GNSS full positioning and navigation module series. This series of module products are based Zhongke Micro's fourth-generation low-power GNSS SOC single-chip-AT6558.
Supports a variety of satellite navigation systems, including China's BDS (Beidou Satellite Navigation System), US GPS, Russia's GLONASS, EU's GALILEO, Japan's QZSS and satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS).
AT6558 is a true six-in-one multi-mode satellite navigation and positioning chip, including 32 tracking channels, can receive GNSS signals of six satellite navigation systems at the same , and realize joint positioning, navigation and timing.
This series of modules ATGM336H-5N has the advantages of high sensitivity, low power consumption, low cost, etc. It is suitable for car navigation, handheld positioning, wearable devices, and can directly replace Ublox MAX series modules.
Output protocol: ATGM332D-5N series modules use UART as the main output channel and output according to the NMEA0183 protocol format. For details, please refer to "CASIC Multimode Satellite Navigation Receiver Protocol Specification".
Excellent positioning and navigation functions, support single-system positioning of BDS/GPS/GLONASS satellite navigation systems, and any combination of multi-system joint positioning, and support QZSS and SBAS systems
A-GNSS support
Cold Start Capture Sensitivity: -148dBm
Tracking sensitivity: -162dBm
Positioning accuracy: 2.5 meters (CEP50, open field)
to first fix: 32 seconds
Low power consumption: continuous operation less than 25mA (@3.3V)

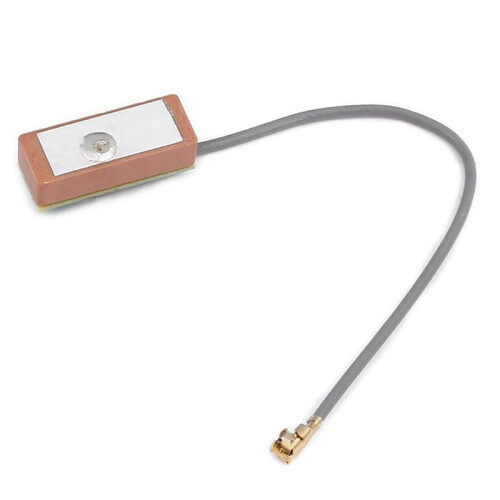

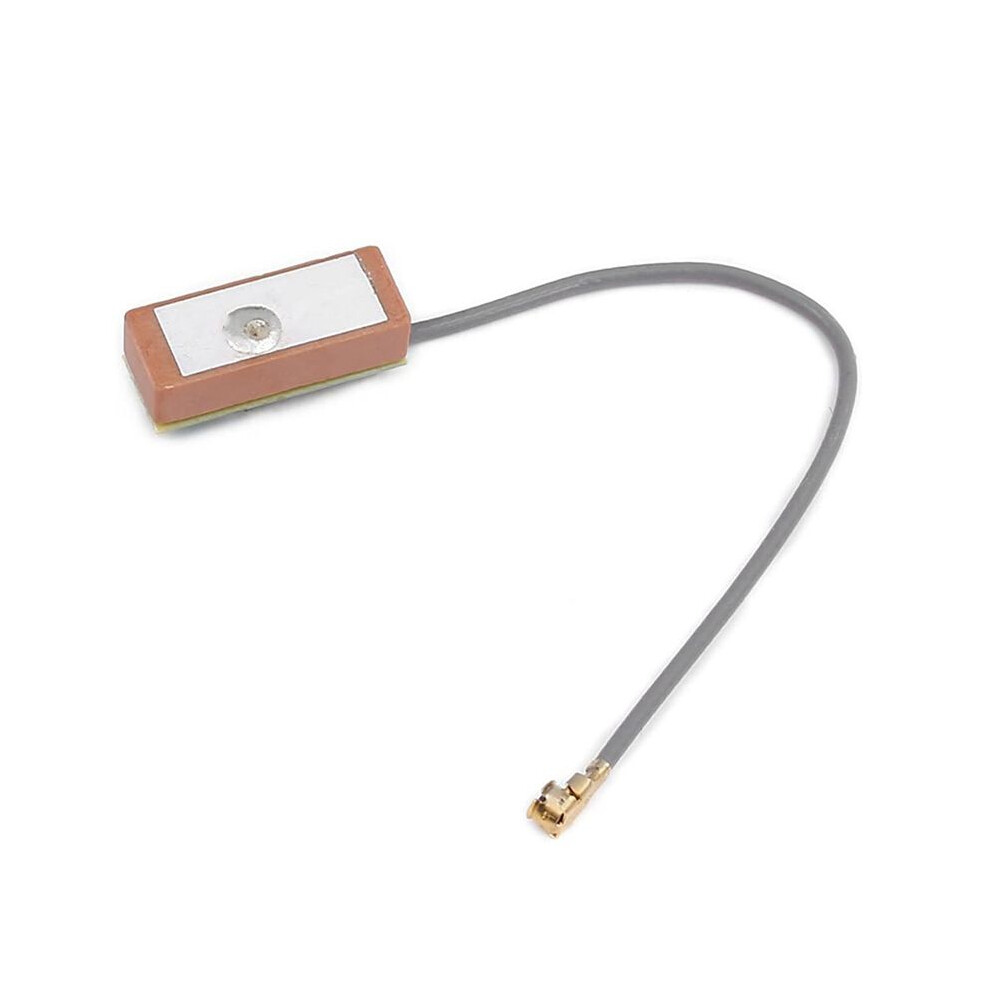

Built-in antenna detection and antenna short-circuit protection
Colour: black
Material: metal + ABS
Size: 2x2x2CM
Package Contents:
Detalii
| OPC | PXFJNK2 |
|---|---|
| Coduri | 6031075444707 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 4cm |
| Length | 6cm |
| Weight | 0.024kg |
| Colour | black |
| Material | metal + ABS |
