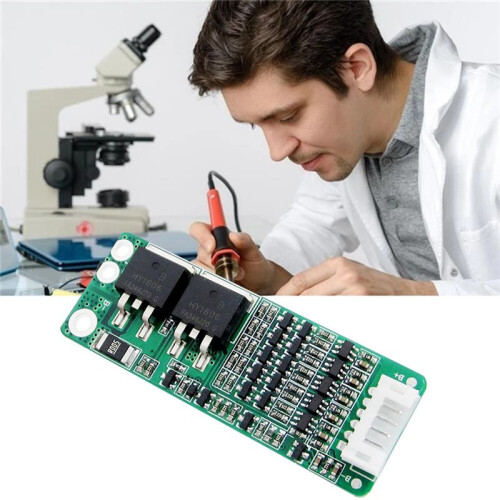

5S 21V 56A Lithium-Ion Battery Charging Protection Board+Cable Supporting Short Circuit/Overload/Over Current Protection

New

Produse similare care te-ar putea interesa

Plăci de circuite

Pentru placa de control a acționării 2106/161/169 + comutator 18V 21V electric fără perii136,71 RONLivrare GRATUITĂ

Placă de protecție pentru BL1850 BL183037,96 RONLivrare GRATUITĂ

Whole Group Balancer 8S 5A Active Lithium Lipo Lifepo4 Battery Equalizer Energy Transfer Capacitor BMS Board js128,41 RONLivrare GRATUITĂ

For Tang Nano 9K FPGA Development Board GOWIN GW1NR-9 RISC-V HD with Type C Cable js204,00 RONLivrare GRATUITĂ

Placă de echilibrare a bateriei Lifepo4 Lipo LTO 2X 8S cu egalizator activ297,79 RONLivrare GRATUITĂ

Placă de protecție Li-Ion 10S 36V 30A, protecție pentru celule Li-Ion 18650 B62,82 RONLivrare GRATUITĂ

Motor silențios de mare viteză 775 DC 21V cu perii mici56,44 RONLivrare GRATUITĂ

Placă de protecție 14S 52V 35A pentru baterie Li-Ion Lipolymer, PCB cu echilibrare180,00 RONLivrare GRATUITĂ

Would you like us to let you know when it's back?

Adaugă în coș

Descriere & Detalii

Rezumat

Name: Lithium battery charger charging protection board
Size: about 60 x 23 mm
Color: as shown in the figure
Charging voltage: 21 V
Charging MOS pressure value: 35 V

Descriere 5S 21V 56A Lithium-Ion Battery Charging Protection Board+Cable Supporting Short Circuit/Overload/Over Current Protection

Name: Lithium battery charger charging protection board
Size: about 60 x 23 mm
Color: as shown in the figure
Charging voltage: 21 V
Charging MOS pressure value: 35 V

Discharge MOS pressure value: 35 V
Charging current: 56A
Continuous discharge current: 1
Overcurrent protection: 50/55/60 A
Overcurrent protection delay: 20/25/30mS
Single self consumption: 30uA
Power consumption between single sections: 3uA
Single section overcharge detection voltage: 4.18 -/4.22V
Overcharge recovery voltage 4.05~4.15 V
Overcharge detection delay: 0.5/1.0/2.0S
Single section over discharge detection voltage: 2.75-2.85 V
Overdischarge recovery voltage: 2.90-3.20 V
Overdischarge detection delay: 0.5-2.0S
Short circuit/overload/overcurrent protection recovery Short circuit/over discharge/overcurrent protection, automatic recovery after load removal
Short circuit protection delay 200/500/600uS
Normal working state of B to P resistance: 5m Ω
Continuous 1 current temperature rise: 25
Working environment (humidity) Relative humidity: greater than equal 98% (humidity is stable for a long )
Working environment (temperature) - 30~80 (stable for a long in a lower temperature range)
Colour:green
Material:PCB

Package Contents:
1 x battery protection board
1 x flat cable
