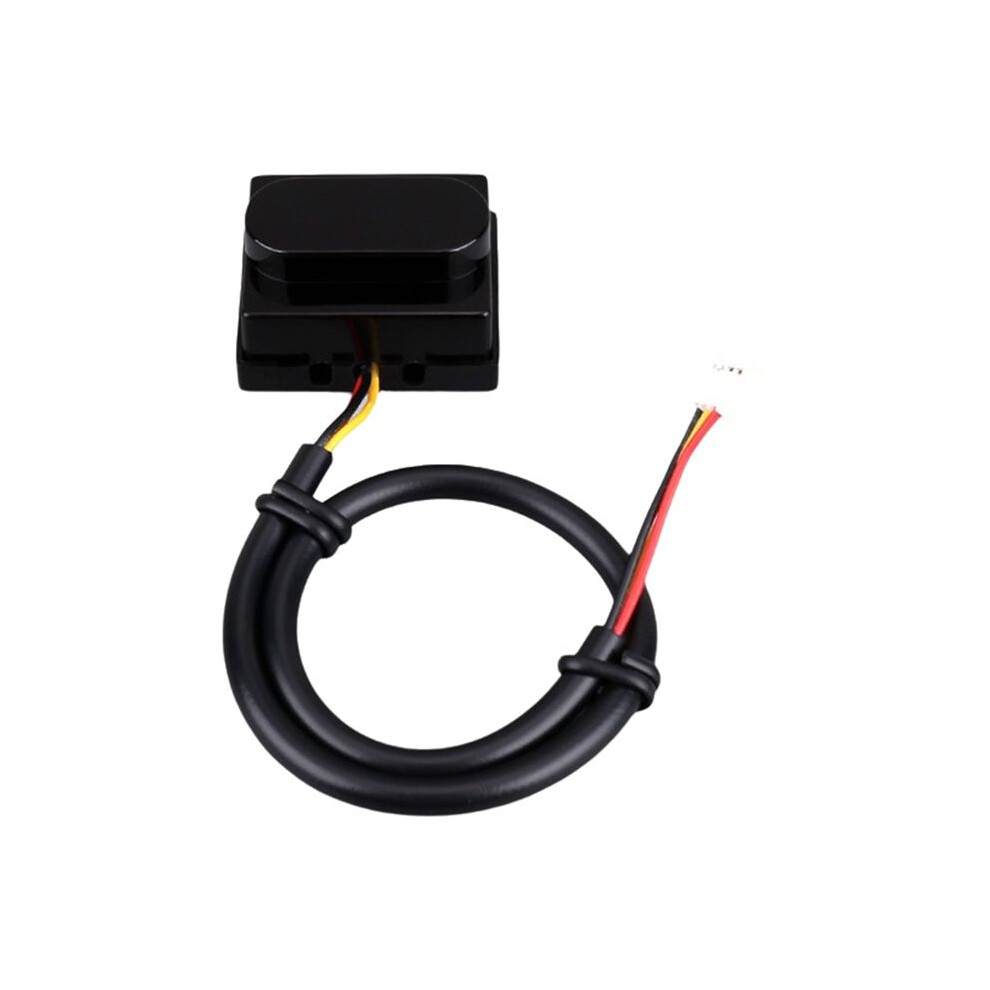

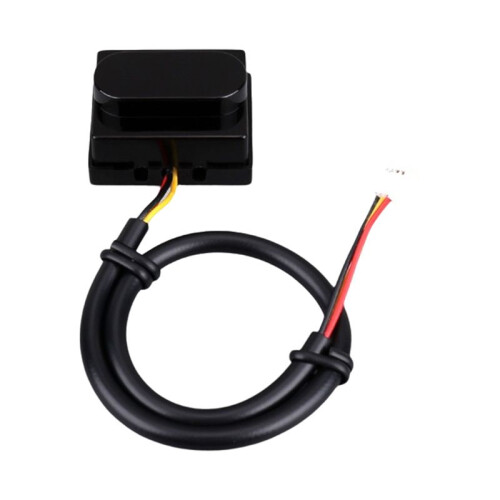

5V Infrared Photoelectric Induction Advertising Machine Active Diffuse Reflection Proximity Sensor Module B
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | joi 18 - mar 23 iun.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Cabluri cu infraroșu
Rezumat
- 1.Sensing principle: non-contact infrared sensor, designed with MCU circuit produced in using the principle of diffuse reflection of infrared light on objects. When a person or object enters the sensing area set by the sensor, the sensor outputs a signal, and the sensor turns off the output after the person or object leaves the sensing area.
- 2.Adjustable sensing distance: 10cm-100cm adjustable, clockwise adjustment distance is far, counterclockwise adjustment distance is close, the knob cannot rotate 360°.
- 3.Application: widely used in faucet sensing, bank self-service terminals, advertising light boxes, advertising machines, Face recognition all-in-one machine, toilet flushing, automatic hair dryer, automatic doorbell, automatic door, TV close-range TV watching reminder, etc.
- Active diffuse reflection infrared
- Self-service terminal human proximity
Descriere 5V Infrared Photoelectric Induction Advertising Machine Active Diffuse Reflection Proximity Sensor Module B
1.Sensing principle: non-contact infrared sensor, designed with MCU circuit produced in using the principle of diffuse reflection of infrared light objects. When a person or object enters the sensing area set by the sensor, the sensor outputs a signal, and the sensor turns off the output after the person or object leaves the sensing area.
2.Adjustable sensing distance: 10cm-100cm adjustable, clockwise adjustment distance is far, counterclockwise adjustment distance is close, the knob cannot rotate 360.
3.Application: widely used in faucet sensing, bank self-service terminals, advertising light boxes, advertising machines, Face recognition all-in-one machine, toilet flushing, automatic hair dryer, automatic doorbell, automatic door, TV close-range TV watching reminder, etc.
Working voltage: 5VDC
Sensing angle: 10-15 cone angle
Working temperature: room temperature
Product model: TAD-9128
Static power consumption: static Less than 1mA, dynamic Less than 5mA
Sensing mode: active
Storage temperature: -20C-70C
Output mode: 0V low level at ordinary times; sensing 5V high level
Sensing distance: 10cm-100cm adjustable (distance positive and negative error 10%)
Indicator light status: red light when sensing, red light off when not sensing
Wiring:
Red wire connects to positive pole
Black wire connects to negative pole
Yellow wire outputs 5V high level signal
Detection object distance: The closer the object is to the , the stronger the reflected light signal is, and it is easier to detect
Detection object color: Bright surfaces reflect more than dark surfaces and are easier to detect
Detection object size: Large objects have a larger reflectivity ratio and are easier to detect
Detection object surface condition: Rough objects are easier to detect than smooth objects
Specifications: B: without mounting holes
Color: Black
Material: plastic
Detalii
| OPC | PV9SWC8 |
|---|---|
| Brand | Exogio |
| Coduri | 6033556424871 (EAN) |
Date despre produs
| Height | 2cm |
|---|---|
| Width | 7cm |
| Length | 10cm |
| Weight | 0.08kg |
| Colour | Black |
| Size | B |
| Material | Plastic |
